Product Overview
Description
PRODUCT DESCRIPTION
Shmelek HP Struktura is designed for applying structured horizontal markings using prepared solvent-free liquid resin cold plastic. The plastic to be applied is prepared at the site immediately filling the tray.

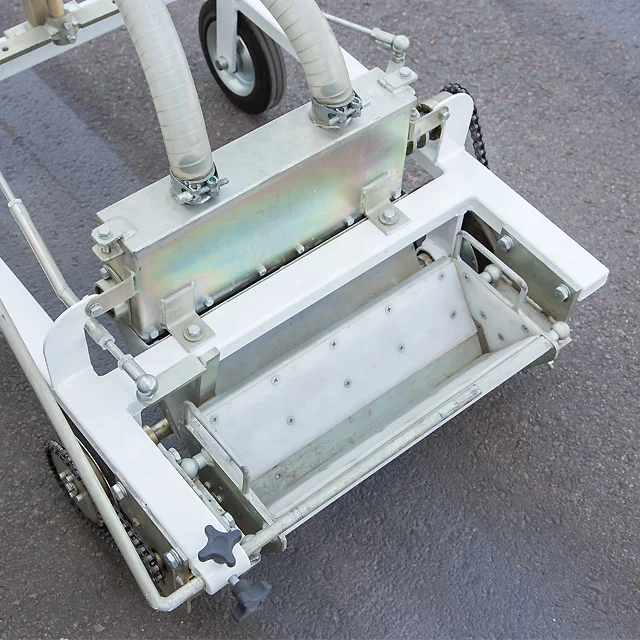

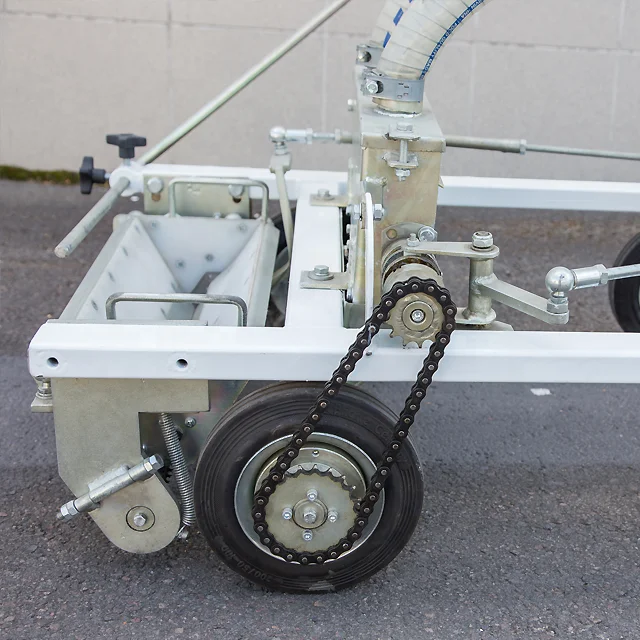

Markings are applied by spraying the plastic that gets through the tray gate onto a spiked shaft.
Simultaneously with marking, the lines are sprinkled with retroreflective glass beads.
The machine is equipped with quick-release marking units (trays) to apply lines 100, 120, 150, 200, 240, 300, 400, and 500 mm wide. The sizes of the standard configuration tray and additional trays are specified when ordering. The glass bead unit can be adjusted to match the width of a specific marking unit.

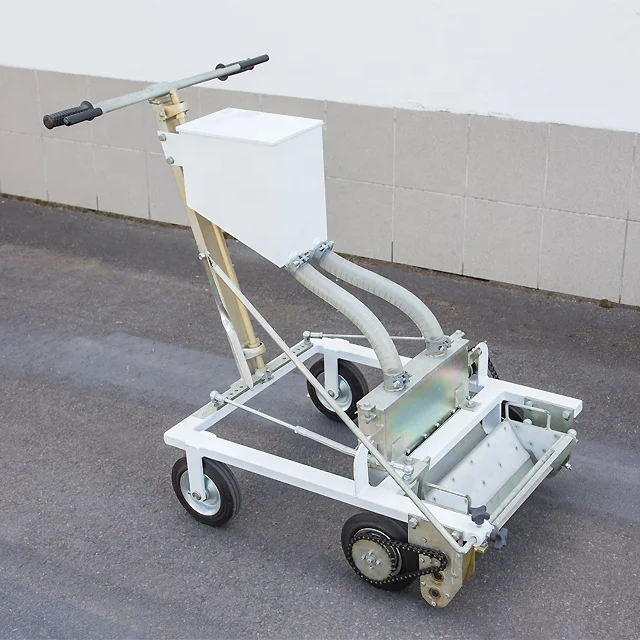

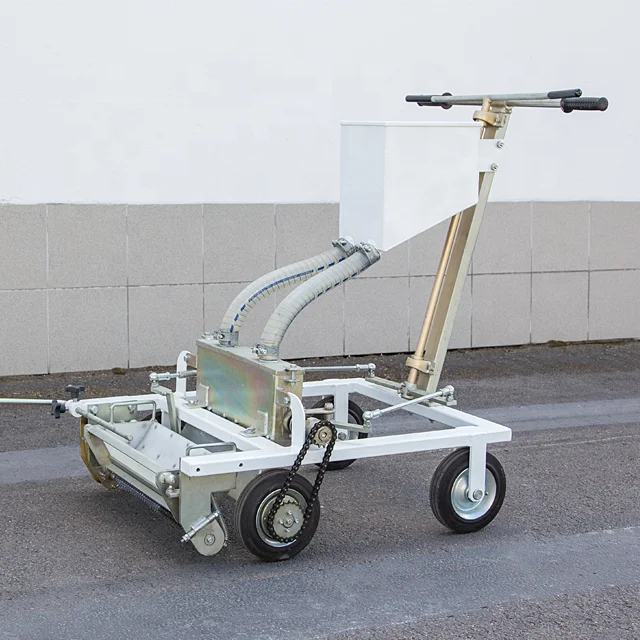

The machine is hand-pushed by the operator.
Markings are applied by spraying the plastic that gets through the tray gate onto a spiked shaft.
Simultaneously with marking, the lines are sprinkled with retroreflective glass beads.
The machine is equipped with quick-release marking units (trays) to apply lines 100, 120, 150, 200, 240, 300, 400, and 500 mm wide. The sizes of the standard configuration tray and additional trays are specified when ordering. The glass bead unit can be adjusted to match the width of a specific marking unit.
The machine is hand-pushed by the operator.
PRODUCT SPECIFICATIONS
Parameter | SHMELEK HP STRUCTURA |
Application rate, kg/m2 | 2.5–5.3 |
Line width, mm* | 100, 120, 150, 200, 240, 300, 400, 500 |
Replaceable units in the standard configuration | 1*** |
Glass bead bin capacity, L (kg) | 10 |
Glass bead sprinkling width regulation | 100-500 mm |
Working position, mm | 1900x1000x1200 |
Transport position, mm | 1050x800x1020 |
Weight without marking unit and replaceable parts, kg | 70 |
Marking unit weight (depending on size), kg | 5.9; 6.1; 6.4; 7.0; 7.5; 8.0; 9.3; 10.5 |
Overall dimensions, mm | 600x230x240 |
Staff | 2 |
* Depends on the replaceable unit size
** Configuration (max width 500 mm) to be specified when ordering
*** The number of additional replaceable units to be specified when ordering
** Configuration (max width 500 mm) to be specified when ordering
*** The number of additional replaceable units to be specified when ordering
