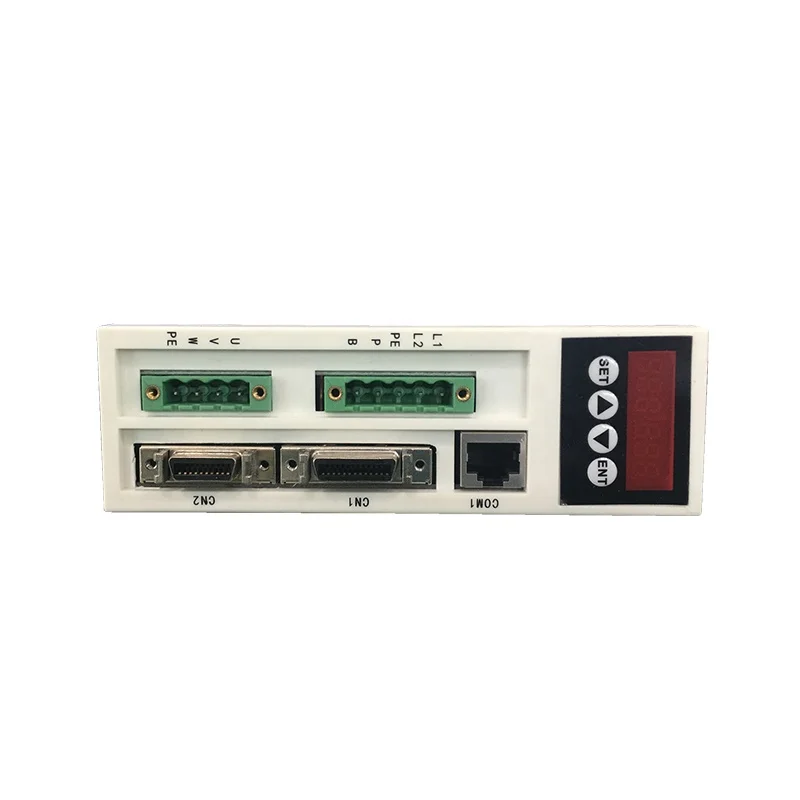

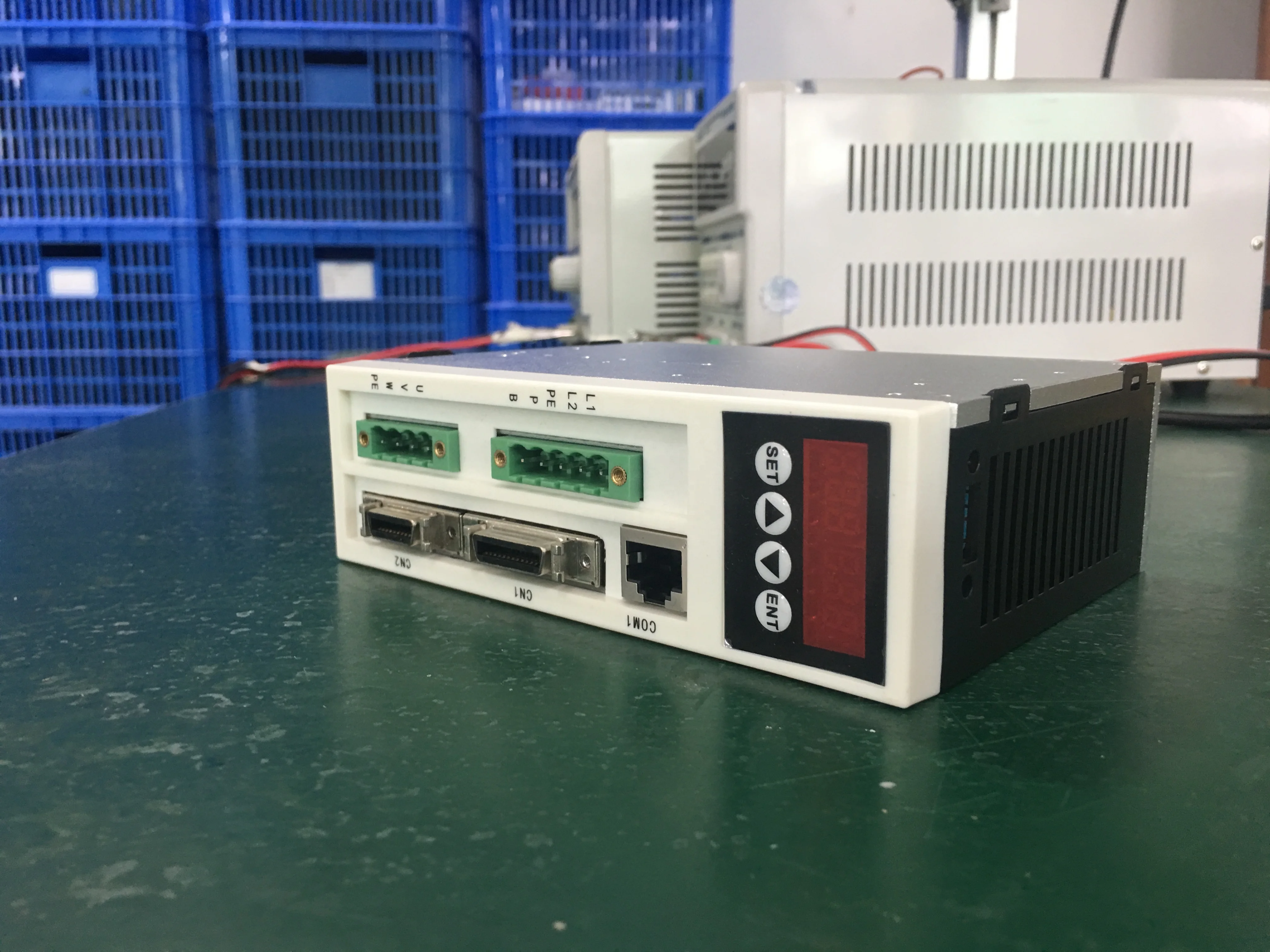

24-48V Low voltage DC Servo Motor Driver with 2500 line Encoder
Product Description
Specification and Description
-PID speed and current double loop regulator
-High performance, low price
-20KHZ Chopper frequency
-Electrical stop to ensure the quick action of the motor
-Overload radio larger than 2, torque always can achieve the max in low speed
-Provide OVP, LVP, OCP, OTP, illegal horal signal and other fault alarm
Product Characteristic
System Characteristic
Input Voltage: 24VDC~48VDC
Under Voltage Protection: 12VDC, Over Voltage Protection: 55VDC
Accelerate time constant, default: 2sec others can be customized
FAQ
Company Information
Parameter
characteristics | symbol | Value | Unit |
| Rated Voltage | U | 48 | VDC |
| Under Voltage | U | 10 | VDC |
| Over Voltage | U | 70 | VDC |
| Continuous Current | Idauer | 15 | A |
| Peak Current | Imax | 30 | A |
| Variable Speed Range | 0~100000 | RPM | |
| Efficiency | 90 | % | |
| Power for hall sensor | VCC | 5.0 | VDC |
| Alarm | I-Alarm Hall-Alarm Vmax-Alarm Vmin-Alarm Stall-Alarm | ||
| Run/stop(EN) | Logic level | Low -10~0.5V High 3~30V | V |
| DIR | Logic level | Low -10~0.5V High 3~30V | V |
| BAK | Logic level | Low -10~0.5V High 3~30V | V |
| PG | Logic level | Low -10~0.5V High 3~30V | V |
| Hall sensor input | Logic level | 0~5 | V |
| Temperature protection | Common style | <-10 or >70 | °C |
Industry style | <-40~>85 | °C | |
| Operating temperature | Common style | -10~+70 | °C |
Industry style | -40~+85 | °C | |

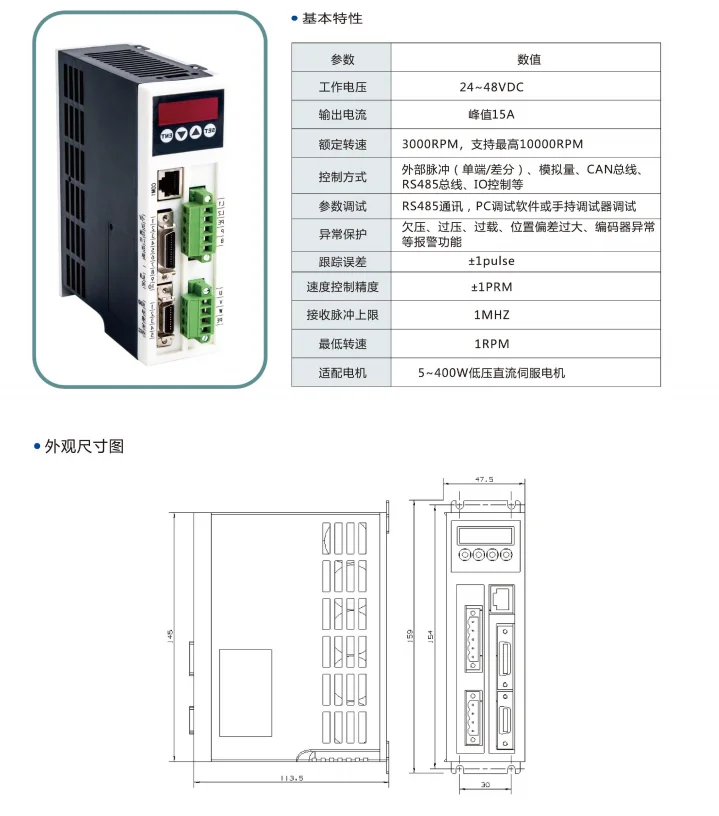

| Dimensions | 159*113.5*47.5 | MM | |
| Weight | 1.5 | kg |
