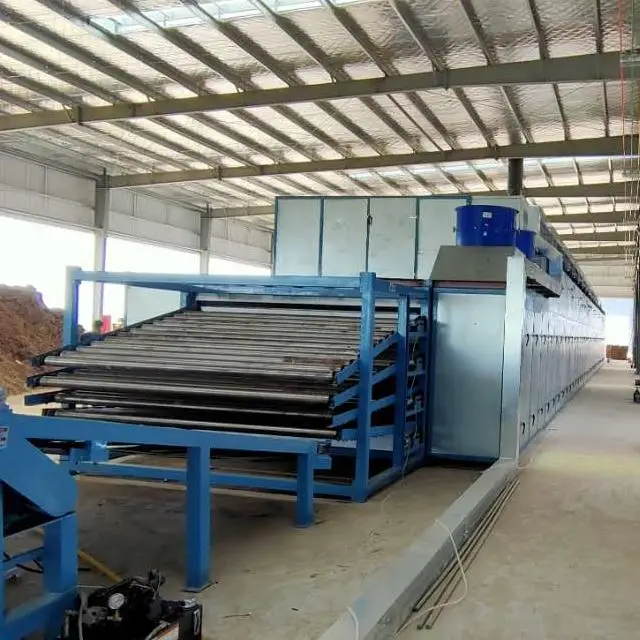

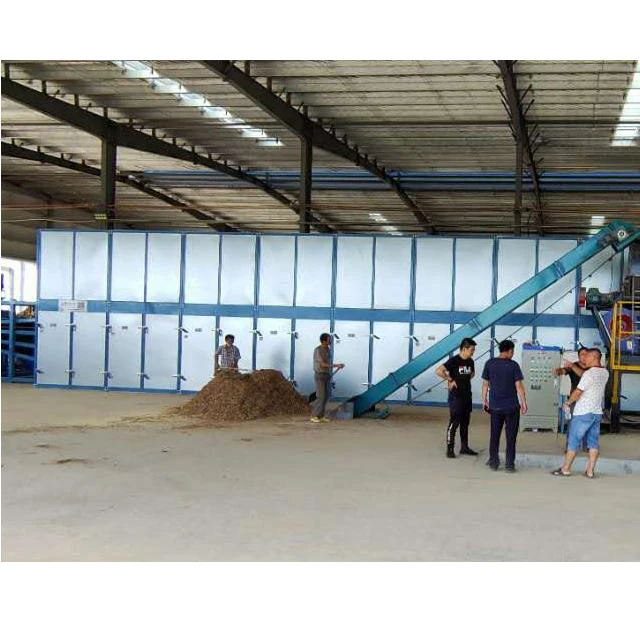

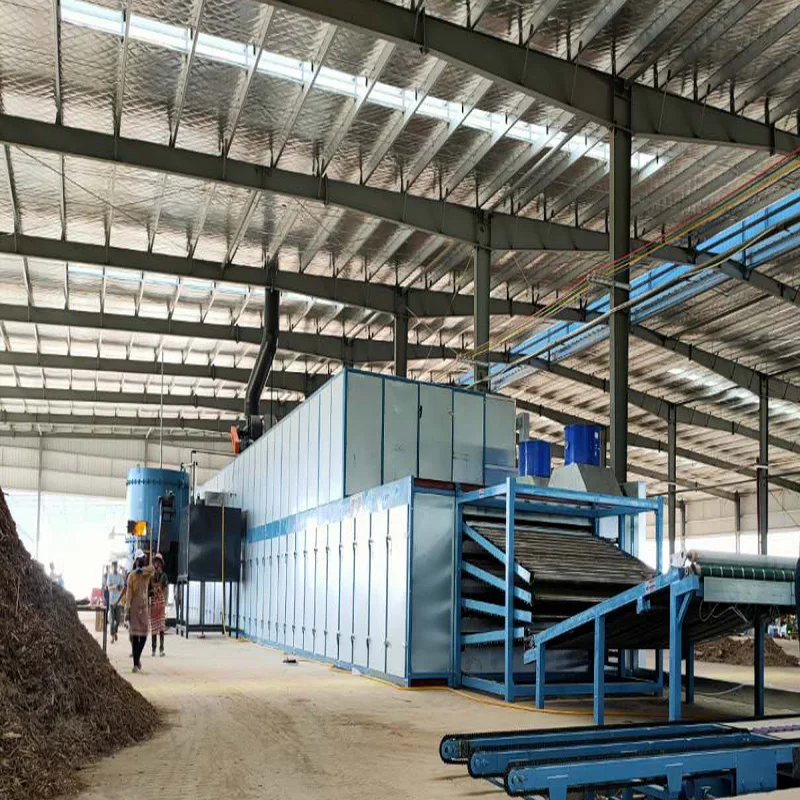

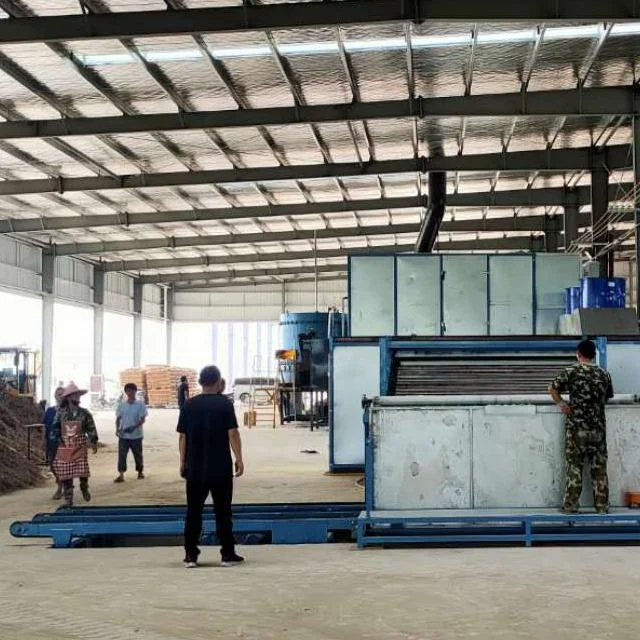

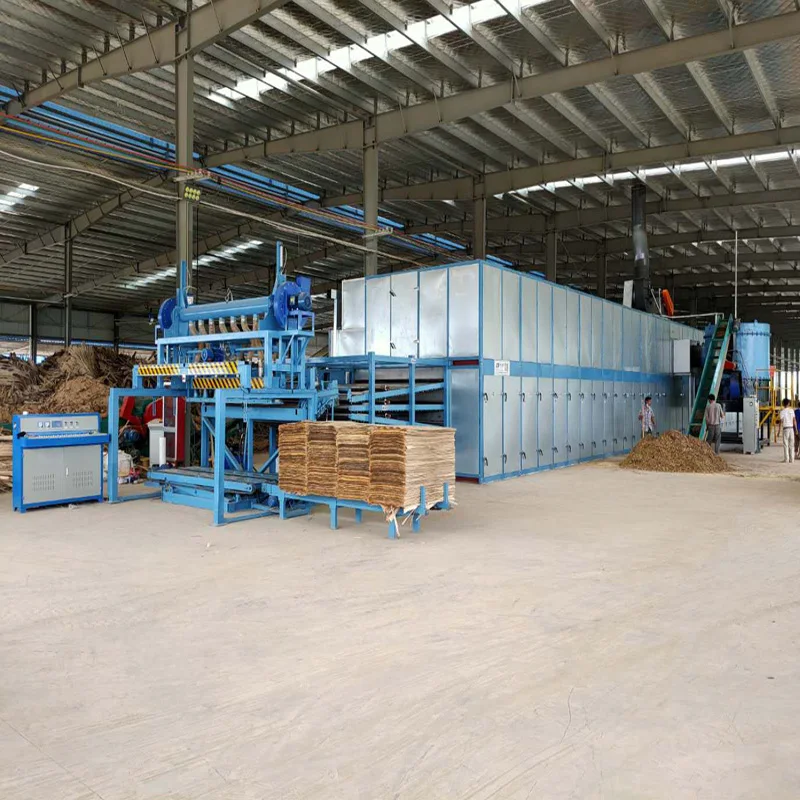

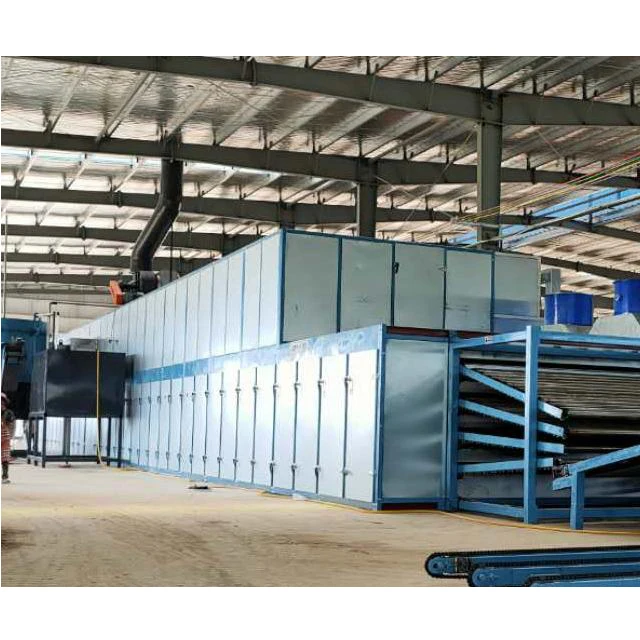

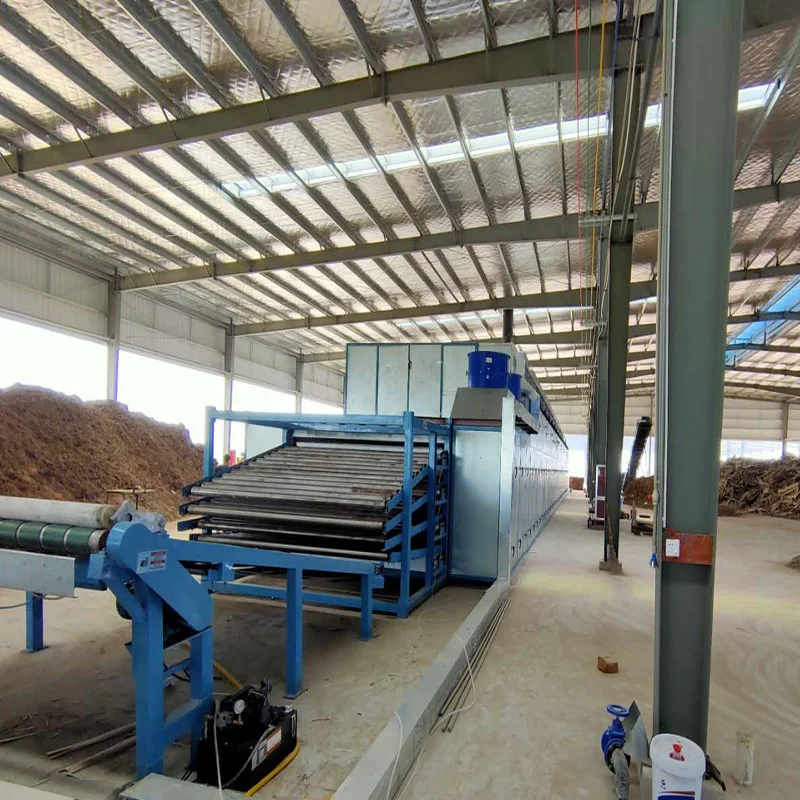

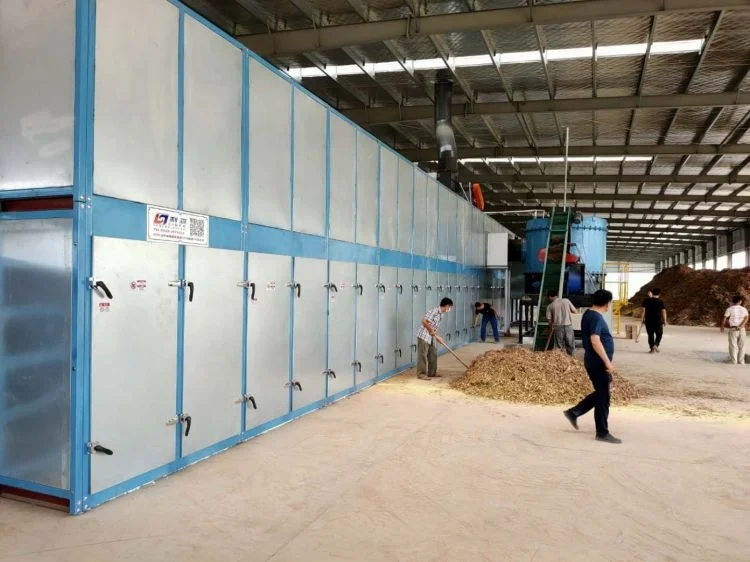

Energy Saving Four Deck Veneer Roller Dryer Machine

Product Overview

Description

Shine 4deck veneer dryer is our newly developed product to meet high capacity requirements of customers, which has the salient features of higher drying capacity. The rollers use φ102 steel special shaft tube. The bearings of 4 deck veneer dryer are featured high temperature 500 degree Celsius resistance and low temperature -20 degree Celsius resistance which no need injecting oil and easy maintenance in the daily operation.

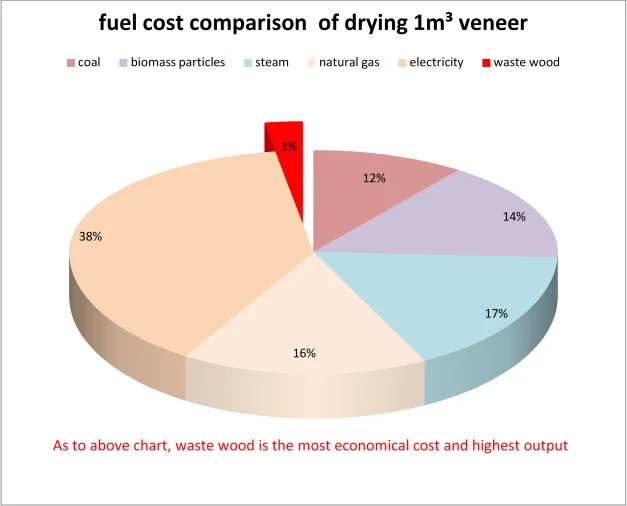

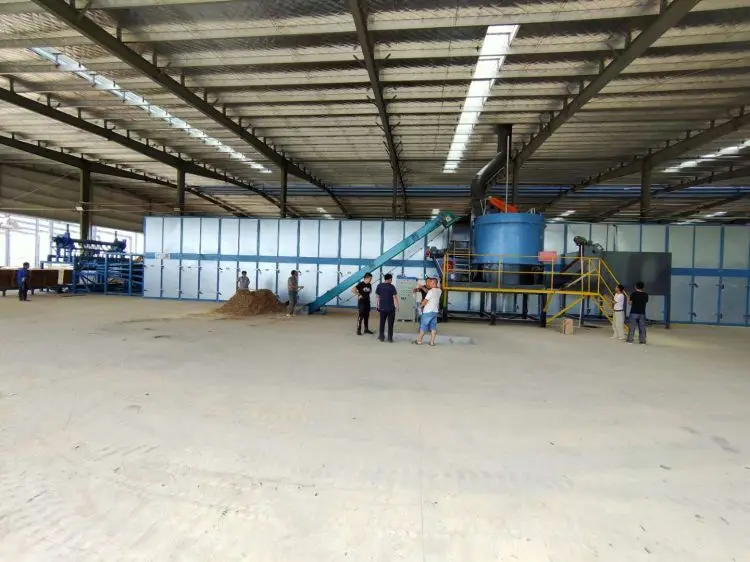

A unique heat exchange structure makes the equipment run efficiently and greatly improves drying output. Biomass burner is our patented product, which can burn waste wood (rotary cutting veneer, waste bark, and waste veneer) directly, heat air, and deliver to the dryer directly without heat loss. The fuel cost is much lower than thermal oil, steam gas, electricity, and others. The composite cost is only about $10/m³.Our biomass burner can pass the inspection and acceptance of the environmental protection department.











1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.

2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.

3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.

4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.

5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.

6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.

7. We have a professional R&D team which can design different models according to customer’s special requirement.

8. The perfect after-sale service team can supply 24 hours online service.

9. The bearings installed for the three-deck roller dryer is maintenance-free, and high temperature 500℃ resistance and low temperature minus 20℃ resistance, no need lubricating. Even the bearing sleeve is free of maintenance, no need for lubricating.

10. The hot air fans are 5.5kw axial flow fans with an air volume up to 46000m3/hour,  which ensures the sufficient air volume required by the dryer but also reduces the total machine power.

11. Roller distance is 330mm and wall thickness 2.5mm.

12. Jet box or air pipes in saw tooth thread design prevents veneer jamming.
