CNC Vertical Machining Center DEED Brand Siemens System Cnc Milling Machine Metal Milling
- Category: >>>
- Supplier: Jinan Deed Precision Machine Tool Co. ltd.
Share on (1600358554555):
Product Overview
Description
Product details
Product Description
| Control System | FANUC/Siemens/Mitsubishi |
| TRAVEL | |
| X-axis travel (mm) | 1100 mm |
| Y-axis travel (mm) | 600 mm |
| Z-axis travel (mm) | 600 mm |
| Spindle nose to table surface (mm) | 150-750/120-720 mm |
| SPINDLE | |
| Drive type | Direct drive/Belt drive |
| Spindle taper | BT40/BT50 |
| Max. Speed rpm | 12000/4500 rpm |
| Spindle Power (kW) | 11(15)/18.5 kW |
| Spindle Torque (Nm) | 52.5/118 126/208 Nm |
| TABLE | |
| Size (mm) | 950x500 mm |
| T-Slot (size * quantity * space) | 18x5x100 |
| Max load (kg) | 1000 kg |
| FEED | |
| Max.cutting speed (m/min) | 12 m/min |
| Rapid traverse (m/min) | 40/40/32 m/min |
| ACCURACY | |
| Positioning(half-closed loop) (mm) | 0.006 mm |
| Repeatability(half-closed loop) (mm) | 0.004 mm |
| ATC | |
| Type | Disc type /24T |
| Maximum tool size(full/unfull/length) | Φ78/Φ150/300 Φ105/Φ200/350 |
| Maximum tool weight (kg) | 8/15 kg |
| OTHERS | |
| Air Pressure (MPa) | 0.65 MPa |
| Power Capacity (KVA) | 25/35 kVA |
| Machine Weight (kg) | 8500 kg |

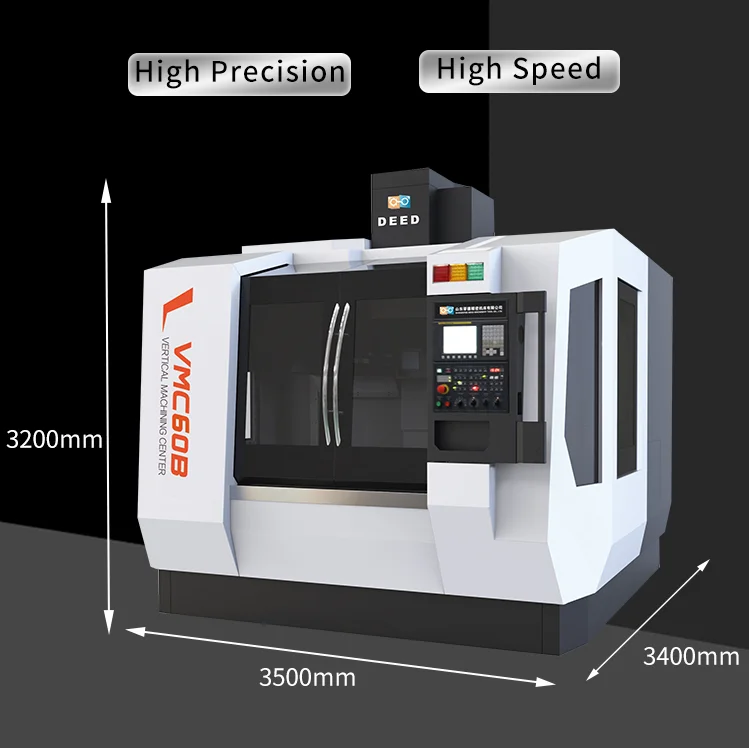

| Machine Floor Space (L *W *H) (mm) | 3500x3400x3200 mm |
