Wireless LTE 5G CPE Router Support Android IOS

Product Overview

Description

Wireless LTE 5G CPE Router Support Android+IOSer







    1. Description

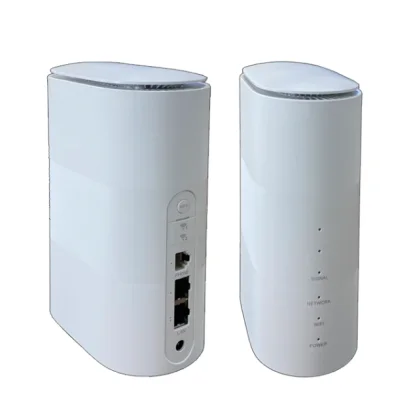

     PTW5362 5G CPE is a new wireless router for home or small business user, integrated with WIFI Hotpot,two Ethernet ports(WAN/LAN) one RJ11 and Web-UI management.It greatly facilitates the connection between people and networked machines,supports 4G/5G wireless and wired Internet at the same time,built-in 5G full-frequency antenna,download speed up to 2.3Gbps(theoretical value),circular layout design,360-degree signal coverage.

   It can also be applied to a wide temperature environment,and high ratio of performance to price,stable,cost-effective,high reliability,easy management,configuration flexibility and good quality of service(QoS) guarantees.



2. Features:

Ø Enabling high speed 5G network

Ø Qualcomm Snapdragon™ X55 and Wi-Fi 11ax technology

Ø Better antenna design

Ø “Smart ANT” algorithm allows CPE to choose better signals independently  Ensures 360° high-speed CPE connection, hign gain up tp 9dBi

Ø Low power consumption

Ø Special structural design and core parts, keeps power consumption low  Power consumption level is equivalent to 4G CPE

Ø Specially designed Chimney Venting

Ø No fan = No extra noise and power

Ø Core chips are equipped with Thermal phase change materials

Ø Supports Android+IOS

Ø Remote Management  DIY Experience

Ø Parental & Guest Wi-Fi Control  Recommend Best Location  Mobile Data Management



3. Technical parameters



Model Name	PTW5362
Network	NSA&SA 5G NR+LTE EN-DC - Sub6G FDD: n1/2/3/5/7/8/12/20/28/66/71, TDD: n77/78/79/41 4G LTE Global FDD and TDD, 600MHz~3.8GHz, CAT22
MIMO	5G+LTE: -sub6G DL: 4MIMO -4G DL: 8layers LTE: 4MIMO on 5CA(4G only)
Bandwidth (MHz)	100M
Platform	SDX55+QCA6391
Modulation	DL 256QAM, UL 256QAM
LTE+5G EN-DC Peak data rate	3.8Gbps
Wi-Fi	802.11a/b/g/n/ac/ax, 2.4G&5G dual band, 2*2 MIMO, 1.775Gbps,32 users
Antenna Gain	3.5GHz band max gain up to 9dBi(option)
Interface	Led:Power, WiFi, network,Signal*3 RJ11*1 VoLTE, VOIP
Weight
Size	124mm*70mm*182mm(L×W×H)
