1080p Prices With Power Coax 4MP 3MP CVI TVI to RJ45 IP Converter 5MP 8MP UTP CAT5 DC BNC Male HD Passive 4K PV CCTV Video Balun
Why choose us
Product Description
Overview
75 ohm BNC to RJ45 IP Converter CCTV Active HD passive video balun
[1080P HD Video Balun]: Full-motion CCTV video at distance up to 350m-600m when used with any passive transceiver. Up to 300m for 960H/1080P AHD Cameras, up to 300m for 720P/1080P for HDTVI Cameras in DVR support.

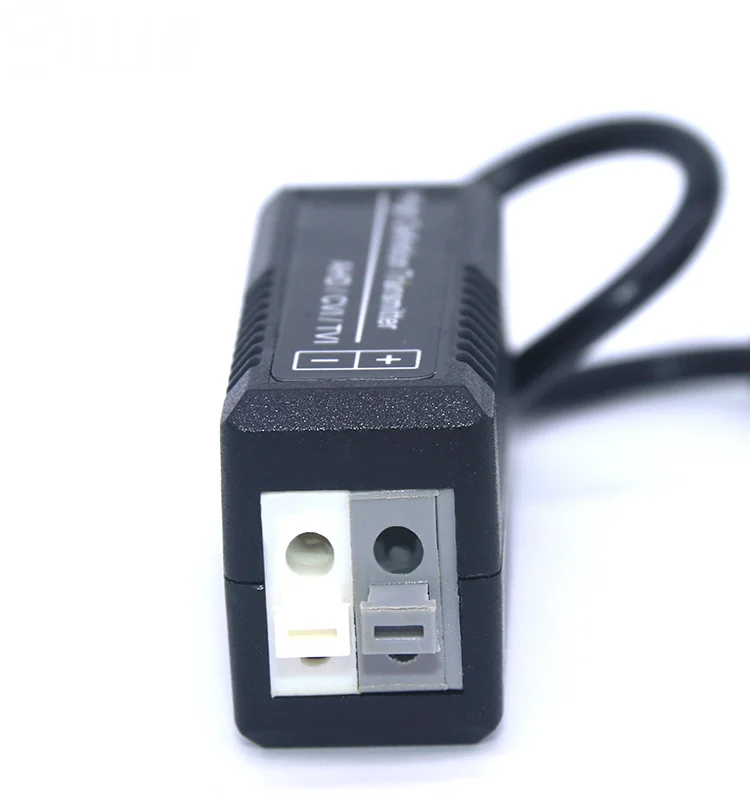

[Tool-Less Installation]:No need to strip the wires, this 1080P AHD/HD-CVI/TVI/CVBS Passive HD Video Balun Transmitter adopted newest “Prees Fit” screw free installation method, tool-less, installs in seconds, save your time, makes the installation work more convenient!
[Widely Application]: Compatible with HD-CVI, HD-TVI, HD-AHD, CVBS, NTSC, PAL, and SECAM video formats. 60 db cross talk and noise immunity. Push-terminal channel passive HD transceiver, male BNC allows connection directly to TVI/CVI/AHD or camera system,gold plated BNC better transmission quality long distance HD transmitter. No power required.
Features
Support HD-CVI, HD-TVI, HD-AHD ,CVBS
Up to 600m for 720P HDCVI Cameras
Up to 600m for 720P CVBS Cameras
Up to 300m for 960H/1080P AHD Cameras
Up to 300m for 720P/1080p HDTVI Cameras (300M need DVR support)
NTSC, PAL, and SECAM video formats
No power required
60dB cross talk and noise immunity.
Compact size and easy installation

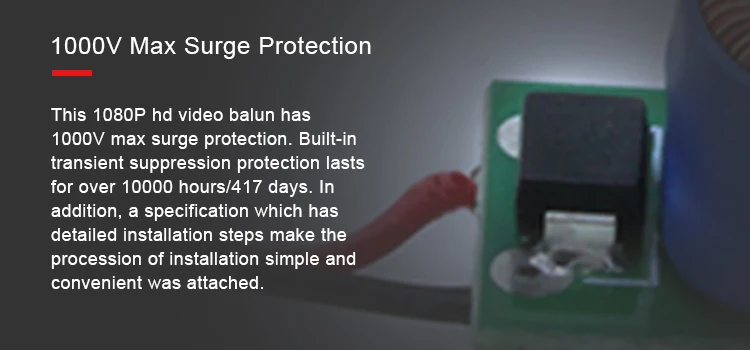

Built-in transient suppression protection
Innovative combinable design
Model | B208E | |
Video | Transmission Signal | Single Channel HD Passive Balun |
Compatible Format | AHD/ HDCVI/ HDTVI/CVBS Analog | |
Resolution | 720p/1080p | |
Max. Distance 720p | AHD/CVI 300M, TVI 190M | |
Max. Distance 1080p | AHD/CVI 220M, TVI 190M | |
Video Format | PAL,NTSC,SECAM | |
Operating Frequency | DC to 42MHz | |
Anti-interference | > 60dB | |
Impedance | Coax, Male BNC 75 unbalanced UTP, screw terminal 100 balanced | |
Attenuation | 1.5 dB typ Max. | |
Wire Type | Network Wiring | One Unshielded Twisted Pair 24-16 AWG (0.5-1.31mm) |
Category Type | 2-pins UTP cat5e/6 | |
Coaxial Video Connector | Male BNC connector screw terminal/Push pin terminal | |
DC Loop Resistance | 52 ohms per 1000ft(18ohms per 100m) | |
Differential Capacitance | 19 pF/ft max (62 pF/m max) | |
Imperance | BNC Male | 75 Ohms |
UTP Cable | 100 Ohms | |
Protection | Surge Protection | Renewable solid state surge protection |
ESD | 1a contact discharge electricity level 3 per IEC61000-4-2 | |
1b air discharge electricity level 3 per IEC61000-4-2 | ||
Coaxial Video Connector | 2KV (common mode) per IEC6100-4-5 | |
UTP Cable Connector | 2KV (different code), 4KV (common code) per IEC6100-4-5 | |
General | Housing | ABS engineering plastic |
Power Input | No external power required | |
Body Color | Black | |
Dimensions(L*W*H) | 13.7*11.6*3mm | |
Net Weight | 60g | |
MTBF | > 10000H | |
Operating Temperature | -10°C~55°C | |
Relative Humidity | 0-95% (non-condensing) | |

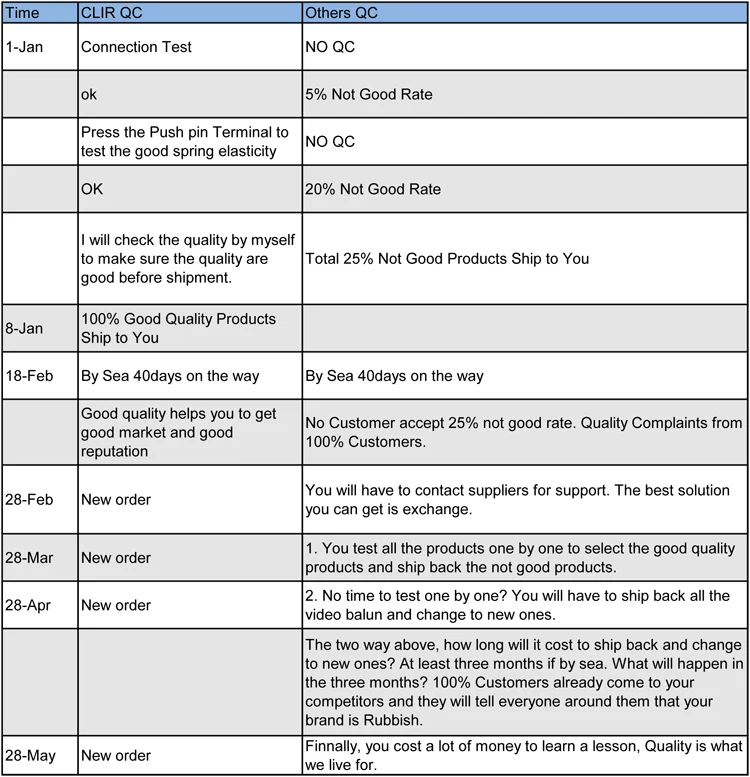

Quality Control
1080P AHD CVI TVI CVBS Passive HD Video Balun Transmitter UTP Up to 200M-400M, the creative generation video balun for you.
Company Information
Headquartered in Shenzhen, CLIR TECHNOLOGY LIMITED is an industry leading designer, developer and manufacturer of enterprise-level BNC Connectors, Video Baluns, Cables, CCTV Power Supplys, Microphones, CCTV Tester, CCTV camera housing and bracket. The company produces the most advanced and respected offering of CCTV Accessories based on its owned patented algorithms. Being a true manufacturer from board level design to hardware and software development, CLIR is able to control every aspect of the process from end-to-end.

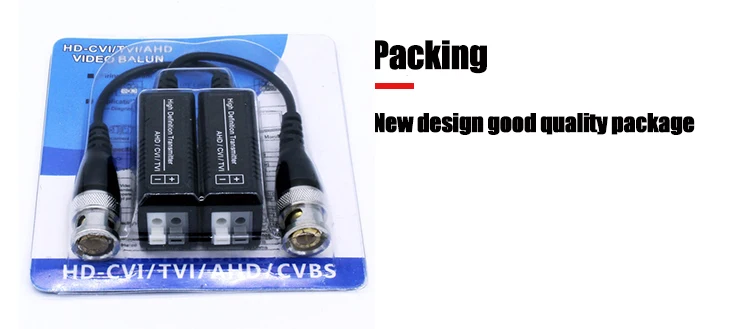

Packaging & Shipping
