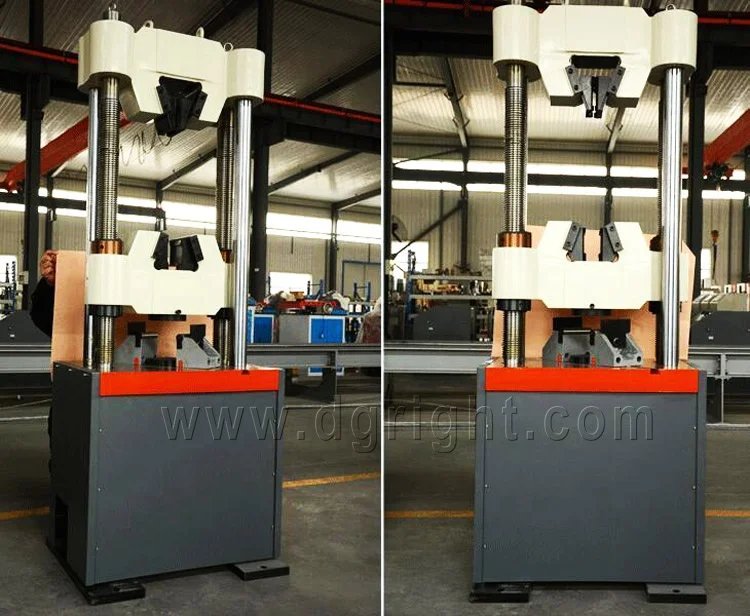

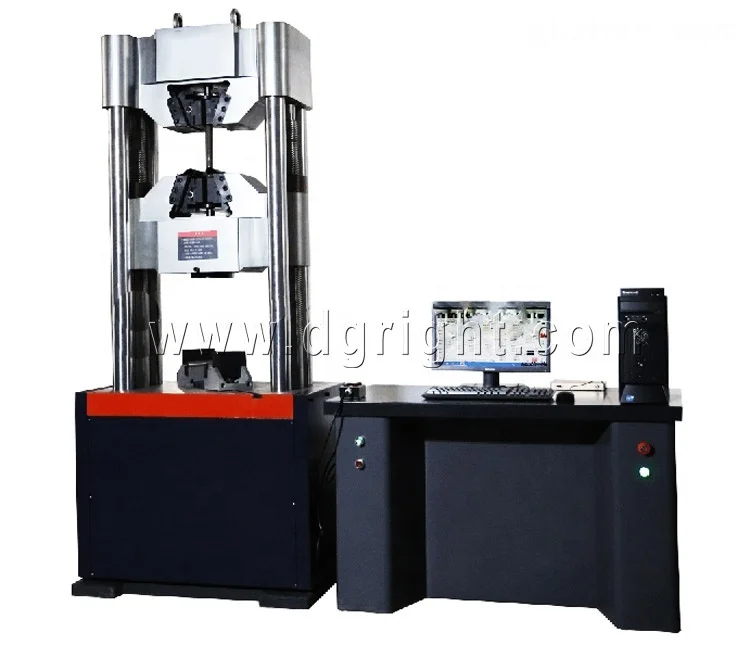

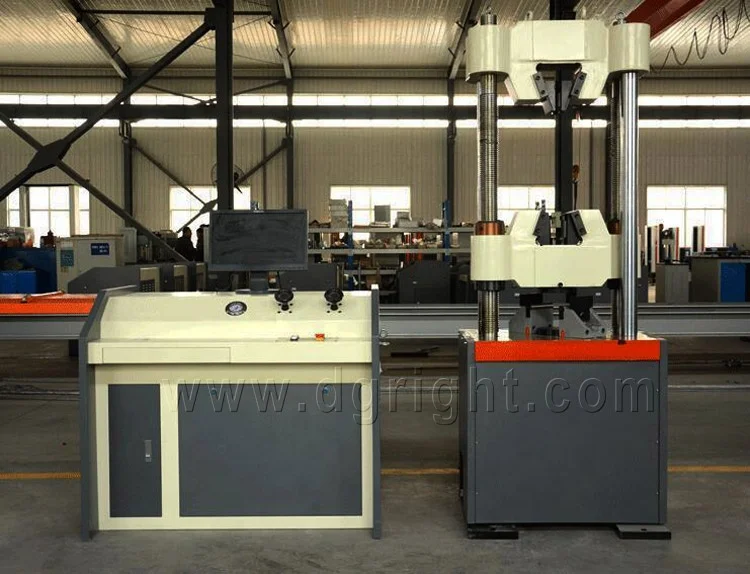

Universal Material instron 500kn 100 ton Tensile Testing Machine

Technical parameters:

Introduction:

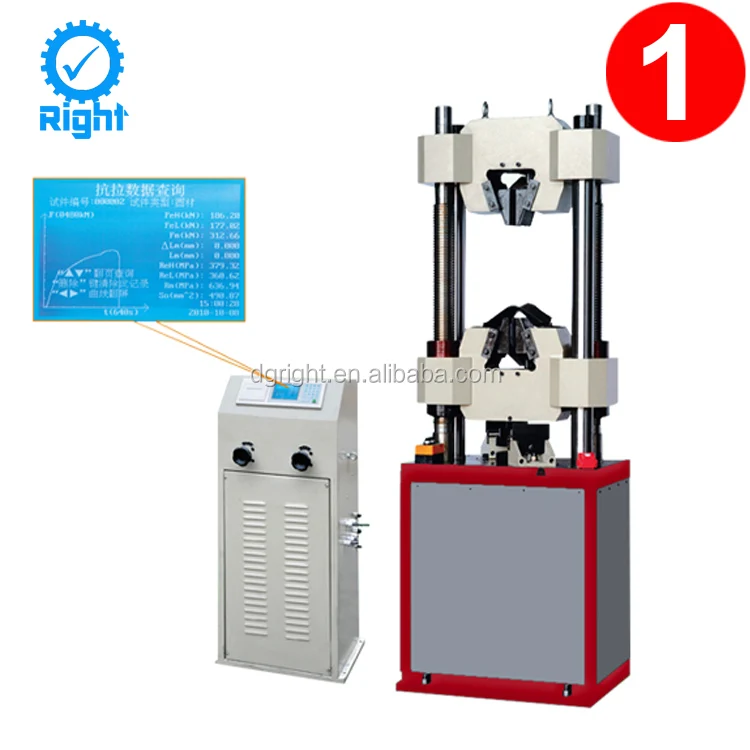

Steel Wire Hydraulic Universal Tensile Compression Strength Testing Machine is mainly used for metal and nonmetal materials tensile, compression, bending and other mechanical properties

 testing, accompanied by increased shear shear test can be done.The machine is equipped with computers,

printers, electronic extensometer, universal testing optical encoders and software, can accurately determine the

 metal material tensile strength, yield strength, provides that non-proportional extension strength, elongation,

modulus and other mechanical properties.You can check and print test results (force - displacement, force -

 deformation, stress - displacement, stress - deformation, force - time distortion - time) six curve and related test

 data with the software self-test function that can self-diagnose problems, See software description.It is industrial

 and mining enterprises, research institutes, universities, engineering quality supervision station ideal for test

equipment and other departments.

Host:

Adopt oil cylinder under mounted type host, stretching space is at the top of host, compression test space is

 between the at the work table and the crossbar .

Transmission system:

Down beam go up and down by the use of motor reducer, chain drive mechanism, vice screw drive, to achieve

 tensile, compression of space to adjust.

Hydraulic System:

The oil tank is sucked through the filter screen and be inhaled pump oil ,through the petroleum pipeline of oil

pump transport to oil valve,When the hand wheel to send off the oil, due to the role of oil will push the piston,

the oil from the return pipe to tank, when the hand wheel to open get the oil, then the working fluid into the fuel

 tank through the tubing, pressure tubing through and through oil return valve to tank.

Control system:

1.Support for tensile, compression, shear, bending and other tests;

2.Support open editing test, editorial standards and editorial procedures, and to support export import testing,

standards and procedures;

3.Support custom test parameters;

4.Adopt an open statement in the form of EXCEL, to support user-defined report format;

5.Print the query testing results flexibility, support for printing multiple samples, custom sorting print projects;

6.Procedure supports hierarchical management levels (administrator, tester) user management rights;

Safety protection device:

a) When the test force more than 3% of the maximum test force, the overload protection, oil pump motor

shut down.

b) When the piston rises to the upper limit position, stroke protection, pump motor shut down.

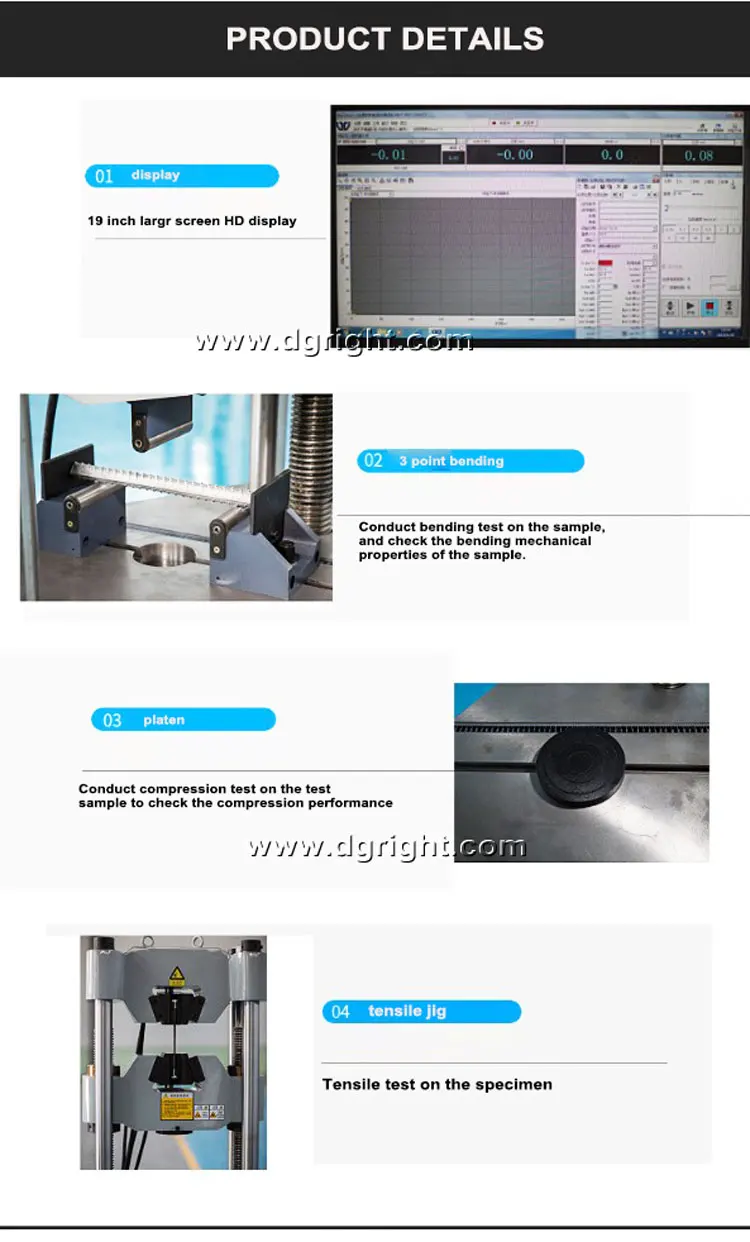

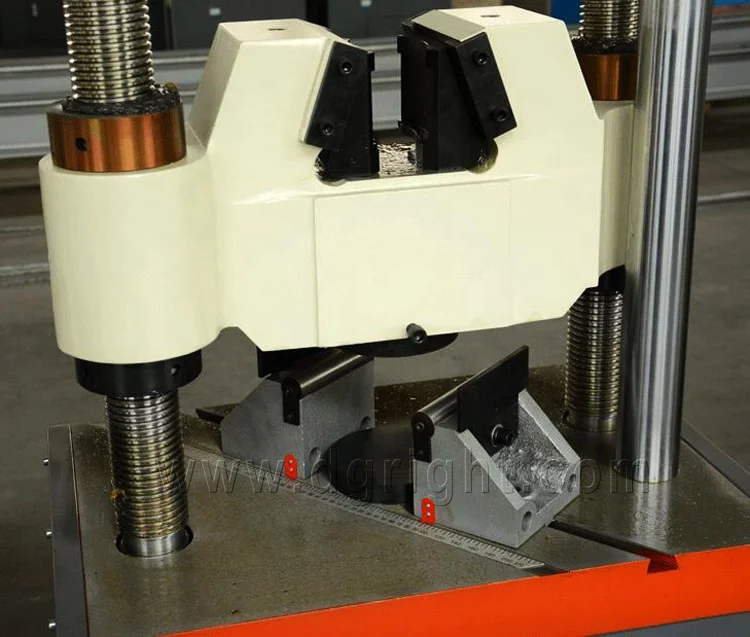

Fixture:Whole set fixtures include:stretch fixture,compression fixture,bending fixture.

*Shippment

-By sea

-By plane

-By couriers, TNT, DHL, FEDEX, UPS, etc.

*Standard Export carton

1.Inner Package: Thin plastic film surround the machine;
2.Outer Package: Internationally standard package export safety wooden case.
