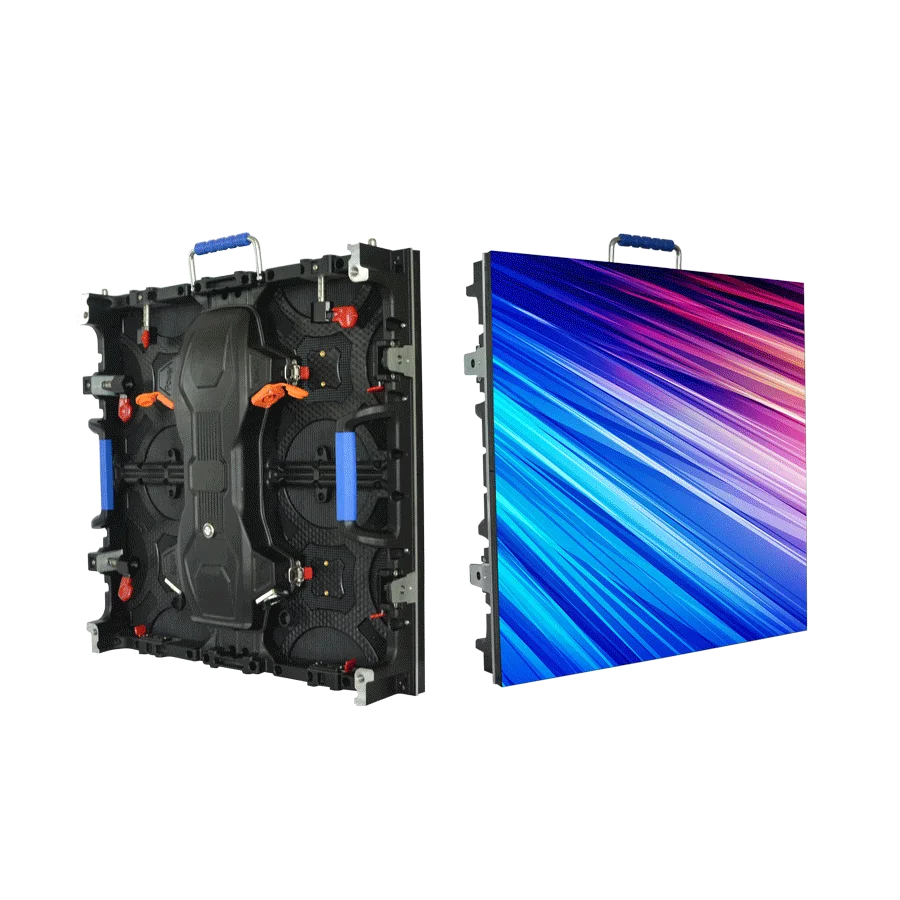

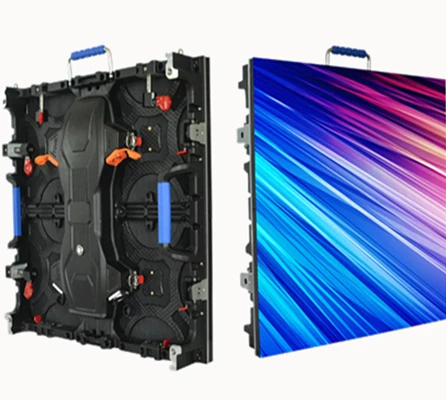

HD комнатный дисплей P2.9 для проката событий, FHD 4K светодиодный экран для сцены
- Category: LEDs >>>
- Supplier: Shenzhen Micsolar Technology Co. Ltd.
Share on (1600358852015):
Product Overview
Description
HD indoor P2.9 event rental display, FHD 4K stage LED screen
Product description
Features
1, Die-casting aluminum cabinet frame applies latest molding workmanship, which ensures its accuracy and durability
2, Advanced inner and outer curve lock systems, curve installation is available for both 500mmx500mm and 500x1000mm cabinets
3, Fast- lock system with ergonomic design , 5 seconds instant installation 500x500mm cabinets and 500x1000mm cabinets can match each other easily
4, Can make 90 degree cube
Modular Design
Each tile is modular in design with unique rigging capabilities
Easy Installation
jointed correctly , being installed& dismounted by one person without tool
Perfect structure

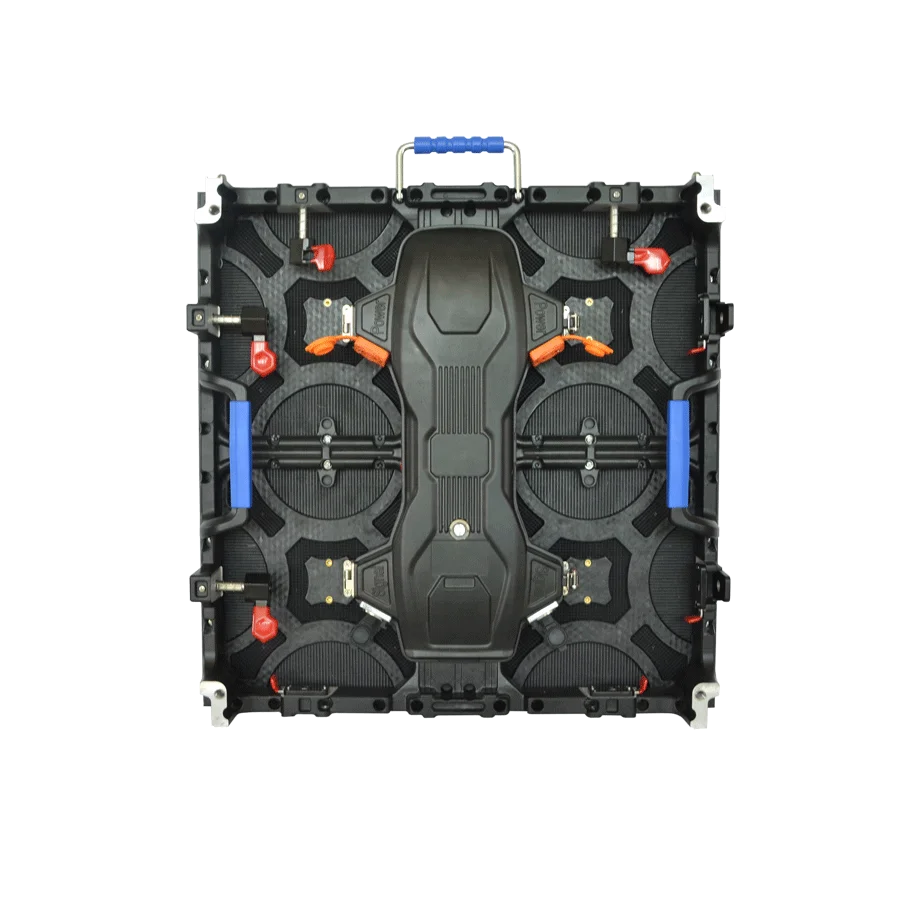

500x500mm cabinet size with perfect size, curved lock for option

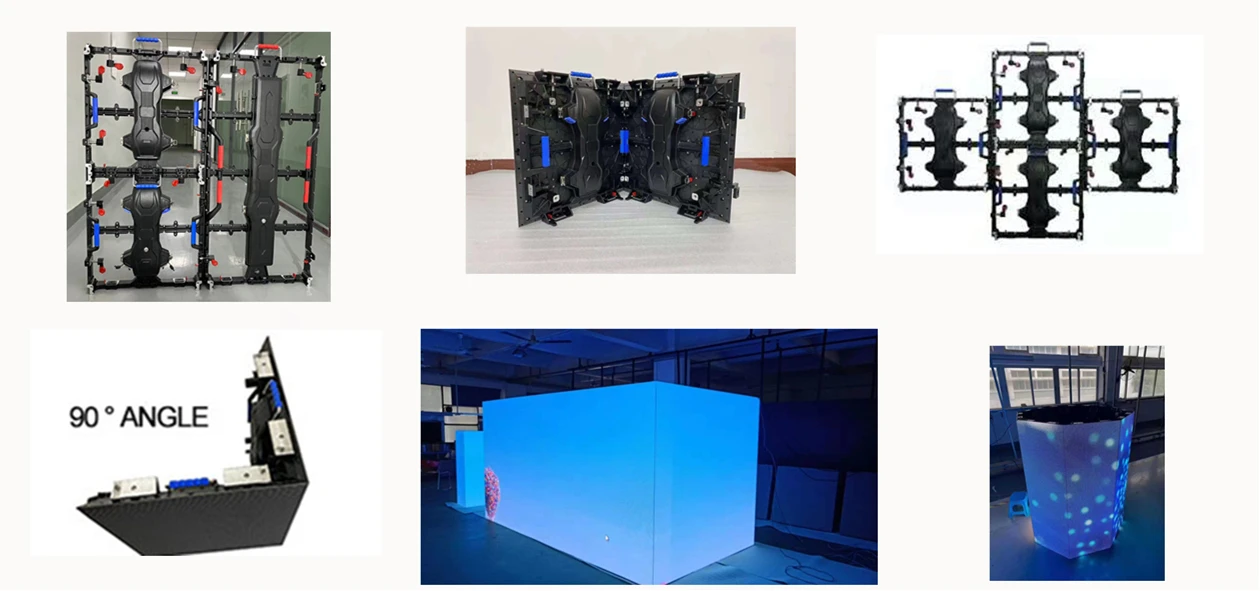

Various shape -- suits your stage design
1,500x500mm and 500x1000mm splicing
2,Up and down , left and right cabinet splicing
3, 90degree corner
4, Polygon

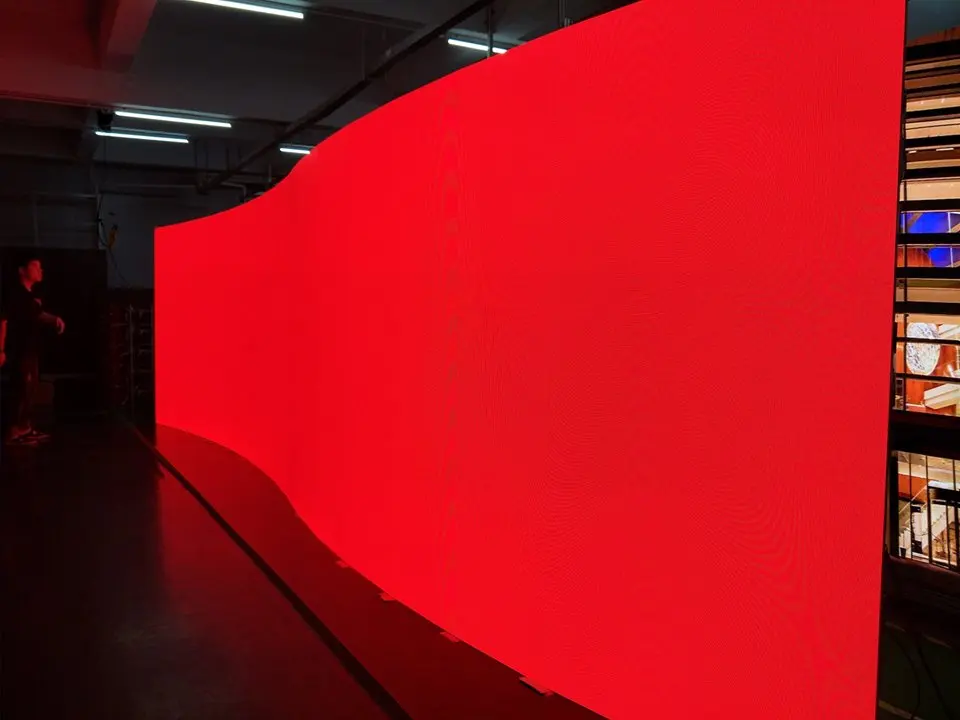

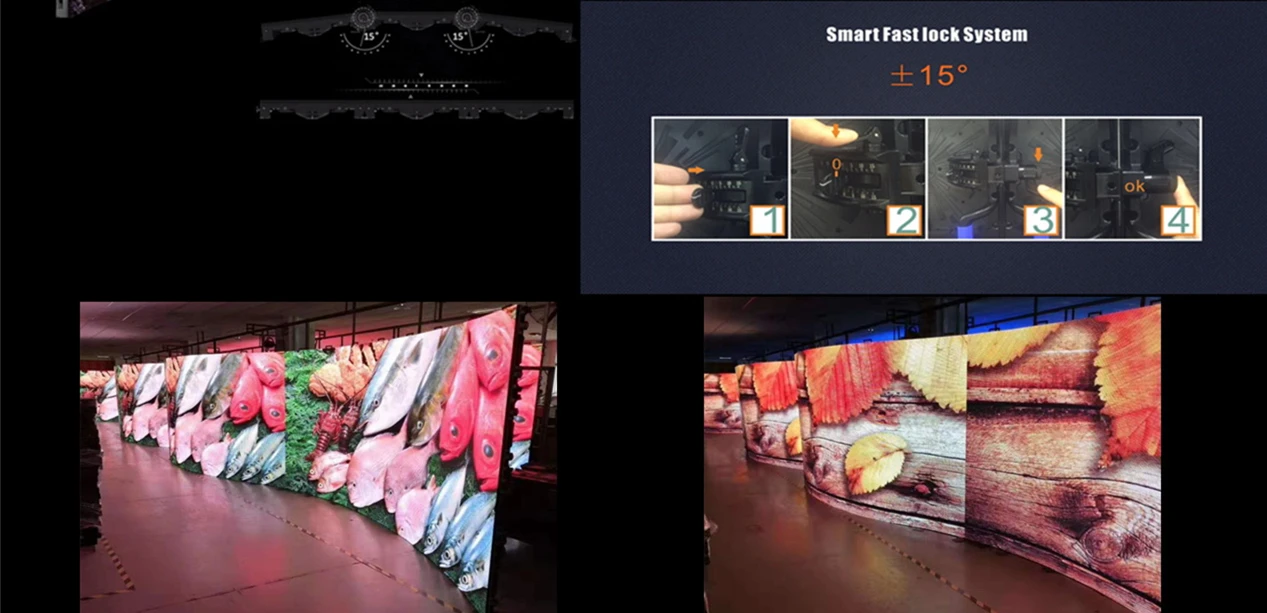

Outer and inner arc shape
Smart fast lock system, could make curved angle from -15 degree to +15 degree, suitable to various stage shape

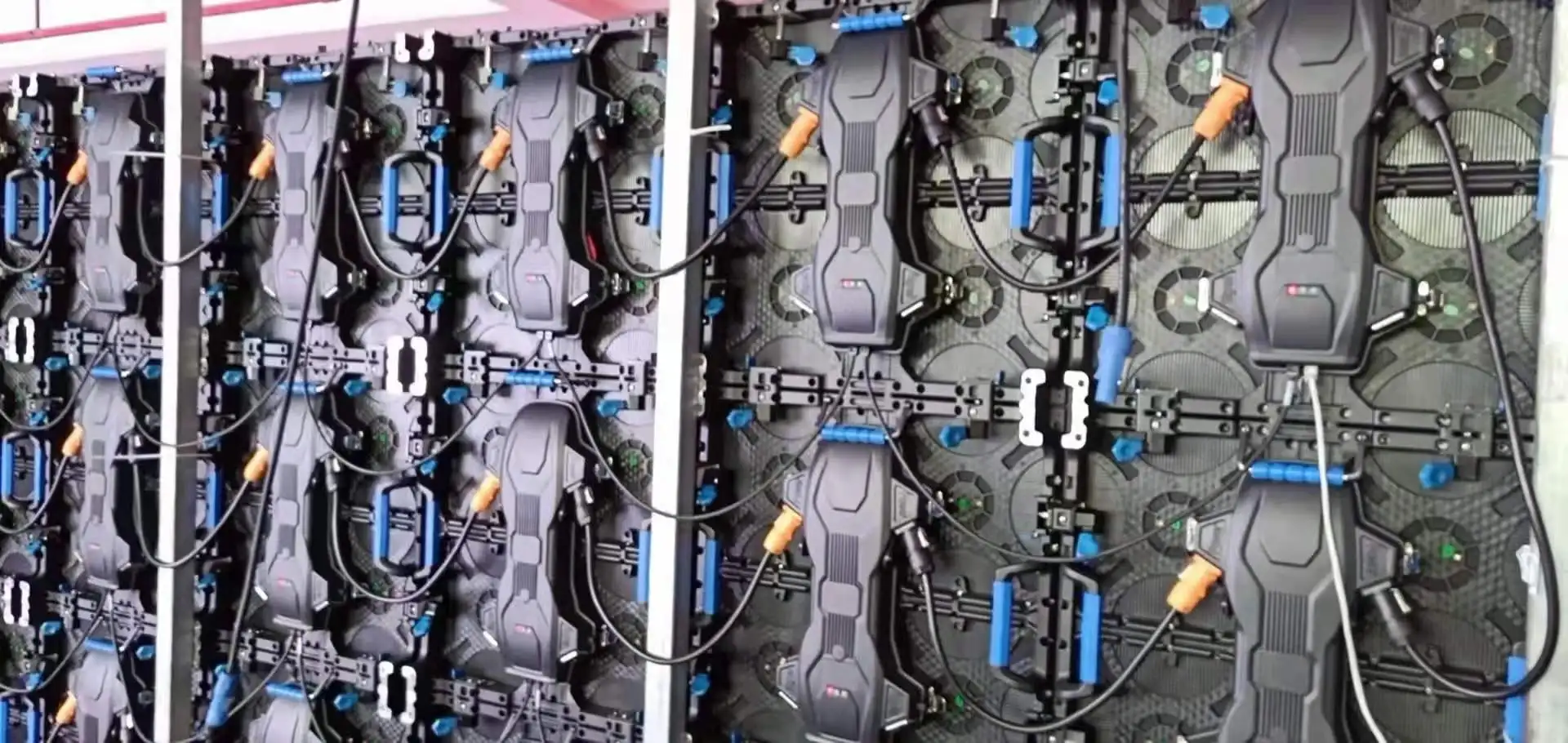

Aging test
Perfect aging test
.After strict and complicated manufacturing process , we will do aging test with 72 hours ( modules 24hrs , screen 48hrs), to ensure reliable stage LED products
Product packaging

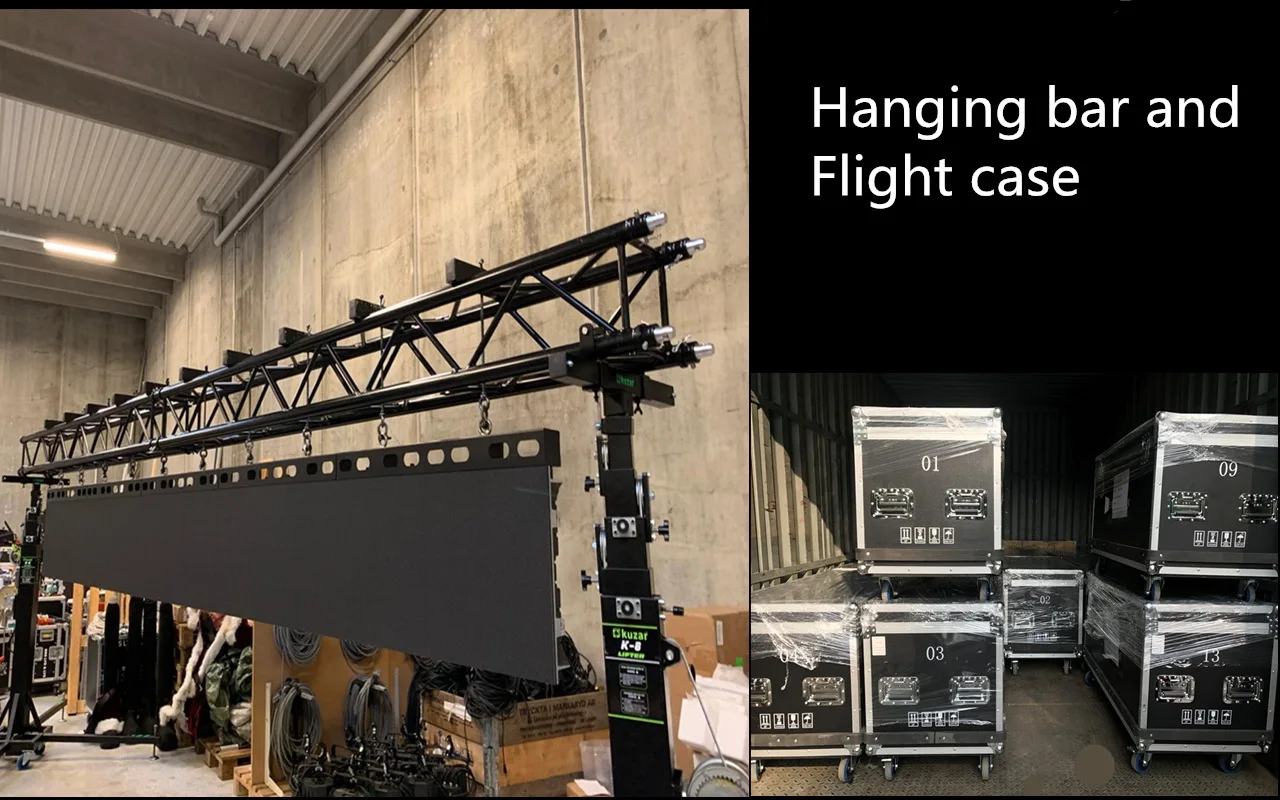

Flight case package
Flight case package -- to ensure rental LED screen to move conveniently

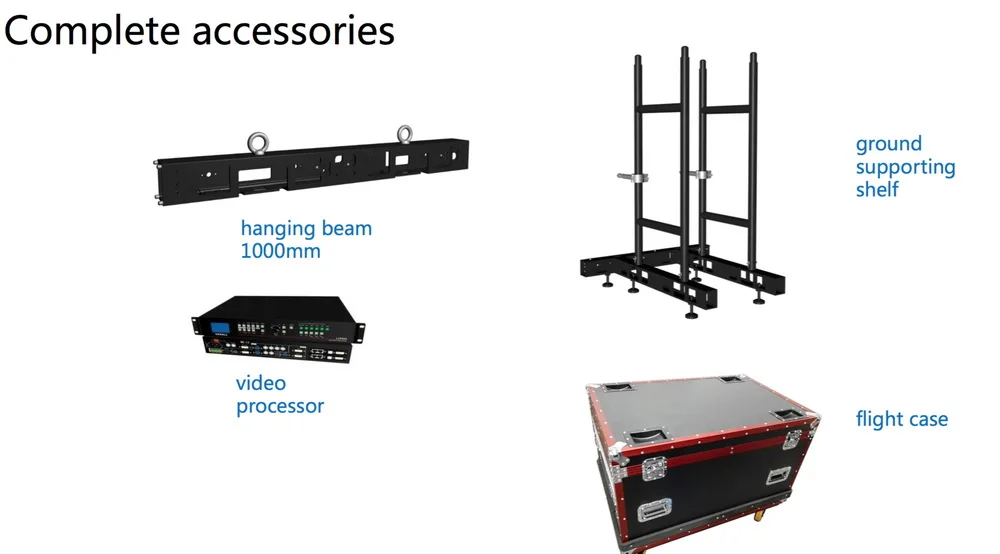

Installation Method

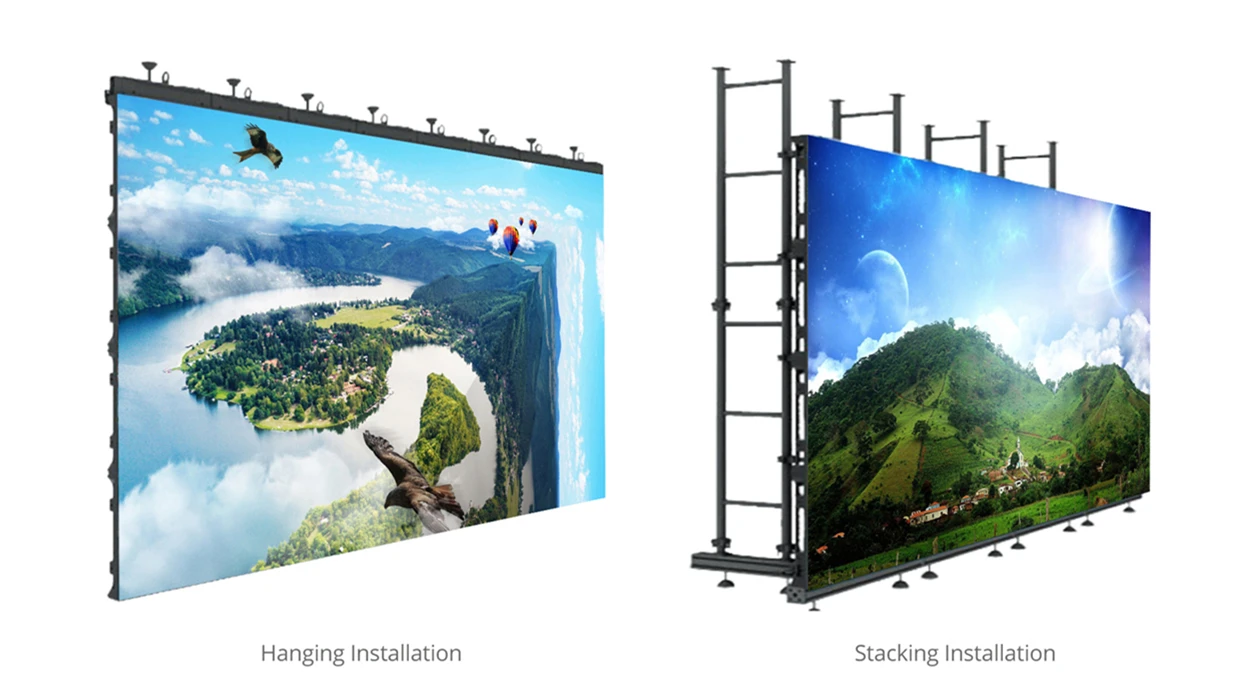

Support hanging installation and stacking installation

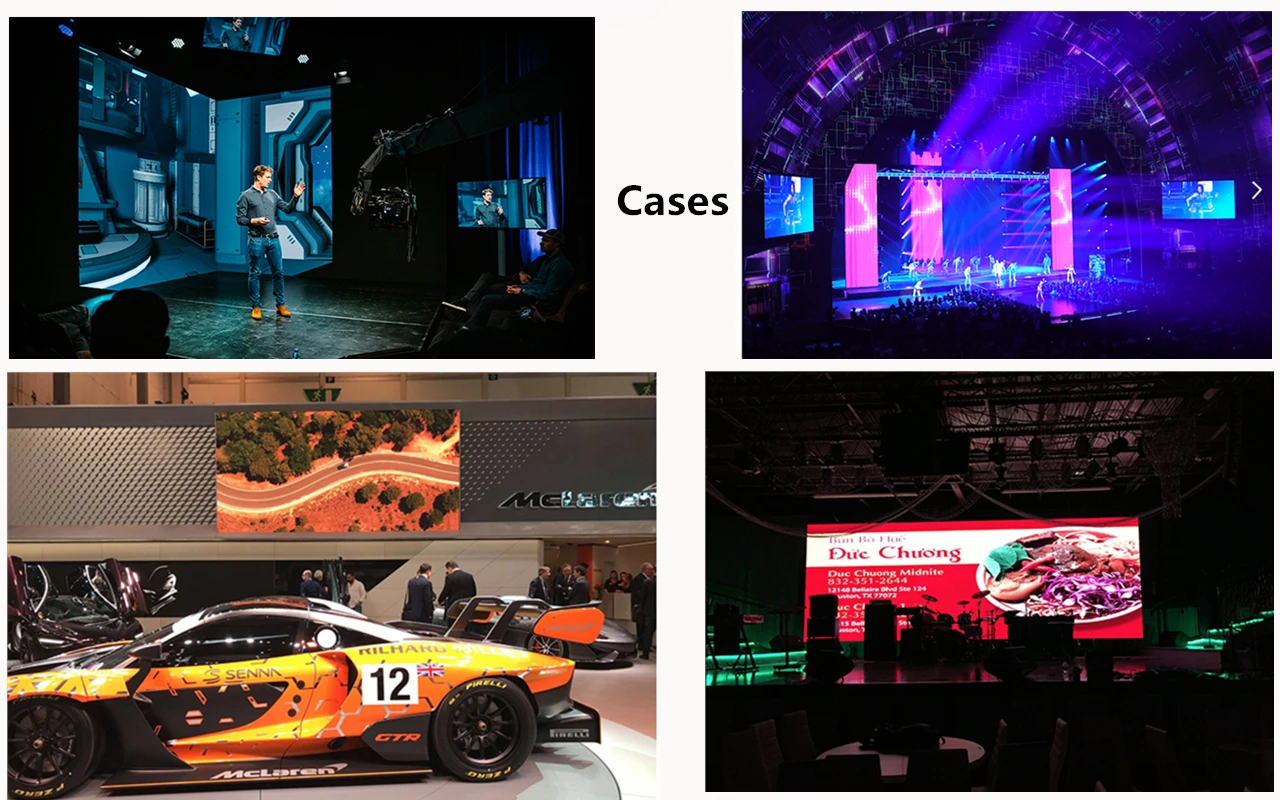

Applications
Widely Applications

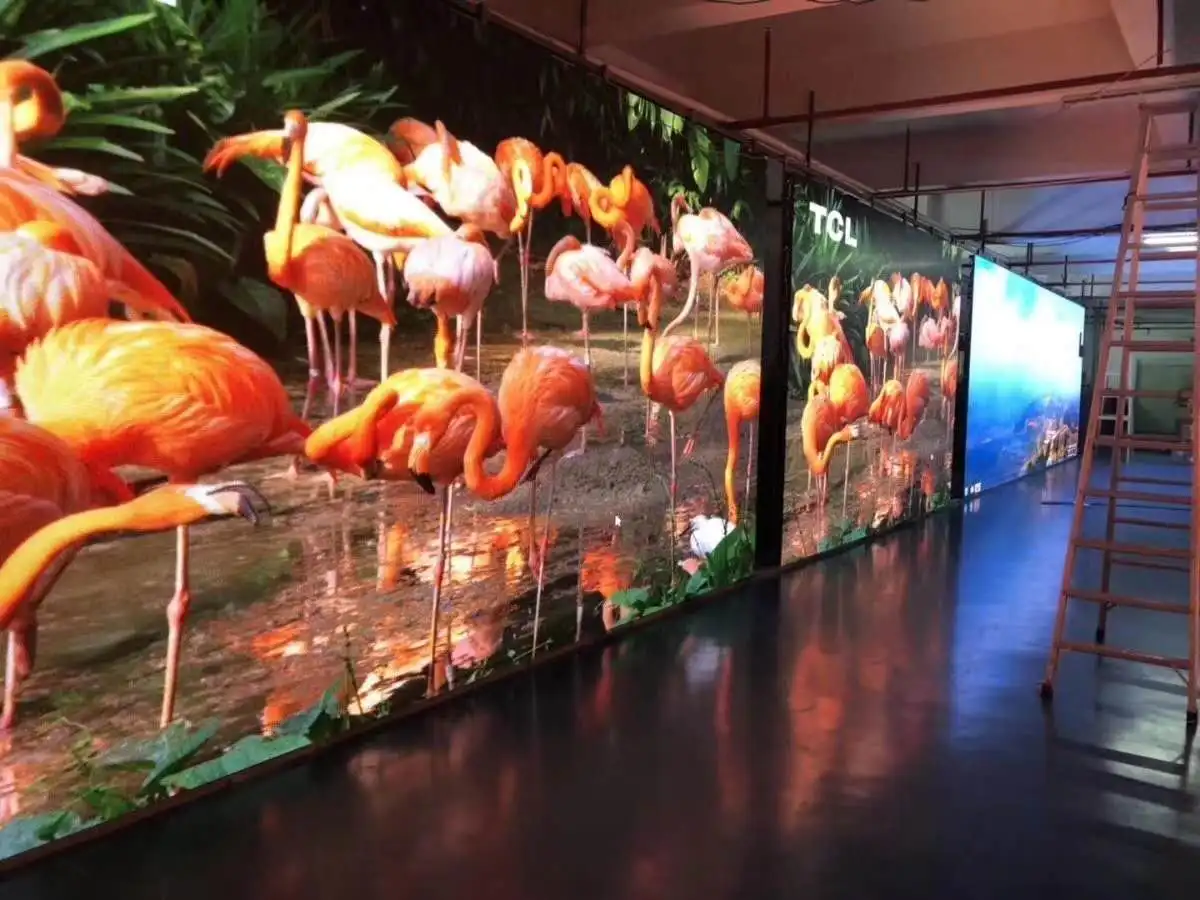

L series rental LED display is very cost-effective products , for concerts ,fashion shows, exhibitions , etc rental market and for fixed installation
Product Paramenters
Parameters | ||||||||
Model Name | IL19 | IL26 | IL29 | IL39 | ||||
Pixel pitch | 1.95mm | 2.604mm | 2.97mm | 3.91mm | ||||
Pixel Density/㎡ | 262,144 dots | 147,456 dots | 112,896 dots | 65,536 dots | ||||
LED Configuration | SMD1515 | SMD1515/SMD2020 | SMD2020 | SMD2020 | ||||
Module Size | 250mm*250mm | 250mm*250mm | 250mm*250mm | 250mm*250mm | ||||
Module Resolution | 128*128 dots | 96* 96 dots | 84* 84 dots | 64 * 64 dots | ||||
Panel Dimension | 500*500*88mm | 500*500*88mm | 500*500*88mm | 500*500*88mm | ||||
Panel Resolution | 256*256 dots | 192* 192 dots | 168* 168 dots | 128 * 128 dots | ||||
Panel Weight | 7.2kg | 7.2kg | 7.2kg | 7.2kg | ||||
Driving Mode | 1/32 | 1/32 | 1/28 | 1/16 | ||||
Refresh Rate | 3840HZ | 3840HZ | 3840HZ | 3840HZ | ||||
Brightness | ≥ 800 cd/㎡ | ≥ 1000 cd/㎡ | ≥ 1000 cd/㎡ | ≥ 1200 cd/㎡ | ||||
Color processing bits | 14-16bit | |||||||
Cabinet raw material | Aluminum Die-casting | |||||||
IP Rating | IP3X | |||||||
Applicable standards | CCC，TUV-CE，ETL | |||||||
Why Micsolar
1, Experienced& Creative Team
Micsolar is high efficient operation and aggressive team, and some engineers have over 10 years professional experiences

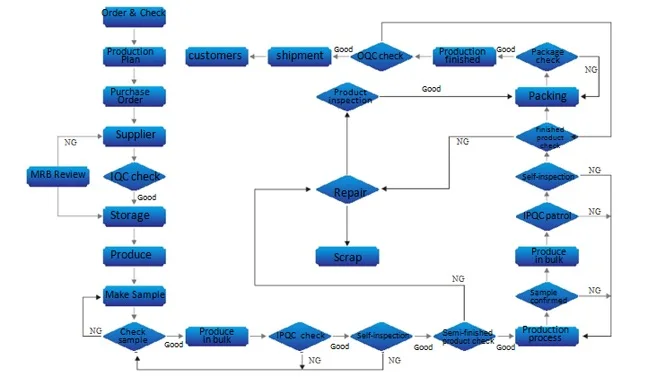

2,The scientific production process -Quality control
Micsolar LED display manufacturing process has complicated and scientific process , from OQC checking to aging test ,

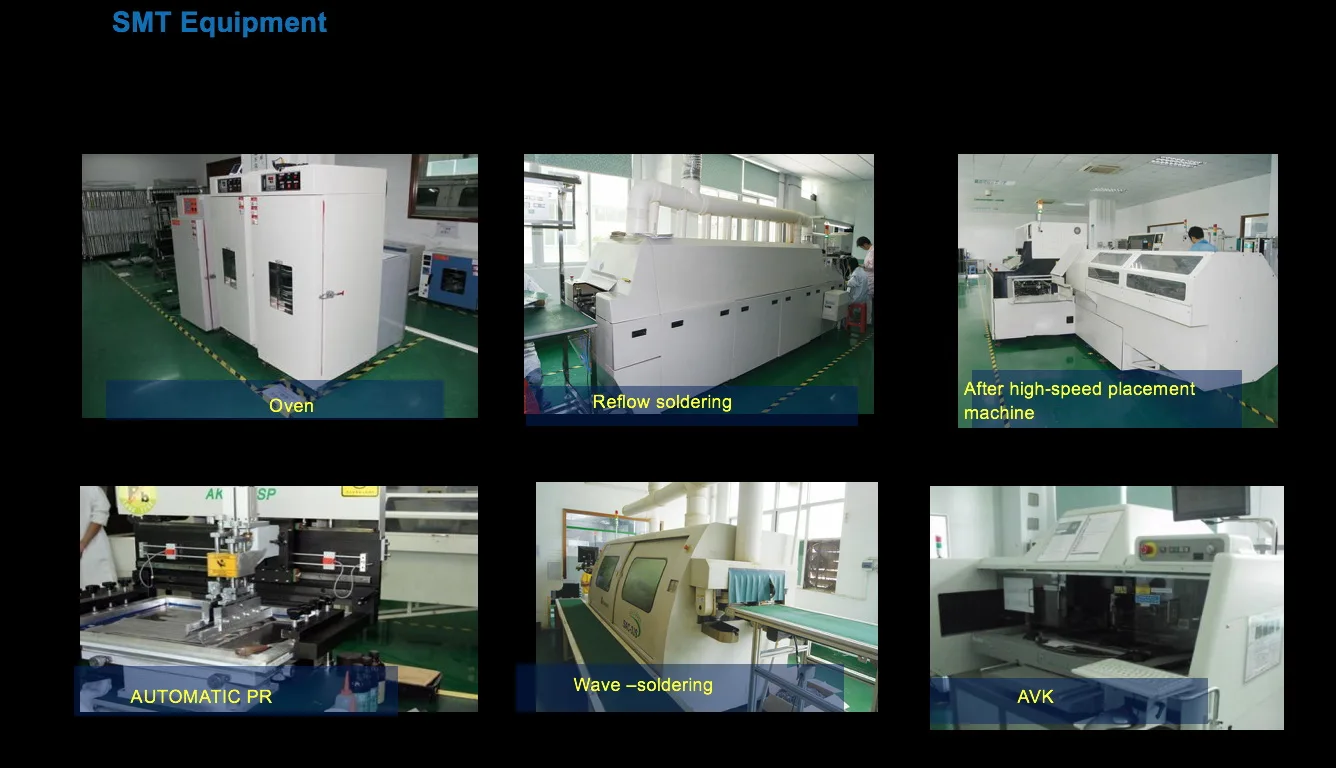

3,Advanced equipment
Micsolar has a lot of advanced equipments to support our manufacturing , like oven , Reflow soldering , AVK etc
Customers' feedback
Currently Micsolar LED display already exported to near 30 countries, hundreds of clients around , thanks for the support
The perfect service system
What can we do for u ?
