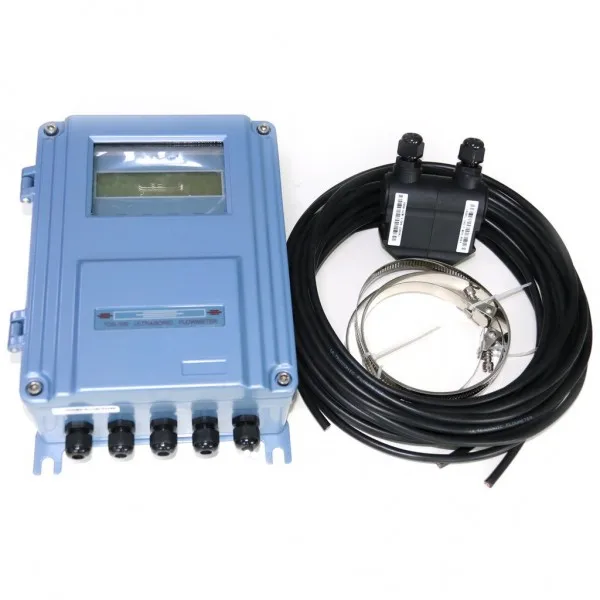

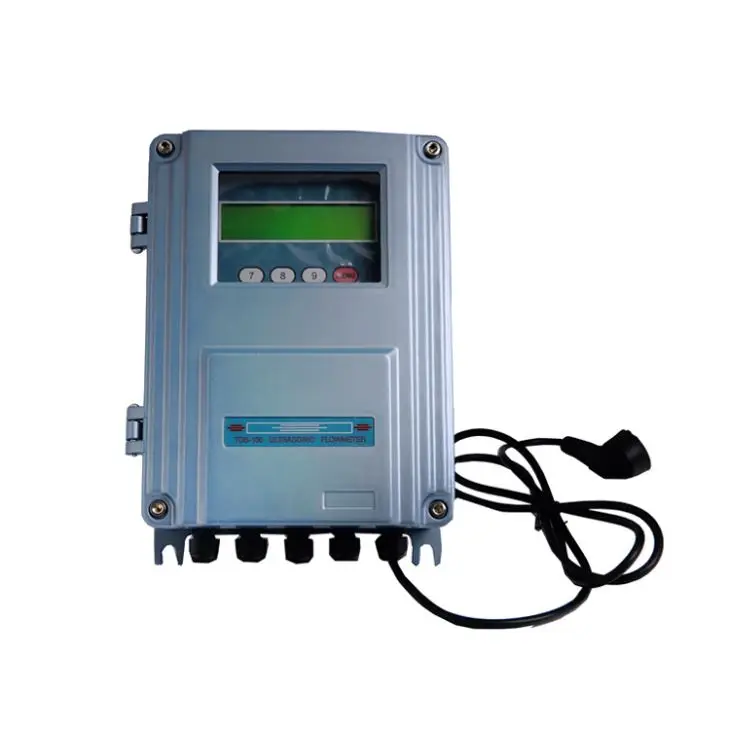

Wall mounted inline ultrasonic flowmeter digital water flow meter ultrasonic flow meter low cost
- Category: >>>
- Supplier: Baoji Xingyuteng Measure And Control Instruments Co. Ltd.
Share on (1600358952152):
Product Overview
Description
Product Description
MRC-FM-U100M series Ultrasonic flow/heat meter is our new product, it is designed stictly according to JJG1030-2007 standard to
develpe the reliablity of protection class.Ultrasound transmit time principle makes the measurement range from DN25 to DN6000mm.
The advantages include high accuracy , strong anti-interference, reliability and stability,multipe
interface. Each parts can achieve to IP68, enable the meter work in any severe environment.
develpe the reliablity of protection class.Ultrasound transmit time principle makes the measurement range from DN25 to DN6000mm.
The advantages include high accuracy , strong anti-interference, reliability and stability,multipe
interface. Each parts can achieve to IP68, enable the meter work in any severe environment.
Product Specification
1. IP68 PROTECTION CLASSWhole machine waterproof:whole machine is sealed completely
reaching IP68 protection level.
Parts waterproof :Each part is waterproof,operating normally in the
event of water inside .
2. WATERPROOF KEYBOARD
4-key board design,support setting operation password .
3. MULTIPLE INTERFACE
Communication interface:RS485 interface
Output: 4-20mA analog/OCT pulse/Relay signal
Heat measurement:achieve heat measurement by connecting
3-wired PT100 temperature transducers
Input: 3 way 4-20mA analog input, acquisition signals of temperature,
press, liquid level,etc.
reaching IP68 protection level.
Parts waterproof :Each part is waterproof,operating normally in the
event of water inside .
2. WATERPROOF KEYBOARD
4-key board design,support setting operation password .
3. MULTIPLE INTERFACE
Communication interface:RS485 interface
Output: 4-20mA analog/OCT pulse/Relay signal
Heat measurement:achieve heat measurement by connecting
3-wired PT100 temperature transducers
Input: 3 way 4-20mA analog input, acquisition signals of temperature,
press, liquid level,etc.
4. TEMPERATURE AND PRESSURE
Temperature range:-30℃~160℃
P/N ：0~2.5Mpa (Optional)
Temperature range:-30℃~160℃
P/N ：0~2.5Mpa (Optional)
5. HIGH ACCURACY MEASUREMENT
Accuracy:0.5% 1%
Accuracy:0.5% 1%
6. ULTRASOUND MEASUREMENT
No rotation, no moving parts , Long term measurement with high accuracy.
Applicable to variety of water quality, including the water gravel and weeds.
No rotation, no moving parts , Long term measurement with high accuracy.
Applicable to variety of water quality, including the water gravel and weeds.
Dimension
