Analog RS485 Output Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light Curtain

Share on (1600358969358):


Price:

Quantity:


Product Overview

Description


Analog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light Curtain



Product Description























































Protective Height940mm (customized)NO. of beam4~160 (customized)
 Beam Gap20mmResolution>2.5mm
Power VolatgeDC24V ±20%Output Current≤200mA
Watts<5WResponse Time<5ms
 Insulation Resistance ≥100MΩDetection Mode Thru-beam
 Sectional area36*45mm Working temperature -10 °C - 55°C

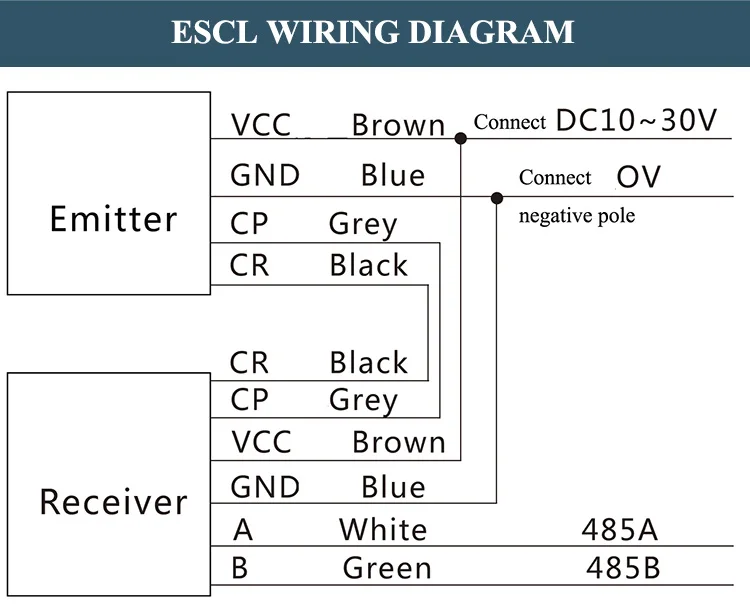

 Anti-interferenceyes 10000lux  Output typeRS485
Sensing distance0.1-5m (standard), can be customzed in 0.1-20m








Analog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light CurtainAnalog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light CurtainAnalog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light CurtainAnalog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light Curtain Analog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light Curtain





Analog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light Curtain






Our Services


 Analog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light CurtainAnalog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light Curtain





Company Information


Analog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light CurtainAnalog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light CurtainAnalog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light CurtainAnalog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light Curtain





Packaging & Shipping


Analog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light CurtainAnalog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light CurtainAnalog RS485 Ray Aray Light Sensor Object Volume Detection Light Barrier Conveyor Measuring Light Curtain





FAQ


Q1.What is the MOQ?





      AC: 1 PCS  for our own available designs.





Q2.Do you  customize logo, color, and label of product?





     AC: Of course, we support ODM service, can customize logo, color etc.





Q3.Do you have certification?





     AC: Factory pass ISO9001:2015, product with EU TYPE 4, CE, FCC etc. certification.





Q4.How long will you take once a order placing?





     AC: We're 18 years factory, all product is mature, small order is finished in 2-3 work days; big order around 15 days.





 Q5.How is your quality?





     AC: With 18 years experience, ESPE is model of safety light curtain. Current product is mature.


Our workers will inspect material 1 by 1. Each process is made by skilled workers. After sensor finished, inspector will check the response time, sending distance etc. After all, we do aging testing to ensure every product is good.


1 year warranty.





Q6. How can  i get a lower price?





    AC: Large order quantity with lower price, you can contact us to confirm the certain discount with different quantity order.





Q7. How to select the correct model?





    AC: a. The best way, contact us, we can assist you . (We provide 24h online service)

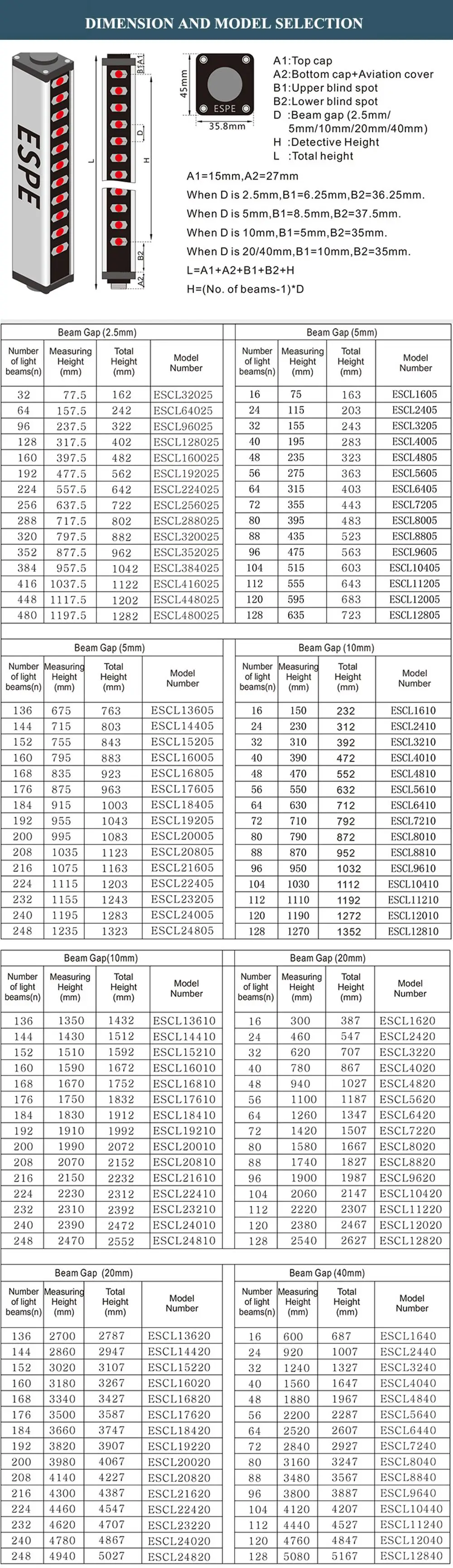

           b. To confirm four techical parameters, the beam spacing ,the  protective height , the working voltage, and sensing distance. and find the model selection table on above to select the certain model by yourself.
