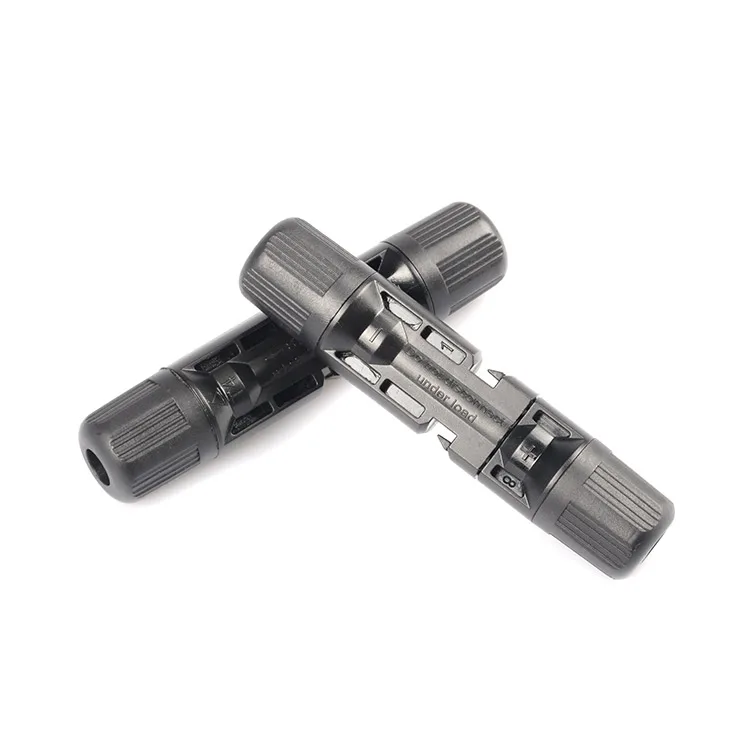

Waterproof Dc Pv Plug Socket Solar Cable Connector mc 4 For solar Pv System
- Category: Connectors >>>
- Supplier: Shenzhen,Green,Power,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Rated voltage | 1000v DC(IEC)1 | ||||||
Rated current | 17A(1.5mm2) 22A(2.5mm2;14AWG) 30A(4mm2;6mm2;12AWG,10AWG) | ||||||
Test voltage | 6kV(50HZ,1min.) | ||||||
Ambient temperature range | -40°℃...+90°C(IEC)-40°℃...+75°℃(UL) | ||||||
Upper limiting temper ature | +105C(IEC) | ||||||
Degree of protection,mated | lp67 | ||||||
unmated | IP2x | ||||||
Safetyclass | Ⅱ | ||||||
Contact material | Messing,verzinnt Copper Alloy,tin plated | ||||||
Insulation material | PC/PPO | ||||||
Locking system | Snap-in | ||||||
Flame class | UL-94-Vo | ||||||
Salt mist spray test,degree of severity 5 | IEC 60068-2-52 | ||||||
