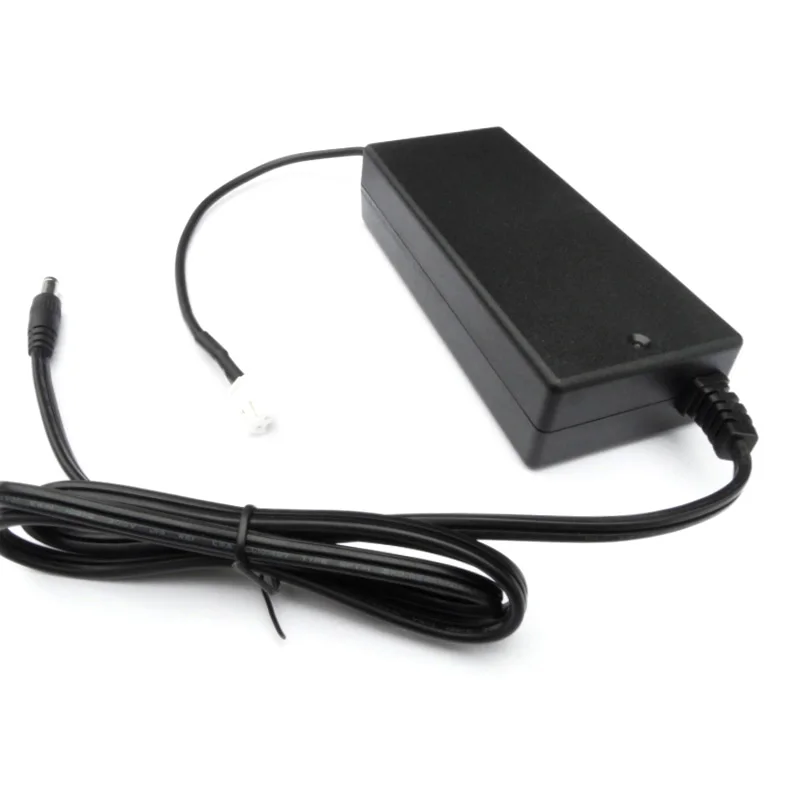

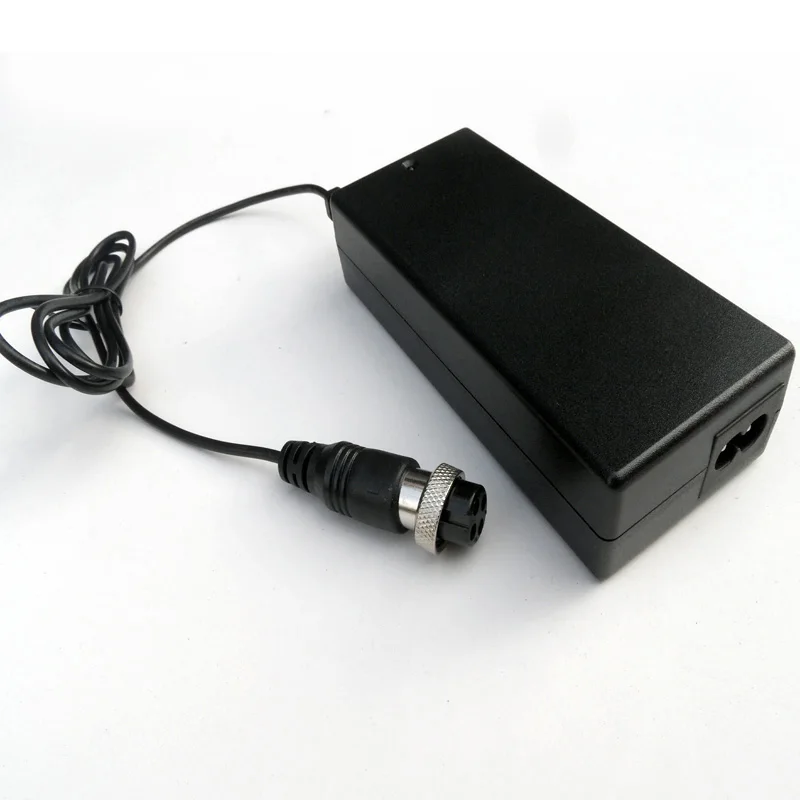

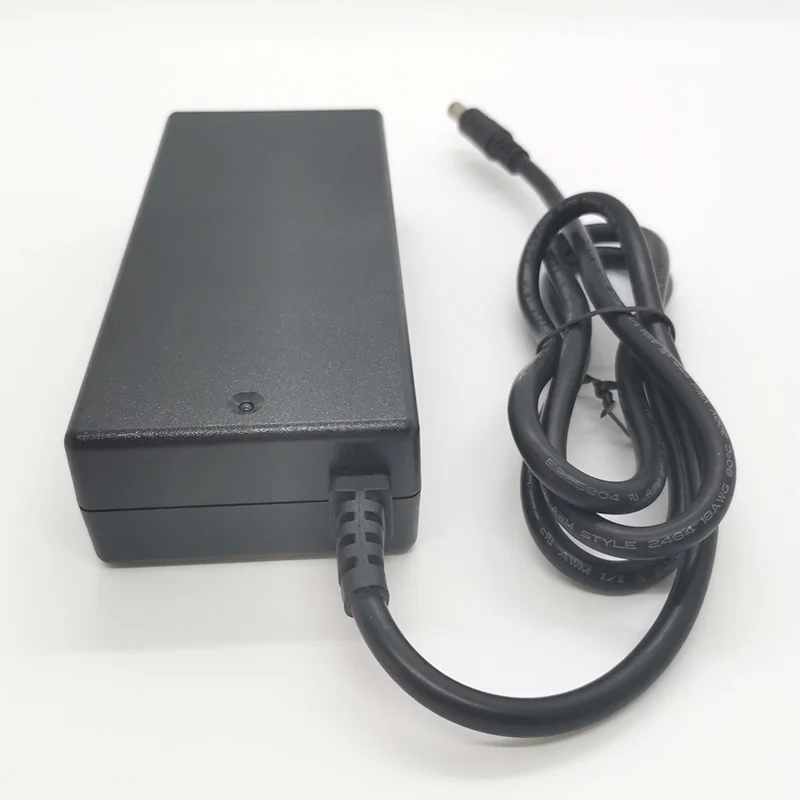

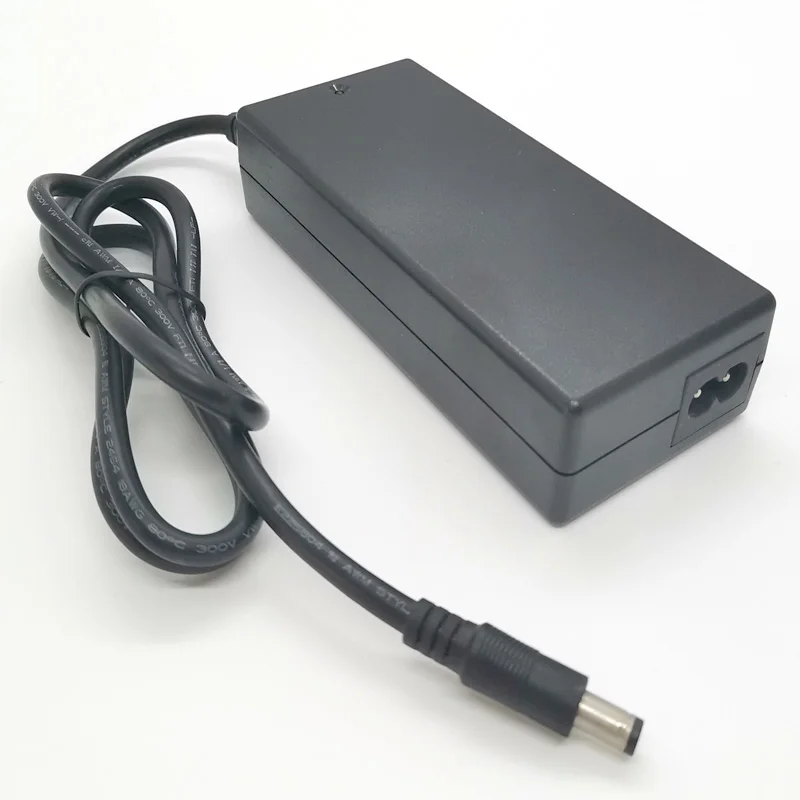

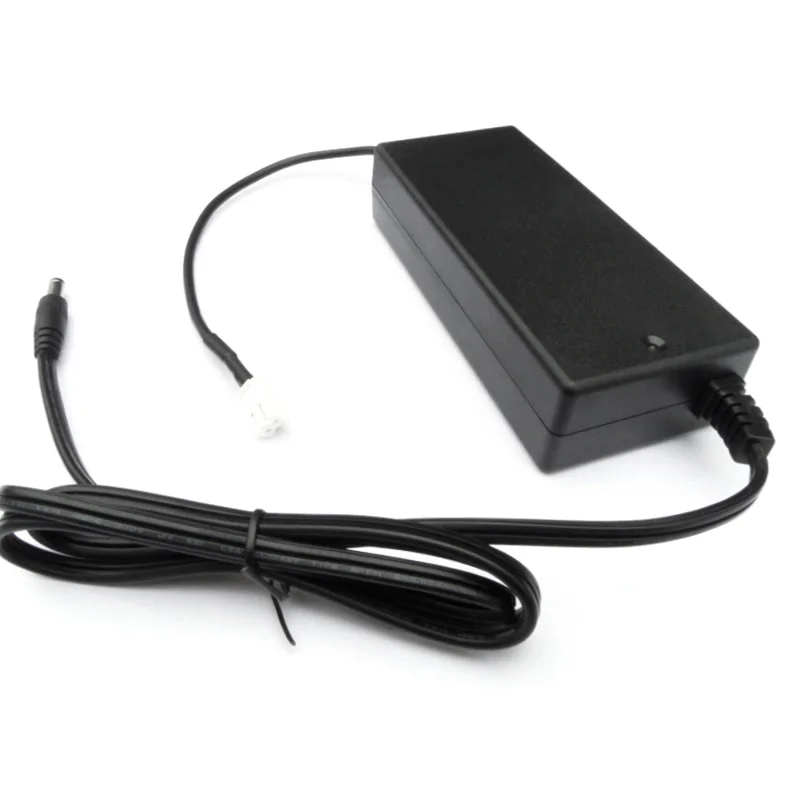

12v5a 60w switching power supply 12volt 5amp the power adapter input 100~240v 50/60hz ac to dc adaptors Class 2
- Category: >>>
- Supplier: Dongguan Intai Power Supply Co. Ltd.
Share on (1600358981273):
Product Overview
Description
Product Description
Description
Intai's high quality and reliable 12V 5A LED driver ensures highly–accurate regulation to provide a high level of light quality and avoid flickering. The led power supply 12V DC provides good EMC, high conversion efficiency, high PF and low total harmonic distortion (THD) over the universal input voltage. The 12V driver works in constant-voltage regulation and features an efficient, compact and cost effective solution to drive LEDs. The 12V LED power supply provides efficient thermal management and faulty protection to enhance reliability. It is capable of delivering full power with ambient temperatures of -20 to +45℃. The led power supply 12V 3A is designed to ensure a MTBF better than 40000 hours at 25℃.
Product Specificatio
Product Specification
Input | Voltage Range | 90-264VAC |
Frequency Range | 47-63Hz | |
Standby Power | <0.21W | |
Average Efficiency | >88% | |
Power Factor (Typ) | >0.9 | |
Output | Output Voltage | 12V±5% |
Rated Current | 5A | |
Ripple & Noise | 150mV | |
Hold Up Time | >15mS(115/230Vac input at full load) | |
Transient Response(Typ) | 0.5mS for 50% load change | |
Line Regulation | ±2% max | |
Load Regulation | ±5% max | |
Protection | Over Current | 150% of rated output current, hiccup mode, auto recovery |
Over Voltage | 120%~150% of rated output voltage, hiccup mode | |
Input | 3.15A current fuse | |
Short Circuit | Auto recovery | |
Safety Certifications | UL60950-1, 2nd Edition, 2014 | Certificate Number: E472300 |
CAN/CSA C22.2 No.62368-1-07,2nd Edition, 2014 | Certificate Number: E472300 | |
TUV/GS/CE/LVD EN62368-1, 2006+A11+A1+A12+A2 | Certificate Number: S 50297489 | |
RCM/AS NZS62368.1:2011+A1 | Certificate Number: TUV017488EA | |
PSE/J62368-1(H26) | Certificate Number: JD 50300674 |
Company Information
Certificate
FAQ
Do you have a MOQ requirement? |
| What is the lead time? 3~5 days for testing samples, 2~3 weeks for mass production |
| Can I pay by Paypal for testing samples? Yes |
| What if there are quality problems with the products I bought? We take the following measures to ensure the quality of products |
| 1, Strict management of product design |
| 2, All products on sale are safety certificated |
| 3, Strict production process control |
| 4, Two hours burn-in testing on 100% products |
| 5, Carrying out random finally inspection on each lot |
| There will no defective in large scale. However, as our quality level AQL is: MIL-STD-105D II AQL:CRI 0; MAJ 0.25; MIN 2.5, defective is allowed for one or few pieces. We offer 3 year warranty for all items. We provide replacements for all defective products have had at our costs as long as you have picture to prove that these products are broken in the normal use. If you are our regular customer we would include the replacements in the nearest shipment. |
What is the ambient temperature specified for safety test & evaluated by safety testing agencies including UL and TUV? It was 35℃. The data shows on our certifications. |
Our Services
1: Professional service 1) We reply any inquiry in 12 hours Website: www.intaia.com |
2. OEM/ODEM available: 1) Customized products available 2) We can put your ideas into concrete products |
| 3. High quality and reasonable & competitive price |
4. After-Sale Service : We offer 3 years warranty , replacements available |
5. Faster delivery : In term of an urgent order, we apply flexible production management to catch up your delivery date. |
Packaging & Shipping
Each piece in a white box, then 48pcs in an outer carton.
Carton gross weight: 15~22kg, carton size: 53x36.5x21cm
