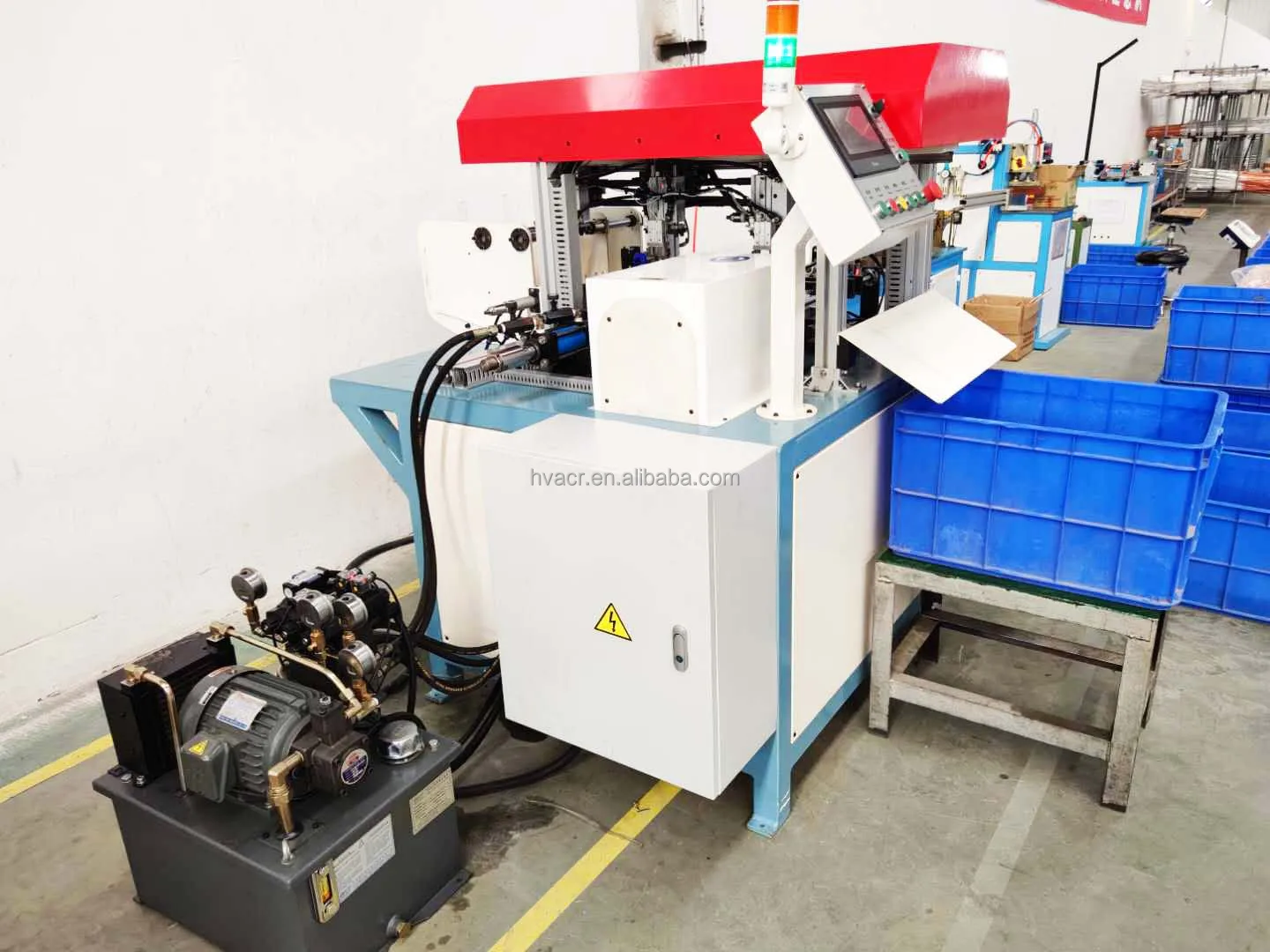

Copper Tube End Flaring Shrinking Forming Machine with Auto Feeder
- Category: Tube End Forming Machines >>>
- Supplier: BOBO,Machine,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Summary
This machine adopts automatic feeding device, the cut pipe code is placed in the hopper, the equipment automatically complete feeding. The automatic feeding device adopts linkage structure to ensure accurate feeding each time, one pipe each time, without piling up material. The width of the hopper is adjustable, suitable for pipes of different lengths. Shrink head adopts rotary forging structure, with casting shell to ensure the forging strength and life. Specially designed cutting die ensures the precision and finish of the required products, while reducing the noise generated by forging. Specially used for copper-aluminum resistance welding joints, can be equipped with a mandie to confirm the hole size of the pipe fitting. Flat head machine adopts the alloy tool head high-speed rotary flat scraping way to remove the excess material of the nozzle, to ensure the smooth nozzle. The switch between each station adopts the pneumatic mechanical gripper up and down the left and right axis movement transfer, the linkage of the two stations to ensure work efficiency.
Specification
1 | Tube Material | Copper / Aluminum tube |
2 | Tube Diameter | 3-8mm |
3 | Tube Length | 70-400mm |
4 | Shrinking Length | 30-50mm |
5 | Voltage | 380V, 50HZ, 3 phase |
6 | Inner Diameter Range | Φ1.9-Φ10.0±0.05mm |
7 | Weight | 860kg |
8 | Control System | PLC control / HMI |
9 | Work Speed | 4-5pcs/min |
10 | Power | 2.2kw |
Product packaging
Package
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
Company Informations
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q:What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
