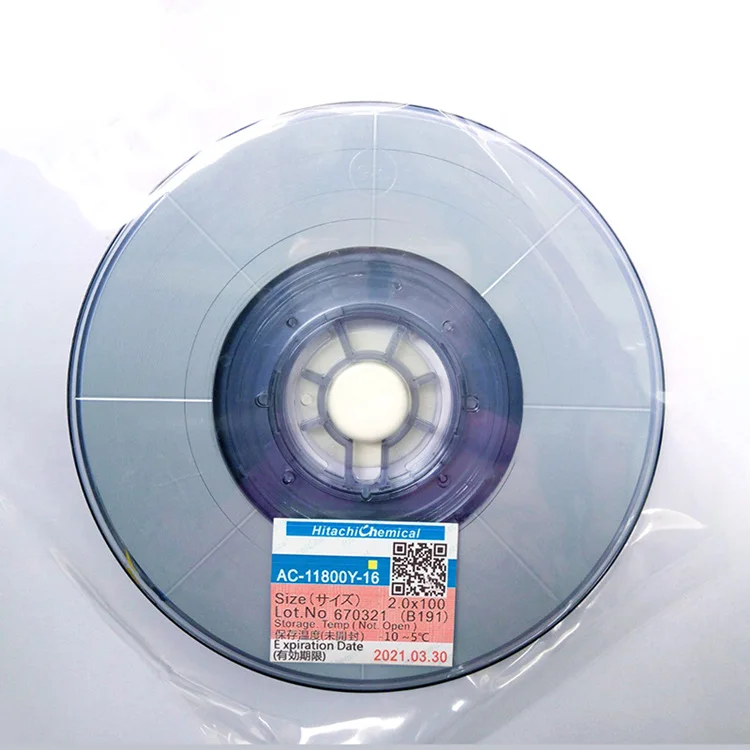

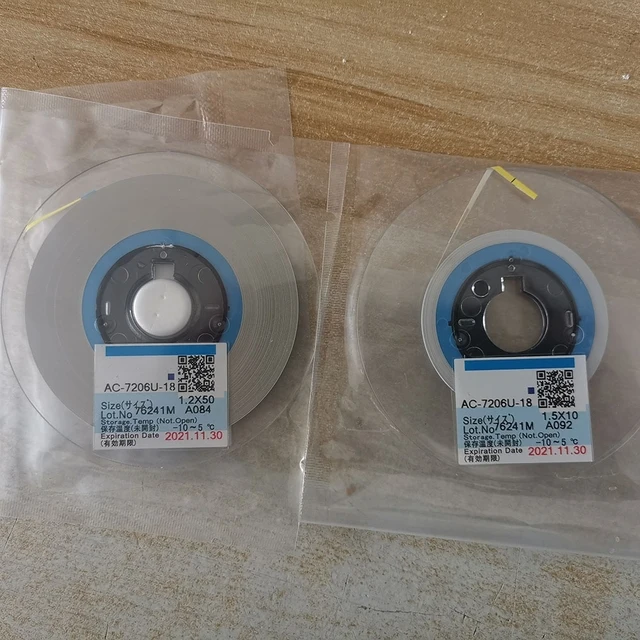

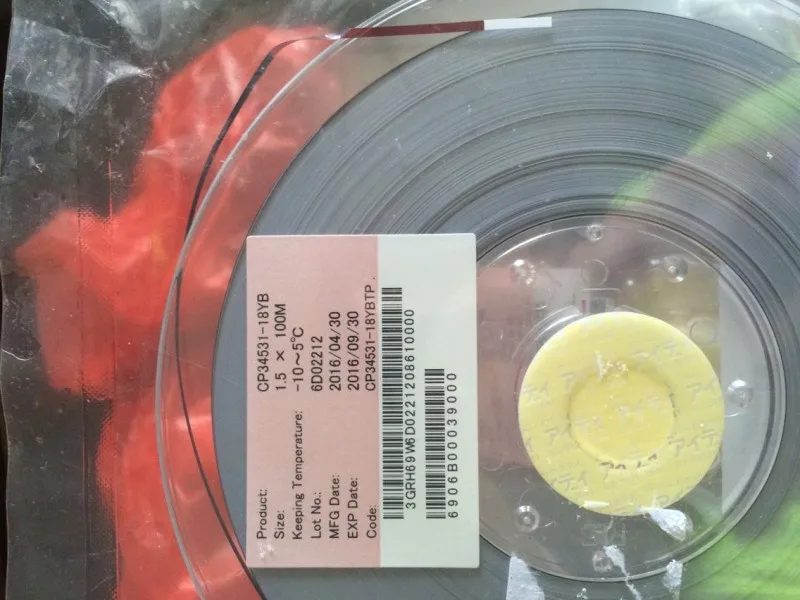

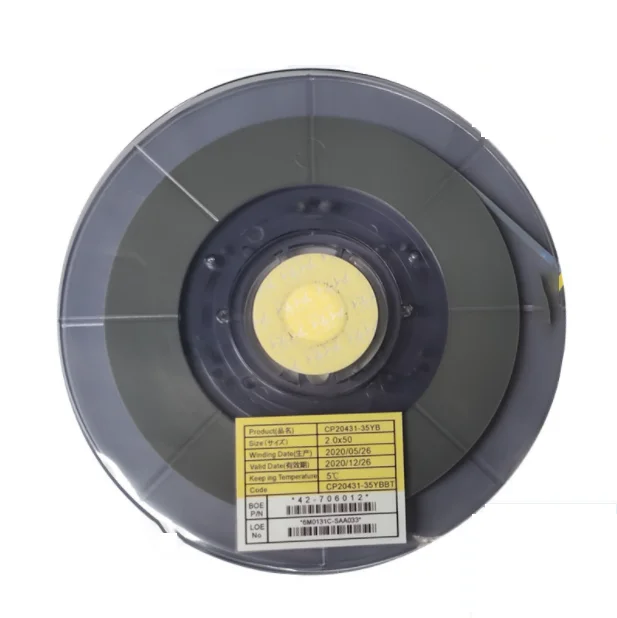

Acf Tape Conductive Adhesive Glue Ac 832l 1.5mm*50m For Cof Fpc Cog Ic Lcd Tv Screen Repair Bonding Glue
- Category: >>>
- Supplier: TopView Industrial Company Limited
Share on (1600359112697):
Product Overview
Description
Product Description
The ACF is used for ACF laminating in FOG、FOB process of LCD PANEL, SENSOR GLASS and FPC、COF、TAB or PCB/ PCBA and FPC、COF、TAB.
We have source of all the ACF tapes, pls tell me the PN you need.

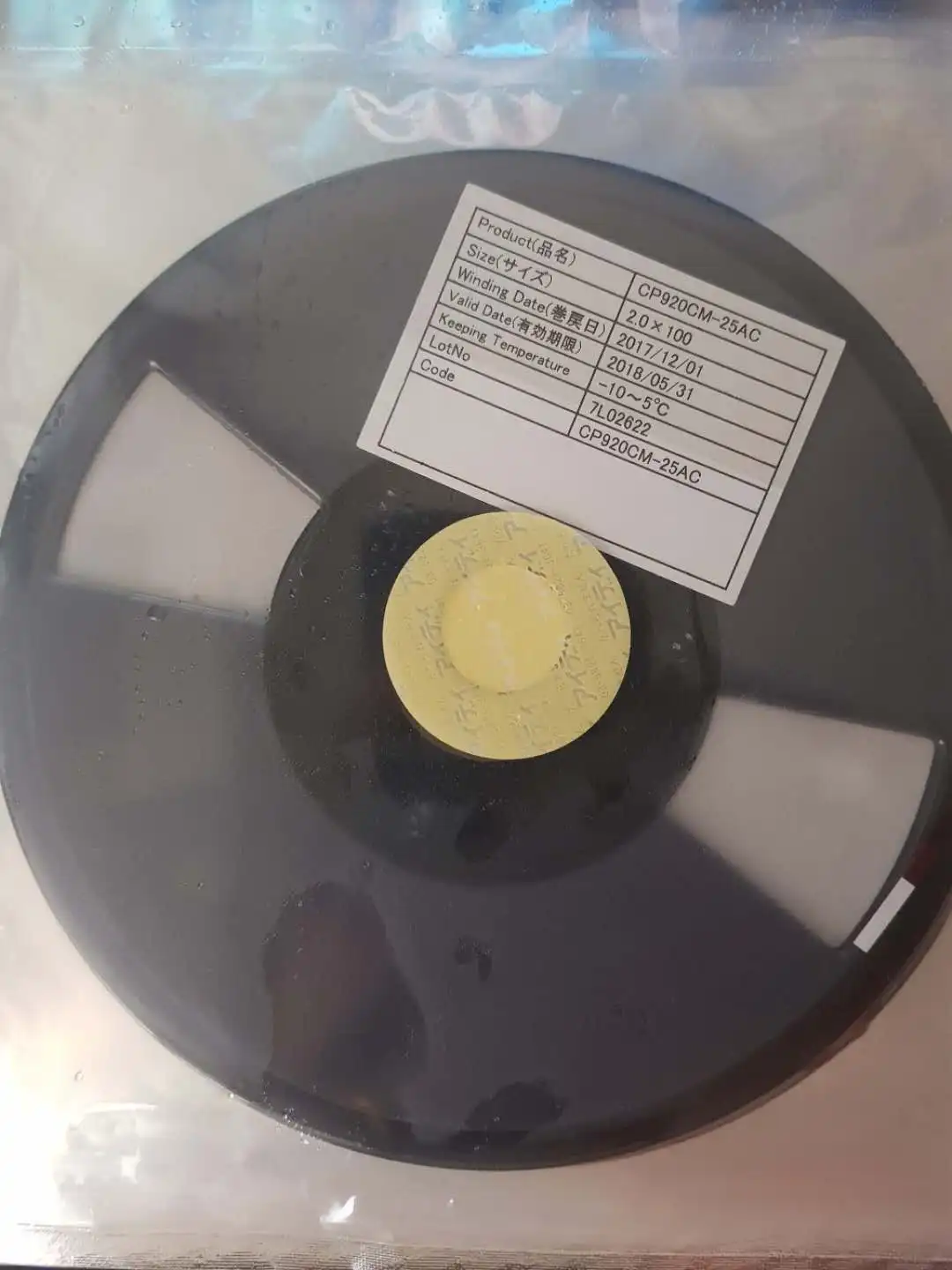

ACF Anisotropic Conductive Film (ACF Tape / ACF Film)
ACF is normally made up of two main components, namely Adhesive & conductive particles.
It is used to connect fixed upper and lower electrodes (IC) and achieve current conduction, so it is widely used in the fields of monitors, mobile phones, car panels, LCD TVs and other thin displays (LCD/LED/touch screen).
The adhesive composition is dependent on the materials being assembled. This means an ACF designed for use in a flex-on-glass(FOG) assembly is usually not suitable for use in a chip-on-glass (COG), FOB, or any other configurations. It is specific to the application for which it is designed for.
[Buyers save instructions]:
1). Store ACF at -10 ° C ~ 5 ° C once you receive it.
2). Set ACF at 22 ± 5 ° C for 30 minutes before using it.
3). Each time the first 20cm is only for testing machine to keep the same bonding quality.
4). opened seals: -10~5°C, the period SONY 15 days, HITACH 30days;
If is exposed in the air, the storage time is only 7 days;
if the unopened product is stored at high temperature environment, it will shorten its period.
5).Due to the thermal curing of ACF adhesive, there is no need to worry about the expiration of the expiration date. As long as the method is properly stored, the expiration date can be extended by 6 months to 1 year. However, the process parameters need to be properly adjusted and more experiments are performed. For more technical support and parameter specifications, please consult the shopkeeper.
Examples of ACF applications.
- TAB FOG FOB Bonding (TCP-PCB / TCP-LCD)
- COG Bonding (IC-LCD)
- COB Bonding (IC-PCB)
- COF Bonding (IC-FPC)
Model | AC-3614KSH |
Product Name | ACF Glue Tape |
Type | ACF |
Application | LCD Repair |
Feature | Heat-Resistant |
OEM / ODM | Acceptale |
Warranty | 3 Month |
After Service | life-long |
Usage | FOG FOB COG Bonding |
MOQ | 3 Rolls |
More Products
Product Line

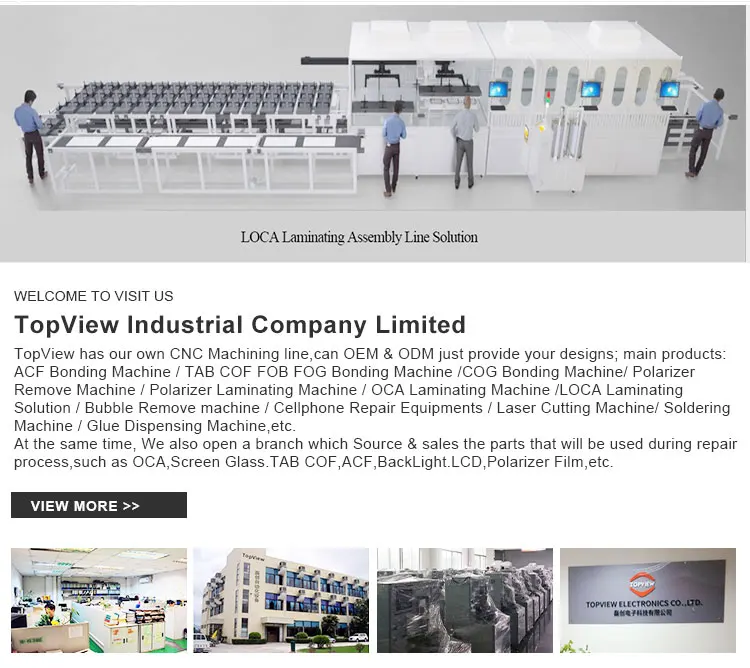

Our Company
Exhibition
Packaging And Shipping
FAQ
1. Are you a manufacturer of bonding machines?

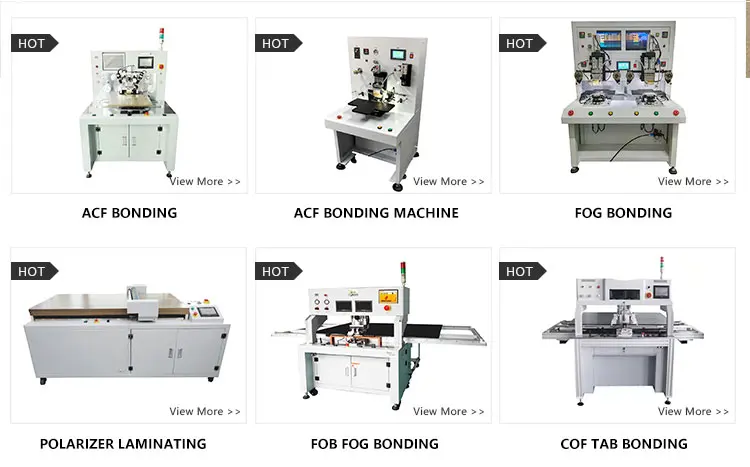

Yes, we are a manufacturer of various lcd screen bonding machines,also Laminating Machines.
2. What are the main products?
TP/LCDrepair machines ,cof/tab bonding machines ,Polarizer film Laminating machines ,etc. for screen repair.
3. will you provide free spare parts?
Bonding machine spare parts are free to provide under warranty .
4. Is there free training on how to use the bonding machine?
Yes,We provide factory free training .specification,video,or you can visit here if necessary;
5. Is customized service available?
Yes, the size, color, logo etc can be customized.
6. Where can i buy the materials of LCD refurbishing?
We are offering all marteials for LCD refurbishing. Just need to tell us what you need.
7. You have too many machines, how do i know which one i need to buy?
Please just inform us how many LCD do you need to refurbish every day, we will provide a suitable solution to you. Or just let us know your budget, we will provide you the solutions.
Yes, we are a manufacturer of various lcd screen bonding machines,also Laminating Machines.
2. What are the main products?
TP/LCDrepair machines ,cof/tab bonding machines ,Polarizer film Laminating machines ,etc. for screen repair.
3. will you provide free spare parts?
Bonding machine spare parts are free to provide under warranty .
4. Is there free training on how to use the bonding machine?
Yes,We provide factory free training .specification,video,or you can visit here if necessary;
5. Is customized service available?
Yes, the size, color, logo etc can be customized.
6. Where can i buy the materials of LCD refurbishing?
We are offering all marteials for LCD refurbishing. Just need to tell us what you need.
7. You have too many machines, how do i know which one i need to buy?
Please just inform us how many LCD do you need to refurbish every day, we will provide a suitable solution to you. Or just let us know your budget, we will provide you the solutions.
