Product Overview
Description
Product Description
MyPower S5820 series data center 100G TOR switch is a 10G access box-type switch product with high density 10G/100G interface and flexible board card combination feature. It is developed by Maipu on basis of closely tracking the development of data center technology for many years and combining with the actual situation of the new-generation data center construction in China, making the high-density access of the 10G server and high-density 10G aggregation of the campus network become possible. Meanwhile, MyPower S5820 support complete business features, perfect security control policy, full-port line-speed forwarding, and other features, meeting the challenges of the data center for the scalability, reliability, management, security, and other aspects of the device.

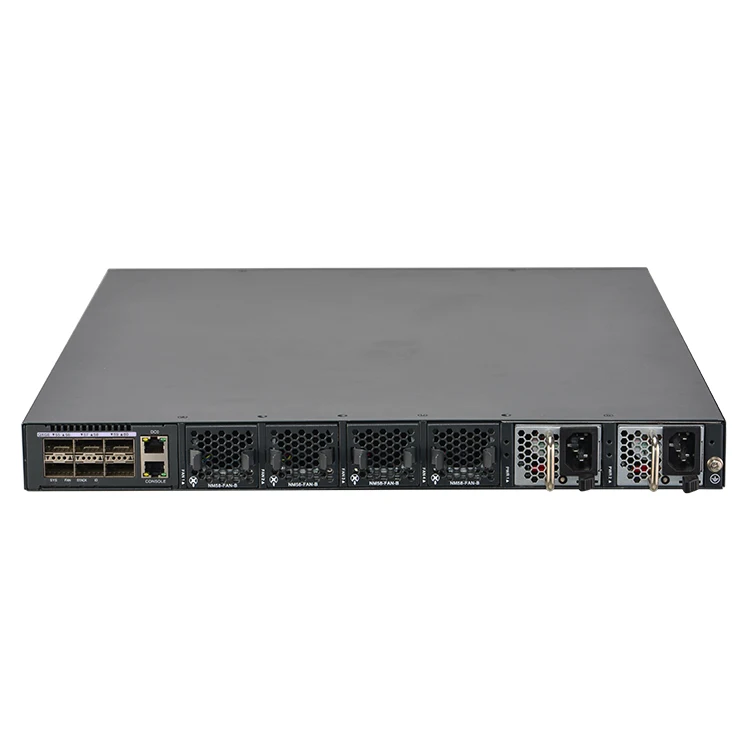

S5820-30XQFP supports 24*10G SFP+ interfaces, 2*40G QSFP interfaces, 4* 100G QSFP28 interface, and dual-modular power slots
Product Model | MyPower S5820 Series | |
Frame Model | S5820-30XQFP | |
Product Configurations | ||
Device Structure | Desktop | |
Physical port | Fixed 24*10G SFP+ interfaces, 2*40G QSFP interfaces, 4*100G QSFP28 interface, Dual Modular Power Slots. | |
RJ45 Console Port | 1 | |
USB Port | 1 | |
Power Supply | Dual Modular AC Power Supply | |
Intelligent Fans | Yes | |
Performance Parameters | ||
Switching capacity | 1.44Tbps | |
Throughput | 1071Mpps | |
Jumbo | 12K | |
VLAN Entry | 4K | |
MAC Entry | 32K/128K | |
Routing Entry | 64K | |
Multicast Entry | 4K | |
ACL Entry | 2K | |
Packet Buffer | 16Mbit | |
Anti-static | Yes | |
Anti-lightning | Yes | |
MTBF | >200000 hours | |
Physical Index | ||
Dimension(W×D×H) | 440*420*44.2(mm) | |
Power Supply | ||
Power consumption | ≤200W | |
Power Input | Two Power Slots | |
Input voltage (AC): 100V ~ 240V, 50Hz ~ 60Hz | ||
Environment | ||
Temperature | -10℃~45℃ | |
Humidity | 10~90%, no-condensing | |
Software Features | ||
Ethernet features | Port features | Port isolation, UNI/NNI isolation, Storm suppression, Port auto-sensing |
MAC address management | MAC address aging time, Mac address learning on|off, Mac address learning limitation, Mac address VLAN bunding, MAC debug | |
VLAN | VLAN, VLAN PVID, VLAN interface, VLAN Tag/Untag, VLAN Trunk, MAC VLAN, Protocol VLAN, Subnet VLAN, Super VLAN, Voice VLAN, VLAN Debug | |
Q-in-Q | Basic Q-in-Q, selective Q-in-Q | |
Ring protection | STP/RSTP/MSTP, BPDU Guard, Flap Guard, Loop Guard, Root Guard, TC Guard, Loopback Detection | |
G.8032(ERPSv1&v2) | ||
Port mirroring | SPAN, ERSPAN | |
Link aggregation | LACP Link aggregation, LACP Port Priority, LACP Load Balance, LACP Rate Monitor, LACP Debug | |
Routing features | DHCP | DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DHCP Option51/82 |
Routing protocol | Static Routes, RIPv1/v2, IRMP, OSPFv2, IS-IS, BGP | |
PBR, VRRP, VBRP | ||
Multicast function | L2 multicast | IGMP Snooping, multicast VLAN, MLD Snooping |
L3 multicast | IGMPv1/v2/v3, PIM-SM, PIM-SSM, PIM-SDM. | |
ACL/QOS | QOS | 802.1p, DSCP |
Traffic shaping, Rate Limit | ||
SP, RR, WRR, WDRR, | ||
Tai-drop, RED, WRED | ||
Network Security | Port Security | Port Security On aging|deny|permit|violation|ACL |
Network Security | IP Source Guard, DHCP Snooping, Host Guard, Dynamic ARP Inspection | |
Access Control List | Standard IP ACL, extended IP ACL, standard MAC ACL, extended MAC ACL, Standard Hybrid ACL, extended Hybrid ACL | |
Anti-attack | Anti-attack detect|drop|flood|log | |
AAA | Authentication, Authorization, Accounting, Radius, TACACS, 802.1x | |
Stacking | VST | VST Member, VST Domain, VST Member Priority, VSL Channel |
MAD | MAD LACP, MAD Fast-hello | |
Data center feature | VxLAN | VxLAN interconnection crossing data center |
EVPN | Support EVPN | |
Device maintenance | Network Management | SNMP v1/v2/v3, MIB, RMON, SYSLOG, DNS, CLI, Telnet, FTP/TFTP, Debug |
Network Monitoring | SPAN, sFlow, LLDP, IP-SLA Based On ICMP-echo|ICMP-path-echo|ICMP-path-jitter|VoIP jitter|UDP echo | |
Green Energy | IEEE 802.3az EEE | |
High reliability | Device reliability | Support power hot-swap |
Support IOS backup and recovery | ||
IP FRR, VPN FRR, BFD, ULFD, ULPP | ||
