Custom Grade A Lifepo4 280Ah Battery Pack 4s1p 1p4s lifepo4 battery pack 3.2v 280 ah for gold cart 12V 24V
- Category: >>>
- Supplier: Lithium Storage Co. Ltd.
Share on (1600359342109):
Product Overview
Description
What we can provide to you
---Capacity covers 40Ah-302Ah
---Same shape, multiple specifications
---Support welding /screw/nut terminals
---Same shape, multiple specifications
---Support welding /screw/nut terminals
----custom battery pack for commercial vehicles and industry vehicles

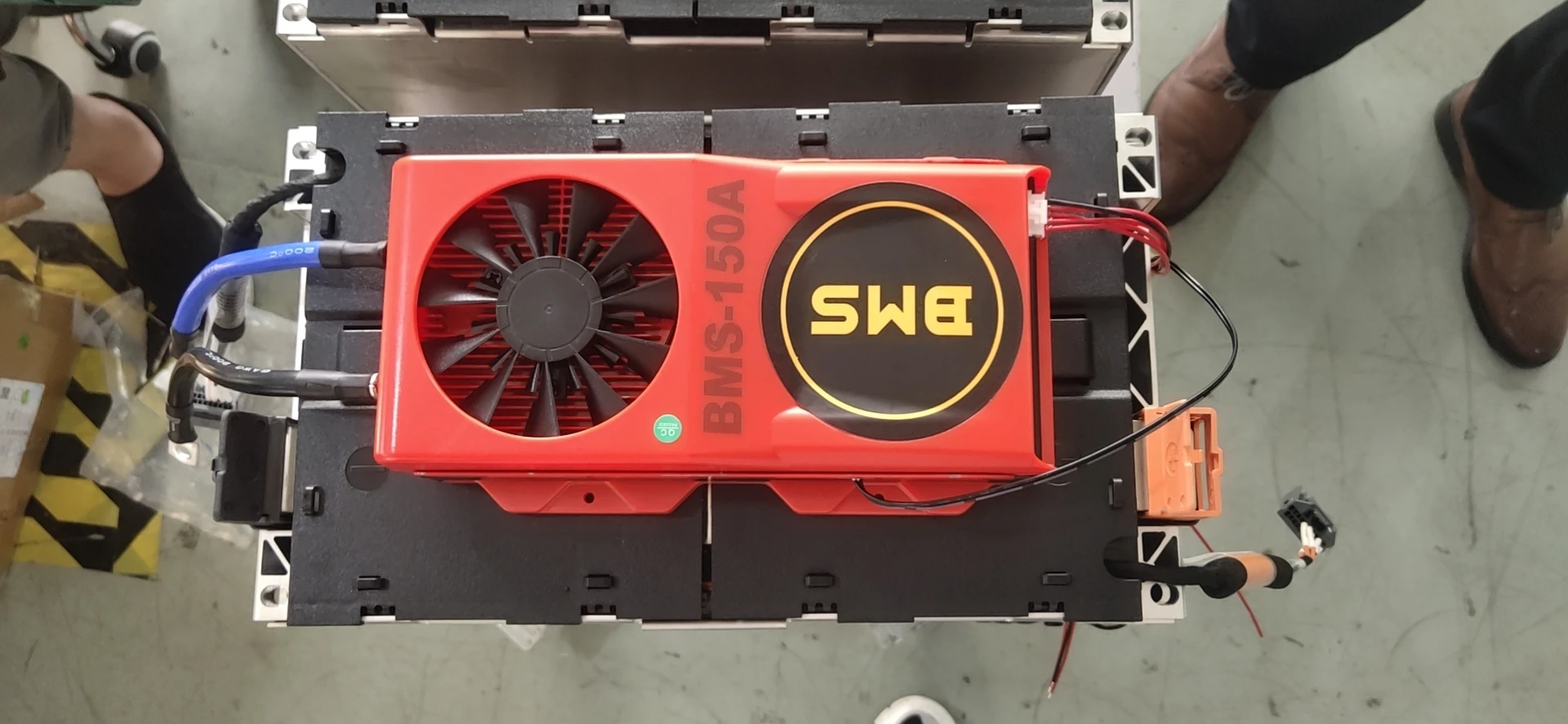

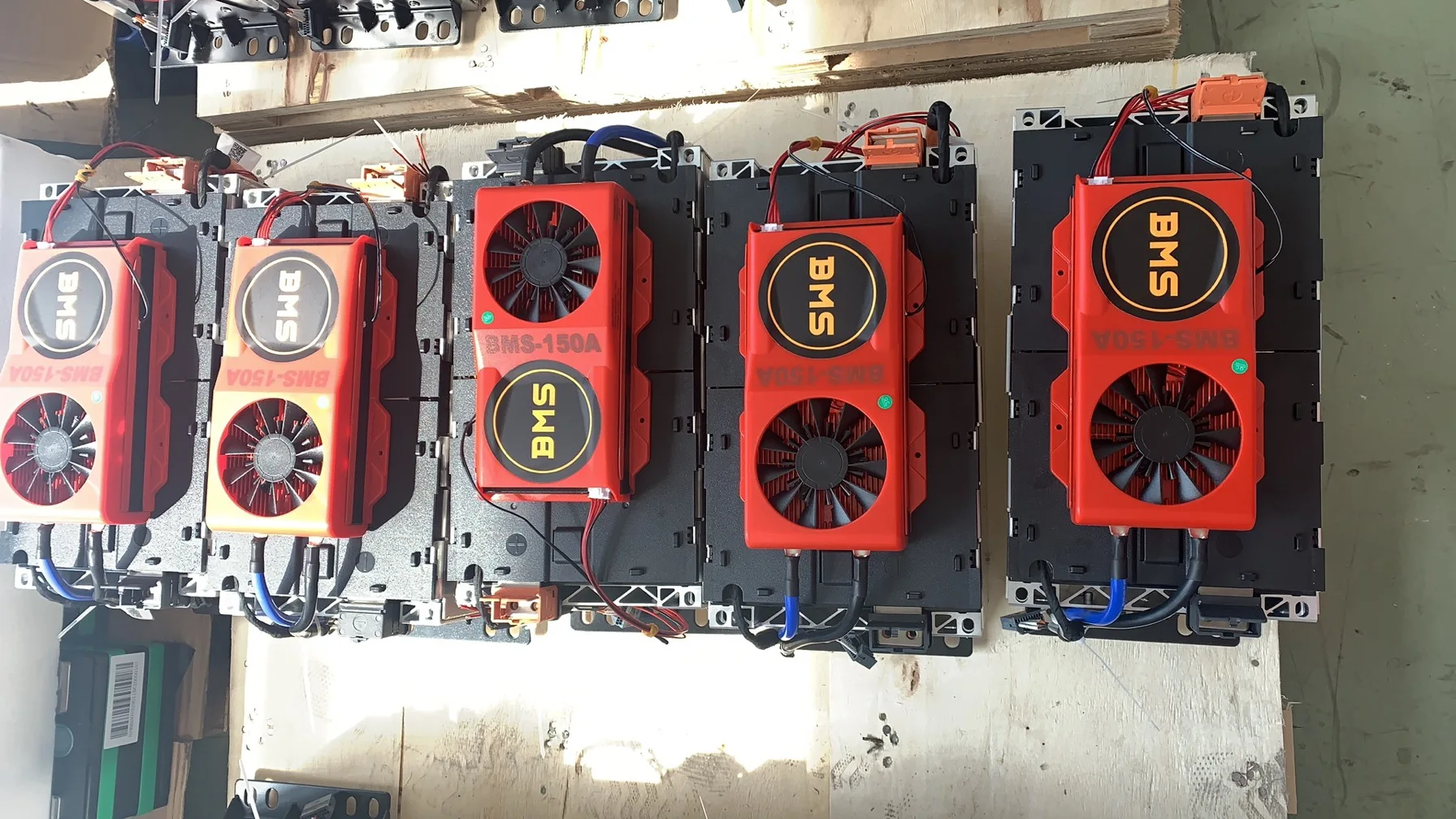

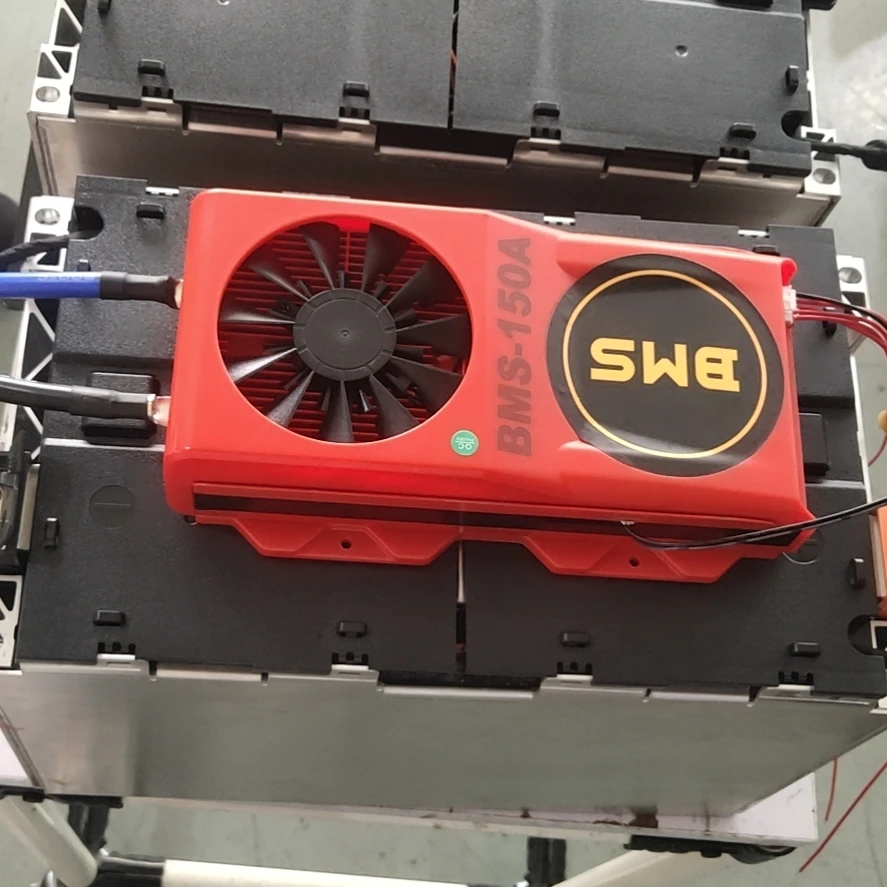

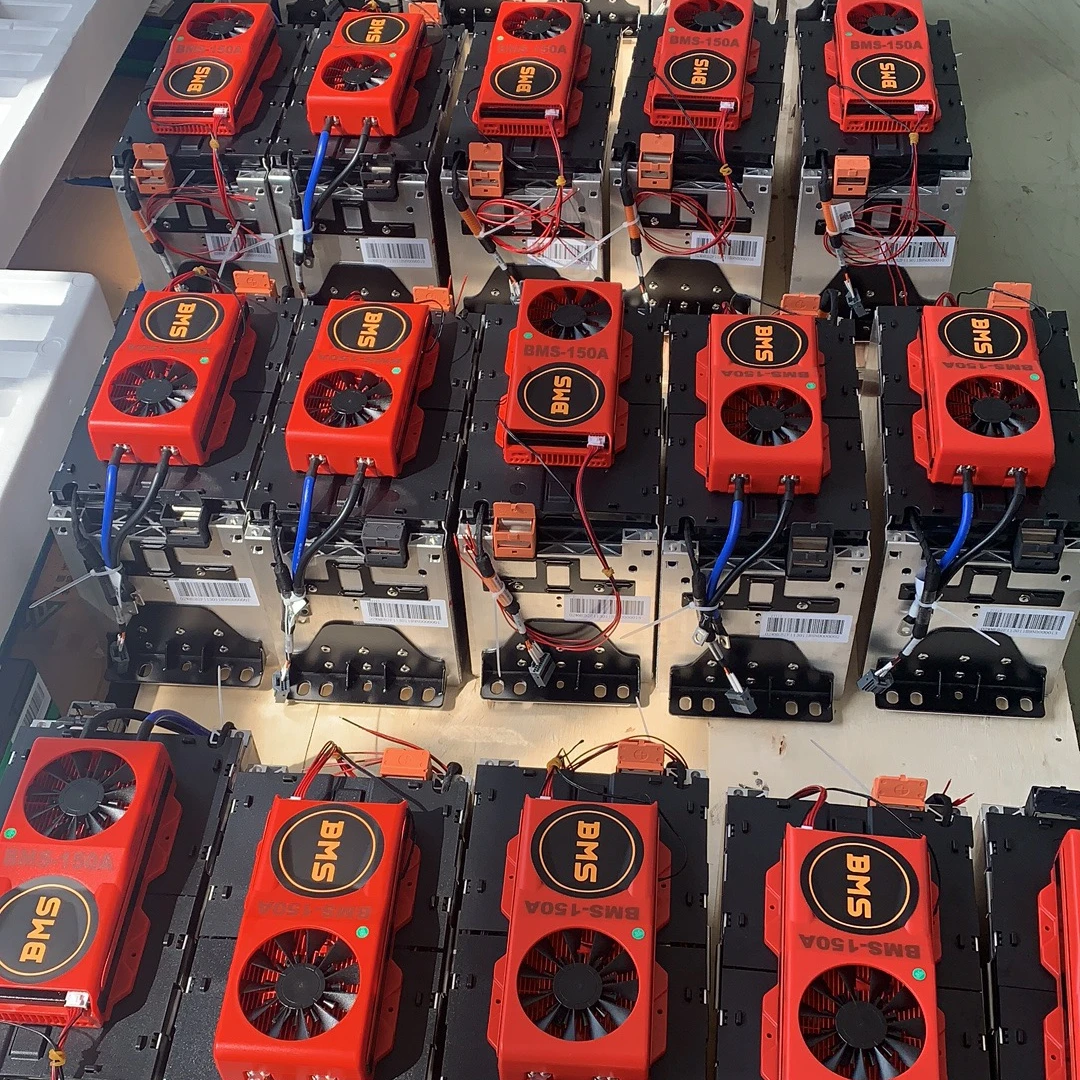

----BMS and protection units integrated inside
Specification
No. | Items | MS0602-12.8V280A | Note | ||
280Ah1P4S | |||||
1 | Nominal voltage(V) | 12.8 | |||
2 | Operating voltage(V) | min | 10 | ||
3 | max | 14.6 | |||
4 | Nominal capacity(Ah) | 280 | 25±2℃,1C | ||
5 | Nominal energy（KWh ） | 3.584 | 25±2℃,1C | ||
6 | Group mode | 1P4S | |||
7 | Module weight（Kg） | ≈23.6 | |||
8 | Maximum continuous charge current（A） | 280 | |||
9 | Maximum continuous discharge current（A） | 280 | |||
10 | Maximum pulse discharge current（≤10s)(A） | 560 | |||
11 | SOC operating range（%） | 20~100 | |||
12 | Insulation requirements(MΩ) | ≥20 | 500V DC，High voltage output to battery module shell, at the normal temperature and humidity | ||
13 | Module cooling method | Natural cooling | |||
14 | Module heating method | NO | |||
15 | Shipping capacity (SOC) | ≈30% | SOC is consistency in the same batch | ||
16 | Dimension L （mm） | 391.6 | |||
Dimension B （mm） | 179.6 | ||||
Dimension H （mm） | 225.3 | ||||
Product Description
Certifications
Application
Forklift Battery
Cooperating with the world's leading machinery enterprises and provide the battery modules in volume
Passenger Vehicle Battery
Top 4 in the domestic commercial vehicle market. Source: GGII, data last updated 15/06/2020
Solar Energy Storage System
Lifepo4 battery cells with long cycle life specially for the energy storage to apply to Household energy storage
UPS battery power supply
Our VDA battery modules are widely applied designing powertrain for commercial vehicles
Uninterruptible Power Supply
Providing stable supply and reliable quality to receive a lot of good reviews from customers
Energy Storage System
Serving many domestic and international power generation groups
Packaging & Shipping
Company Profile
LITHIUM STORAGE is a lithium technology provider. Our factory is located in the Wenzhou city of China, our technical team is set in the Nanjing city of China, and we also have international branch in the Dundee of United Kingdom. The current production capacity of our factory is 6GWh and 20Gwh is in construction, and there are approximately 1600pcs employees, including 580 R&D engineers. Our factory have successively passed the authoritative quality management system certification such as ISO9001, IATF16949, ISO14001 and ISO45001, and products have received international certifications such as MSDS, UN38.3,UL, IEC62619, JET and BIS.
LITHIUM STORAGE focuses on to deliver lithium ion battery, lithium ion battery module and lithium based battery system with BMS and control units for both electric mobility and energy storage system application, including standard products and customized products. Most of our patents, battery technology and power integrations are based on LFP/NCM chemistry prismatic of Lithium Ion Batteries.
FAQ
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
