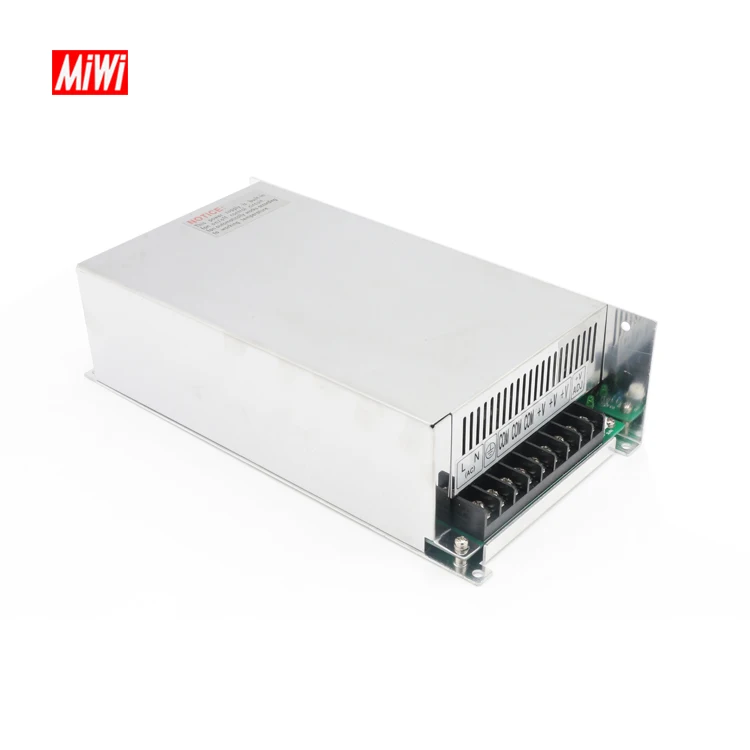

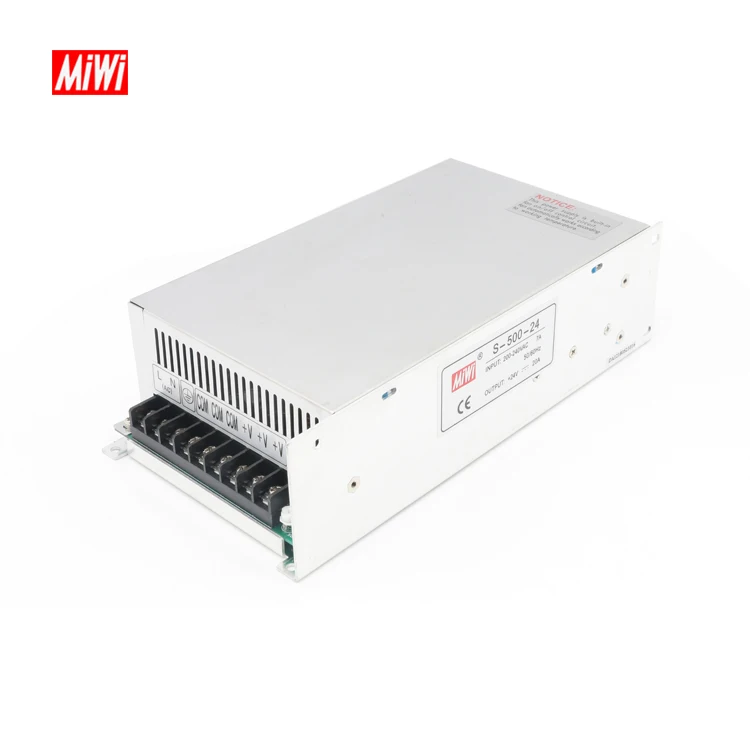

MiWi S-500-24 High quality 220V AC to DC 24V 20A 500w power supply 24vdc
MiWi S-500-24 High quality 220V AC to DC 24V 20A 500w power supply 24vdc
MiWi S-500-24 High quality 220V AC to DC 24V 20A 500w power supply 24vdc
MiWi S-500-24 High quality 220V AC to DC 24V 20A 500w power supply 24vdc
MiWi S-500-24 High quality 220V AC to DC 24V 20A 500w power supply 24vdc
MiWi S-500-24 High quality 220V AC to DC 24V 20A 500w power supply 24vdc

MiWi S 500 24 High quality 220V AC to DC 24V 20A 500w power supply 24vdc

Share on (1600359547799):


Price:USD 20.00 - USD 22.00

Quantity:


Product Overview

Description


You are here:Home>>Single Output Series>>S Series


-mini size.png



Product Description


 MMiWi S-500-48 AC to dc power supply 48Vdc psu 500w



  • Protections: short circuit/over load/over voltage /over temp

  • Built-in cooling DC fan

  • AC input voltage range selected by switch

  • Cooling fan ON-OFF auto control

  • Small volume, low weight, high efficiency

  • LED indicator for power on

  • 100% full load burn-in test

  • 2 Year warranty





























































































































































































ModelS-500-12S-500-15S-500-24S-500-48
 OUTPUT DC output voltage12V15V24V48V
Output voltage tolerance±1%±1%±1%±1%
Rated output current41.5A33A20.8A10.5A
Output current range0~41.5A0-33A0-20.8A0-10.5A
Ripple & noise200mVp-p200mVp-p240mVp-p240mVp-p
DC adjustable voltage  range10-13.2V13.5-18V20-26.4V41-56V
DC output power500W495W500W504W
Inlet stability±0.5%±0.5%±0.5%±0.5%
Load stability±1%±0.5%±0.5%±0.5%
Setup rise hold up time200ms,50ms,20ms
INPUT AC input voltage range90~132VAC/180~264VAC selected by switch, 248~370VDC
Frequency range47~63Hz;
Input current6.5A/115V 4A/230V
AC impulse current25A/115V 50A/230V
Leakage current<3.5mA/240VAC
Efficiency78%81%83%84%
PROTECTIONOverload protection105%~135%. Type,PULSING HICCUP SHUTDOWN; Reset,auto recovery
Over-voltage protection13.8-16.2V18-21V27.6-32V57.6-67.2V
High-temperature protectionRTH3>=65°C FAN ON<=55°C FAN OFF>=80°CCut off output(5~15V)
RTH3>=70°C FAN ON<=60°C FAN OFF>=85°CCut off output(24~48V)
ENVIRONMENTTemperature coefficient±0.03%°C(0~50°C)
Vibration10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Isolation resistance

Input & output interval,Input & enclosure,


Output & enclosure,500VAC/100M Ohms


Working temp & humidity-10°C~+50°C,20~90%RH
Store tempe & humidity-20°C~+85°C,10~95%RH

SAFETY & EMC


 Note 8


Withstand voltage

Input & output interval,1.5KVAC.Input & enclosure,


1.5KVAC. Output & enclosure,0.5KVAC


Safety standardsDesign refer to UL1012, EN60950-1,EN61347-1,EN-61347-2 approved
EMC standardsEN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved

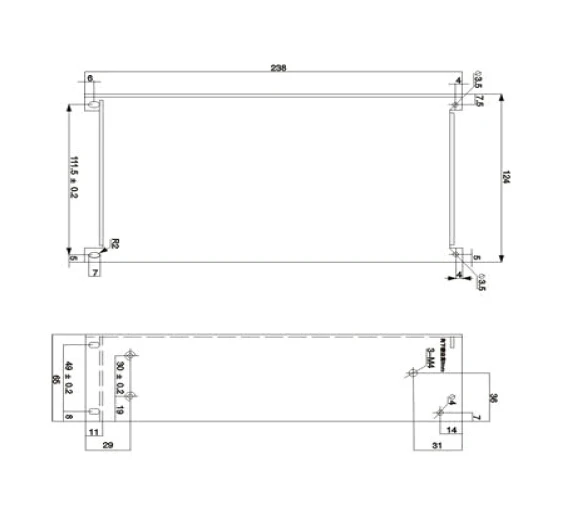

OTHERS Overall dimension (L×W×H) 241*124*65 mm
Weight1.4Kgs /10pcs per carton
NOTE1.The testing condition for the parameter above is,230VAC input, rated load,25°C 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note,5)

3.Wave test,adopting“A12”double wire for 20MHz,


and 0.1uF&uF capacitor short-circuit for interrupting



4.Inlet voltage stability test, when is over load,


 the lowest voltage of inlet is representative to the highest voltage.


5.Load stability test: The load is from 0% to 100%,others 60%.
6.C2,3,11must be knocked down
