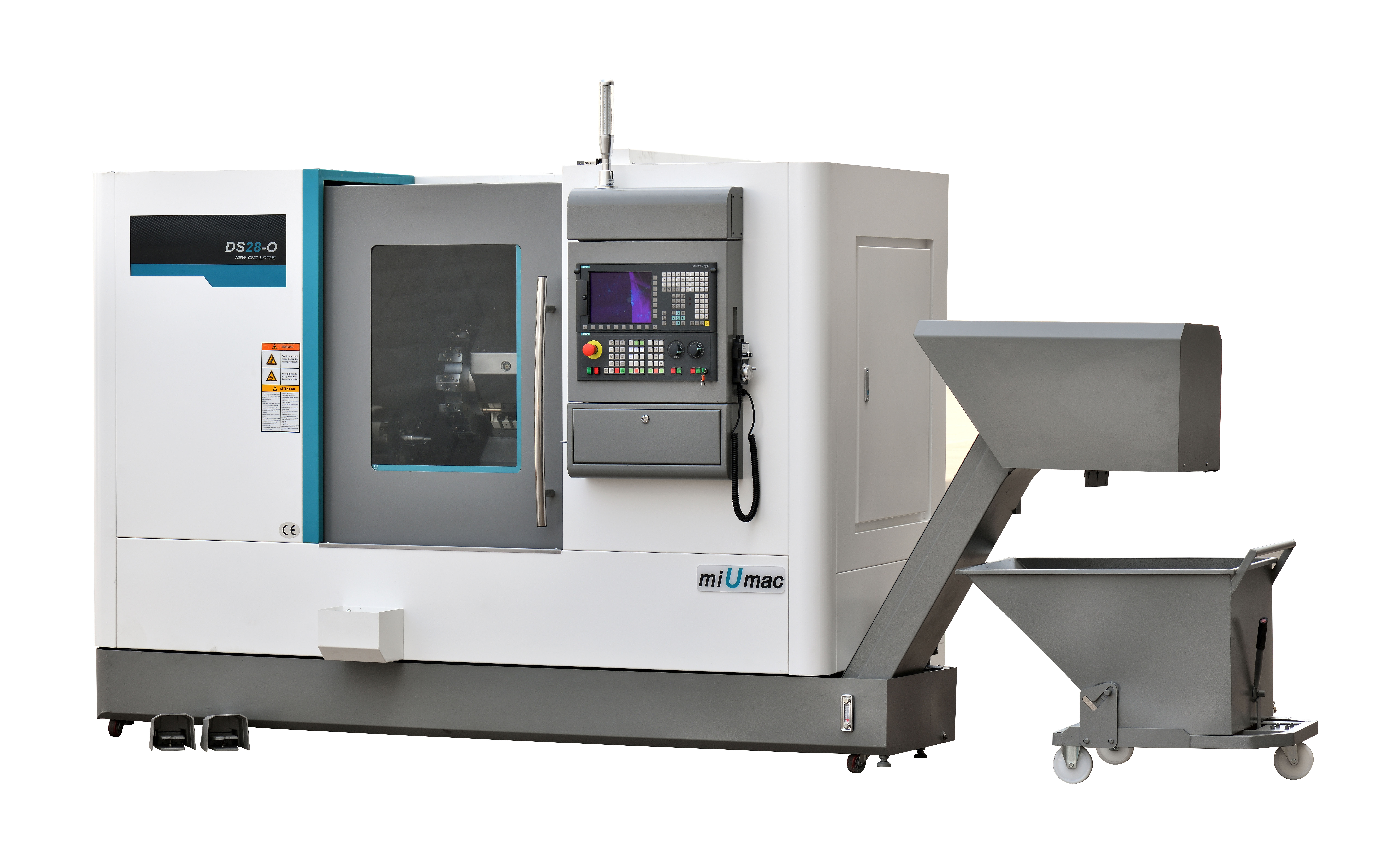

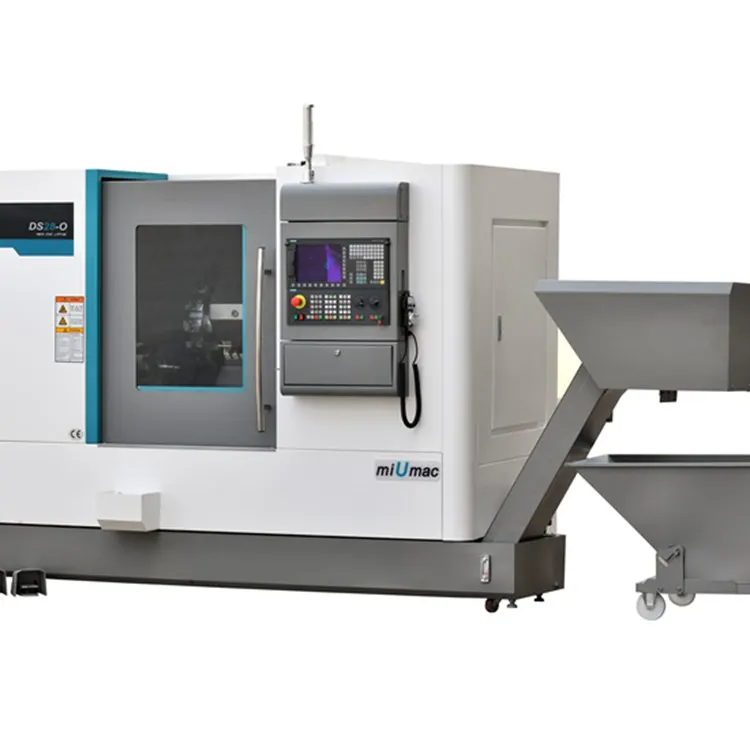

DS28 O Wholesale Metal Customized Automatic Cnc Metal Cnc Lathe Machine Price From China
- Category: >>>
- Supplier: Eternova International Group Co. Ltd.
Share on (1600359625366):
Product Overview
Description
Product Features
1. Aseismatic capability, high strength and good quality cast iron.
2. Main motor and spindle driven through wide-angle belt.
3. Taiwan high precision linear guide ways.
4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
5. Adopting Japan NSK special screws angular contact ball bearing group.
1. Aseismatic capability, high strength and good quality cast iron.
2. Main motor and spindle driven through wide-angle belt.
3. Taiwan high precision linear guide ways.
4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.
5. Adopting Japan NSK special screws angular contact ball bearing group.
Right elevation
Left elevation
Back elevation
ltems | DS28-O |
Max.swing over bed | Φ520 mm |
Max. cutting dia.for disc parts | Φ4420 mm |
Max.cutting dia.for axle parts | Φ250 mm |
Max. cutting length for axle parts | 500 mm |
Max.travel of X-axis | 255 mm |
Max.travel of Z-axis | 600 mm |
Spindle bore | Φ65 mm/Φ63mm (Sleeve spindle) |
Spindle nose | A2-6 |
Spindle taper | Morse No.6/Φ70 Metric 1: 2 (Sleeve spindle) |
Spindle speed | 4000 rpm/5000 rpm (Sleeve spindle) |
Hydraulic chuck size | 8" |
Rapid feed speed of X/Z | 20/24 m/min |
Linear guide ways wide of X/Y/Z | 35/45 mm |
Center distance of Zlead screws | 370mm |
Diameter and screw pitch of Xlead screws | Φ32×10 mm |
Diameter and screw pitch ofZ lead screws | Φ40×10 mm |
Tool post stations | 12T |
Outside dia.cutting tool shank | 25×25 mm |
Max.inner dia.cutting tool shank | Φ40 mm |
External dia.of tailstock sleeve | Φ80 mm |
Max.travel of tailstock sleeve | 120 mm |
Tailstock sleeve taper | Morse No.4 |
Power of main motor | 11/15 kw |
Bed structure | 45 slant bed |
Positioning accuracy of X/Z | ≤0.010/0.012 mm |
Repeated positioning accuracy of X/Z | ≤0.003/0.005 mm |
Power of coolant pump | 180 W |
Capacity of lubrication pump | 2L |
Overall dimensions(LxWxH) | 2880×1850×2000 mm |
Net weight | 4300 kg |
Taiwan 3-jaw hydraulic chuck

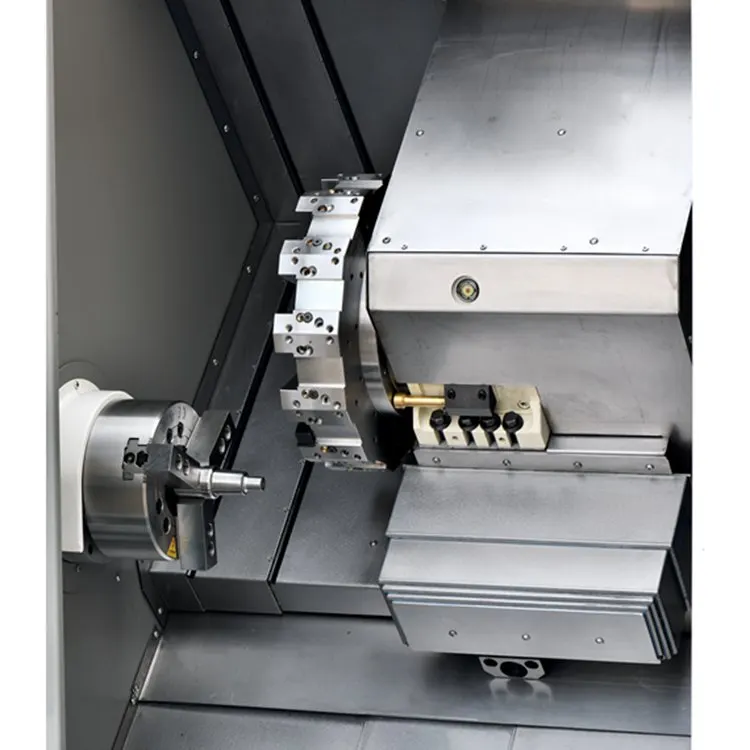

Taiwan hydraulic turret.
Hydraulic tailstock or programmable tailstock is optional.
Taiwan P-grade high precision linear guide ways.
Taiwan C3 grade precision ball screws.

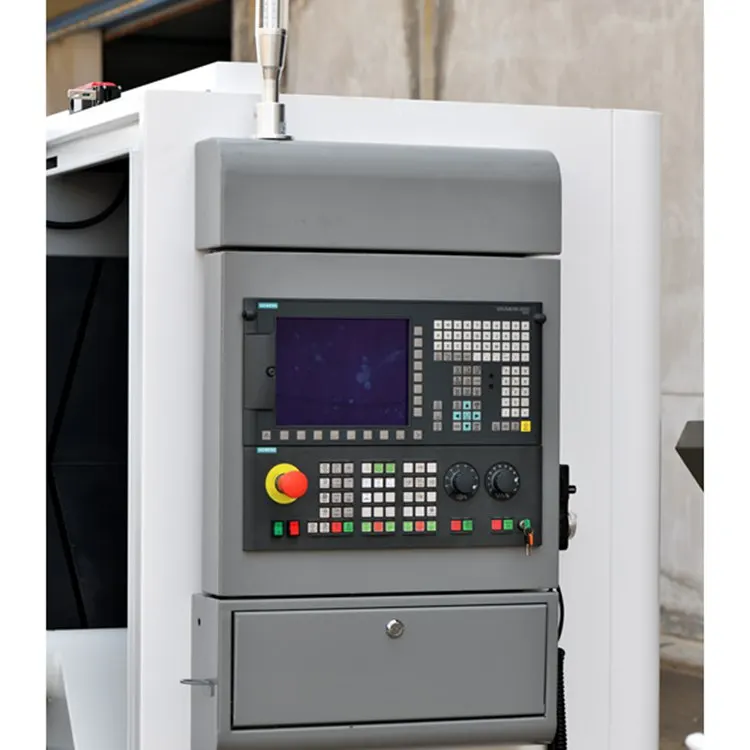

FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.
Auto bar feeder is optional
Parts catcher is optional.
Renishaw tool pre-setter is optional
