coil winding machine, transformer winding machine, ignition coil winding machine (1600359654835)

Share on:


Price:$2,150.00 - $2,350.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

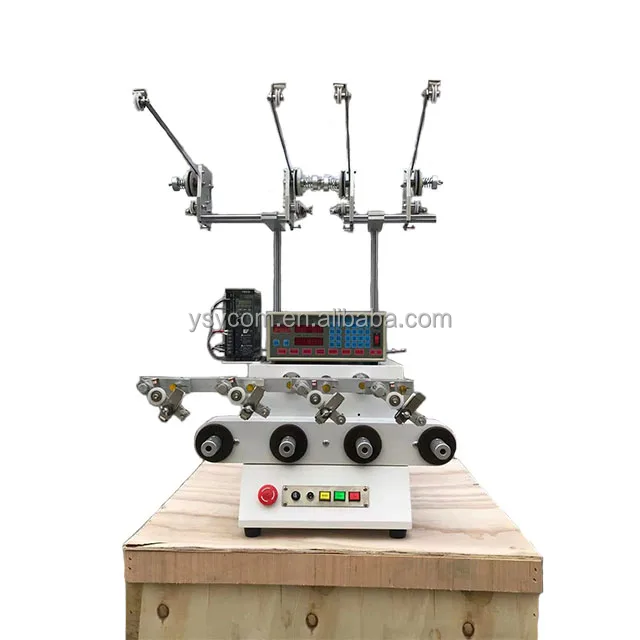

This device uses a computer CNC control system to precisely locate the spindle by CPLD decoding and speed measurement. It is also equipped with a stepper motor with a constant current chopper to drive the wiring. It is fast and precise and ensures the normal operation of the equipment. It is widely used in the production system of medium and small transformers, relays, communication coils, high voltage wire packages, power converters, stabilizers, and other products.





Functions and characteristics:


1. The data stores the paragraph 0~999 step.


2. It can reverse the winding at high speed.


3. The number of circles is accurate.


4. The problem information is saved automatically.


5. CNC can monitor and display production status.


6. The setting is simple and the operation is convenient.



















































































Model YSY-PW762YSY-PW764YSY-PW766
Windable Wire Diameter φ0.04-0.8mmφ0.03-0.6mmφ0.03-0.6mm
Max.winding width100mm100mm100mm
Max. bobbin Diameter 70mm70mm100mm
Spindles246
Spreading motor24V Stepping Motor24V Stepping Motor24V Stepping Motor
Winding  motorAC 750WAC 750WAC 750W
Max winding speed6000 RPM6000 RPM6000RPM
Voltage220V/50HZ220V/50HZ220V/50HZ
Machine  Weight about50KG about70KGabout75KG
Machine  Dimension  600*500*550mm 700*650*600mm1120*700*680mm
Lead time7-10days 7-10days10-15days



Over15-years manufacturer of winding machines, want to see more, contact me. Thank you.








Our Services


Dear customer,


Thank you for your time, we are sure you are quite wise to choose us.


If you want us to get a quote, or make a customized one, please send us the drawing or the sample, and tell us your detailed requirements.


It is always a pleasure to greet a friend from afar.


Looking forward to your inquire.





Company Information

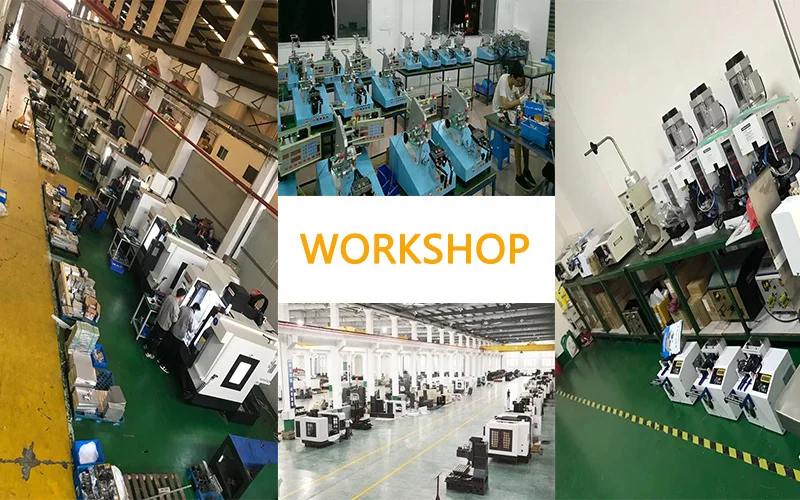

Suzhou YSY Technology Co., Ltd was founded in May 2017, located at Suzhou City in Jiangsu Province, near Shanghai. It is a professional manufacturer engaged in the research, development, production, sale, and service of wire drawing machines, wire winding machines, Harness automation equipment, solar panels, and so on. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as the Middle East, Europe, Africa, Asia, and North America. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. Quality is our culture! Hope for your cooperation soon!
