TDA7498E Digital amplifier board 2.0 dual channel 2*160W high power stereo HIFI support BTL220W TDA7498E digital power amplifier

 TDA7498E Digital amplifier board 2.0 dual channel 2*160W high power stereo HIFI support BTL220W

Working voltage: 15~24VDC DC belt input polarity is connected with reverse protection (the real power of the speaker is large enough, the recommended voltage is 24V, more than 8A DC, the power supply power is too small will distortion broken tone phenomenon can not play a shock effect).

Horn impedance: 6 euro 8 Euro

Heat dissipation mode: temperature controlled forced air cooling (forced heat dissipation for fan operation when the heat sink temperature reaches a certain level)

Productivity: 85% (official)

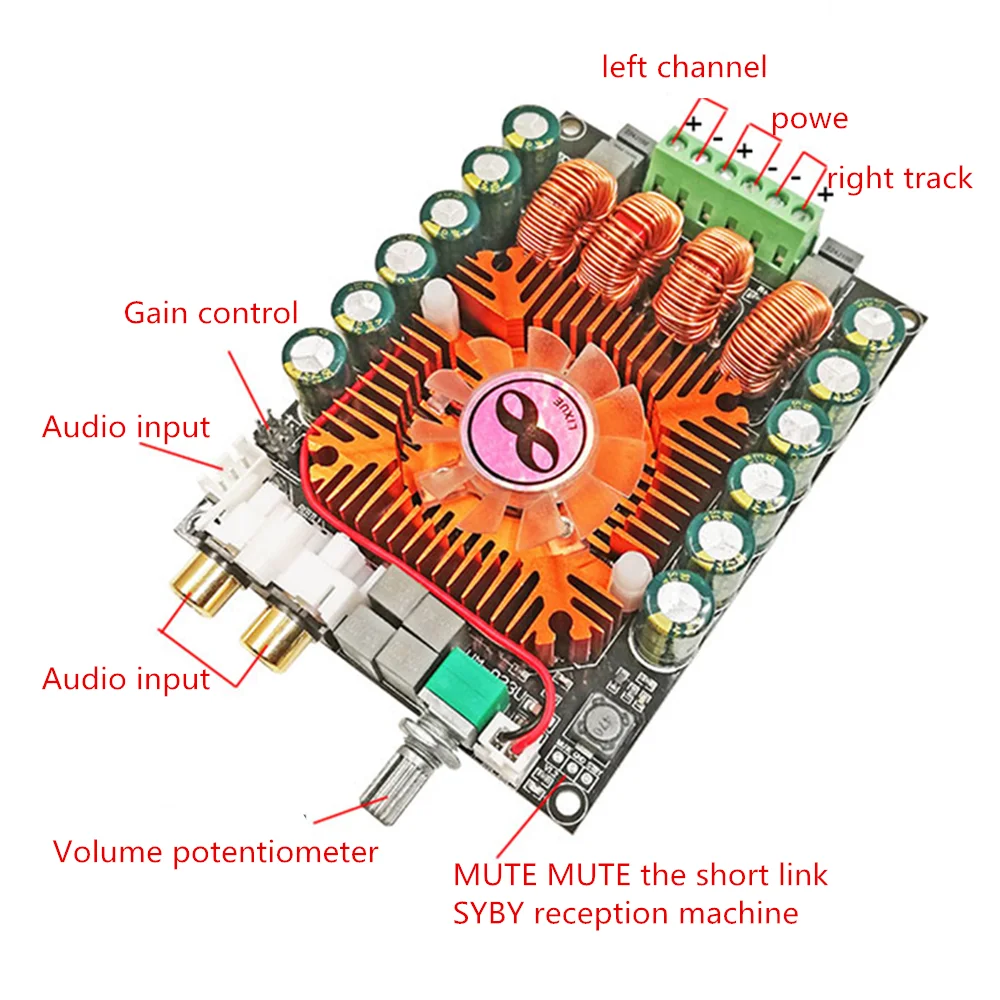

Support BTL mode (power amplifier board back J1, J2, J3, J4 short) (TDA7498, TDA7498L chip does not support this function)

BTL mode needs to be handled by professionals, but not by non-professionals

Weight 165 grams,

Note:New parts and in original factory package!

Sincerely looking forward to our cooperation!
Any feedback from you would be highly appreicately!

Selling Units:

Single item

Lead Time :

Quantity(Piece)	1 - 2000	>2000
Est. Time(days)	2	To be negotiated
