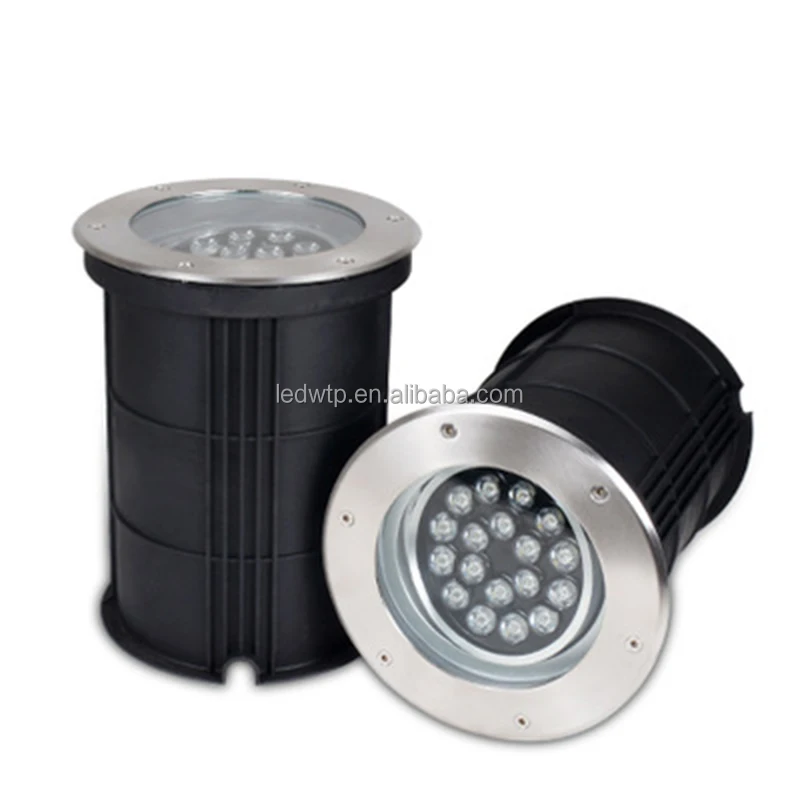

3W 5W 9W 12W 15W 18W Adjustable Angle LED Underground Lamp Outdoor Ground Garden Path Floor Buried Yard Spot Landscape Lighting
- Category: >>>
- Supplier: Zhongshan Wright Optoelectronics Technology Co. Ltd.Zhongshan Ltd.
Share on (1600360167810):
Product Overview
Description
Product Description
3W 5W 9W 12W 15W 18W Adjustable Angle LED Underground Lamp Outdoor Ground Garden Path Floor Buried Yard Spot Landscape Lighting | ||
Model number | WTP-RLUL-28-34 | |
Power | 3W/6W/9W/12W/24W/18W/36W | |
Voltage | AC/DC 12V 24V AC85-265V | |
led type | 1W/2W Bridegelux 35 Mail / Bridegelux 45 Mail | |
Wire | 3*0.75m²-VDE -30CM | |
Luminous efficacy | 125lm/w | |
Housing | 201Stainless steel(can be customized 304 Stainless steel) | |
PF&CRI | PF>0.65 ，CRI >80 | |
IK&IP | IK08 IP67 waterproof | |
Warranty | 3 Year Warranty | |
Application | Garden, Courtyard, Pathway,Road, Projects, etc. | |
Specifications:
LED type: LED high power
Power consumption:3W 5W 9W 12W 15W 18W
Input voltage: AC 85-265V (default)/DC12V (If you need 12V or 24V, please leave a message to us)
Light color: Cold White(6000-6500K),Warm White(2800-3200K),Red，Blue，Green，Yellow
Protection grade: IP685
Material: Stainless steel, aluminum & plastic
LED lifespan: 50,000 hr

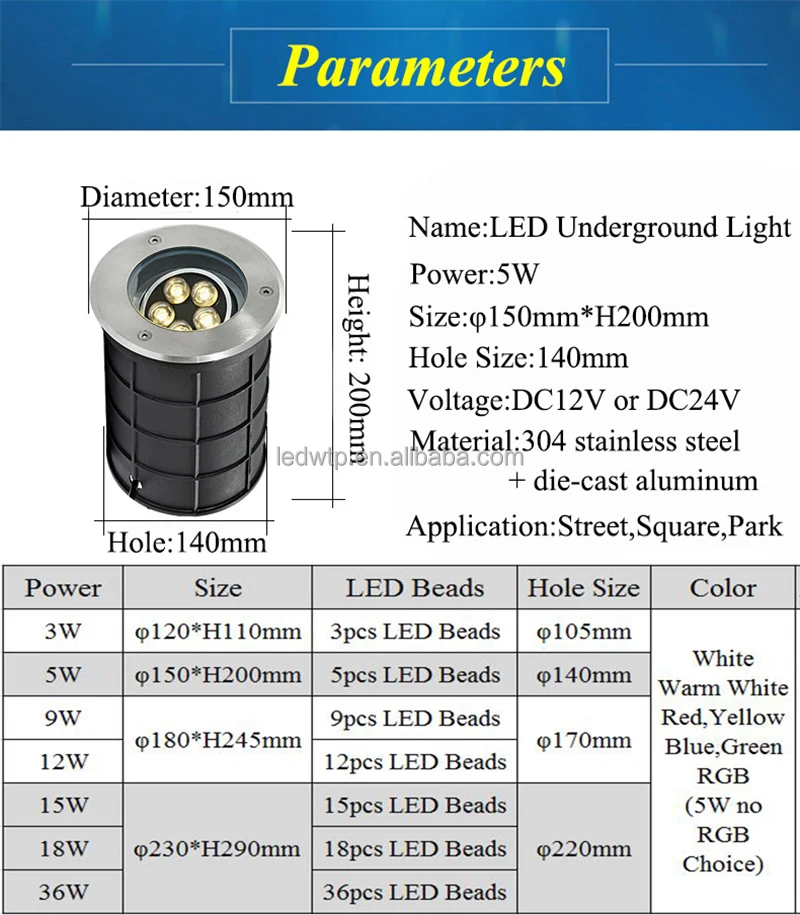

Item size:
3W Diameter 115mm，Height 132mm，Hole Cut 105mm
5W Diameter 150mm，Height 195mm，Hole Cut 140mm
9W Diameter 180mm，Height 245mm，Hole Cut 170mm
12W Diameter 200mm，Height 245mm，Hole Cut 170mm
15W Diameter 230mm，Height 290mm，Hole Cut 220mm
18W Diameter 230mm，Height 290mm，Hole Cut 220mm
Approved: CE/ROHS
Warranty:5 Years
LED type: LED high power
Power consumption:3W 5W 9W 12W 15W 18W
Input voltage: AC 85-265V (default)/DC12V (If you need 12V or 24V, please leave a message to us)
Light color: Cold White(6000-6500K),Warm White(2800-3200K),Red，Blue，Green，Yellow
Protection grade: IP685
Material: Stainless steel, aluminum & plastic
LED lifespan: 50,000 hr
Item size:
3W Diameter 115mm，Height 132mm，Hole Cut 105mm
5W Diameter 150mm，Height 195mm，Hole Cut 140mm
9W Diameter 180mm，Height 245mm，Hole Cut 170mm
12W Diameter 200mm，Height 245mm，Hole Cut 170mm
15W Diameter 230mm，Height 290mm，Hole Cut 220mm
18W Diameter 230mm，Height 290mm，Hole Cut 220mm
Approved: CE/ROHS
Warranty:5 Years

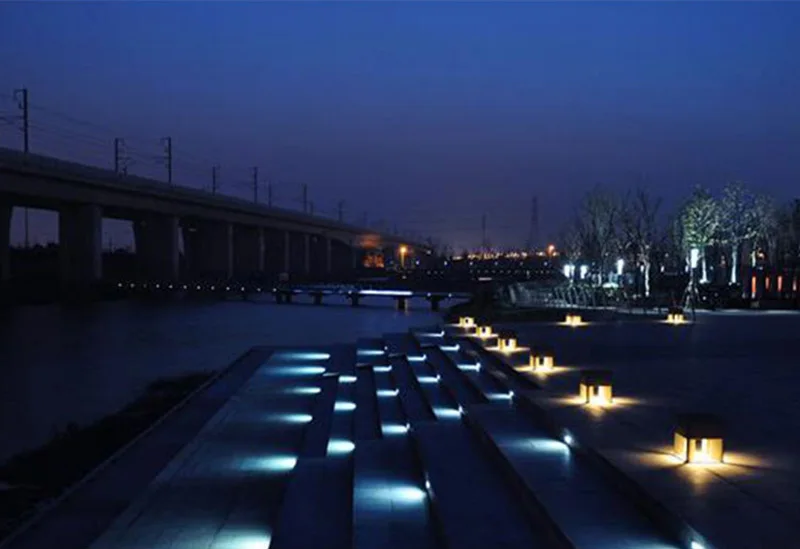

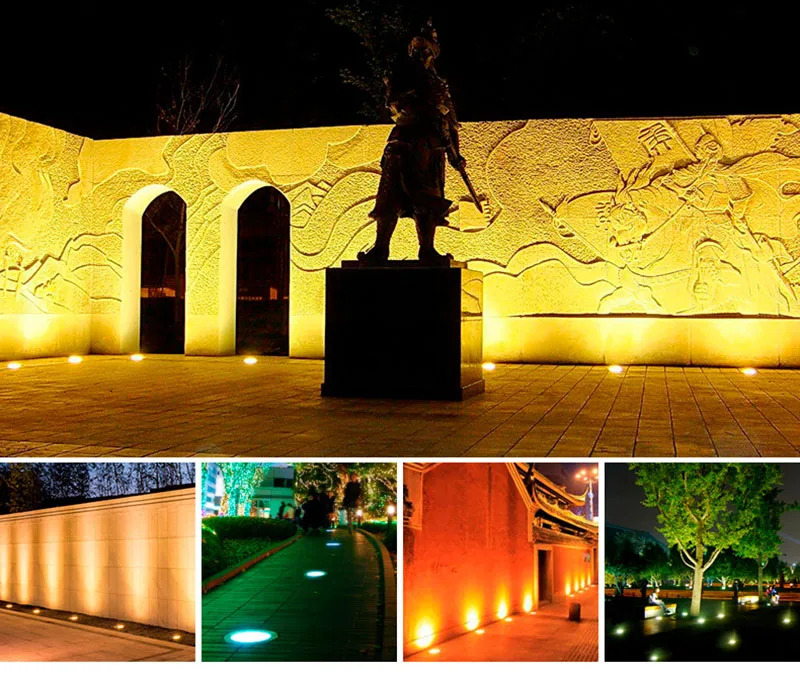

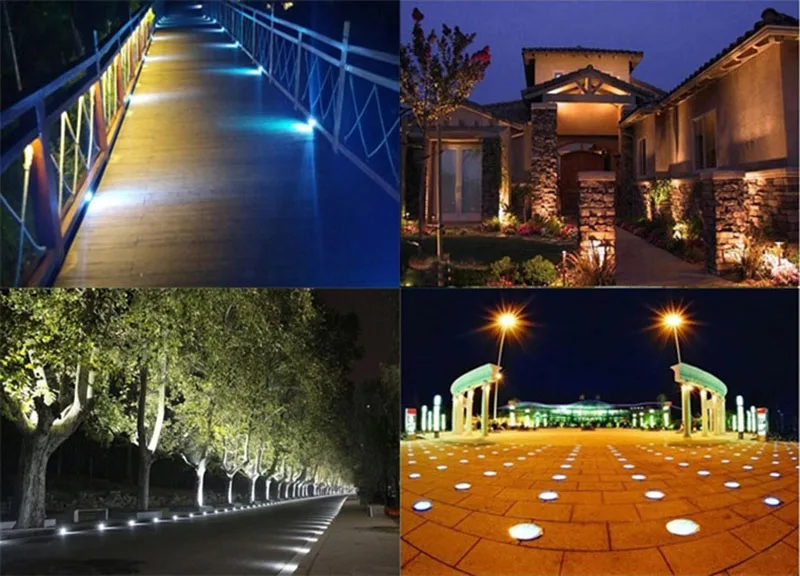

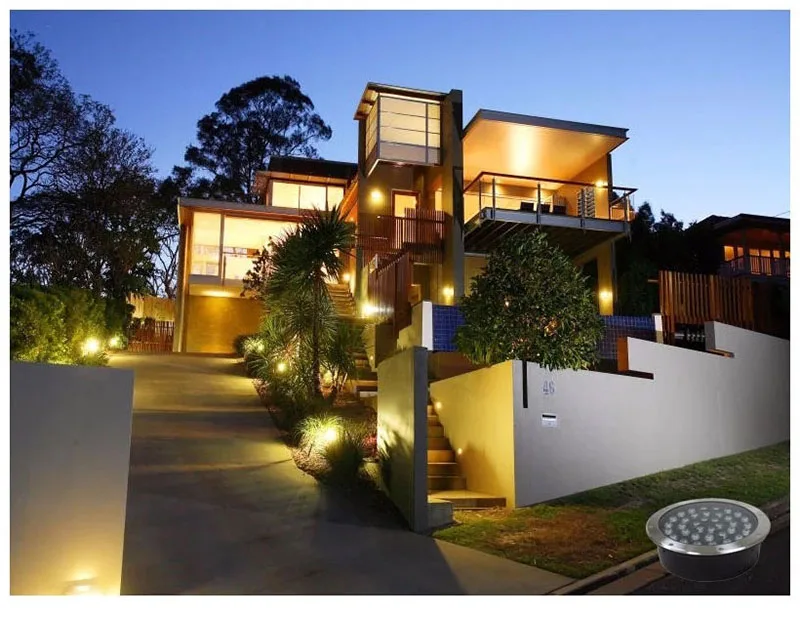

Applications:
square, restaurant, Private, villas, garden, meetingroom, exhibition hall, District environment beautification, Stage bar,
supermarket, Parking sculpture, Tourist attractions and other places
Features:
Environmental-friendly and energy saving.
High quality material, good bearing capacity.
Anti-corrosion and durable.
Adopt tempering glass, excellent luminousness.
Easy installation.
Built-in constant current driver, long lifespan and stable performance.

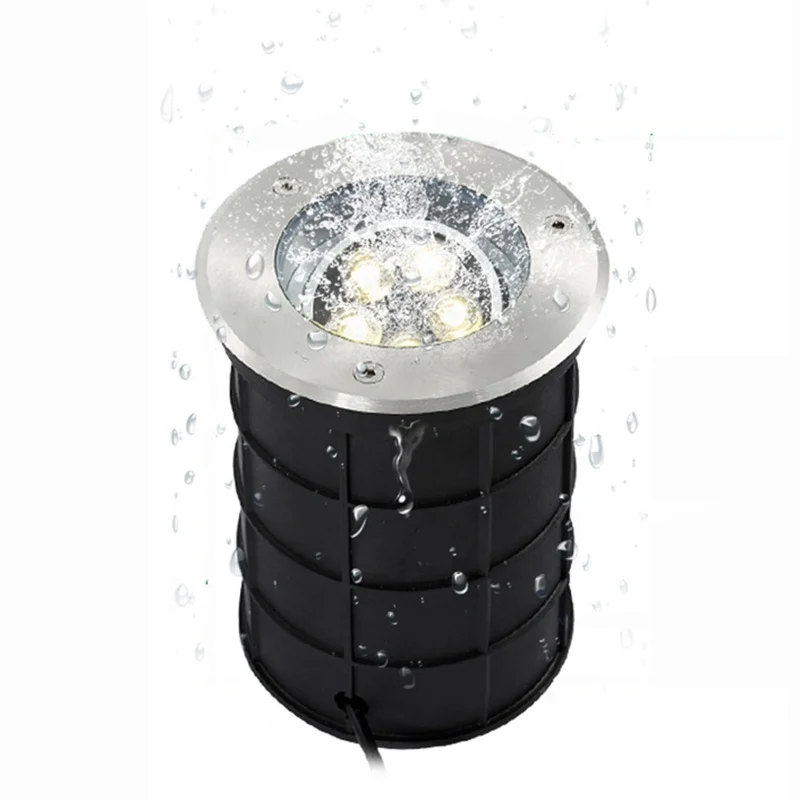

Waterproof and dust proof.

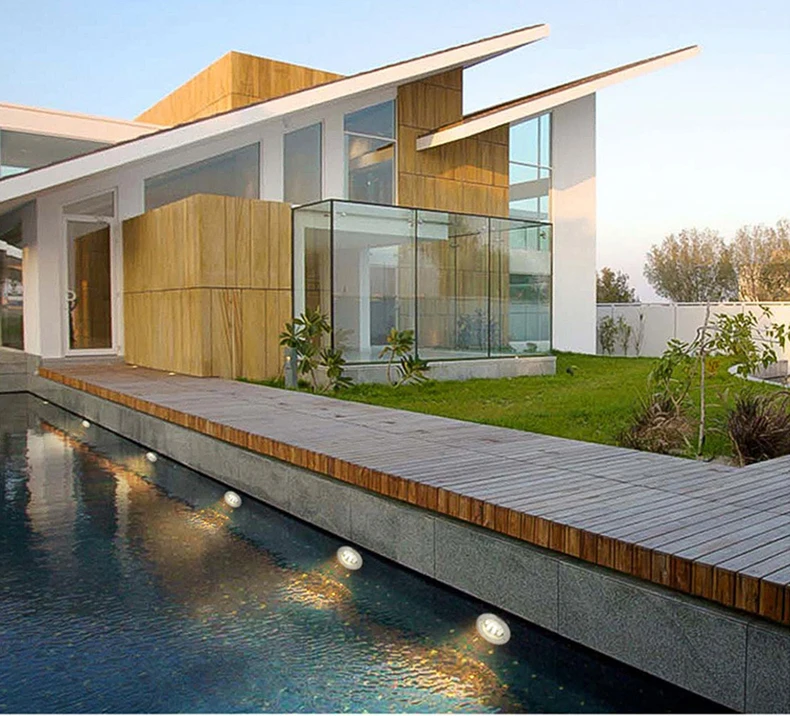

Perfect for outdoor lighting such as landscape, garden, swimming pool, etc.
square, restaurant, Private, villas, garden, meetingroom, exhibition hall, District environment beautification, Stage bar,
supermarket, Parking sculpture, Tourist attractions and other places
Features:
Environmental-friendly and energy saving.
High quality material, good bearing capacity.
Anti-corrosion and durable.
Adopt tempering glass, excellent luminousness.
Easy installation.
Built-in constant current driver, long lifespan and stable performance.
Waterproof and dust proof.
Perfect for outdoor lighting such as landscape, garden, swimming pool, etc.

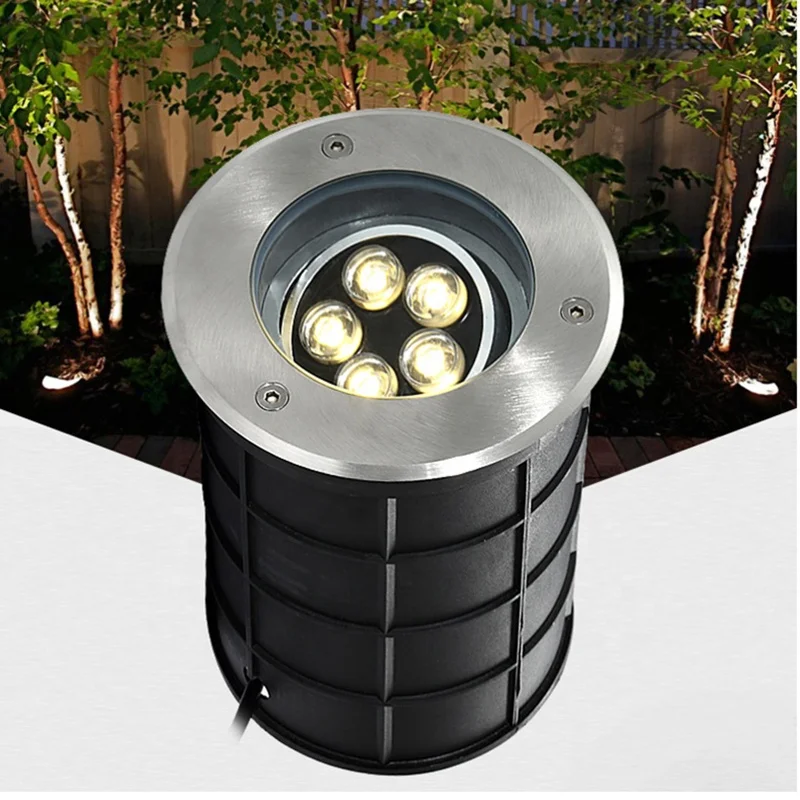

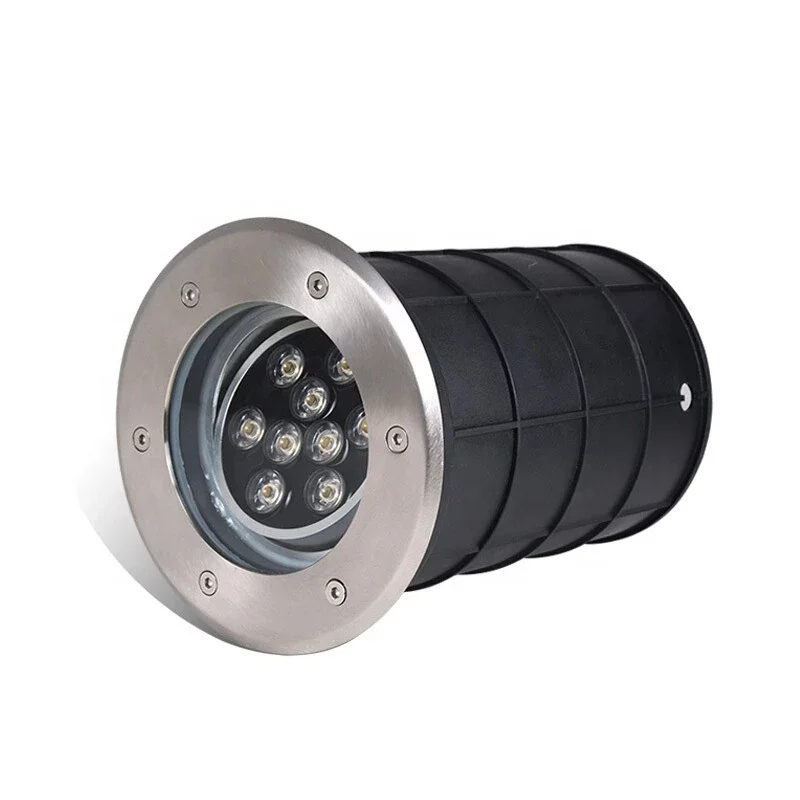

Product Presentation

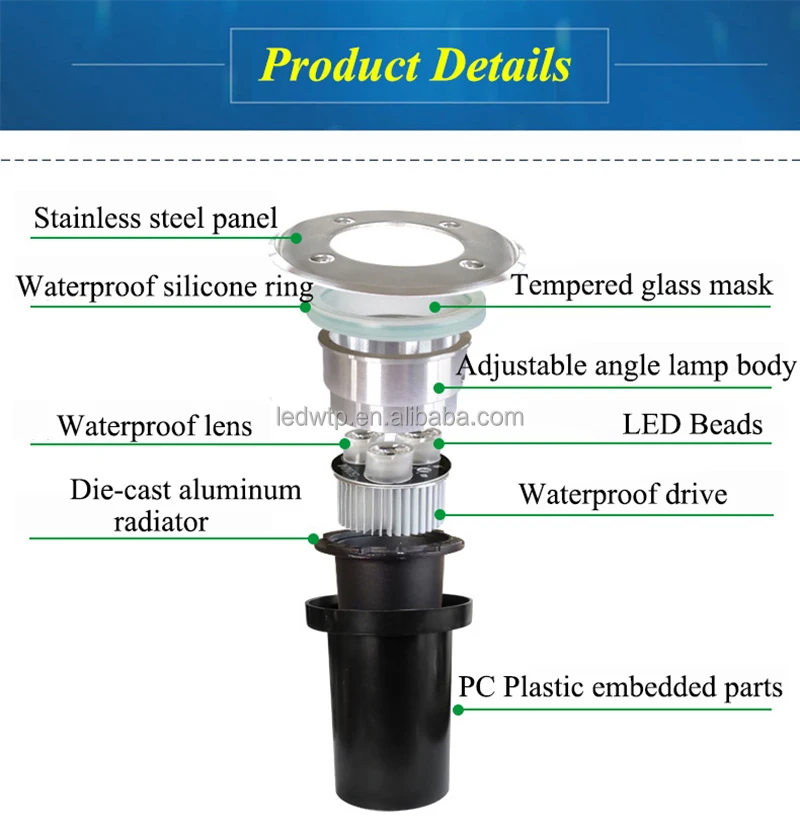

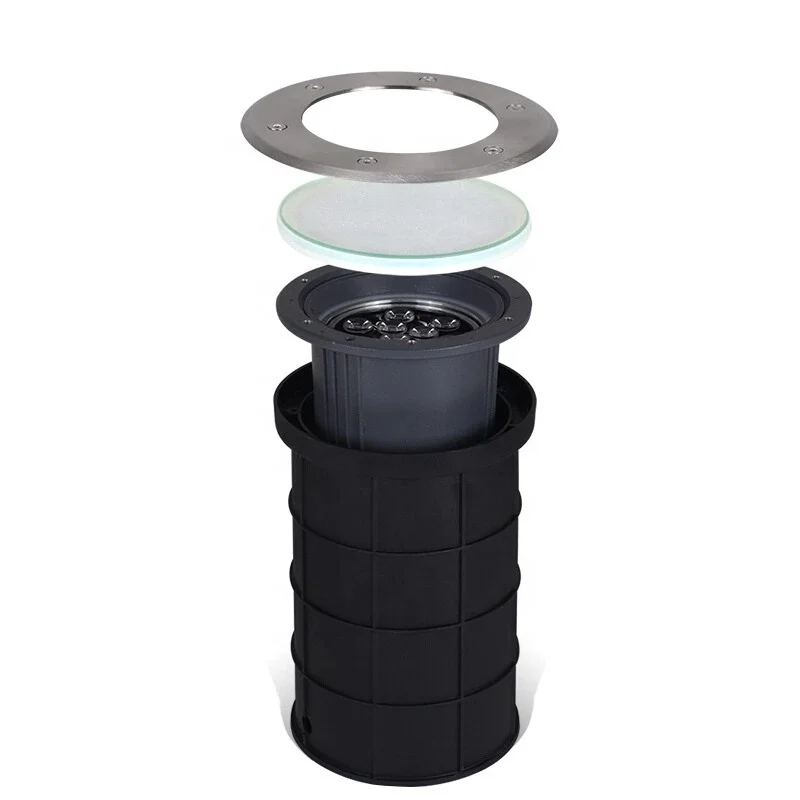

Details Images

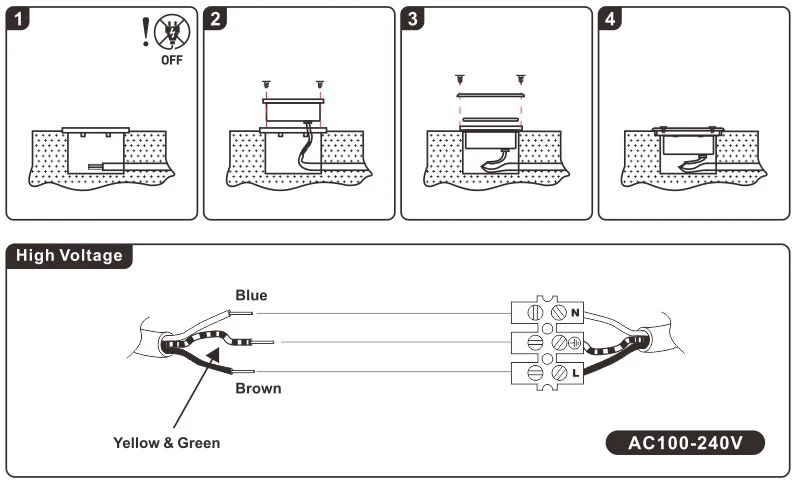

Installation Instructions
Related Products
Certificate
Company Introduction
1. With more than 5 years of R & D experience, more than 200 ODM R & D products have been developed. We provide ODM / DEM services to more than 300 customers.
2. High and Low Temperature Tests All products have been subjected to thermal shock test, and the test time is as high as 2160 hours.
3. We have a mature research and development team.
So far, 1000+ customized products have been completed for customers.
So far, 1000+ customized products have been completed for customers.
4.Designers over 4 years provide OEM brand design for 1000+ customers
Packing&Shipping
FAQ
Q1: ARE YOU FACTORY/MANUFACTURER?
A: Yes, we are the manufacturer in ZhongShan, have 5years export experience.
Can produce OEM and ODM product
Q2: What about the lead time?
A: Sample needs 3-7 days, Production time: 3 working days. Shipping: 3-7 working days.
Q3: How Can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
Q4: How do you ship the goods and how long does it take to arrive?
A:Standard quantity:DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive.
Big quantity goods:Air and sea
Q5: How to proceed an order for led light?
A:1. Let us know your requirements or application.
2.We quote according to your requirements or our suggestions.
3.Customer confirms the samples and places deposit for formal order.
4.We arrange the production and shippment to you.
Q6: Do you offer a guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
A: Yes, we are the manufacturer in ZhongShan, have 5years export experience.
Can produce OEM and ODM product
Q2: What about the lead time?
A: Sample needs 3-7 days, Production time: 3 working days. Shipping: 3-7 working days.
Q3: How Can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
Q4: How do you ship the goods and how long does it take to arrive?
A:Standard quantity:DHL, UPS, FedEx or TNT. It usually takes 3-7 days to arrive.
Big quantity goods:Air and sea
Q5: How to proceed an order for led light?
A:1. Let us know your requirements or application.
2.We quote according to your requirements or our suggestions.
3.Customer confirms the samples and places deposit for formal order.
4.We arrange the production and shippment to you.
Q6: Do you offer a guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
