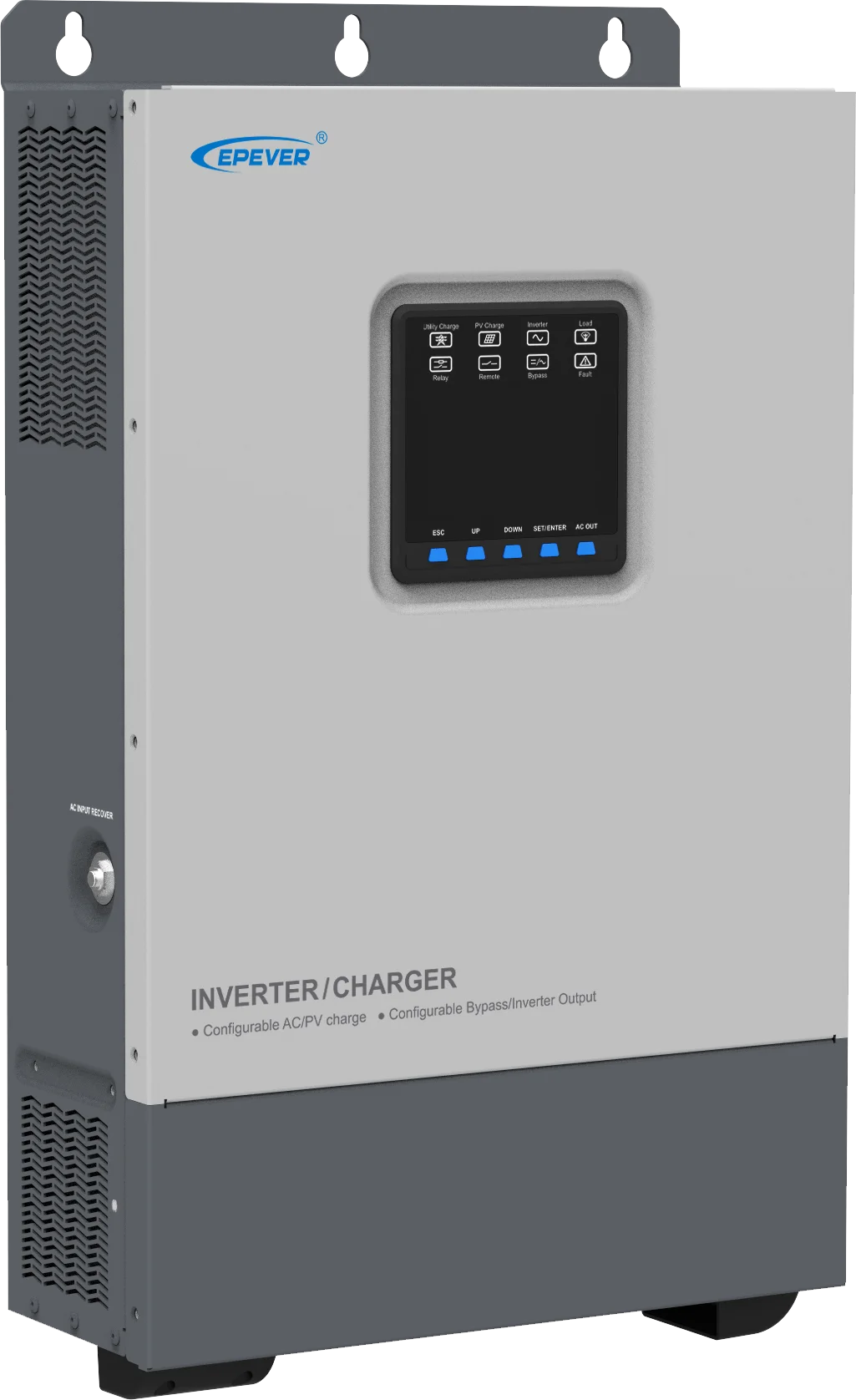

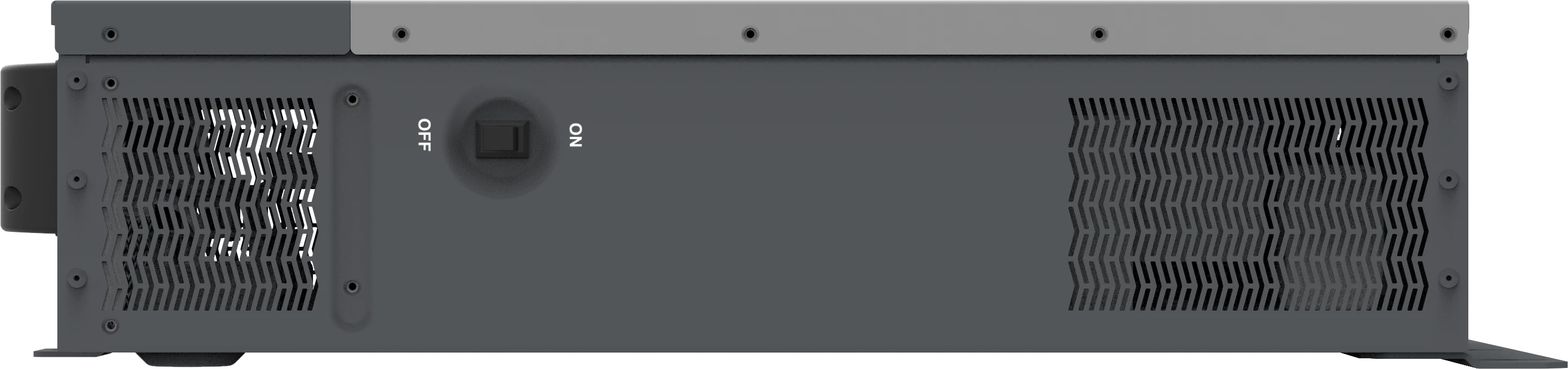

UP HI series EPEVER 2KW 3KW solar hybrid inverter with mppt solar charge controller and grid charger 24VDC,48VDC to 110/120V
- Category: >>>
- Supplier: Cinco Electronics Tech Co. Ltd.
Share on (1600360220249):
Product Overview
Description
Products Description

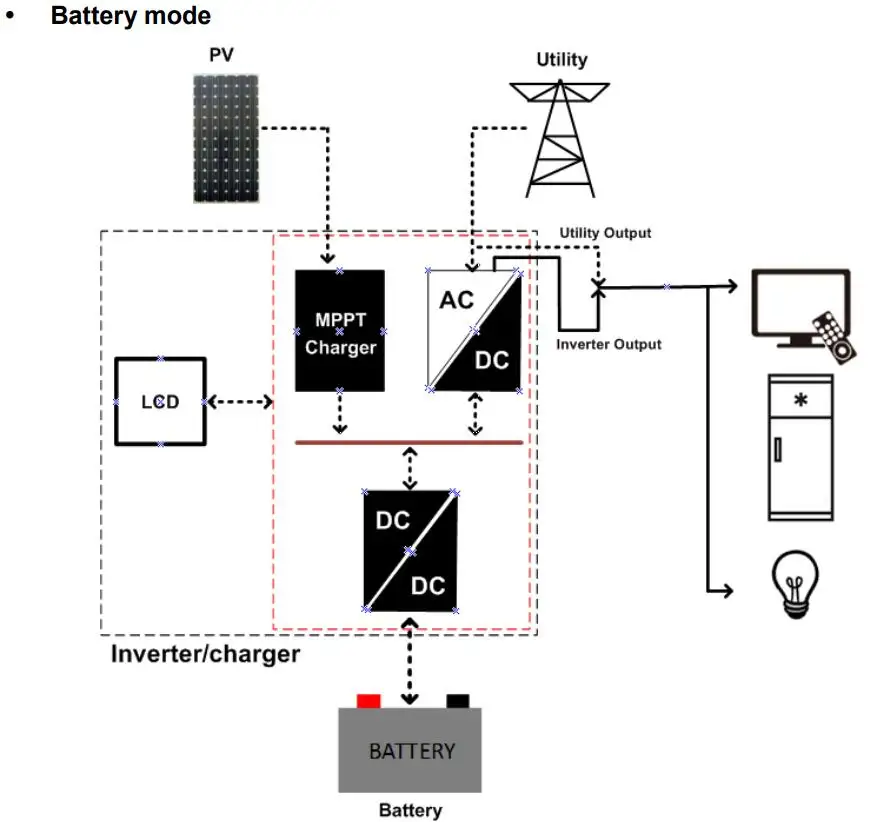

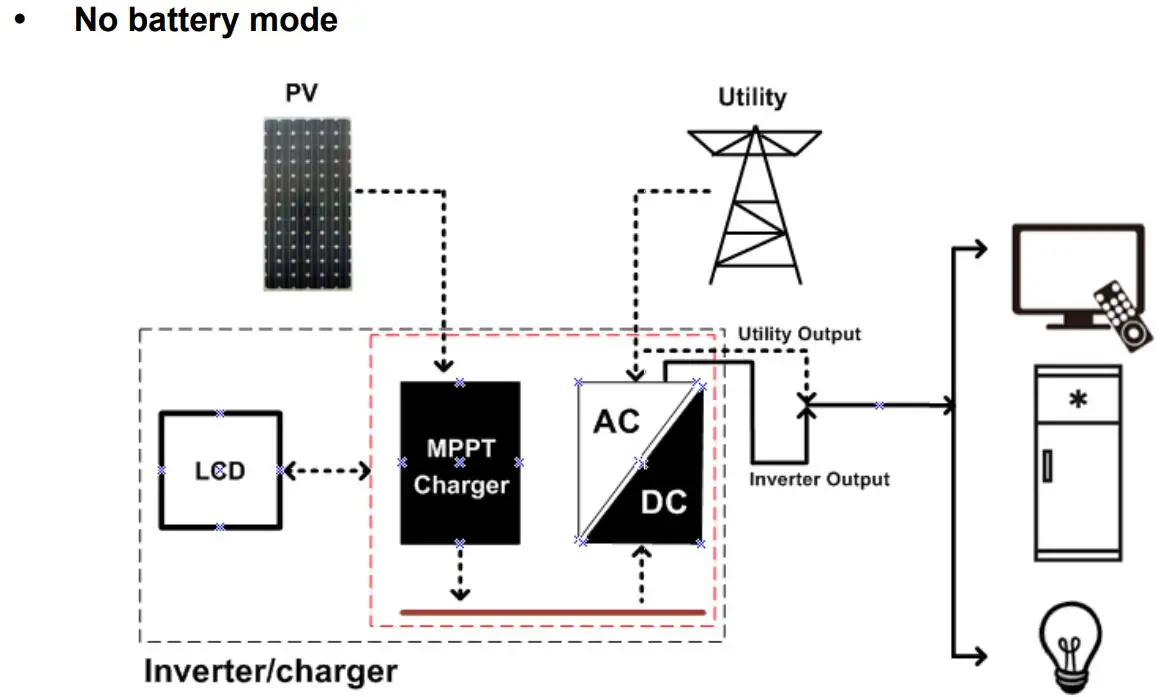

1. Supports the battery mode or non-battery mode
2. Surge and reverse connection protections to support the lithium battery system perfectly
3. Three charging modes: Solar only, Solar priority, Utility & Solar
4. Two AC output modes: Utility priority and Inverter priority
5. High tracking efficiency of MPPT no less than 99.5%
6. PFC technology achieves a high power factor of AC to DC charging and reduces grid capacity usage
7. Advanced SPWM technology and pure sine wave output
8. Customized charging current and discharging limited current
9. SOC with the self-learning feature is visible on LCD
10. 4.2 inch LCD to monitor and modify system parameters
11. Optional WiFi or GPRS Remote control by the RS485 isolated communication port
12. Optional BMS-Link port, which takes the charging and discharging control from BMS
2. Surge and reverse connection protections to support the lithium battery system perfectly
3. Three charging modes: Solar only, Solar priority, Utility & Solar
4. Two AC output modes: Utility priority and Inverter priority
5. High tracking efficiency of MPPT no less than 99.5%
6. PFC technology achieves a high power factor of AC to DC charging and reduces grid capacity usage
7. Advanced SPWM technology and pure sine wave output
8. Customized charging current and discharging limited current
9. SOC with the self-learning feature is visible on LCD
10. 4.2 inch LCD to monitor and modify system parameters
11. Optional WiFi or GPRS Remote control by the RS485 isolated communication port
12. Optional BMS-Link port, which takes the charging and discharging control from BMS
Details Images

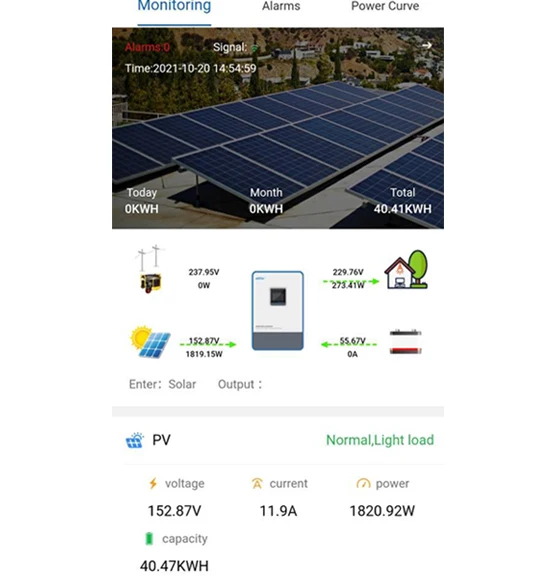

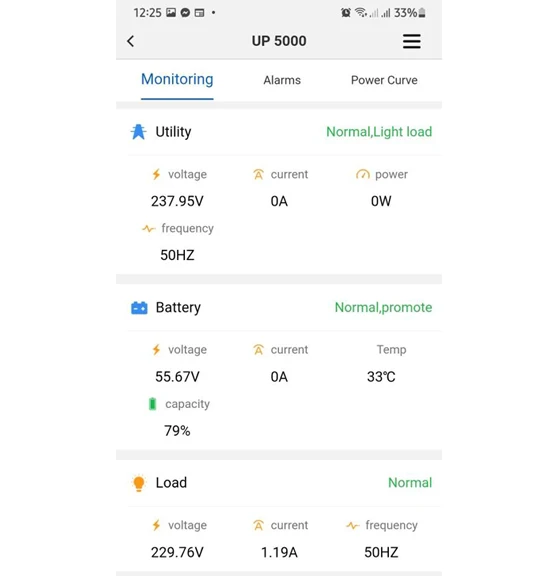

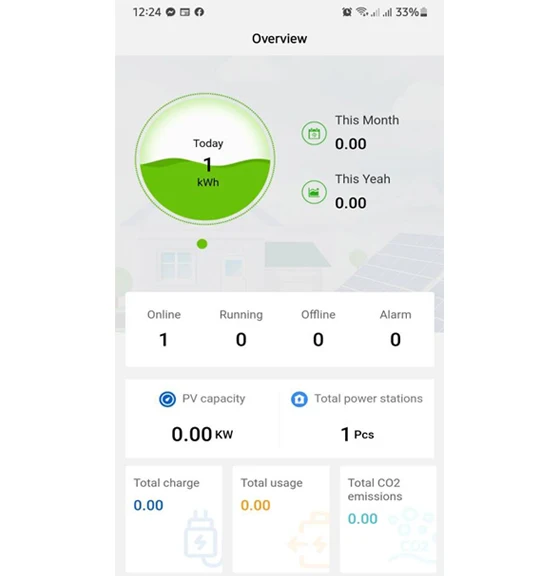

Remote Monitoring

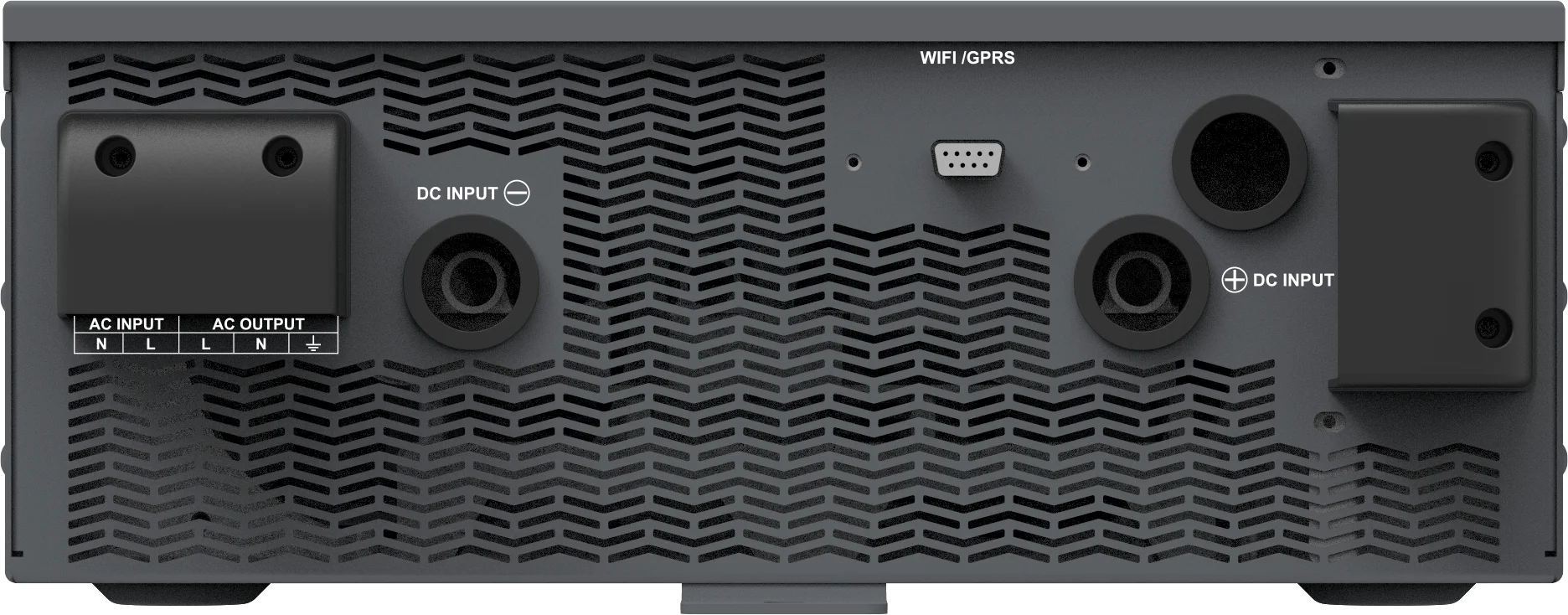

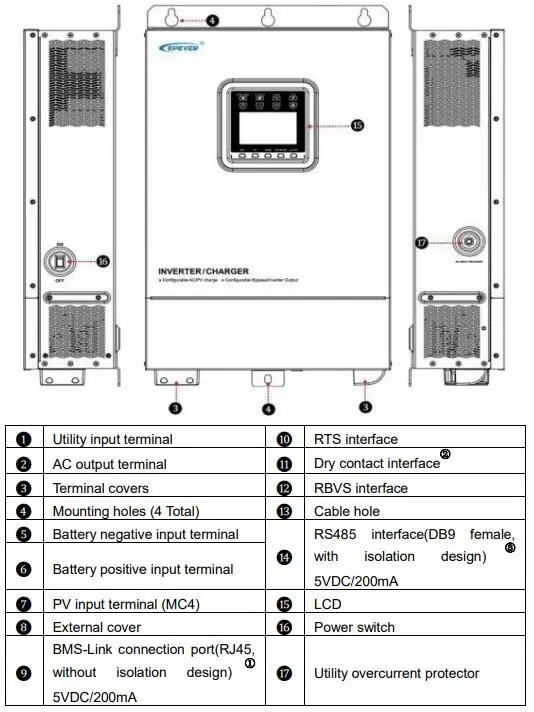

Wiring order & Accessories
Product Paramenters
Model | UP3000-HM10022 | UP3000-HM5042 | UP5000-HM8342 | |||||
System battery voltage | 24VDC | 48VDC | 48VDC | |||||
Battery input voltage range | 21.6～32VDC | 43.2～64VDC | 43.2～64VDC | |||||
Max. battery charging current | 100A | 50A | 80A | |||||
Inverter output | ||||||||
Continuous output power | 3000W@30℃ | 3000W@30℃ | 5000W@30℃ | |||||
Max. surge power | 6000W | 6000W | 8000W | |||||
Output voltage range | 220VAC±3%,230VAC(-7%～+3%) | |||||||
Output frequency | 50Hz/60Hz | 150V① 138V② | 150V① 138V② | 150V① 138V② | ||||
Output wave | Pure Sine Wave | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||
Load power factor | 0.2-1（VA≤ continuous output power） | |||||||
Distortion THD | THD≤3%（Resistive load） | |||||||
80% rated output efficiency | 92% | 92% | 92% | |||||
Max. Rated output efficiency | 91% | 90% | 91% | |||||
Max. output efficiency | 93% | 93% | 93% | |||||
Switch time | 10ms(Switch from the utility output to the inverter output) 15ms(Switch from the inverter output to the utility output) | |||||||
Utility charging | ||||||||
Utility input voltage range | 176VAC~264VAC (Default) 90VAC~280VAC (Programmable) | |||||||
Utility input frequency range | 40~65Hz | |||||||
Max. utility charge current | 80A | 40A | 60A | |||||
Solar charging | ||||||||
Max. PV open circuit voltage | 450V(At minimum operating environment temperature) 395V(25℃) | 500V(At minimum operating environment temperature) 440V(25℃) | ||||||
MPPT voltage range | 80~350V | 80~350V | 120~400V | |||||
Max. PV charging power | 2875W | 4000W | ||||||
Max. PV charging current | 100A | 50A | 80A | |||||
Equalization voltage | 29.2V(AGM default) | 58.4V(AGM default) | 58.4V(AGM default) | |||||
Boost voltage | 28.8V(AGM default) | 57.6V(AGM default) | 57.6V(AGM default) | |||||
Float voltage | 27.6V(AGM default) | 55.2V(AGM default) | 55.2V(AGM default) | |||||
Low voltage disconnect voltage | 21.6V(AGM default) | 43.2V(AGM default) | 43.2V(AGM default) | |||||
Tracking efficiency | ≥99.5% | |||||||
Temperature compensate coefficient | -3mV/℃/2V (Default) | |||||||
Others | ||||||||
Surge current | 60A | 56A | 95A | |||||
Zero load consumption | <1.6A(without PV and utility connection, turn on the load output) | <1.2A(without PV and utility connection, turn on the load output) | ||||||
Standby current | <1.0A(without PV and utility connection, turn off the load output) | <0.7A(without PV and utility connection, turn off the load output) | ||||||
Enclosure | IP30 | |||||||
Relative humidity | < 95% (N.C.) | |||||||
Working environment temperature | -20 ℃~50℃ (When the working temperature reaches 30℃ or above, the load power will be reduced appropriately; full load working is not supported) | |||||||
Storage environment | -25℃~60℃ | |||||||
Mechanical Parameters | ||||||||
Dimension(mm) | 642.5x381.6x149 | 607.5x381.6x149 | 642.5x381.6x149 | |||||
Weight | 19kg | 16kg | 19kg | |||||
Model | UP2000-HM6021 | UP3000-HM10021 | UP3000-HM5041 | |||||
System battery voltage | 24VDC | 24VDC | 48VDC | |||||
Battery input voltage range | 21.6～32VDC | 21.6～32VDC | 43.2～64VDC | |||||
Max. battery charging current | 600A | 100A | 50A | |||||
Inverter output | ||||||||
Continuous output power | 2000W | 3000W | 3000W | |||||
Max. surge power | 6000W | 6000W | 8000W | |||||
Output voltage range | 110VAC±3%,120VAC(-10%～+3%) | |||||||
Output frequency | 50Hz/60Hz | 150V① 138V② | 150V① 138V② | 150V① 138V② | ||||
Output wave | Pure Sine Wave | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | (Battery Voltage +2V) ～108V② | ||||
Load power factor | 0.2-1（VA≤ continuous output power） | |||||||
Distortion THD | THD≤5%（Resistive load） | |||||||
80% rated output efficiency | 89% | 91% | ||||||
Max. Rated output efficiency | 88% | 90% | ||||||
Max. output efficiency | 90% | 92% | ||||||
Switch time | 10ms(Switch from the utility output to the inverter output) 15ms(Switch from the inverter output to the utility output) | |||||||
Utility charging | ||||||||
Utility input voltage range | 88VAC~132VAC (Default) 80VAC~140VAC (Programmable) | |||||||
Utility input frequency range | 40~65Hz | |||||||
Max. utility charge current | 60A | 40A | ||||||
Solar charging | ||||||||
Max. PV open circuit voltage | 250V(At minimum operating environment temperature) 220V(25℃) | 250V(At minimum operating environment temperature) 220V(25℃) | ||||||
MPPT voltage range | 60~200V | 60~200V | 60~200V | |||||
Max. PV charging power | 2000W | 3000W | ||||||
Max. PV charging power | 1725W | 2875W | ||||||
Max. PV charging current | 60A | 50A | ||||||
Equalization voltage | 29.2V(AGM default) | 29.2V(AGM default) | 58.4V(AGM default) | |||||
Boost voltage | 28.8V(AGM default) | 28.8V(AGM default) | 57.6V(AGM default) | |||||
Float voltage | 27.6V(AGM default) | 27.6V(AGM default) | 55.2V(AGM default) | |||||
Low voltage disconnect voltage | 21.6V(AGM default) | 21.6V(AGM default) | 43.2V(AGM default) | |||||
Tracking efficiency | ≥99.5% | |||||||
Temperature compensate coefficient | -3mV/℃/2V (Default) | |||||||
Others | ||||||||
Surge current | 50A | 56A | ||||||
Zero load consumption | <1.6A(without PV and utility connection, turn on the load output) | <1.2A(without PV and utility connection, turn on the load output) | ||||||
Standby current | <1.0A(without PV and utility connection, turn off the load output) | <0.7A(without PV and utility connection, turn off the load output) | ||||||
Enclosure | IP30 | |||||||
Relative humidity | < 95% (N.C.) | |||||||
Working environment temperature | -20 ℃~50℃ (When the working temperature reaches 30℃ or above, the load power will be reduced appropriately; full load working is not supported) | |||||||
Storage environment | -25℃~60℃ | |||||||
Mechanical Parameters | ||||||||
Dimension(mm) | 607.5x381.6x127 | 642.5x381.6x149 | ||||||
Weight | 15kg | 19kg | ||||||

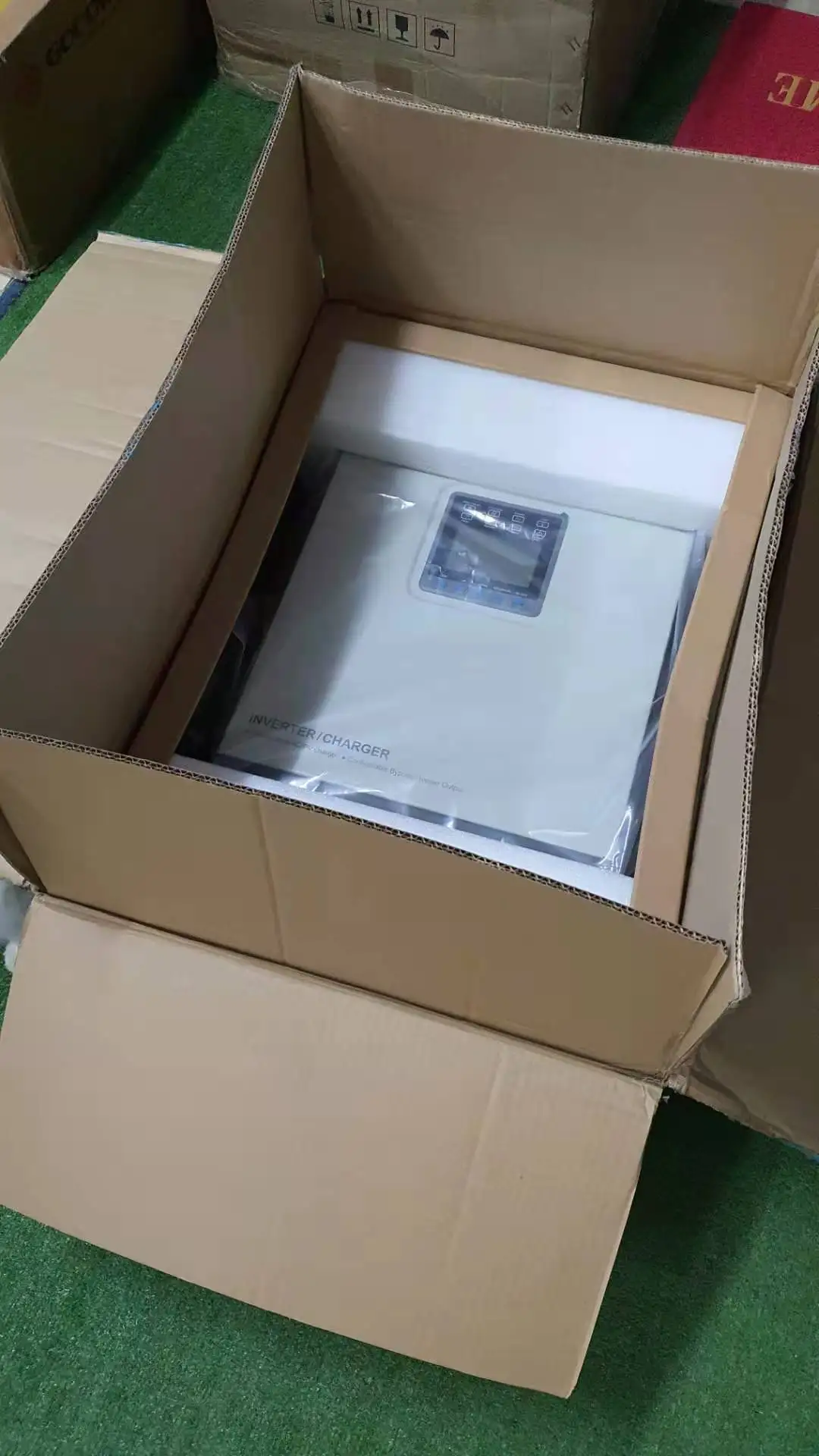

Product packaging
