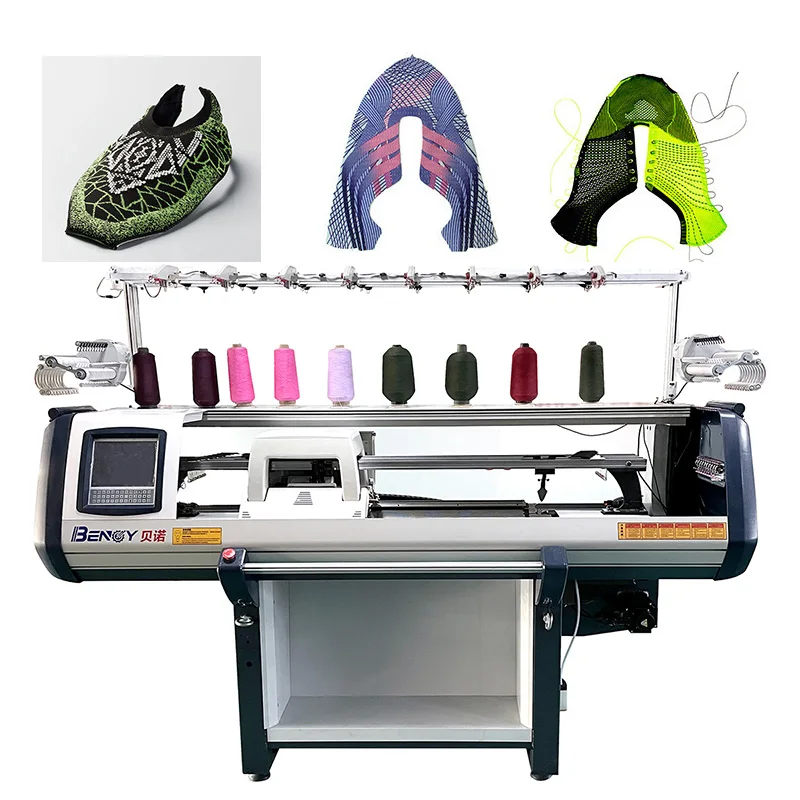

Fully Automatical 3D Vamp Sport Shoe Upper Knitting Machine
Fully Automatical 3D Vamp Sport Shoe Upper Knitting Machine
Fully Automatical 3D Vamp Sport Shoe Upper Knitting Machine
Fully Automatical 3D Vamp Sport Shoe Upper Knitting Machine
Fully Automatical 3D Vamp Sport Shoe Upper Knitting Machine
Fully Automatical 3D Vamp Sport Shoe Upper Knitting Machine
Fully Automatical 3D Vamp Sport Shoe Upper Knitting Machine

Fully Automatical 3D Vamp Sport Shoe Upper Knitting Machine

Share on (1600360228076):


Price:$7,500.00 - $8,300.00

Quantity:


Product Overview

Description





Products Description


Single Carriage with double system, this computerized flat knitting machine are used digital technology to achieve the patterns of knit, transfer, tuck, pointel, intarsia, jacquard ,apparent shape, hidden shape, and other regular or irregular patterns knitting functions, can knit basic single or double jersey plain fabric, irregular multi-color jacquard, intarsia, cable and pointel structure patterns , which suitable to knit by yarns of pure silk, mixed silk, synthetic, wool,acrylic, mixed fiber material etc.

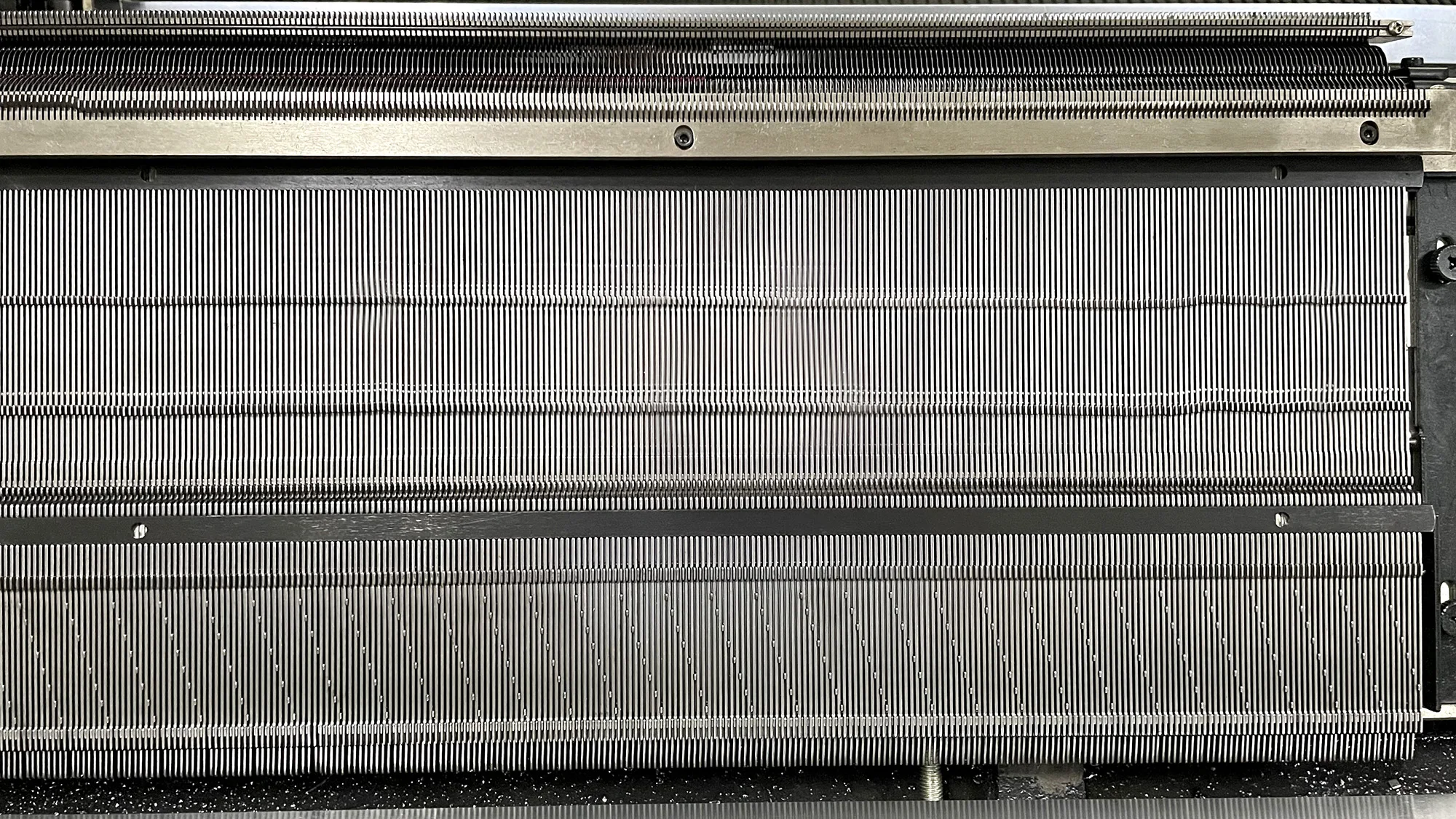

Knitting Bed
2*3pcs Yarn Storage


Knitting Needles
Drive Belts


Gauge
14G, 16G
Knitting width
36//52/72/80/ inches
Knitting system
Single carriage with Double system/triple systems
Machine speed
The maximum speed is 1.6m/s,32 section adjustable
Racking
Motor drive, the maximum racking within 2 inches
Needle actuator
8 section electronic needle actuator
Sinker
Driven by stepping motor, latest cross-sinker system design, Can be adjusted for different fabrics

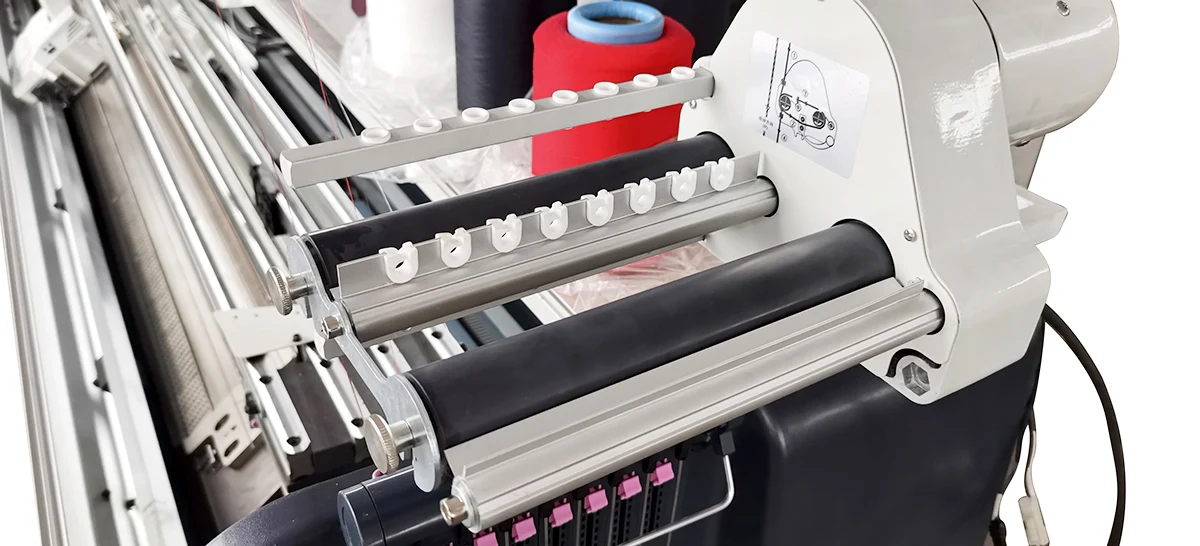

Roller device
High-order Rollar,32 section automatic control, subsection adjustable
Stitch density/Loop density
Controlled by 32 section electricity, density adjustment driven by stepping motor, the adjustable range: 0-650
Tight tuck
Tight tuck cam controlled by motor, achieve different tightness of the tight tuck, the adjustable range: 0-90
Yarn forward device
Yarn feeder and yarn storage device(optional),accurate control of yarn tension, to ensure the quality of the overall quality of the fabric
Yarn feeder
2*8 yarn carriers are arranged on the left and right sides of the 4 double side guide rails.
Transmission system
Belt drive, AC servo motor control.
Data input
Input and output patterns via USB, PC and Internet
Protection system
Automatic stopping device if yarn broken, yarn knot, batching, striking, completion, overload, designated starting and stopping, program error
Safety device
The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency stopping and power off device





Control system
hengqiang/ruineng system
The screen adopts LCD touch screen display, graphical interface, can store a large number of pattern files, and can be called at any time according to production needs.
Through the screen checking page, you can view the working status and actual position of the cam; and adjust it at any time while the machine is running, which is most convenient for operation.
The control system (software part) and the pattern-making system are easily upgraded and are free of charge.
Multi-language version switching (Set up according to customer requirements)
Power
Voltage: AC 220-380V, Frequency: 50HZ/60HZ, Power:1.5KW


Knitting Sample




Benoy flat knitting machines are mainly suitable for sweaters, shoe upper, jacquard collar, blankets, carpets, scarf, cuffs, hats, etc.






Company Profile








Benoy Intelligent Technology CO., LTD

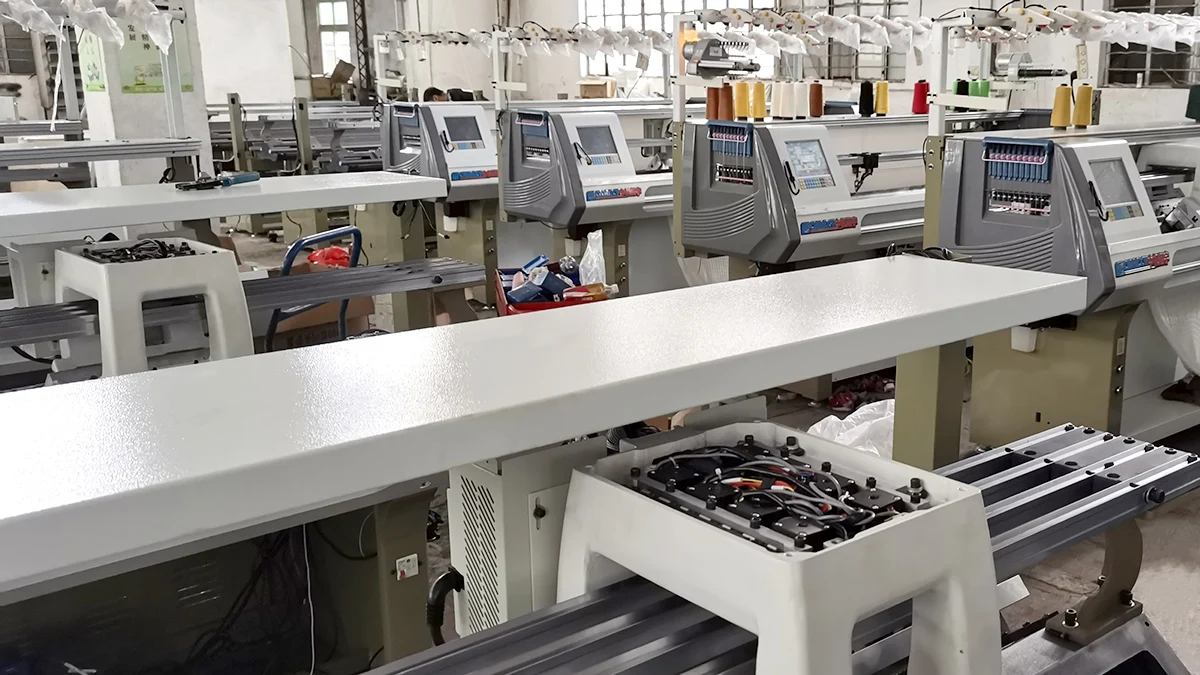

Our factory was established in 2003, located in Dalang Dongguan, where famous as the "hometown of sweater " in China. It's about half hours from Benoy office by car. We have an area covered 13000 square meters: 4000 square meters for flat knitting machine assembling plant, 2000 square meters for flat knitting machine frame producing plant. The left parts is for raw materials treatment place, such as laser cutting, bending, polishing, moulding, painting and CNC of precision spare parts producing , which is other part business of us. Our produce capacity for flat knitting machine is 300 sets for each month. There are total 200 workers in our factory. The flat knitting machine frame, whole construction and needle bed were designed by our own R&D team. So we can OEM&ODM the machine in any size&function as customer demand. We have got patent design of the machine construction.Our sweater flat knitting machine special advantages is smaller and smarter, which is the best choice to save space.

From established till now, we have sold more than 30 thousand machines. Including domestic and oversea business. And the complain rate in the first 5 years is zero.Almost whole half of Dalang sweater factory use our flat knitting machine.


Why Choose Us




Certifications




Packing&Shipment




FAQ


Q1: Are you factory or trading company?
A1: We are a strong factory with 18 years of manufacturing experience.

Q2: How to operate the machine ?
A2: We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

Q3: How can I get the sample to check you quality ?
A3: If you want to knitting sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free knit samples can be provided.

Q4: Does the machine can be customized according to my requirements ?
A4: Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.

Q5: Can you arrange the shipment for me ?
A5: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.
