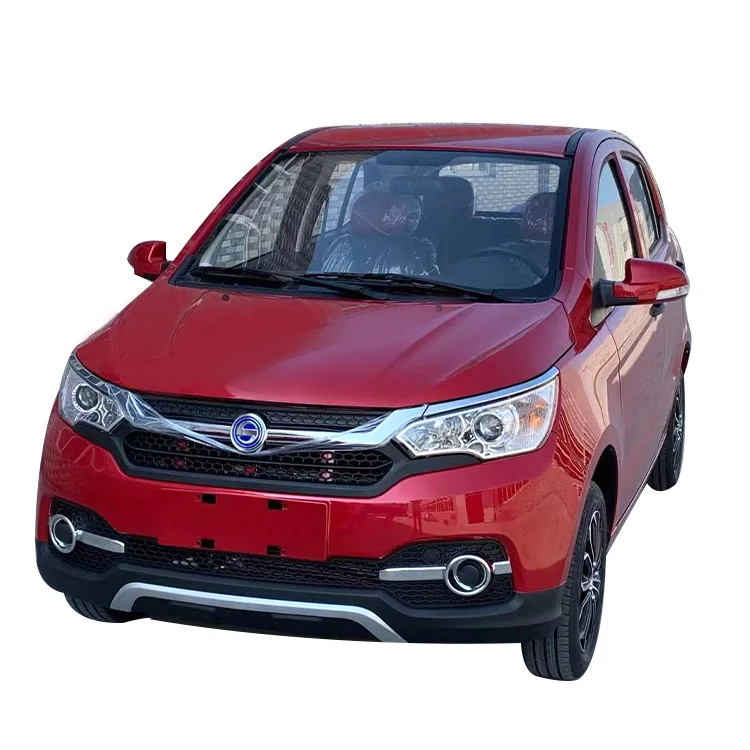

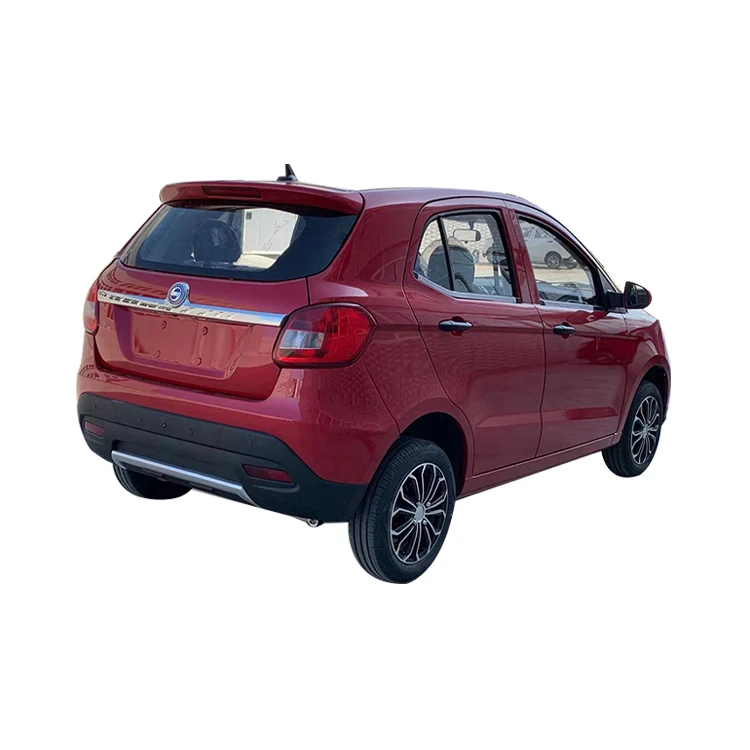

4 Wheels 4 Persons Electric Car Sedan Adult Gasoline And Electric Vehicle For Sale
- Category: Automobiles >>>
- Supplier: Shandong Dingding Auto Parts Group Co. Ltd.
Share on (1600360244262):
Product Overview
Description
Products Description

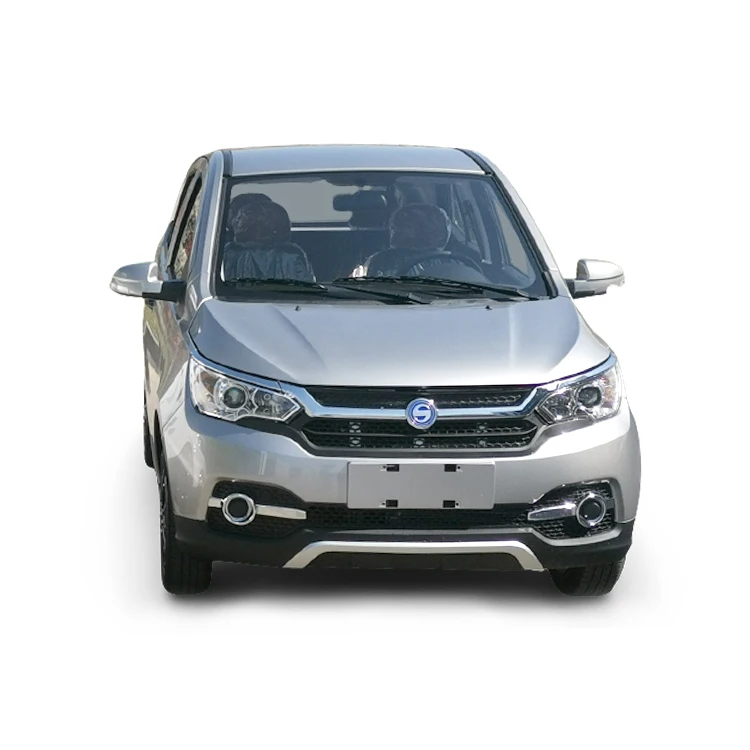

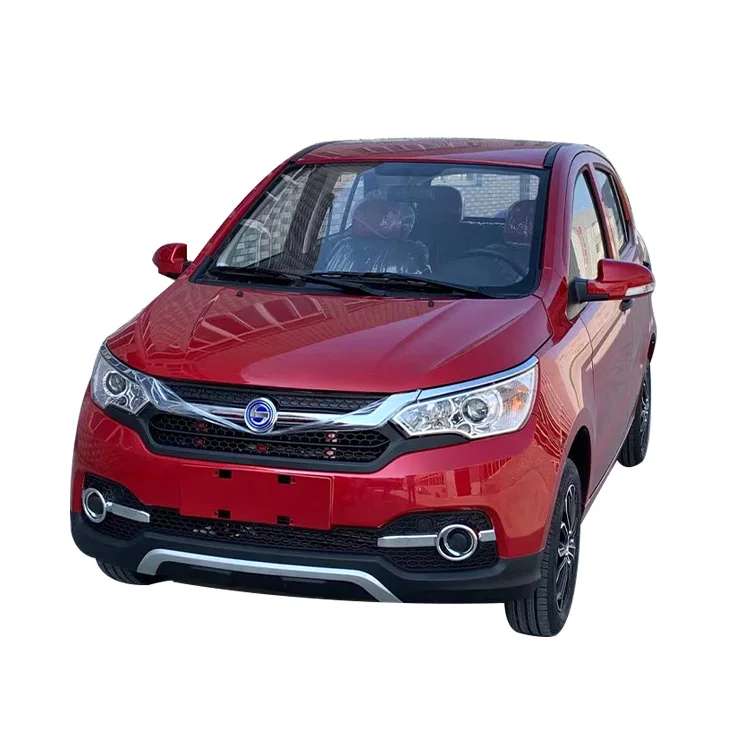

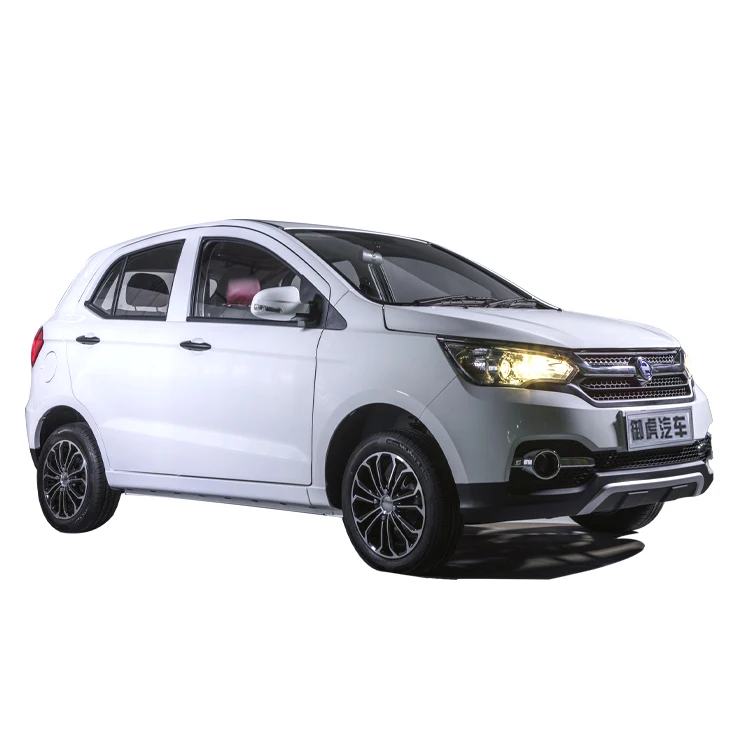

4 Wheels 4 Persons Electric Car Sedan Adult Gasoline And Electric Vehicle For Sale
Vehicle performance parameters Table 1 | ||
Item | Parameter | |
Dimensions (long× wide × height) mm | 3580×1580×1520 | |
Wheelbase (mm) | 2260 | |
Front/rear wheelbase (mm) | 1380/1380 | |
Preparation mass (kg) | 920 | |
Rated load mass (kg) | 300 | |
Rated number of guests (persons) | 4 | |
Number of doors | 5 | |
Minimum turn diameter (m) | ≤10 | |
Minimum ground clearance (full load/half load) mm | ＞145 | |
Maximum climb (%) | ≤20 | |
Maximum speed (km/h) | 70 | |
Tire specifications (m) | 155/60 R14 | |
Tire pressure value (Mpa) | 2.2～2.5 | |
Hub material | Aluminum alloy | |
ABS anti-lock system | There is no such configuration | |
Vehicle performance parameters Table 2 | ||
Item | Parameter | |
Drive mode | Rear-facing | |
Suspension type | Former McPherson-style independent/rear drag non-independent | |
Power steering type | Electronic power | |
Car Body structure | unitary construction body | |
Brake structure | Front disc / rear drum | |
Tank Capacity (L) | 25 | |
safety belt | Driver / CO driver | |
sun shield | Driver / CO driver | |
Four-door center lock (remote key) | Standard configuration | |
Four electric doors and windows | Standard configuration | |
Main and secondary seat adjustment | Front / back adjustment / backrest adjustment | |
Multimedia entertainment system | 10 inch touch display/USB charging port/Bluetooth/reversing image | |
Headlight source | halogen | |
Air conditioning type (optional) | Manual air conditioning | |
airbag | No | |
Rear seat belt | No | |
Main technical parameters of power system | ||
Item | Parameter | |
Engine model | L368QE | |
Engine type | In-line three-cylinder four-stroke, water-cooled, electronically controlled fuel injection | |
Number of cylinders | 3 | |
Displacement (L) | 0.796 | |
Maximum horsepower (Ps) | 10.9 | |
Maximum power (KW) | 8 | |
The bore × travel mm | 68.5×72 | |
Compression ratio | 9.4 : 1 | |
Ignition order | 1－3－2 | |
Spark plug model | F6RTC | |
Oil model | The ambient temperature is higher than -20 degrees C, with SF 15W/40 gasoline oil; The ambient temperature is below -20 degrees C,with SF 5W/30 gasoline oil; | |
Gasoline model | Unleaded gasoline No. 93/92 | |
Gear oil model | GL－5/GL－4 | |
Brake fluid model | DOT-4 (whichever is indicated on the brake fluid lid) | |
Coolant Type | Ethylene glycol aqueous solution, freezing point according to the local minimum temperature selection | |
The power system is a tandem hybrid. It consists of an engine -- a generator set, a lithium battery pack, an AC motor and a
control system. Hybrid mode | engine driven directly generating set power generation, electricity through a generator controller rectifier processing and delivery to lithium battery and motor controller, by ac motor, the rear axle differential gear drive the vehicle. In pure electric mode, the lithium battery pack supplies power directly to the AC motor. When the power of the battery pack is insufficient, the generator set assembly can be started in driving. The generated energy can meet the needs of the normal driving of the vehicle and also meet the needs of charging the lithium battery pack. In the process of continuous driving and charging, it automatically returns to the rapid mode after reaching the specified voltage. The starting and closing of the generator set are controlled by manual ignition switch. , in the operation of the generator controller performs with charging mode, according to the vehicle operation condition and battery, automatically adjust the current power generation, to make the charging current value has been in the best state, the charging current value is 3 times more than conventional lead-acid batteries, the charging time shortened significantly, with large capacity fuel tank, completely solve the short range and long charging time and mountain what difficult such as electricity Disadvantages of bullet trains. The system can switch freely between hybrid mode and pure electric mode. The pure electric mode has the most economical cost and the hybrid mode has more powerful power.
control system. Hybrid mode | engine driven directly generating set power generation, electricity through a generator controller rectifier processing and delivery to lithium battery and motor controller, by ac motor, the rear axle differential gear drive the vehicle. In pure electric mode, the lithium battery pack supplies power directly to the AC motor. When the power of the battery pack is insufficient, the generator set assembly can be started in driving. The generated energy can meet the needs of the normal driving of the vehicle and also meet the needs of charging the lithium battery pack. In the process of continuous driving and charging, it automatically returns to the rapid mode after reaching the specified voltage. The starting and closing of the generator set are controlled by manual ignition switch. , in the operation of the generator controller performs with charging mode, according to the vehicle operation condition and battery, automatically adjust the current power generation, to make the charging current value has been in the best state, the charging current value is 3 times more than conventional lead-acid batteries, the charging time shortened significantly, with large capacity fuel tank, completely solve the short range and long charging time and mountain what difficult such as electricity Disadvantages of bullet trains. The system can switch freely between hybrid mode and pure electric mode. The pure electric mode has the most economical cost and the hybrid mode has more powerful power.

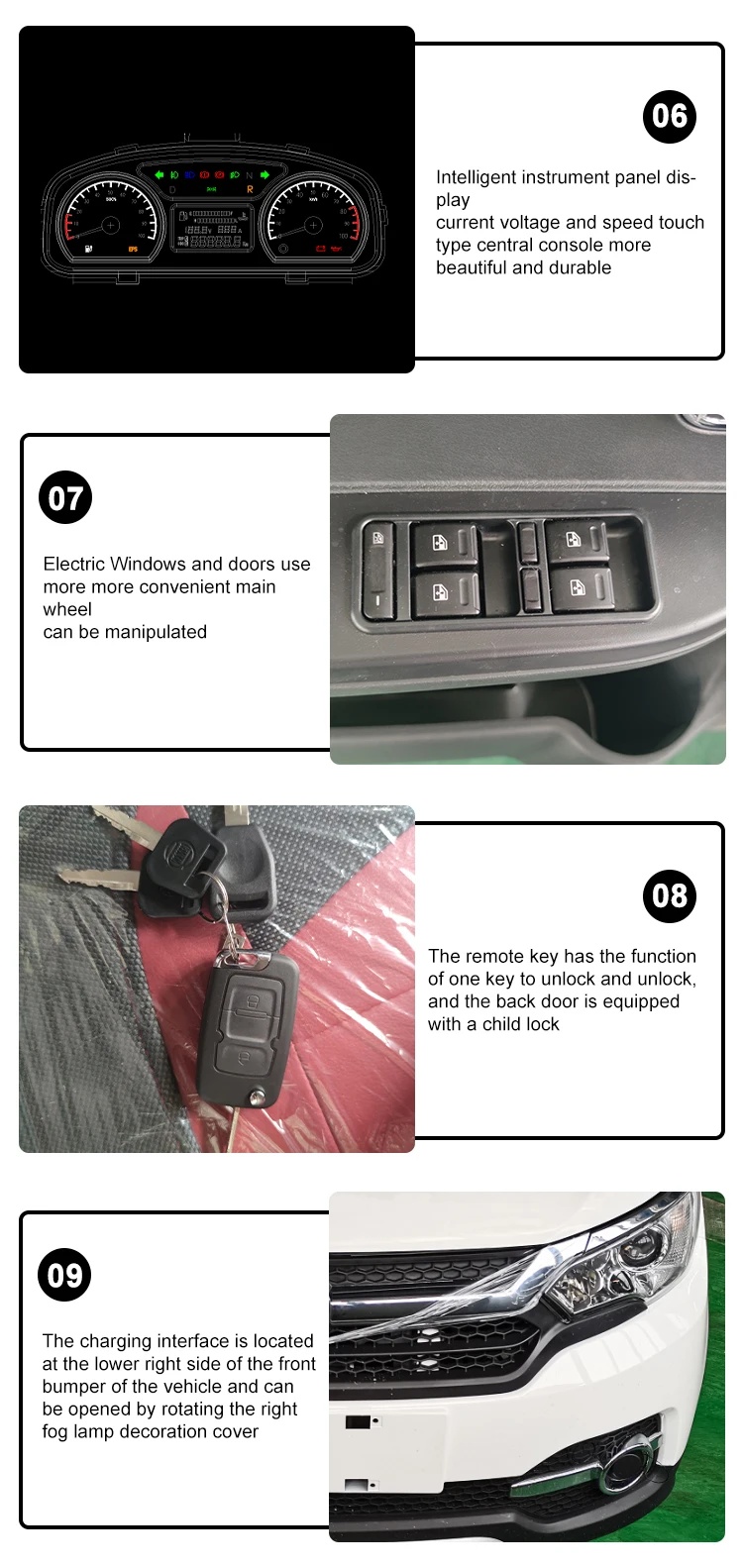

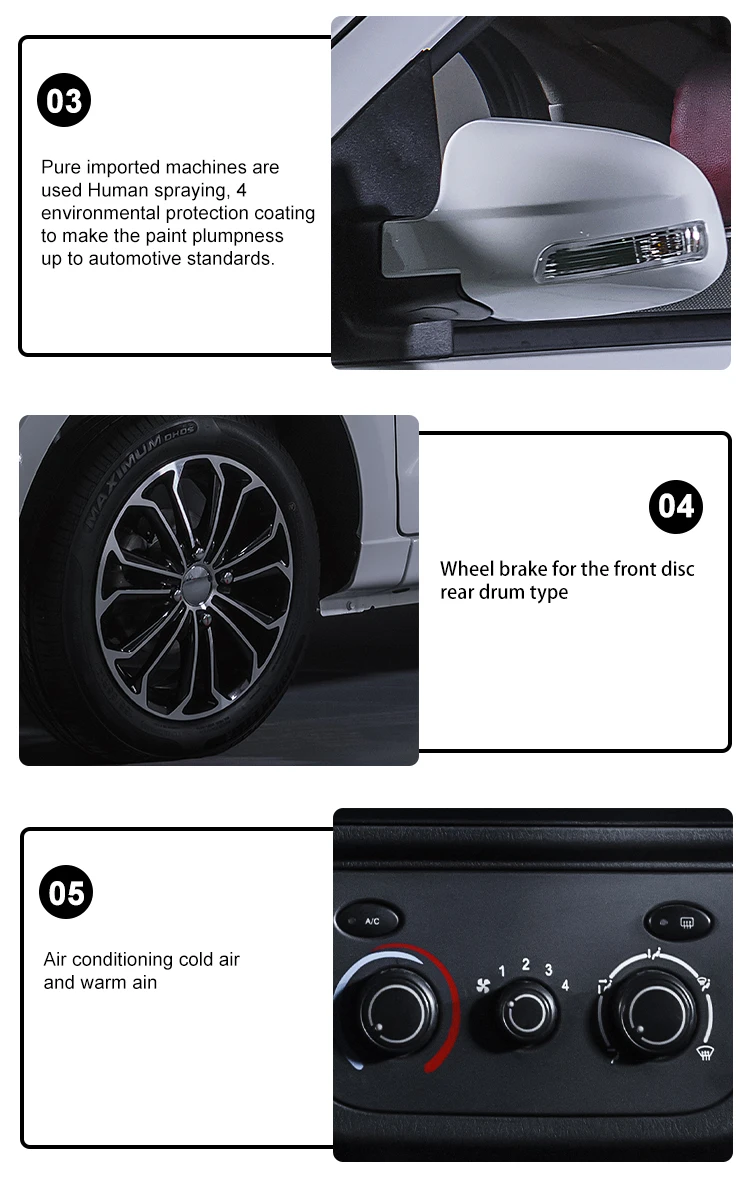

Product Details

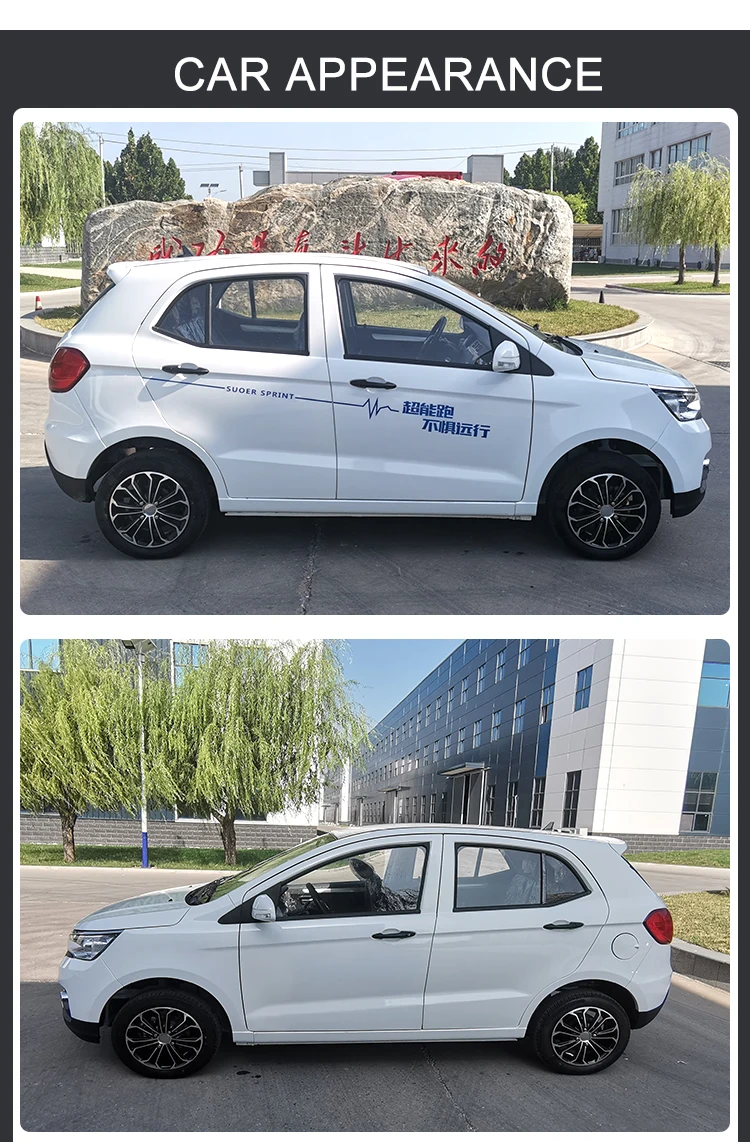

Car Appearance
Recommend Products

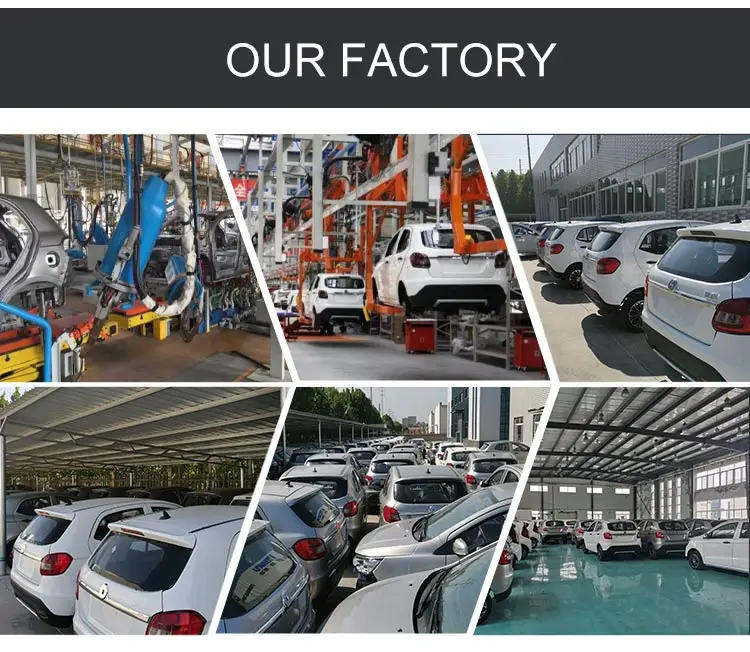

Company Introduction
