high quality low price e glass fiberglass core mat PP mat for RTM CF200/180/200
- Category: >>>
- Supplier: Zhejiang Weitong Composite Co. Ltd.
Share on (1600360302121):
Product Overview
Description

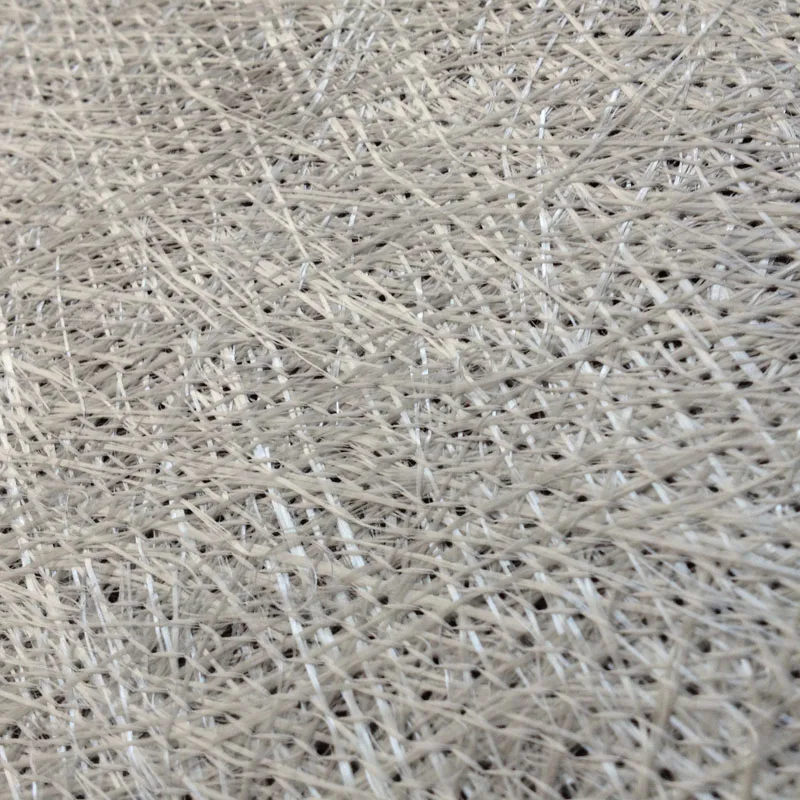

Fiberglass Core Mat
Core mat is a new material,consisting of a synthetc non-woven core,sandwiched between two layers of chopped glass fiber or one layer of chopped glass fiber and the other one layer of multiaxial fabric/woven roving.Mainly used for RTM,Vacuum Forming,Molding，Injection Molding and SRIM Molding process,applied to FRP boat,automobile,aeroplane,panel,etc.
Specification | Total weight（gsm） | CSM（gsm） | Core（gsm） | Deviation(%) |
CF300/180/300 | 790 | 300 | 180 | ±7 |
CF450/180/450 | 1090 | 450 | 180 | ±7 |
CF450/250/450 | 1160 | 450 | 250 | ±7 |
CF600/250/600 | 1460 | 600 | 250 | ±7 |
300/XT1/300 | 860 | 300 | 100 | ±7 |
450/XT1/450 | 1040 | 450 | 100 | ±7 |
600/XT2/600 | 1410 | 600 | 200 | ±7 |
LTNM600/180/300 | 1090 | - | 180 | ±7 |
LTNM600/180/600 | 1390 | - | 180 | ±7 |
CF150/130/150 | 440 | 150 | 130 | ±7 |
Remark：XT1 refers to one layer of flow mesh，XT2 refers to 2 layers of flow mesh.Besides the above regular specification，more layers（4-5 layers）and other core materials can be combined according to the customer's request.Such as woven roving/multiaxial+core+chopped layer（single/double sides）.
PROPERTIES
Sandwich construction can increase the strength and thickness of the product.
High mechanical performance,easy to operate.
High permability of the synthetic core,good wet-out in resin，fast solidifying speed.
Easy to form in angles and more complex shapes.
Core resilience and compressibility,to adapt to the different thickness of parts.
Lack of chemical binder for a good impregnation of the reinforcement.

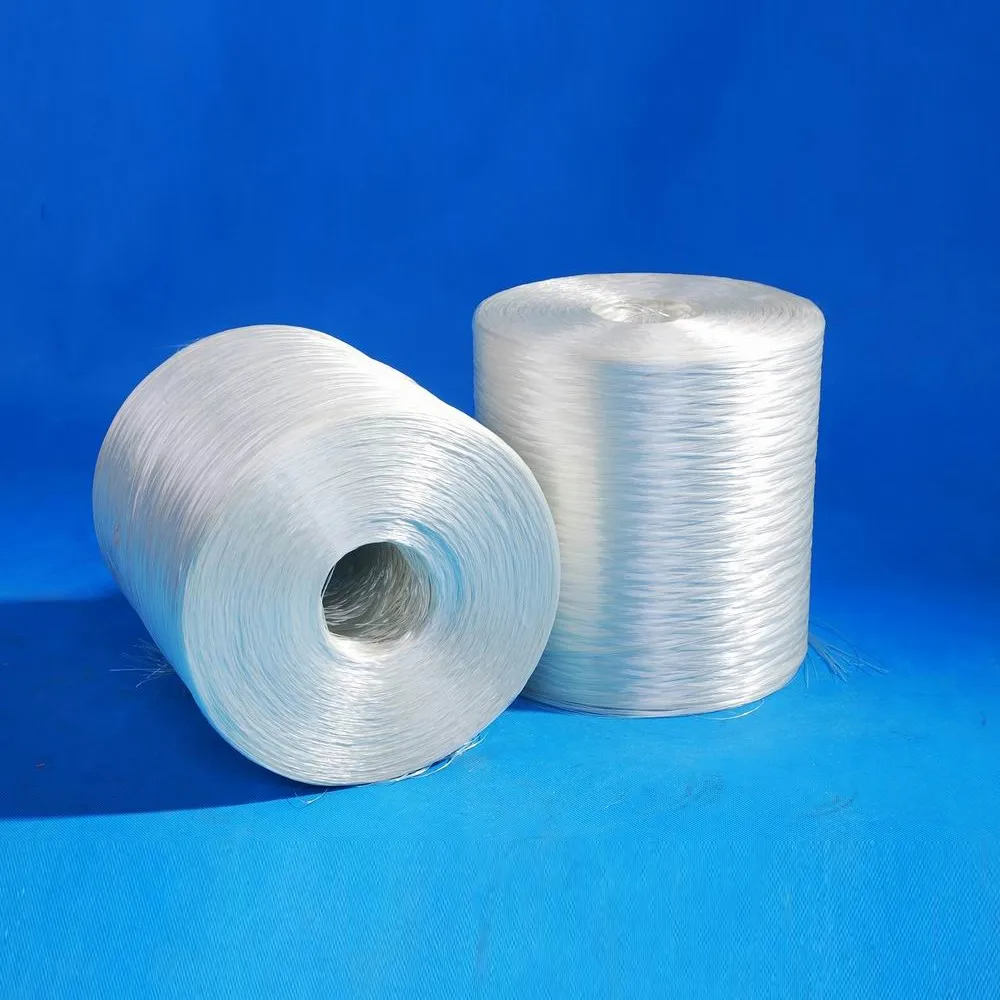

Recommend Products

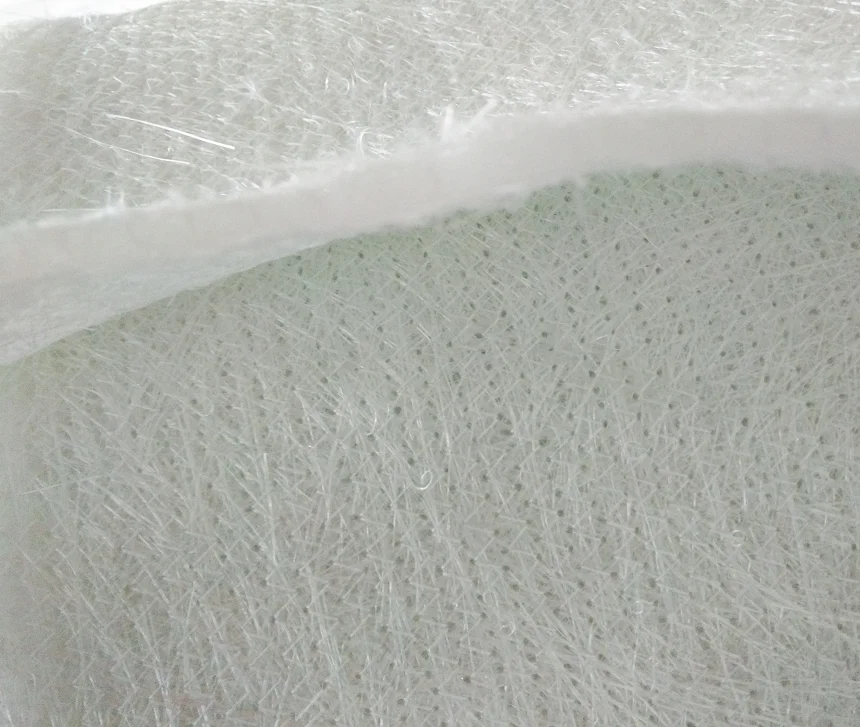

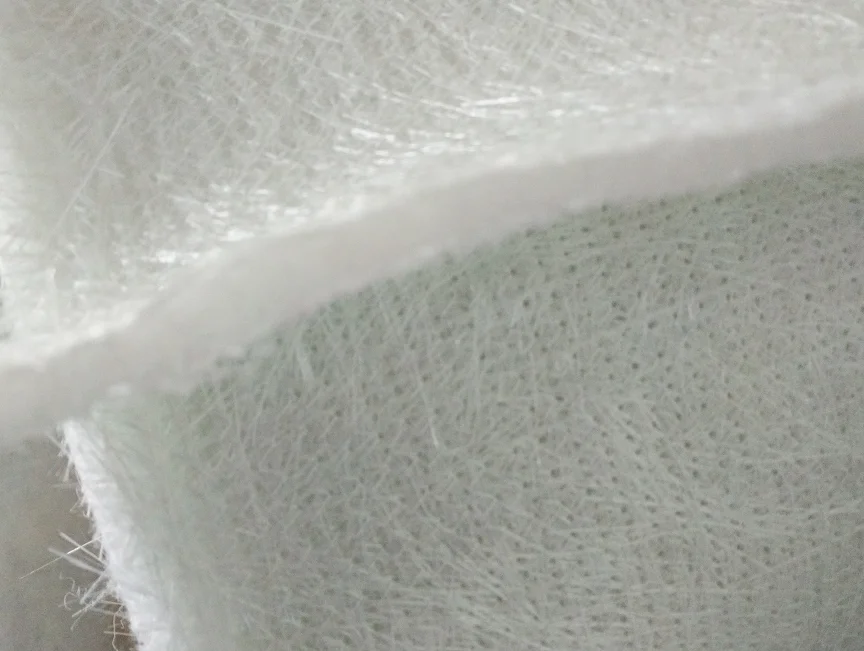

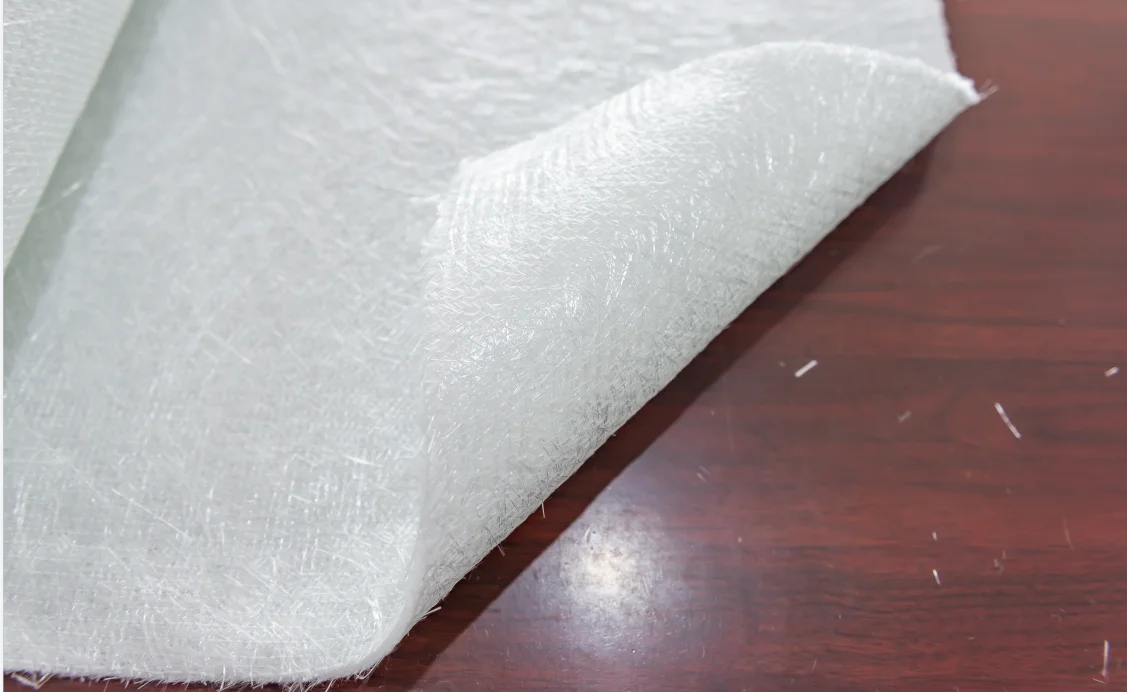

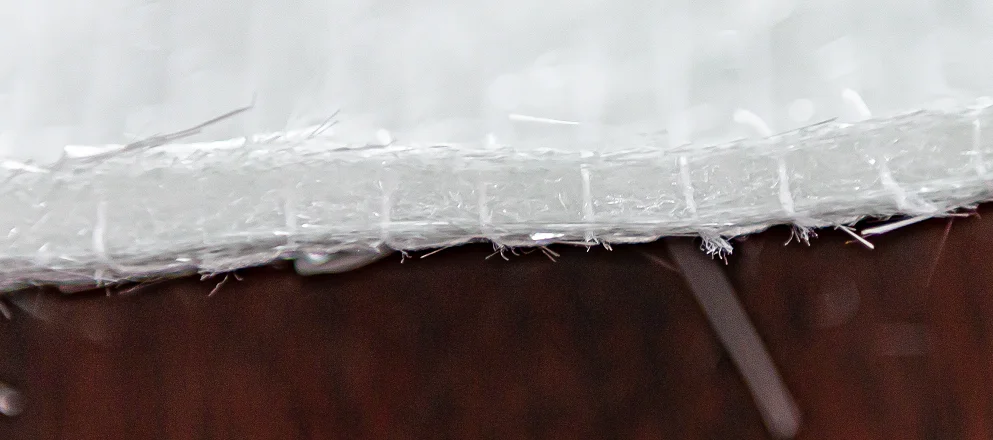

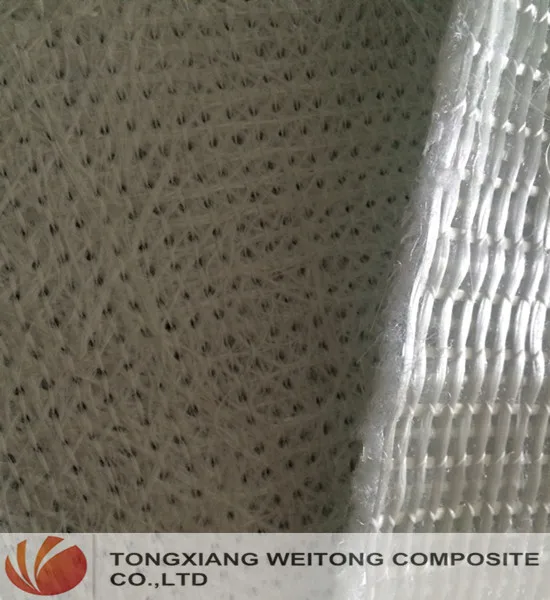

Details Images

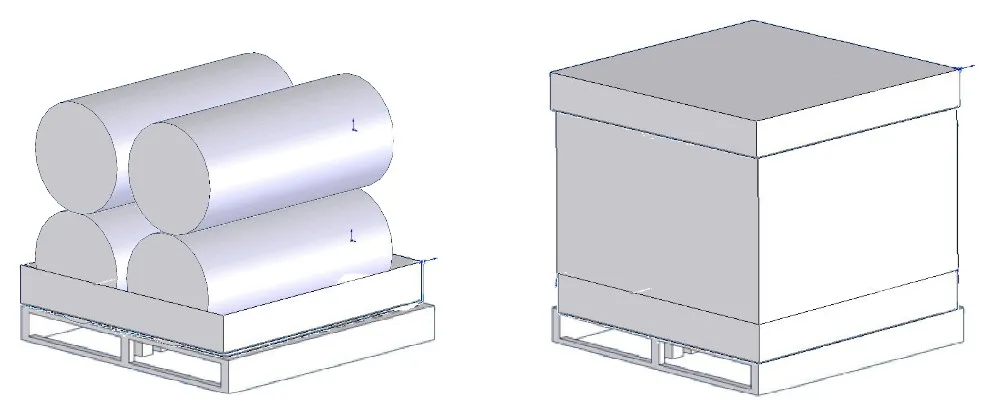

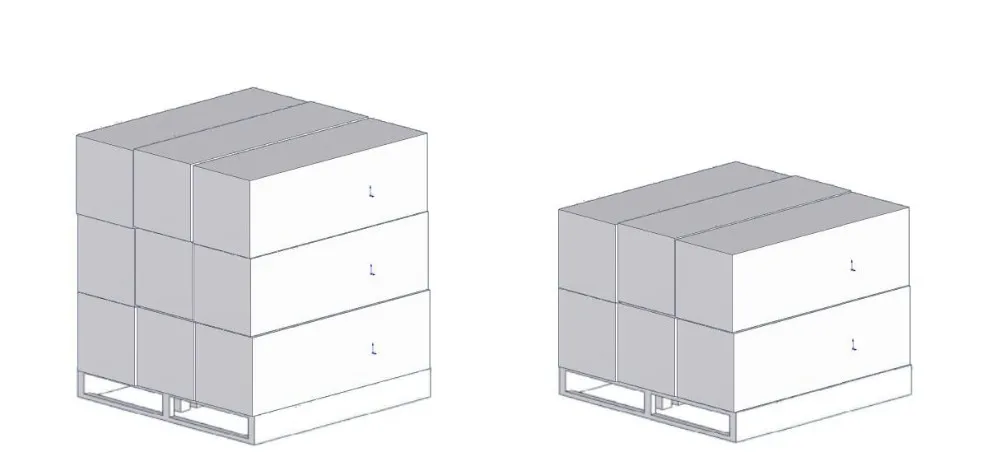

Product packaging

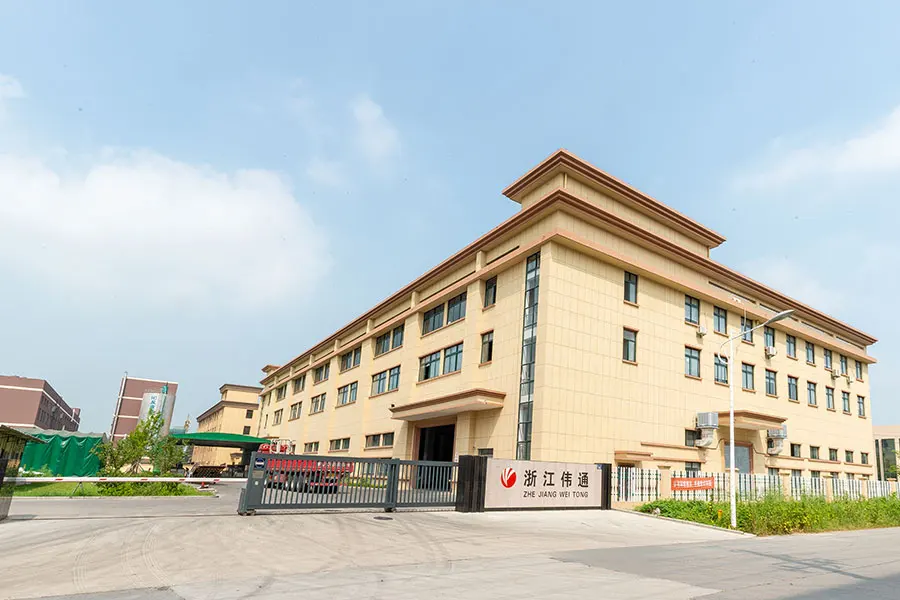

Company Introduction
Introduction

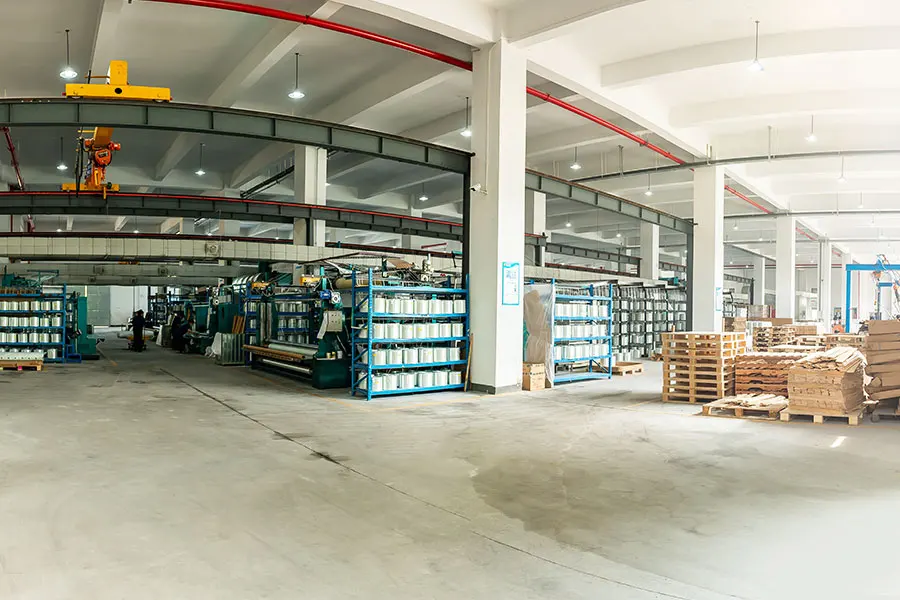

Zhejiang Weitong Composite CO.,LTD. has been engaged the research,development and production of fiberglass reinforcement for 10
years.Our factory is located in tongxiang city,zhejiang province,near by the biggest fiberglass base-JUSHI head office and cover

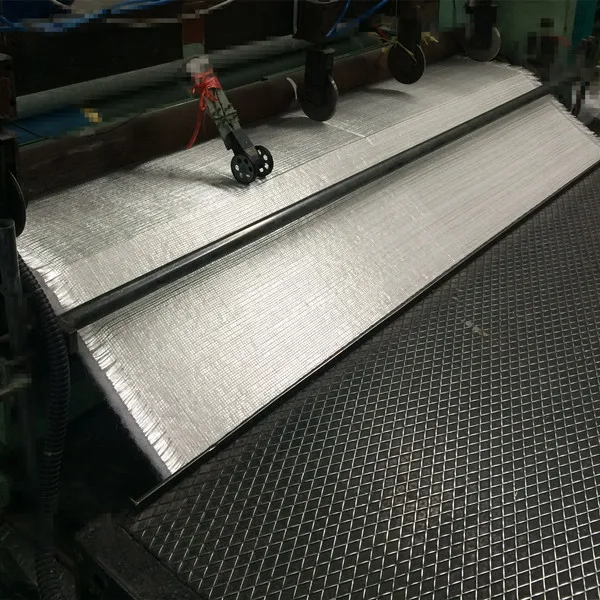

an area of 15000 square meters.Nowadays，we have own 12 sets of fiberglass weaving machines for woven roving,2 sets for stitched
mat machines,5 sets for 0/90° biaxial machines,one set for multiaxial machines and PP core mat machine.
years.Our factory is located in tongxiang city,zhejiang province,near by the biggest fiberglass base-JUSHI head office and cover
an area of 15000 square meters.Nowadays，we have own 12 sets of fiberglass weaving machines for woven roving,2 sets for stitched
mat machines,5 sets for 0/90° biaxial machines,one set for multiaxial machines and PP core mat machine.
What you can buy from us?
Woven roving,stitched mat,combo mat,0/90 fabrics,±45° fabrics,non-woven core-PP,RTM core mat and material roving.
How can we guarantee the quality？
All the products are manufactured strictly according to ISO9001 quality management system,ISO14001 environmental management
system,OSHAS18001 occupational health and safety.
system,OSHAS18001 occupational health and safety.
Company purpose
We are keeping on build our company into an international enterprise with advanced technology,top-level management,excellent team
and powerful execution based on market demand.
and powerful execution based on market demand.
