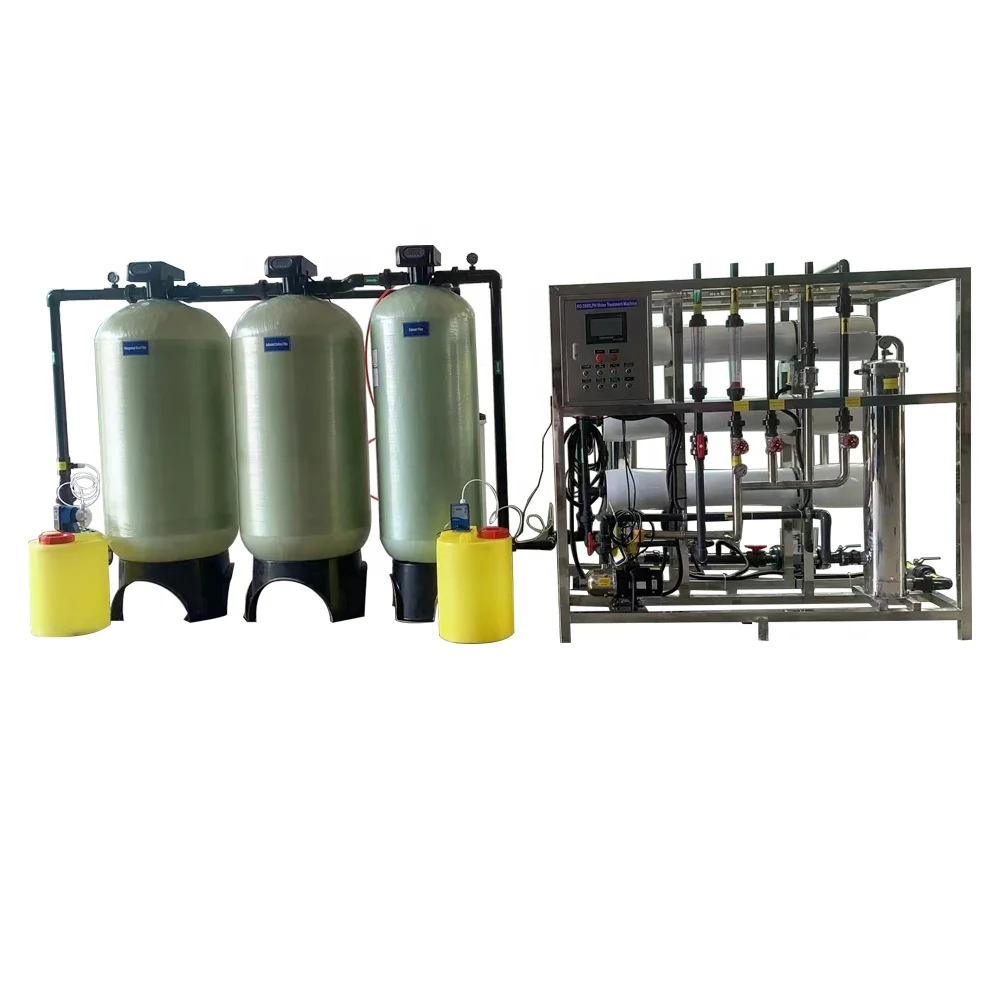

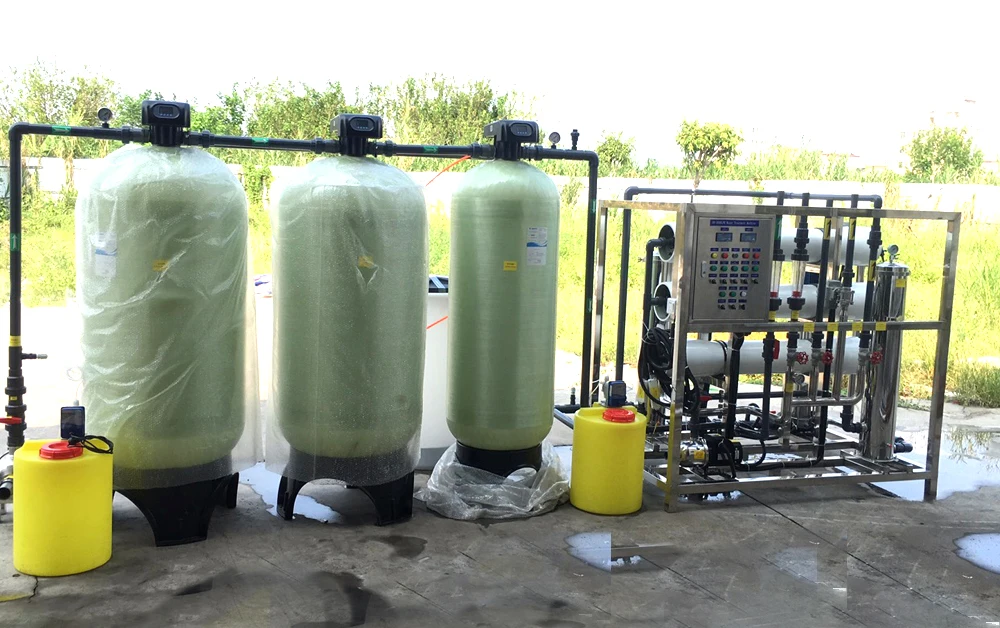

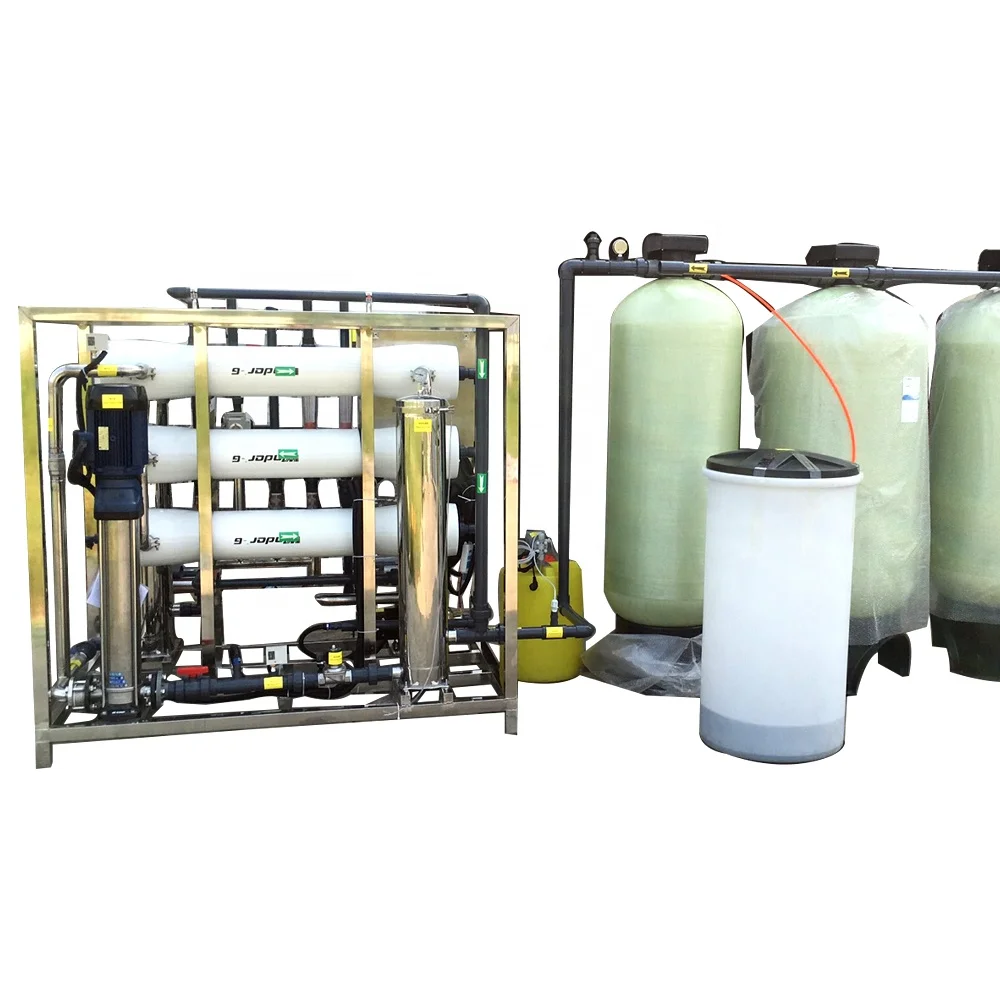

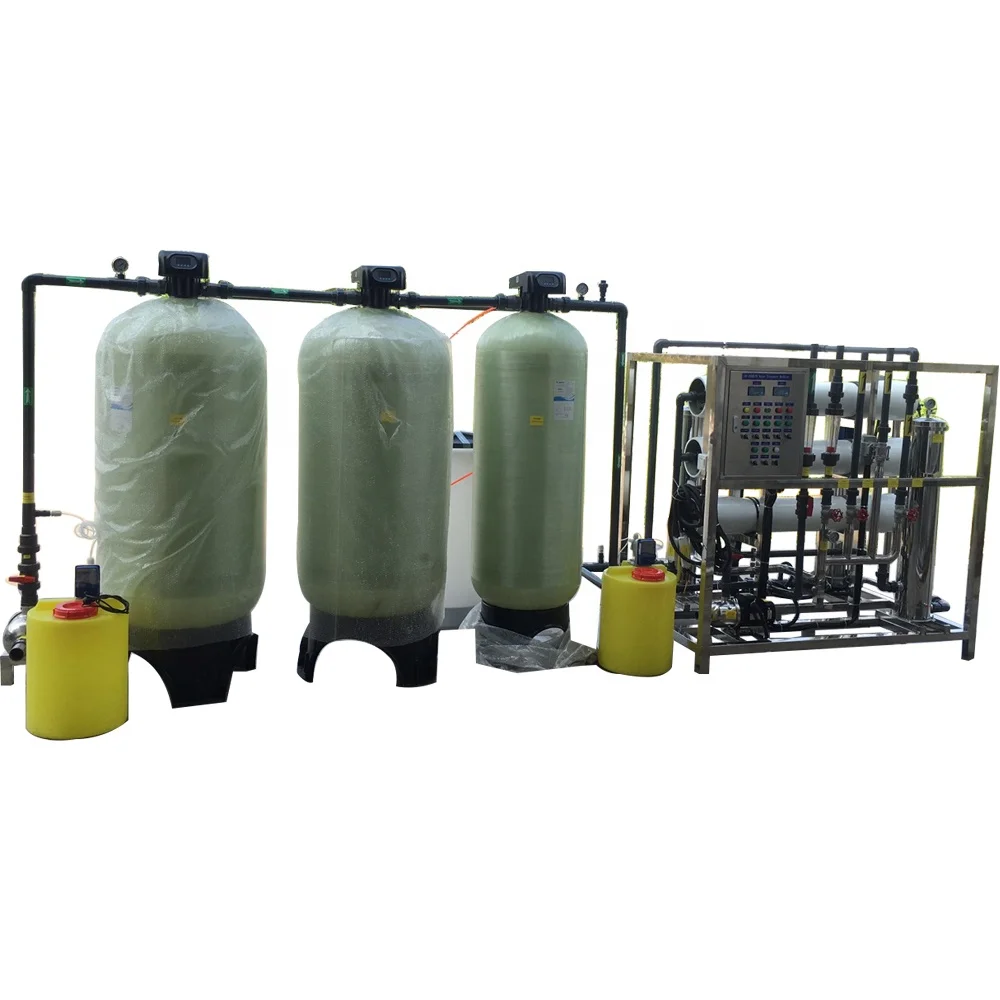

3000LPH RO water filtration system brackish water desalination plant ro system
- Category: >>>
- Supplier: Guangzhou Vocee Membrane Technology Co. Ltd.
Share on (1600360328003):
Product Overview
Description
3000LPH RO water filtration system brackish water desalination plant ro system
Design Basis:
1.Produce capacity: 3000LPH
2.Voltage: 3800V/ 415V,or customized at different country
3.Desalination rate:97-98%
4.Water recovery rate: 60-70%
5.Raw water TDS:1500mg/L
6.Purified water TDS:15-30mg/L

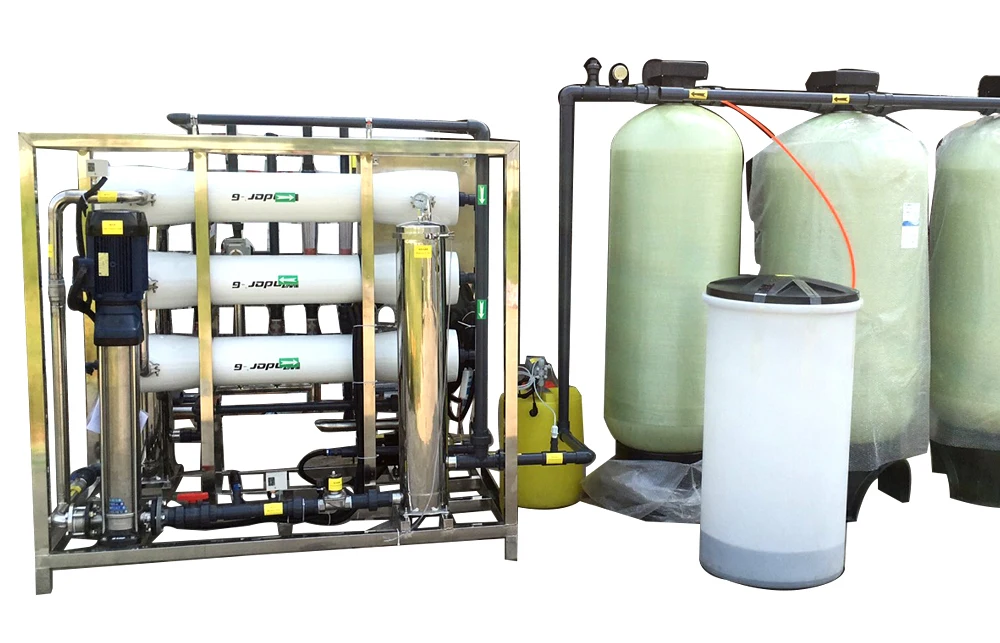

Pretreatment including:
1) Manganese sand filter
(2) Activated Carbon filter
(3) Softener filter
(4) Dosing system

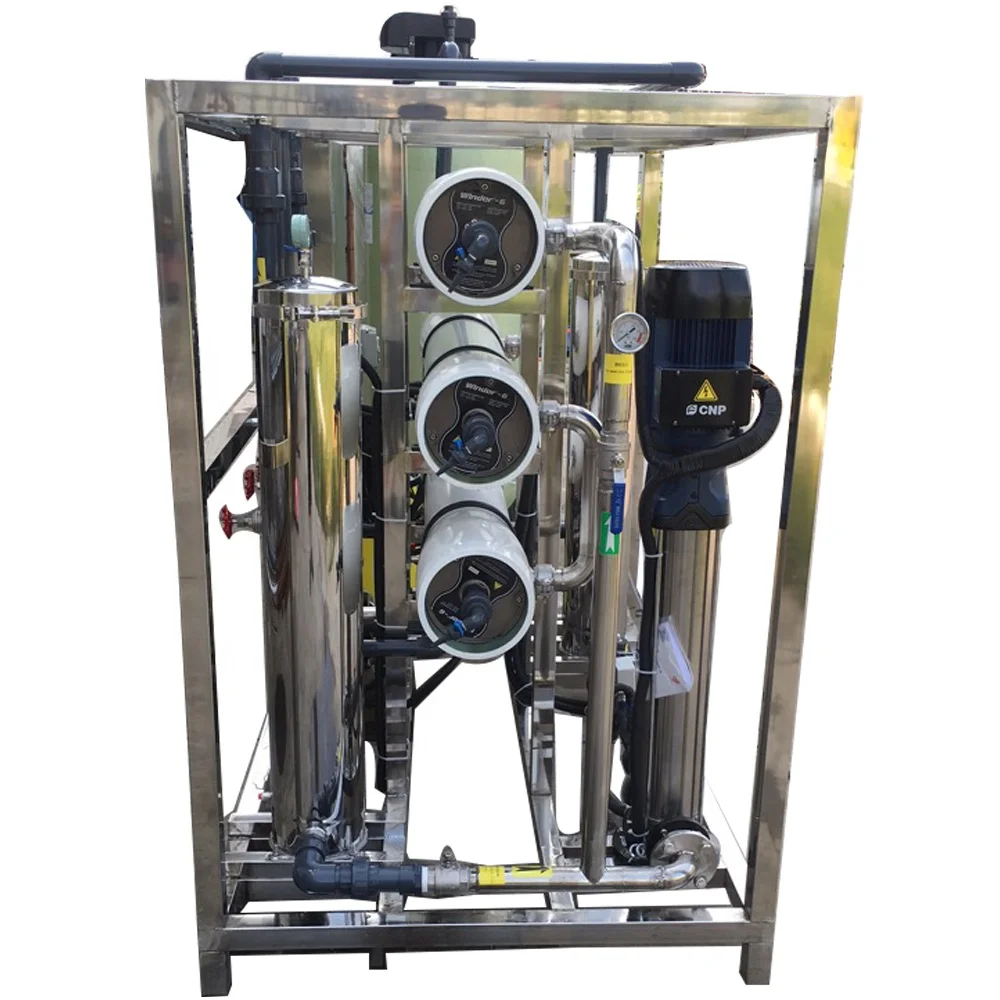

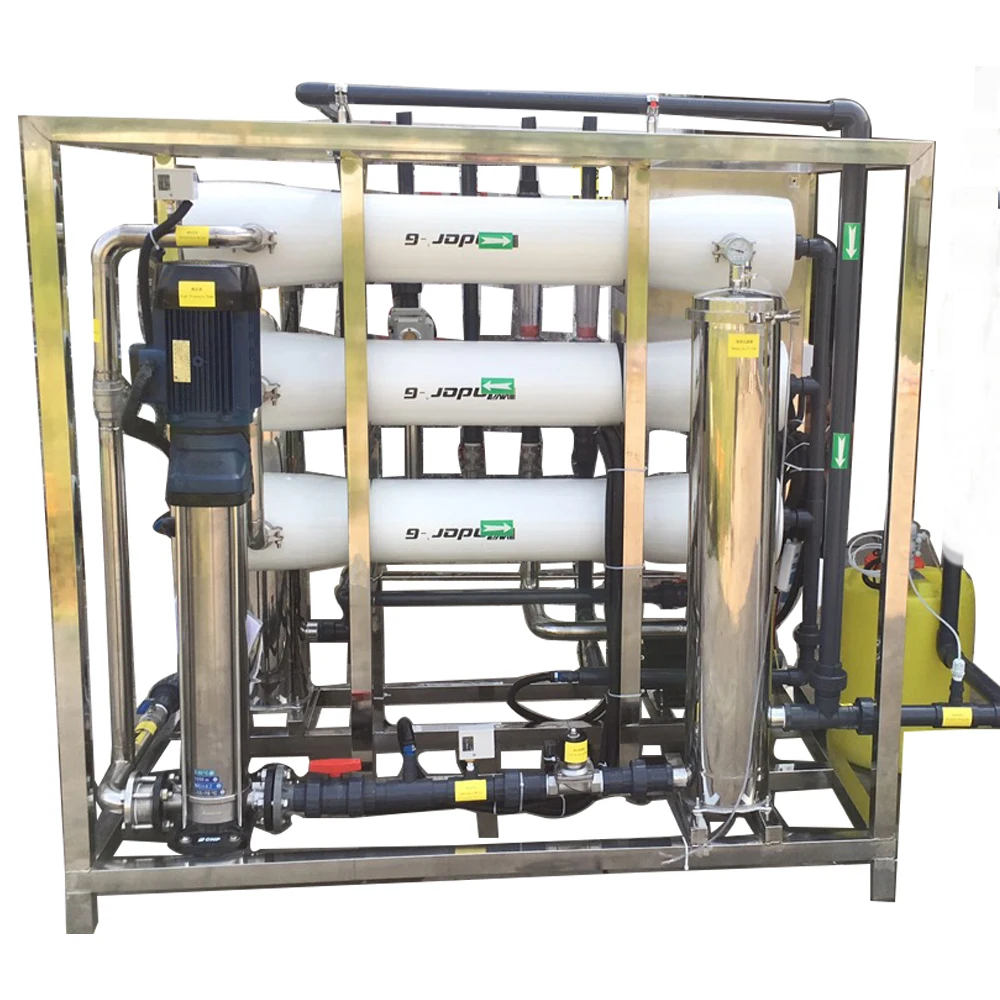

Main Part of the machine:
1)Pumps(CNP,Grundfos,etc.);
(2)RO membrane (DOW,Toray,Vontron,etc.)
(3)Membrane Vessel( FRP,Carbon steel,Stainless steel,etc.)
(4)PLC control/Relay control
(5)Optional UV sterlilizer&Ozone
Function of each part of water treatment plant
1.feed pump -- provide the pressure to quartz sand filter/active carbon filter
2.Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4.Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
5.High pressure pump-- Provide the high pressure to RO membrane
6.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
7.UV sterilizer or ozone generator--- kill bacteria
Feature and advantages:
1.System can produce water continuously and high degree automation.
2. Easy operation and maintenance.
3.Core components of ro system are imported USA membranes.
4.Automatic switch on when low water level, and switch off when high water level
5.System flushes RO membranes automatically, reducing membranes polluted speed.
6.Water shortage protection for multi-stage pump
7.Product water conductivity meter can monitor water quality online continuously.
8.Low operation cost and long life span
Process Flowchart
Raw water tank→Raw water pump→Manganese sand filter→Activated carbon filter →softener filter→Precision filter→High pressure pump→RO system→Pure water tank
Application field:
1)Electronic industry, semiconductor industry ultrapure water treatment
2)Chemical industry, pharmaceutical industry pure water treatment
3)Food, beverage, drinking water, bottled drinking water, sachet/pouch packing pure drinking water treatment
4)Electroplating and leather industry waste water treatment 5)Brackish water desalination, sea water desalination, metallurgy and light industry pure water treatment
8)School, hotel, hospital, laboratory, surface treatment, hydraulic test, industrial boiler, power station boiler, high pressure boiler water treatment
6)Cosmetic products, car battery, liquid fertilizer production pure water treatment
7)Edible cube ice, tube ice etc.

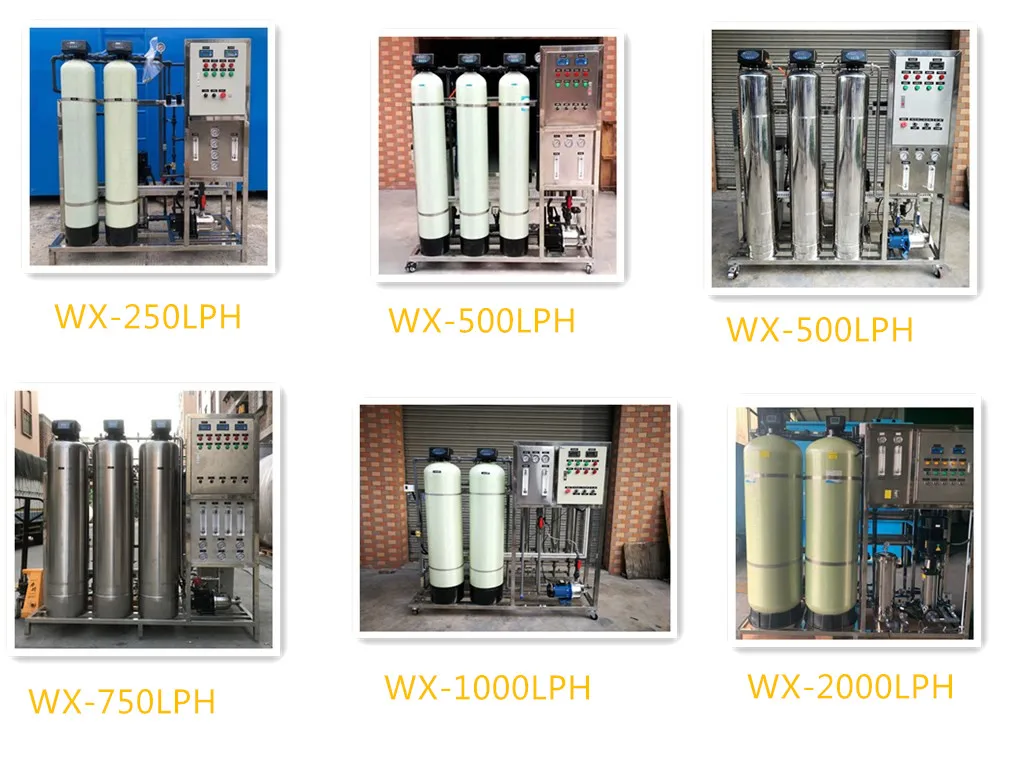

Related Products
Our Services
Pre-Sales Service
* Inquiry and consulting support!
*Technical communication, Provide drawings for confirmation!
* View/visit our Factory! After-Sales Service
* Training how to install and use the machine.
* Timely response within 24 hours. c
* Engineers available to service machinery overseas.
Quality Control
1. Vocee equipment is strictly tested in every process from raw material procurement, production, and delivery, and strict quality control measures are adopted to ensure the excellent quality of products.
2. The equipment also will be tested and run before leaving the factory, to ensure the smooth working of water pipeline,pneumatic, electrical and mechnical stability.
3. Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
Company Information
Guangzhou Vocee Membrane Technology Co., Ltd.is a membrane separation technology-based enterprise with advanced ultra-filtration membrane, MBR membrane production technology and more than 10 years of product application experience, to provide you with high-performance membrane water treatment as the core of the overall technical solutions.
Our Main Products:
1. RO water treatment system,
2. Sea water desalinationsystem
3. EDI ultra pure water equipment,
4. Uiltrafiltration water treatment system,
5. MBR waste water treatment system,
6. Nanofiltration water treatment system,
7. Waste water recycling system,
8. Grape wine,Vinegar membrane clarification machine
9. Ultra-filtration & MBR membrane,
Packaging & Shipping
Packaging Details:
1.All equipment are packed with wooden/carton box or wrapping film.
2.All parts are fastened in container, guarantee that no damage while shipping.
Please don't have to worry about the installation. Before we ship, we will install and test the product you purchased to ensure that the product in your hands can be used normally.
Why choose us
1.We are using high quality accessories, parts and equipments,All parts are selected top quality to ensure the stability of the equipment.
2.Our engineer has over 20 years experience, can provide you with professional design solutions according to your needs in time.
3.We provide Installation/Commissioning/Training. Will teach and train your people how to use, also we can arrange our technical personnel to your side to install the machine.
4.Timely, efficient and reliable after-sales service. Free lifetime technical support.
FAQ
Q: Are you trading company or manufacturer?
A:We are the Top professional manufacturer in China, more than 10 years experience in the water treatment.
Q: What's your delivery time?
A:Normally,it need about 7-30 days.The exact time depends on your quantity.
Q:What's the information we need to know?
A1: what's your raw water ?
B1: what's the capacity per hour of the equipment ?
C1: What's the application of purifier water ?
