Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000
hot sell full automatic 4 cavity PET water bottle blowing machines
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Taizhou,Pairui,Packaging,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

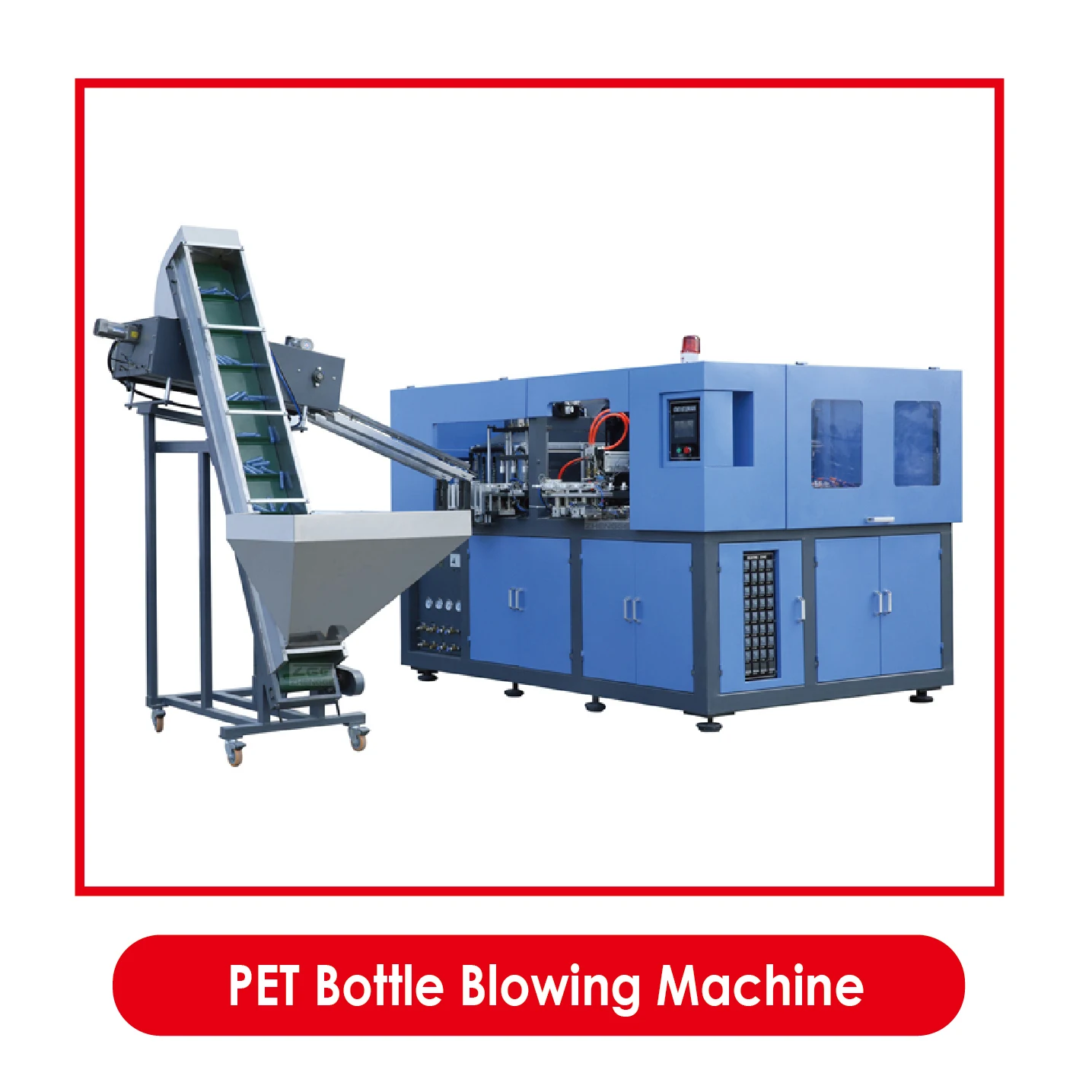

Blowing Machine
Advantage
1. Using advanced microcomputer control system, stable performance;
2. The infrared lamp tube is used for heating, with strong penetrating power, the preform is heated by rotation, orbital
revolution, heating is even, fast and reliable;
3. The width and height of the lamp tube and reflector in the heating zone can be adjusted to suit the heating of preforms of
different structures, and there is an automatic temperature exhaust device to ensure the constant temperature of the drying
tunnel;
4. Each mechanical action has a safety self-locking device, when a process fails, the program will automatically switch to a
safe state;
5. Each action is driven by an air cylinder, no oil pump is used, which has the advantages of no pollution and low noise;
6. The air circuit design divides the action and blowing into three parts to meet the needs of different air pressures for
blowing and action;
7. The clamping force is strong by adopting high pressure and double crank arm linkage;
8. There are two methods of operation: manual and automatic;
9. Safe and reliable unique valve position design makes the gas path clear at a glance;
10. The production process is fully automated, which has the advantages of low investment, high efficiency, convenient
operation, simple maintenance, and safety.
11. The cooling system achieves the ideal cooling effect
12. Easy to install and start
13. The scrap rate of finished bottles is less than 0.2%
2. The infrared lamp tube is used for heating, with strong penetrating power, the preform is heated by rotation, orbital
revolution, heating is even, fast and reliable;
3. The width and height of the lamp tube and reflector in the heating zone can be adjusted to suit the heating of preforms of
different structures, and there is an automatic temperature exhaust device to ensure the constant temperature of the drying
tunnel;
4. Each mechanical action has a safety self-locking device, when a process fails, the program will automatically switch to a
safe state;
5. Each action is driven by an air cylinder, no oil pump is used, which has the advantages of no pollution and low noise;
6. The air circuit design divides the action and blowing into three parts to meet the needs of different air pressures for
blowing and action;
7. The clamping force is strong by adopting high pressure and double crank arm linkage;
8. There are two methods of operation: manual and automatic;
9. Safe and reliable unique valve position design makes the gas path clear at a glance;
10. The production process is fully automated, which has the advantages of low investment, high efficiency, convenient
operation, simple maintenance, and safety.
11. The cooling system achieves the ideal cooling effect
12. Easy to install and start
13. The scrap rate of finished bottles is less than 0.2%
Product Paramenters
AL-CP8S | Item | Measurement | Model | |||
Item | Unit | |||||
Container | Number of Cavities | PC | 4 | |||
Max.Capactity | L | 2.2 | ||||
Max.Neck Diameter | mm | 30 | ||||
Max.Body Diameter | mm | 99 | ||||
Max.Bottle Height | mm | 320 | ||||
Theoretical Output | B.P.H * | 4500 | ||||

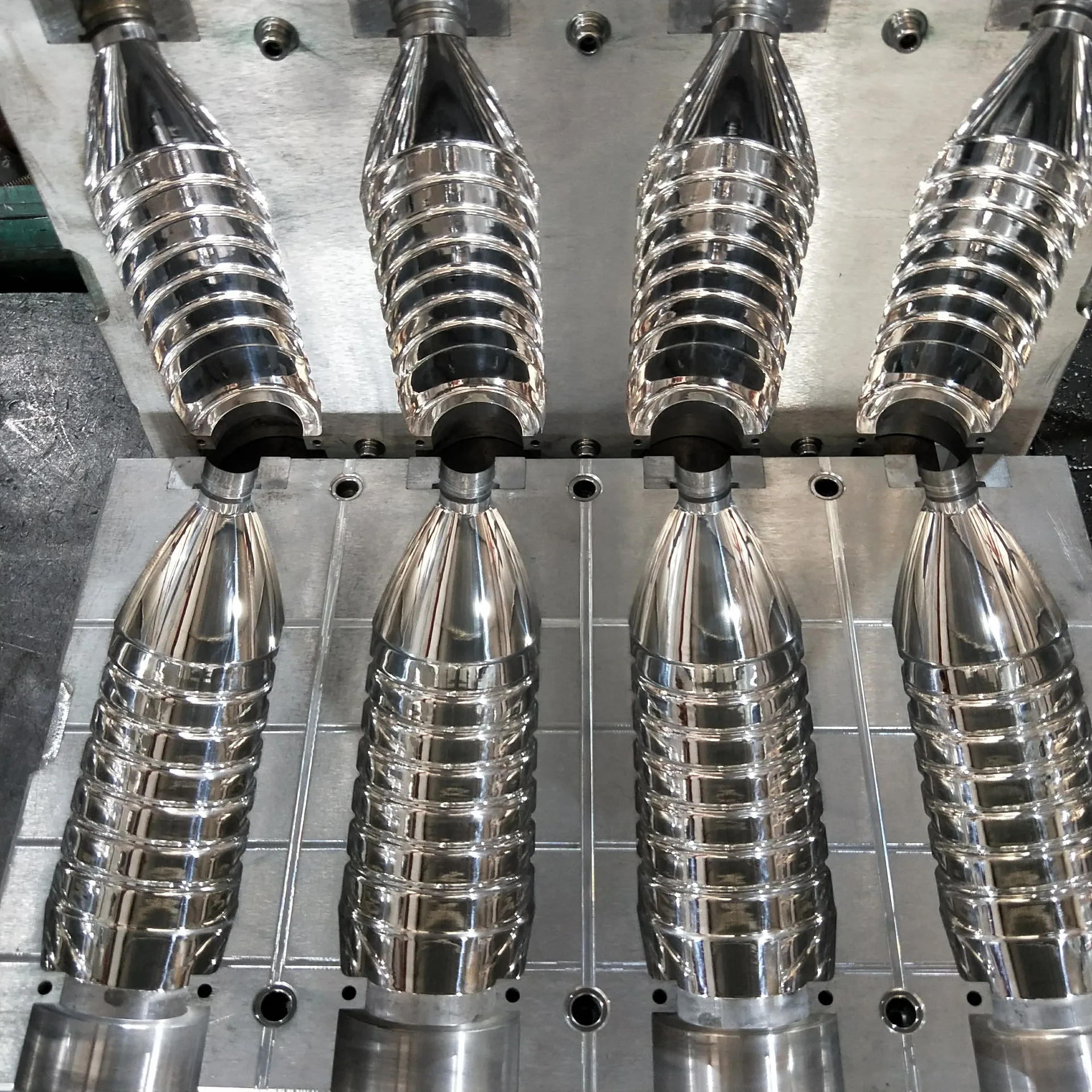

Molding | opening stroke | mm | 135 | |||
Mold thickness | mm | 200 | ||||
Template area | mm | 470*330mm | ||||
Power specifications | Number of lamp tubes | pcs | 32 | |||
heating power | KW | 96 | ||||
Total electric power of installation | KW | 100 | ||||
Actual power consumption | KW | 33 | ||||
Voltage/ Frequency | V/HZ | 380V 50HZ/220V 60HZ | ||||
Air system | High pressure workingpressure | MPA | 3.2m³3.0MPA | |||
Low - pressure exhaust volume | MPA | 2.2m³1.2MPA | ||||
blowing bottle pressure | ≤30kg/cm² | |||||
speed | 730R.P.M | |||||
Machine | Size(L*W*H) | mm | 4400*1620*1900mm | |||
Weight | KG | 3500 | ||||
Remark | 1. The theoretical output is based on 500ml water bottle, the final production capacity is based on the preform, bottle design and volume. | |||||
2. The high pressure air consumption is based on the 500 ml water bottle ,the finallconsumption will depend on the bottle volume and capacity. | ||||||
Production Plant
Company Profile
Taizhou Pai Rui Packaging Machinery Co., Ltd. is a leading supplier to provide the plastic machine, packaging machine and plastic products. The company was originally founded in Taizhou with convenient access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Nowadays, we have rich experience with a world-class design team, a network of high-quality manufacturers and a team dedicated to professional services.
Our products are able to support any part of the plastic producing cycle. We provide professional machines, including blowing machine, injection molding machine, and packing machine etc. The associated company's factories also supply customized plastic products with good quality and lower price. We also provide various of plastic labels as customers' requirement. Recently, the company started international business and has established a very stable and positive win-win partnership with our customers.
Our products are able to support any part of the plastic producing cycle. We provide professional machines, including blowing machine, injection molding machine, and packing machine etc. The associated company's factories also supply customized plastic products with good quality and lower price. We also provide various of plastic labels as customers' requirement. Recently, the company started international business and has established a very stable and positive win-win partnership with our customers.
Certifications
Product packaging
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tighter, we will use pe film for packing or pack it according to customers special request.
Our Partner
FAQ
Q1 :What kinds of product you supply?
A1: Sticker Labeling Machine,Shrink Sleeves Labeling Machine, Shrink Wrapping Machine, Injection Molding Machine, Blowing Machine, Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
A1: Sticker Labeling Machine,Shrink Sleeves Labeling Machine, Shrink Wrapping Machine, Injection Molding Machine, Blowing Machine, Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
