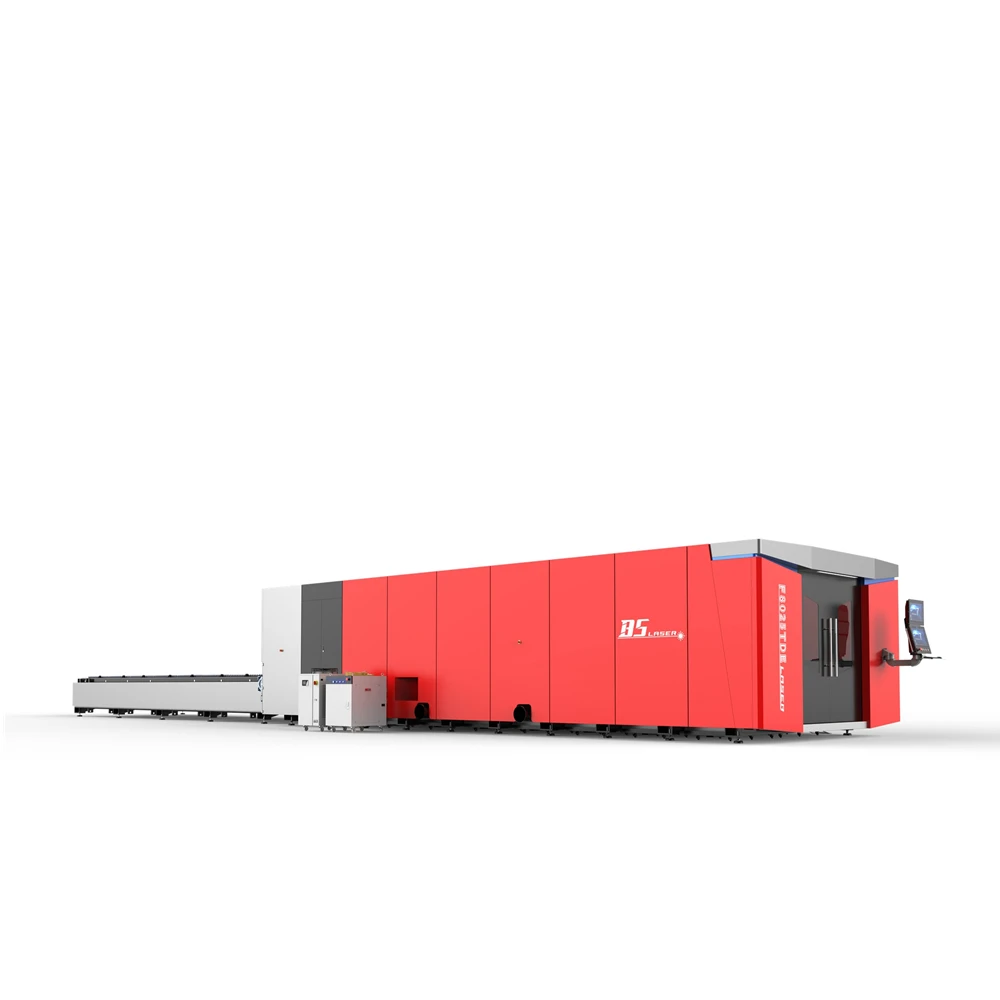

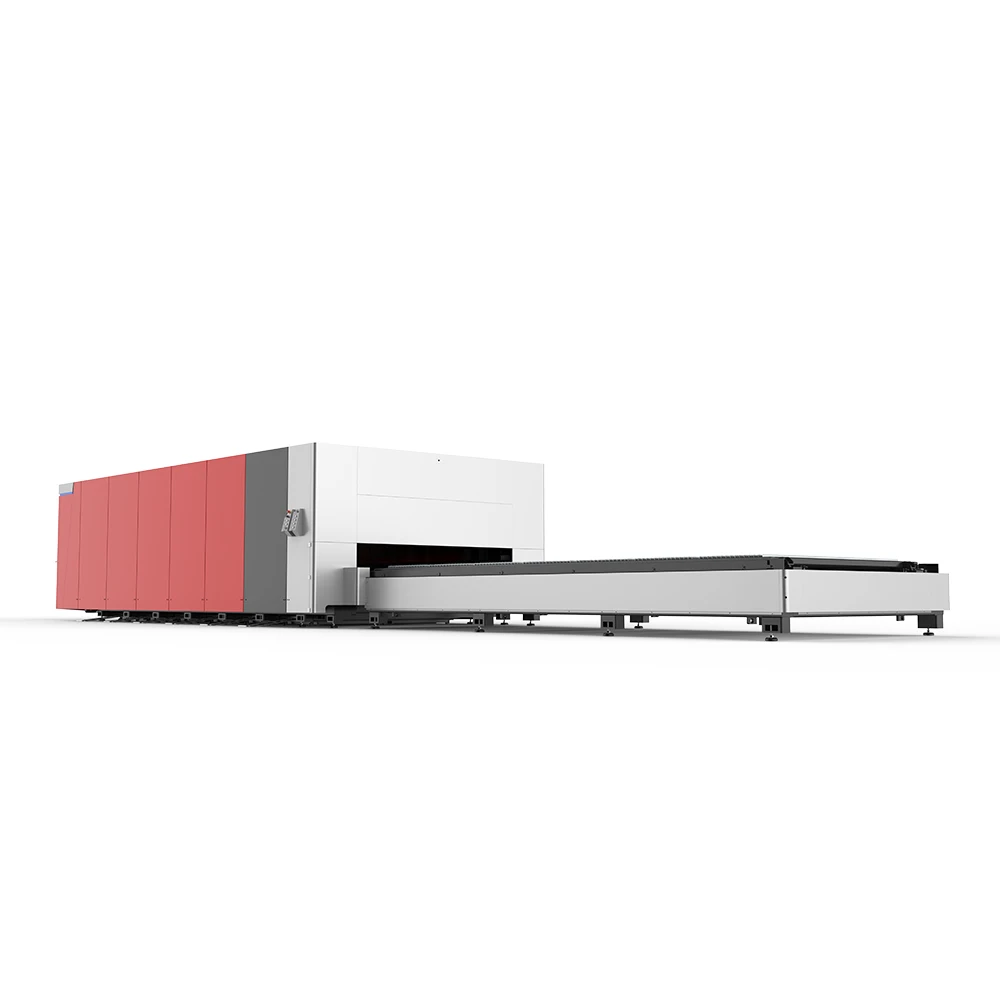

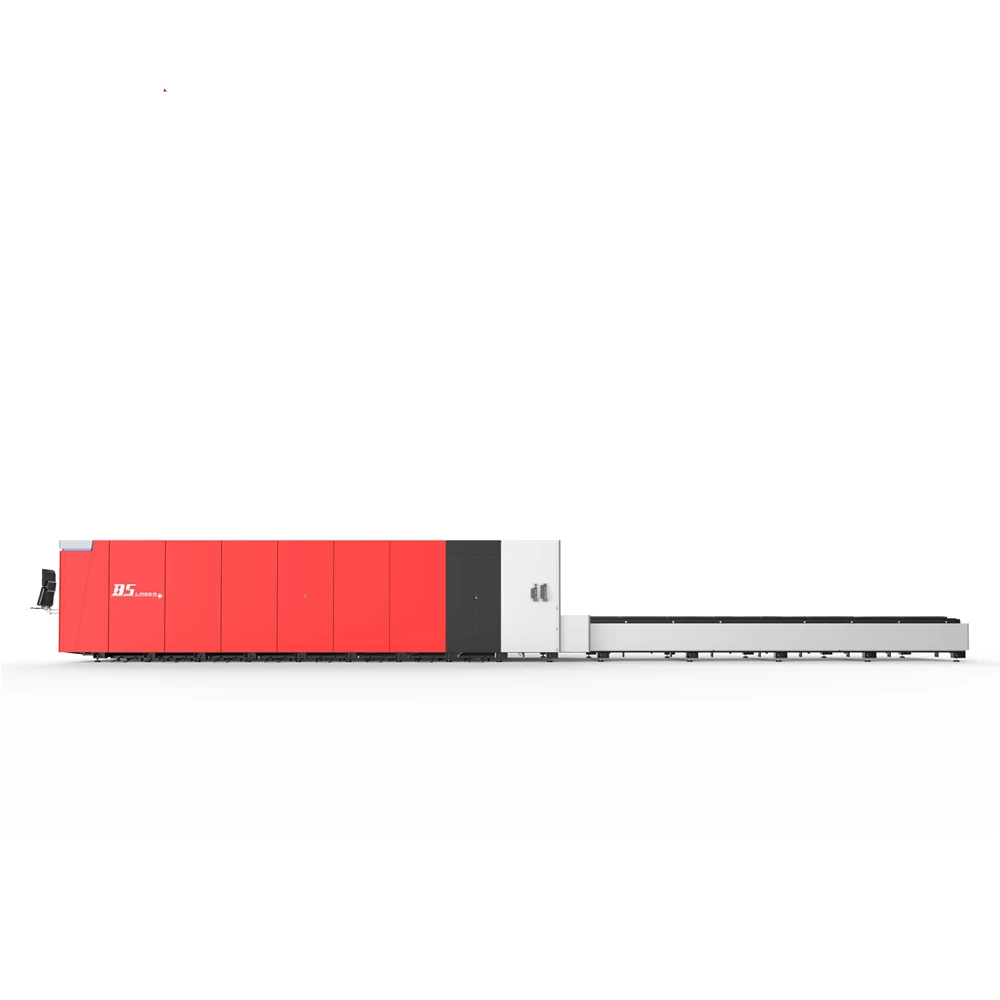

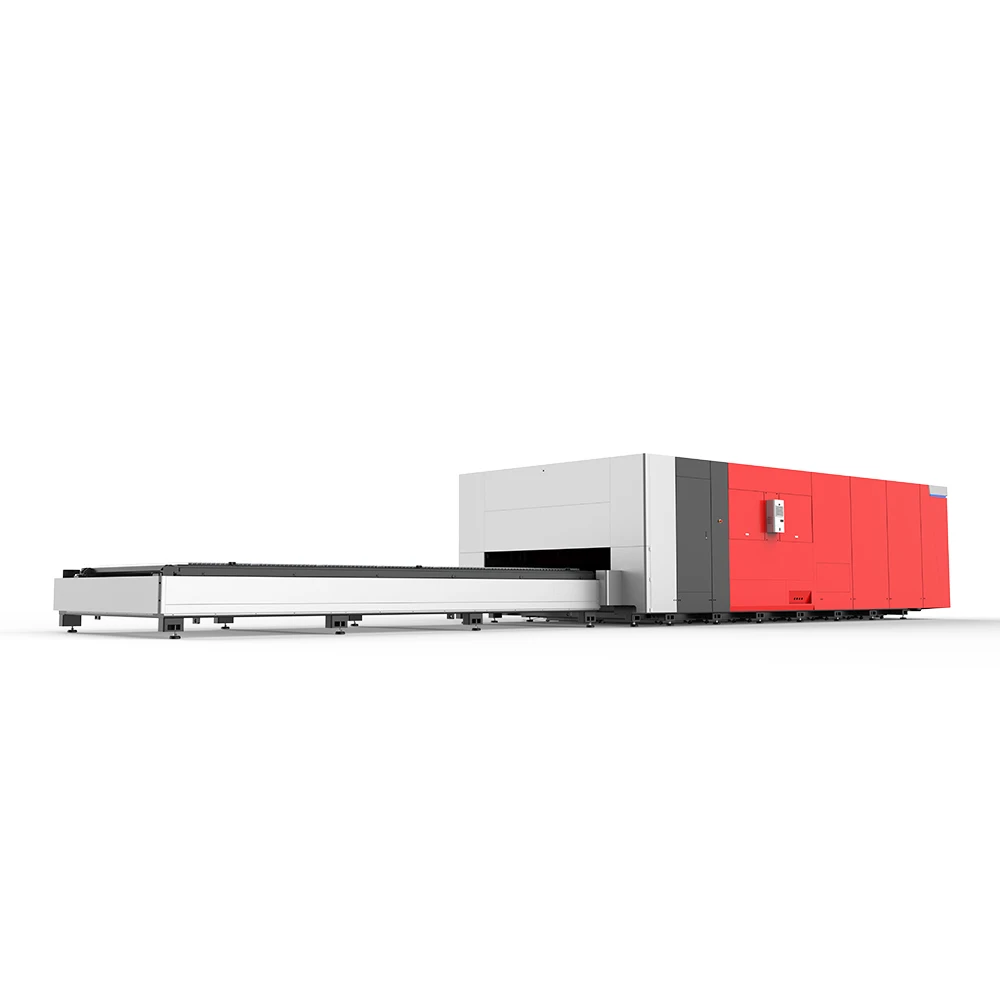

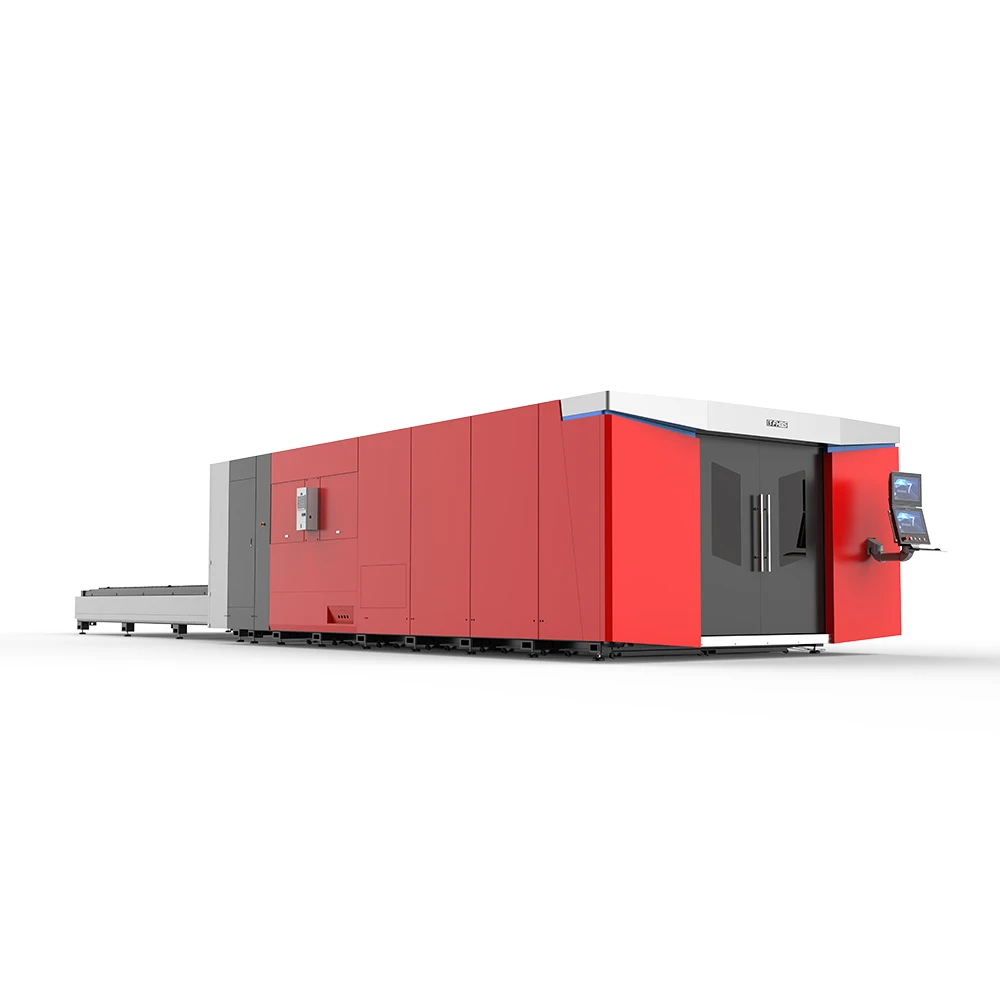

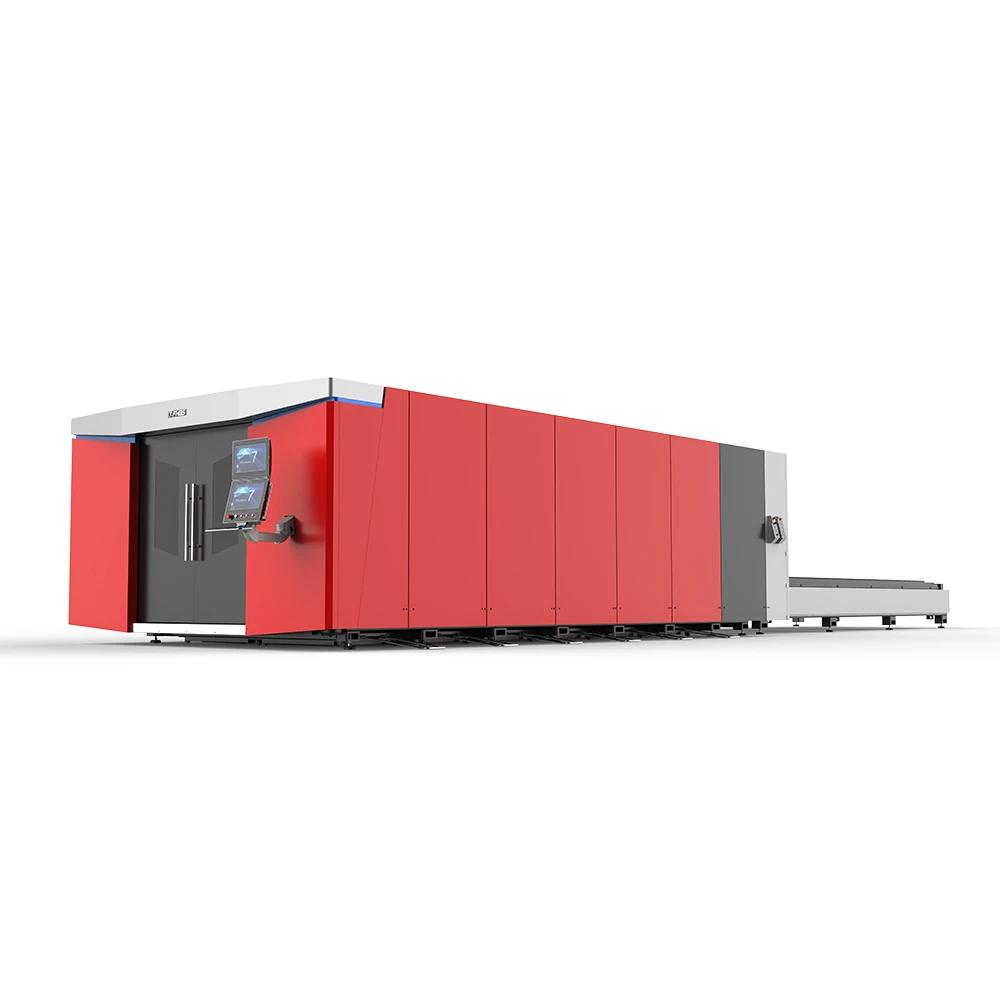

6kw fiber laser cutting machine parallel platform exchanging sheet metal control laser cutter foshan china make it
- Category: >>>
- Supplier: Foshan Huibaisheng Laser Technology Co. Ltd.
Share on (1600360409081):
Product Overview
Description
PRODUCT OVERVIEW
FEATURES
1. The first exchange platform with exclusive patent certification in China. (Patent No. ZL 2018 2 0817269.2)
2. After the exchange, the upper and lower platforms always keep in the same horizontal plane cutting for higher cutting precision.
3.Effectively avoid the risk of cutting head collision.
4. Double chain four-wheel drive climbing mode with enough power and high precision.
PRODUCT CONFIGURATION

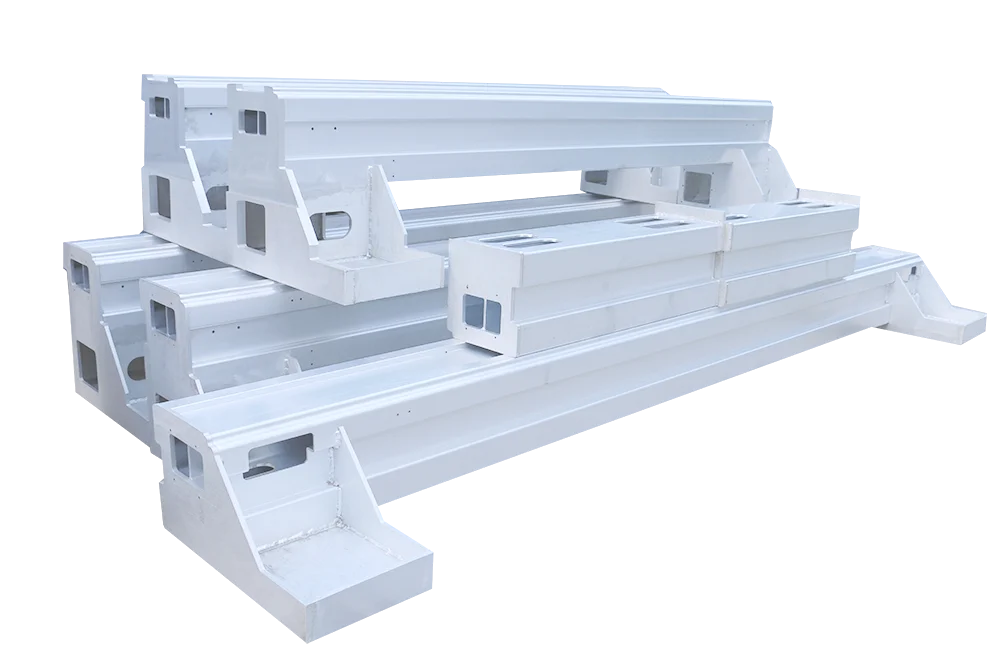

MACHINE FRAMES
Self-produced with 5 sets of large-scale gantry milling machines. It can maintain long-term stable use without deformation.
The frame is made of cross stiffeners every 30cm, which has a stronger load-bearing capacity to ensure long-term stable operation
of the equipment.
of the equipment.
An infrared flaw detector is used to detect whether there are to false welding, missing, welding and desoldering to ensure the
welding quality.
welding quality.
After strict production standards and inspections, the frames produced by us have high rigidity and precision, which can maintain
long-term stable use without deformation.
long-term stable use without deformation.
EXTRUDING AND STRETCHING INTEGRATED AVIATION ALUMINUM BEAM
< With 2 sets of high-precision beam milling machines, we produce the beams by ourselves.
< Adopting the aviation aluminum ultra-high pressure extruding and stretching process, it has the advantages of anti twisting,
anti overturning and the best mechanical properties.
< This greatly improves the rigidity of the gantry beam, and achieves the purpose of light weight, high speed, high precision,
high responsiveness and so on.
< Adopting the aviation aluminum ultra-high pressure extruding and stretching process, it has the advantages of anti twisting,
anti overturning and the best mechanical properties.
< This greatly improves the rigidity of the gantry beam, and achieves the purpose of light weight, high speed, high precision,
high responsiveness and so on.
LASER SOURCE
CUTTING HEAD
①Electro-optical conversion efficiency: >35%
②Service life >100,000 hours
③Maintenance-free.
① Reliable and stable with European process technology;
② Completely sealed internal structure can avoid optical part being
polluted by dust.
polluted by dust.
③ Modular design with highprecision, easy to maintenance.

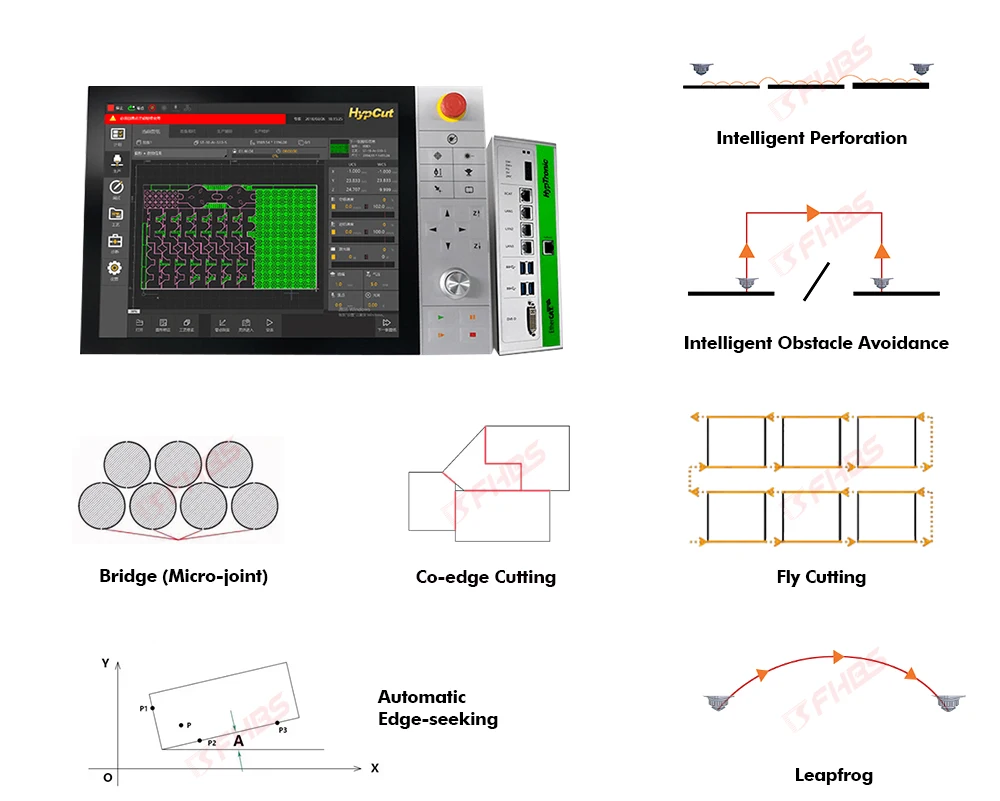

CONTROL SYSTEM
TECHNICAL DATA
Model | F6325TDE | ||||||
Cutting Working Area | 6300×2500mm | ||||||
X.Y axis Positioning Accuracy | ±0.05mm | ||||||
X.Y axis Repositioning Accuracy | ±0.05mm | ||||||
Max. Moving Speed | 100m/min | ||||||
Max. Acc. Speed | 1.5G | ||||||
Overall Dimensions | 16275*4690*2785mm | ||||||
Machine Weight | 16000KG | ||||||
MACHINE APPLICATION
APPLICATION MATERIAL

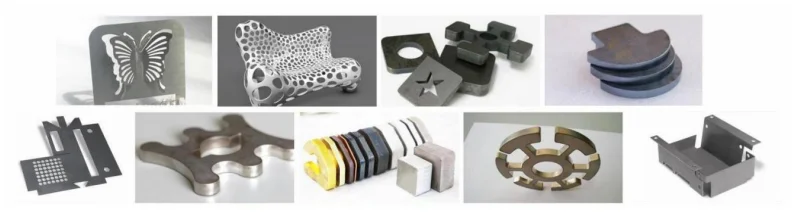

Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet,
Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, any metal material cutting.
Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet,Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, any metal material cutting.
We Support FREE Testing Samples for Customers, pls feel free to contact us.
If you have any questions about the fiber laser cutting machine or other related questions, please contact us without hesitation.
COMPANY PROFILE
▪ 17 years laser equipment production and R&D experience
▪ 150 exported country experience
▪ 100000 square meters industrial park includes sheet metal processing, spray painting, turning, milling, planing, grinding,
fine finishing, machine assembly, and process debugging workshops.
▪ 100000 square meters industrial park includes sheet metal processing, spray painting, turning, milling, planing, grinding,
fine finishing, machine assembly, and process debugging workshops.
AFTER-SALE SERVICE
We have a professional and experienced after-sales team. We support door-to-door after-sales service. In order to effectively solve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
If you have any questions about fiber laser metal cutting machine, please contact us, we are always here. Click for 24*7 online service.
CUSTOMER FEEDBACK
Want to know what our customers think of our machines? Click on the video below and you will know.
If you want to know more about our machine after reading their comments, click here to start consulting!
