High speed Fully automatic BOPP tape production line
- Category: >>>
- Supplier: Cissco Machinery Co. Ltd.
Share on (1600360415565):
Product Overview
Description
Products Description

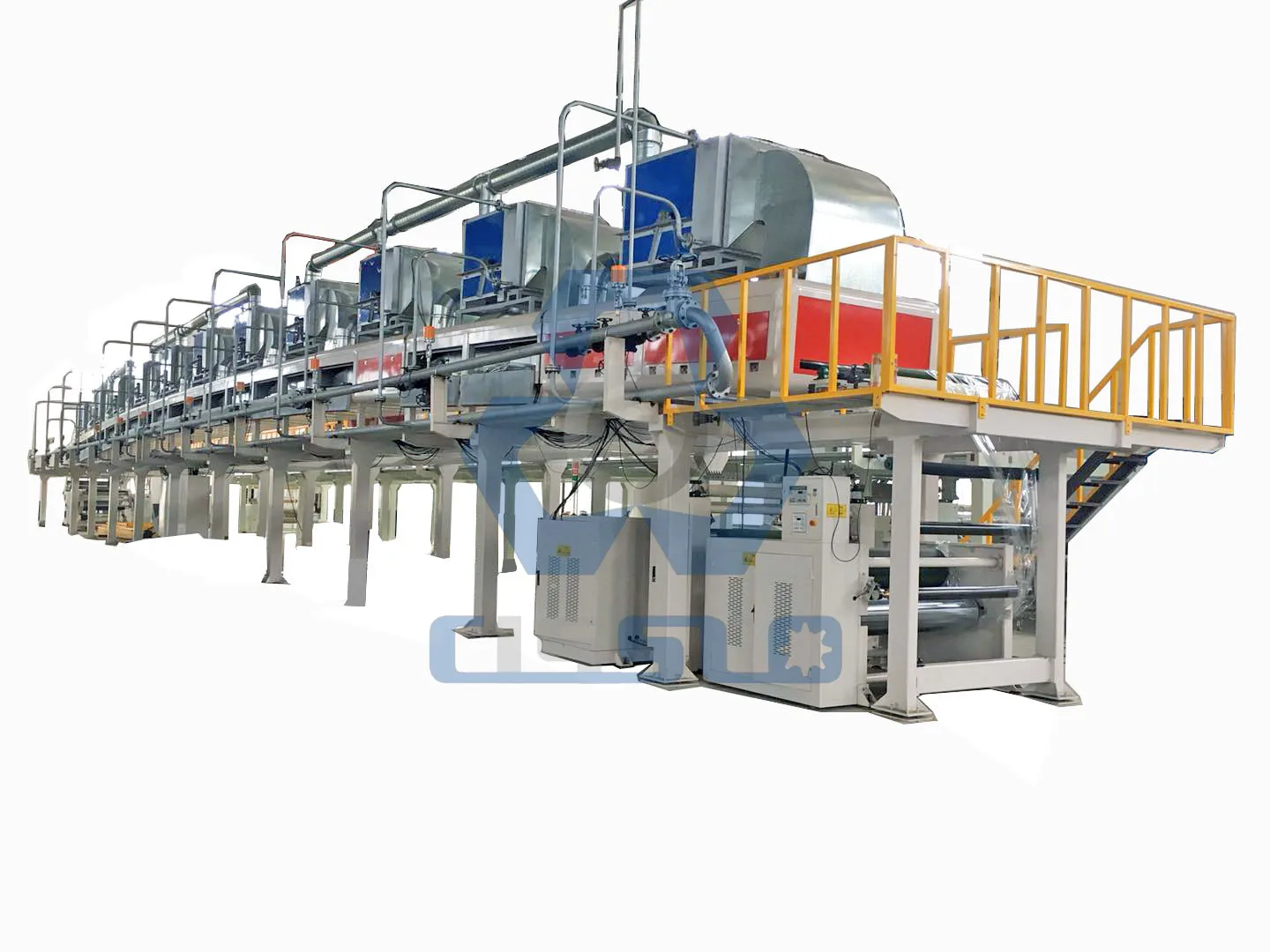

BOPP Adhesive Tape Coating Machine
BOPP Adhesive Tape Coating Machine
This Machine used to produce BOPP adhesive tape jumbo rolls.The main structures are unwinder , coater, drying ovens, cooling roller unit, rewinder, frame, duct, electrical system
Function introduction
1. Unwinder: Release the BOPP blank film, automatic pick up new roll of blank film.
2. Coater: coat glue on the blank film, coating method use mayer bar coater or comma roller coater.
3. Drying ovens: Drying the materials, hot air system, the heat source is provided by the user. Steam boiler, Hot blast stove,
Heat transfer oil boiler, electric one of them. The length of the oven is determined by the maximum capacity required by the user.
4. Cooling roller unit: The raw material after high temperature drying can be cooled rapidly.

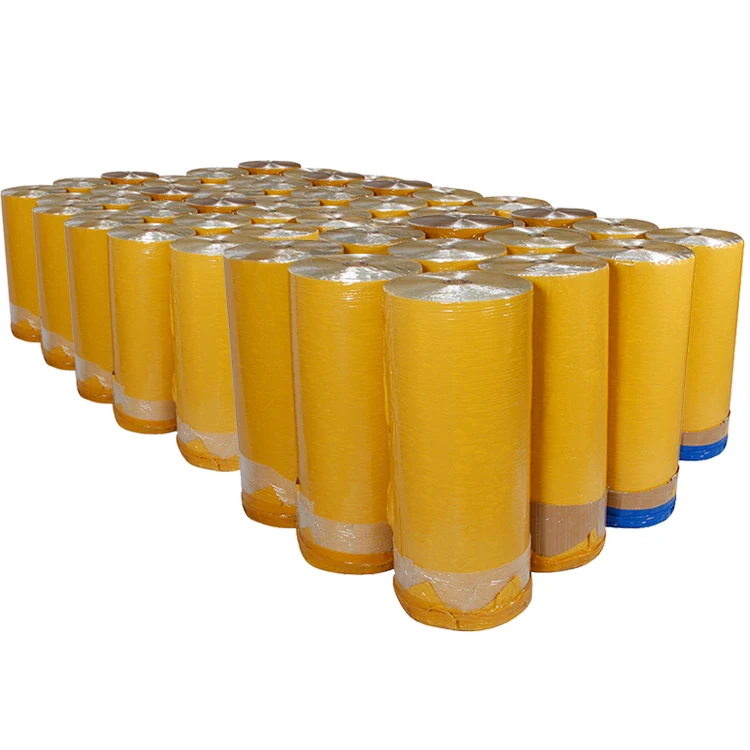

5. Rewinder: rewinding the material into a roll, got the BOPP adhesive tape jumbo roll.

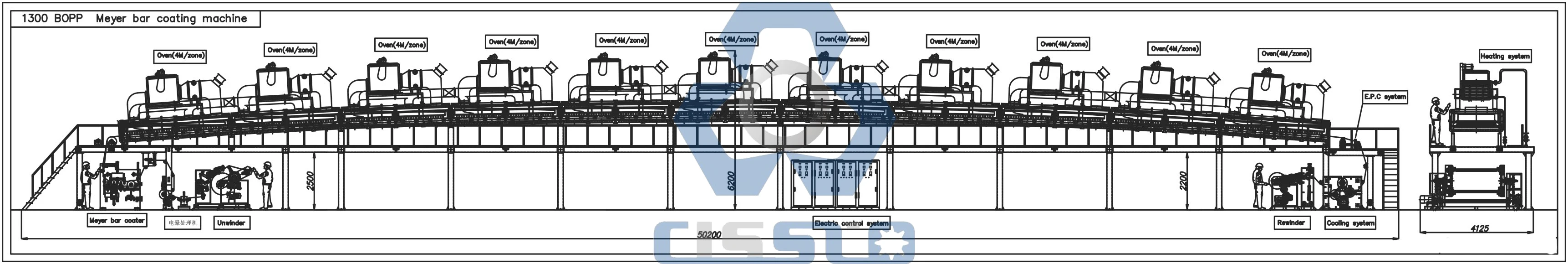

6. Machine Drawing for reference , it can be customized as the requirements.
2. Coater: coat glue on the blank film, coating method use mayer bar coater or comma roller coater.
3. Drying ovens: Drying the materials, hot air system, the heat source is provided by the user. Steam boiler, Hot blast stove,
Heat transfer oil boiler, electric one of them. The length of the oven is determined by the maximum capacity required by the user.
4. Cooling roller unit: The raw material after high temperature drying can be cooled rapidly.
5. Rewinder: rewinding the material into a roll, got the BOPP adhesive tape jumbo roll.
6. Machine Drawing for reference , it can be customized as the requirements.

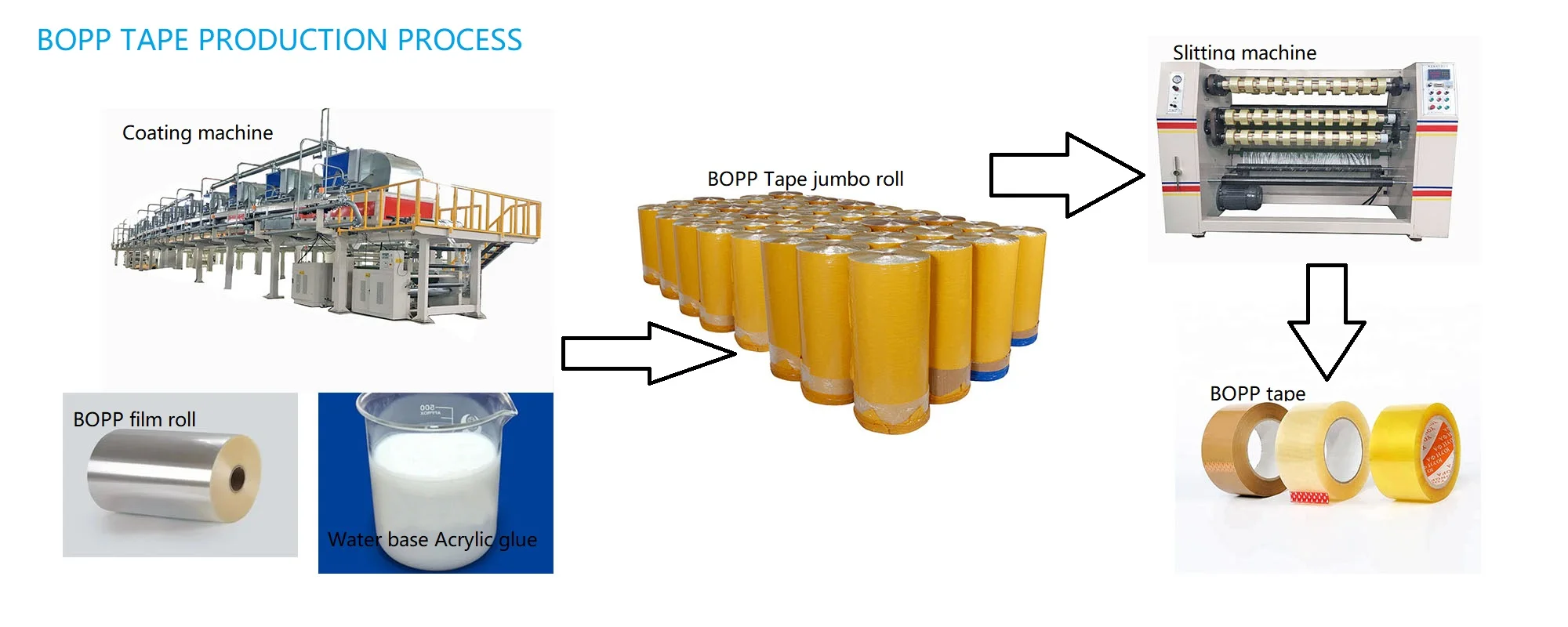

BOPP Adhesive Tape production process
1.Coating adhesive
2.Slitting
3.Packing
3.Packing
Raw materials for BOPP adhesive tape production line
BOPP Film roll
Width:500~1620mm
Film thickness:23~37mic
Film Roll diameter: max.700mm
Film Length per roll:4000~8000Meters
Film thickness:23~37mic
Film Roll diameter: max.700mm
Film Length per roll:4000~8000Meters
Water base acrylic adhesive
Solid content:50~55%
Viscosity:100~300cps
Viscosity:100~300cps
Paper core
Internal diameter:76mm
Length of paper core:500~1600mm
Thickness of paper core: 5~10mm
Thickness of paper core: 5~10mm
Production Specification
Technical parameter
Model 500 | Model 800 | Model 1000 | Model 1300 | Model 1600 | |
Working width: | Max.500mm | Max.800mm | Max.1000mm | Max.1300mm | Max.1600mm |
Production speed: (Customized) | 40~100M/min | 60~150M/min | 60~150M/min | 100~300M/min | 100~300M/min |
Production capacity: 8 hours | 0.5~1ton | 1~3tons | 1.5~4tons | 2.5~6tons | 3~8tons |
Heat consumption per hour: | Max.300000 kcal | Max.600000 kcal | Max.600000 kcal | Max.1200000 kcal | Max.1200000 kcal |
Worker : | 2~3 workers | 2~3 workers | 2~3 workers | 2~3 workers | 2~3 workers |
Product Images
Details images
Unwinder
2-shafts automatic exchange
Auto joint non-stop

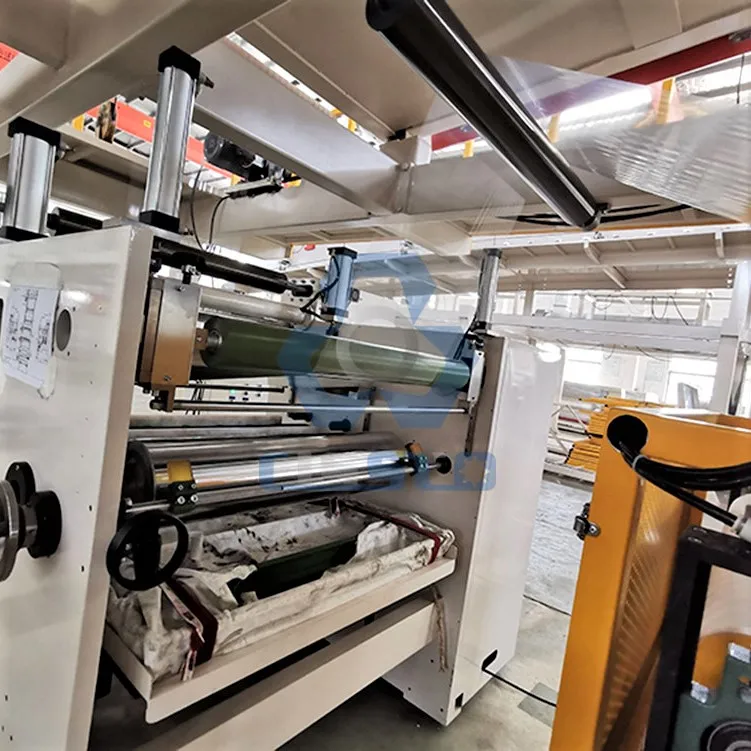

Coater
Mayer-bar coating or Comma roller coating way

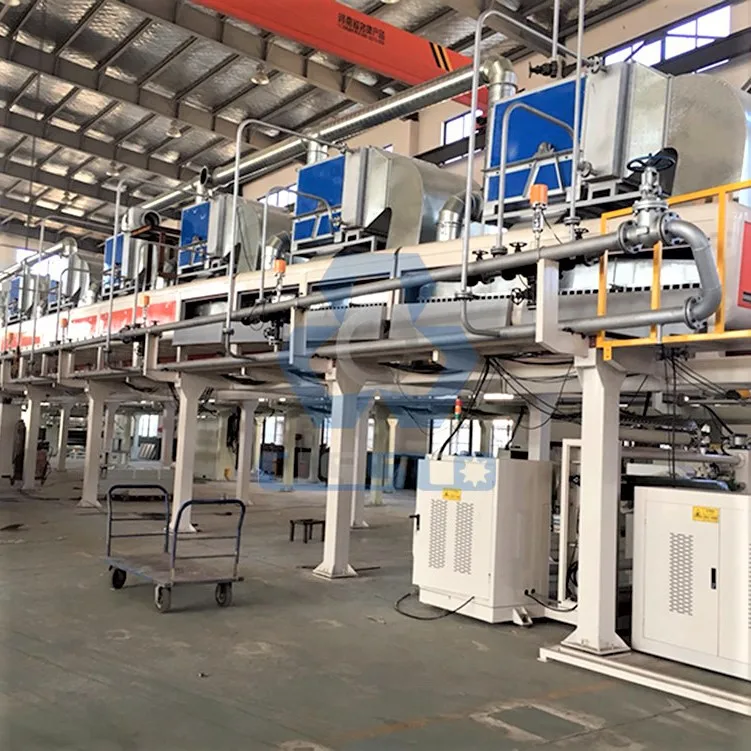

Drying oven
Hot air drying
Heating source:electric, steam boiler, conduction oil boiler, hot blast stove

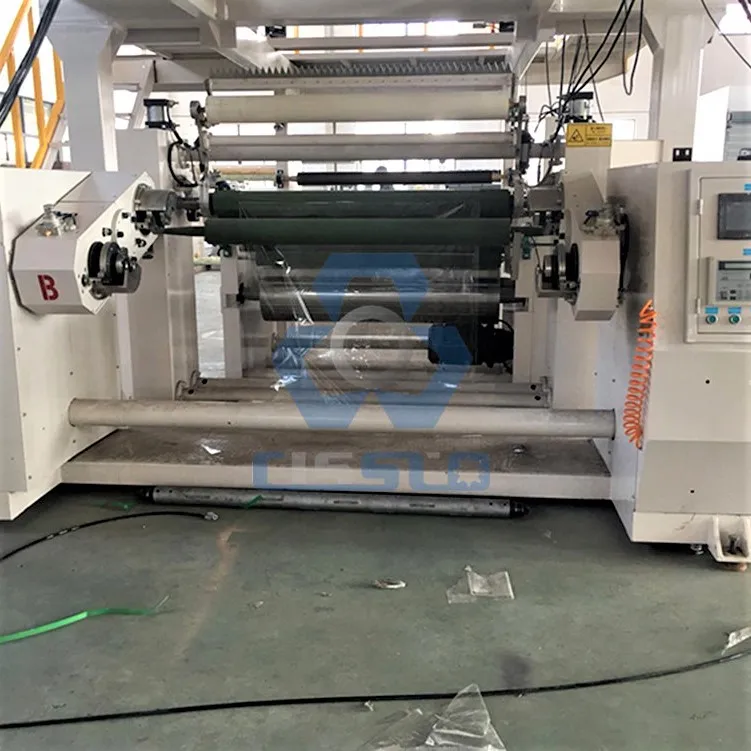

Cooling & Rewinder
Cooling roller & 2-shafts automatic rewinding
Cold water circulation
Auto joint non-stop and auto cutting
Machining & Assembling show
Frame
Steel plate processing
Frame, machine skeleton
Oven skeleton and inner
Operation interface
Blower and exhaust fan for drying system
Electrical control system
Drying oven
Assembling Unwider, rewinder
Assembling Coater, cooling system

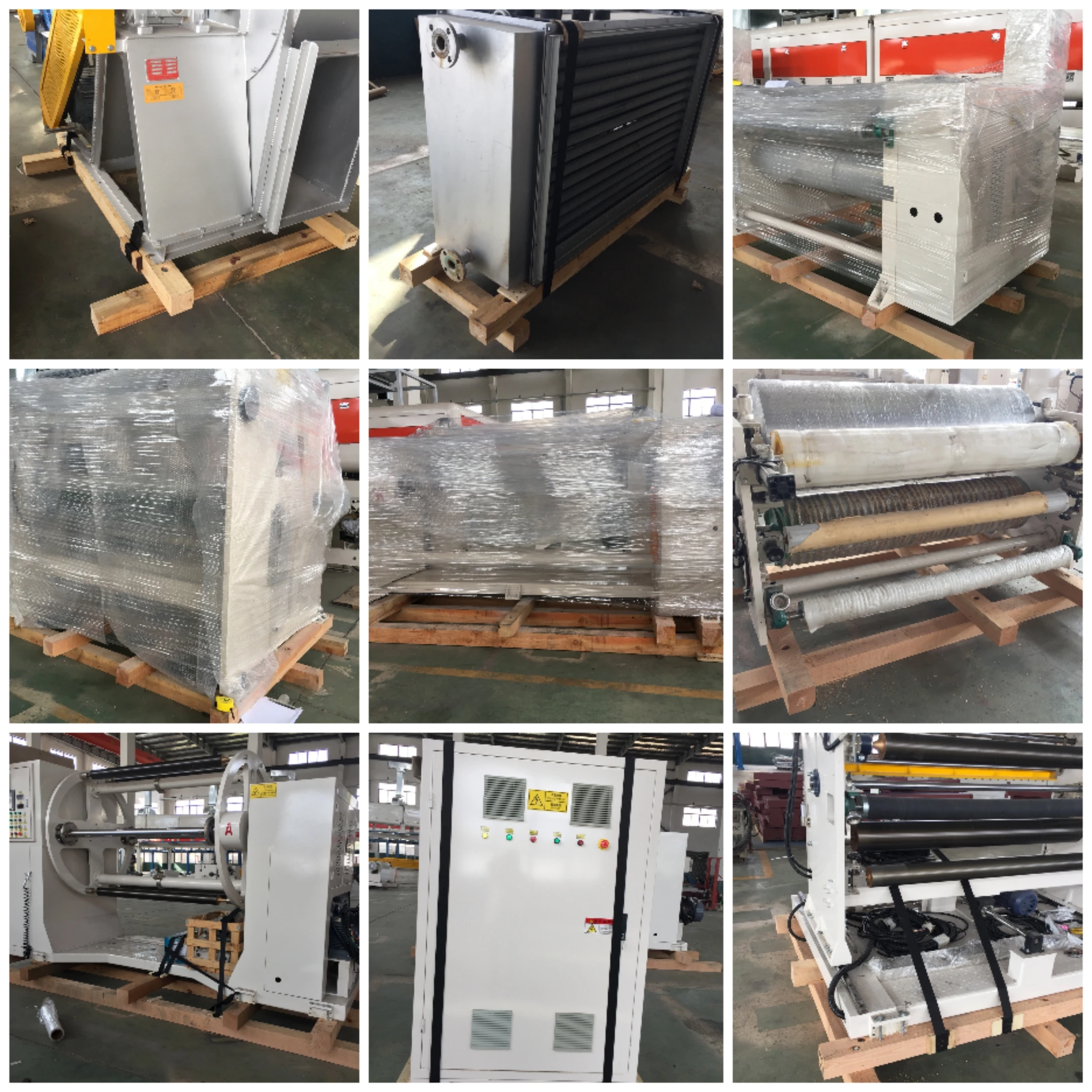

Packaging and delivery

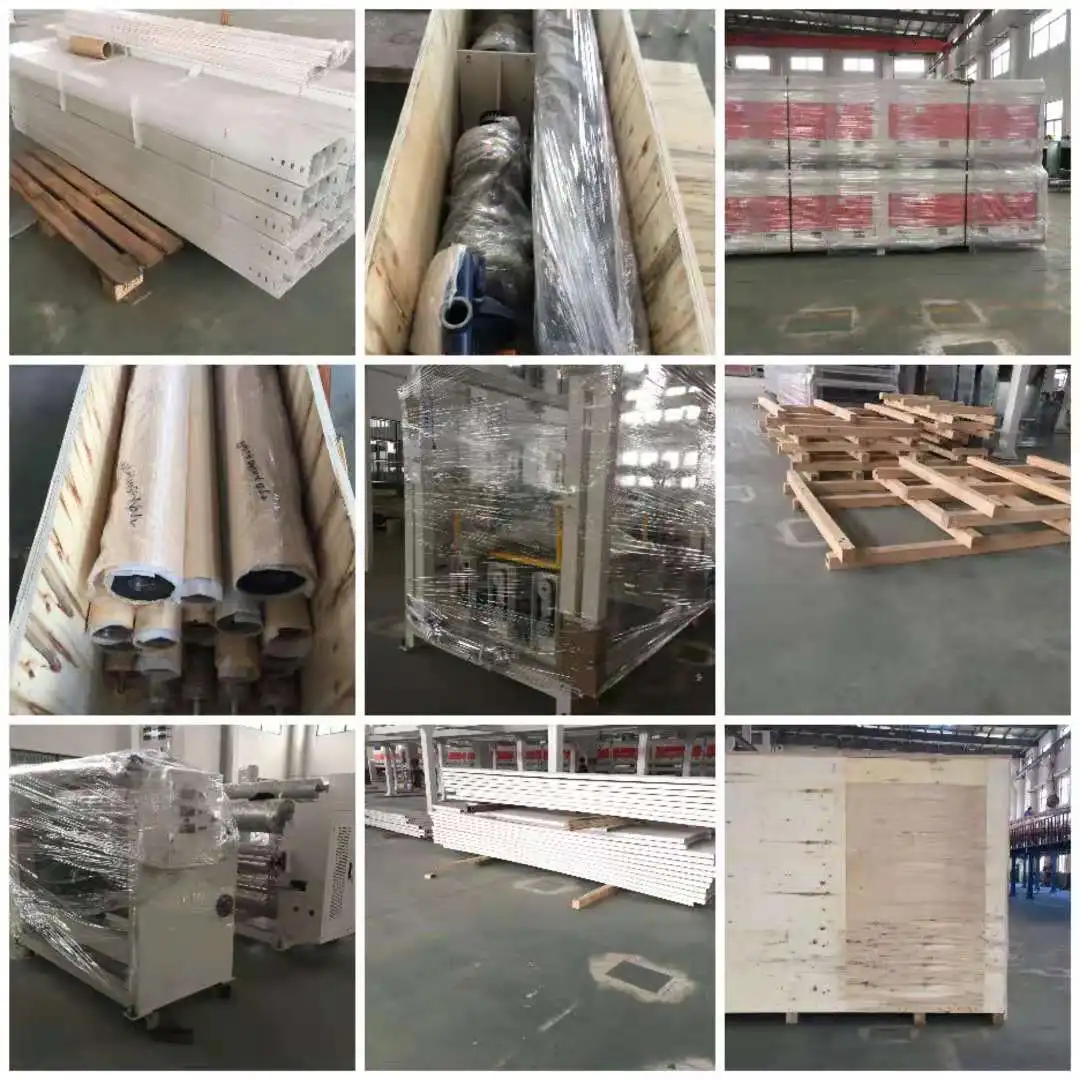

Standard ocean packages
FAQ
1. What products do you need to produce?
BOPP tape, PVC insulation tape, PE/PET protective film, PET/PI electrical tape, Masking tape, double-side tape, Label self
adhesive , Sublimation paper, non-woven/cloth medical adhesive tape.
2. What is parameter of base materials?
Thickness:
Width of base material roll:
Diameter of base material roll:
Weight of material:
3. What kind of adhesive to apply for the products?
Acrylic, rubber or hot melt
4. What is the type of adhesive?
Water base , solvent base, or solvent-less
5. What is parameter of adhesive?
Solid content:
Viscosity:
6. What is production capacity for the machine that you want? Customizable
Low speed:40~80M/min
Medium speed: 100~150M/min
High speed: 200~300M/min
7. How long is the delivery time?90~120days
8.Installation and debugging services?
We can send engineers abroad for installation guidance and operation training.
9.Warranty period and after sales services.
The equipment is guaranteed for one year, Outside the warranty period, we provide paid maintenance services.
BOPP tape, PVC insulation tape, PE/PET protective film, PET/PI electrical tape, Masking tape, double-side tape, Label self
adhesive , Sublimation paper, non-woven/cloth medical adhesive tape.
2. What is parameter of base materials?
Thickness:
Width of base material roll:
Diameter of base material roll:
Weight of material:
3. What kind of adhesive to apply for the products?
Acrylic, rubber or hot melt
4. What is the type of adhesive?
Water base , solvent base, or solvent-less
5. What is parameter of adhesive?
Solid content:
Viscosity:
6. What is production capacity for the machine that you want? Customizable
Low speed:40~80M/min
Medium speed: 100~150M/min
High speed: 200~300M/min
7. How long is the delivery time?90~120days
8.Installation and debugging services?
We can send engineers abroad for installation guidance and operation training.
9.Warranty period and after sales services.
The equipment is guaranteed for one year, Outside the warranty period, we provide paid maintenance services.
