Unity HAC206 Heavy Duty Stainless Steel Door Hinge EN Hinge ce 1935 hinge
- Category: Door & Window Hinges >>>
- Supplier: China Arts And Crafts Nanjing I/E Corp.
Share on (1600360416487):
Product Overview
Description
Details Images

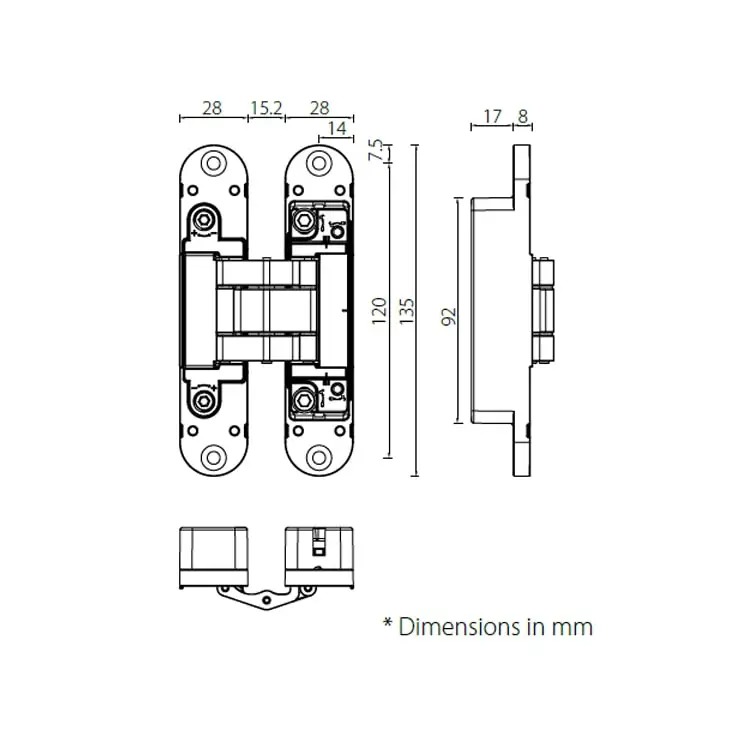

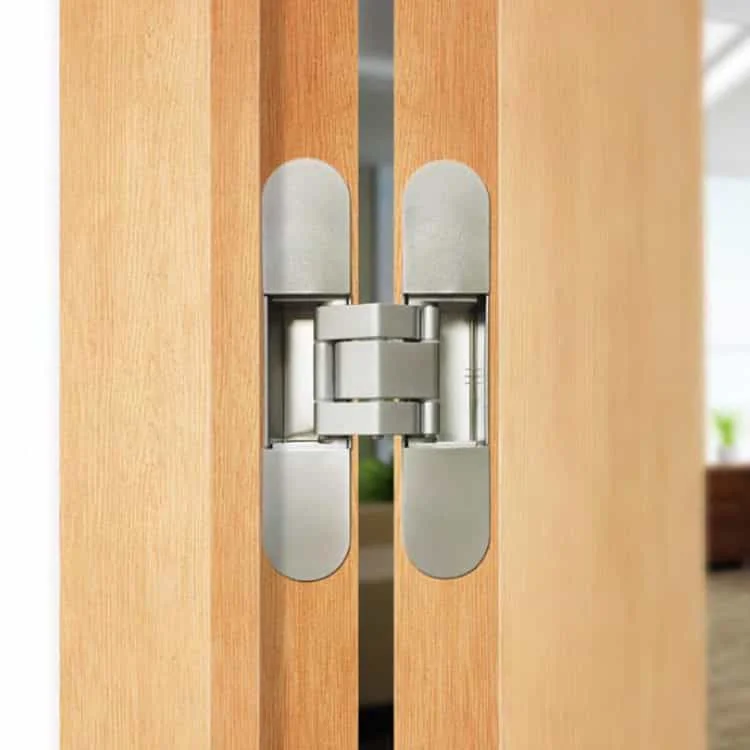

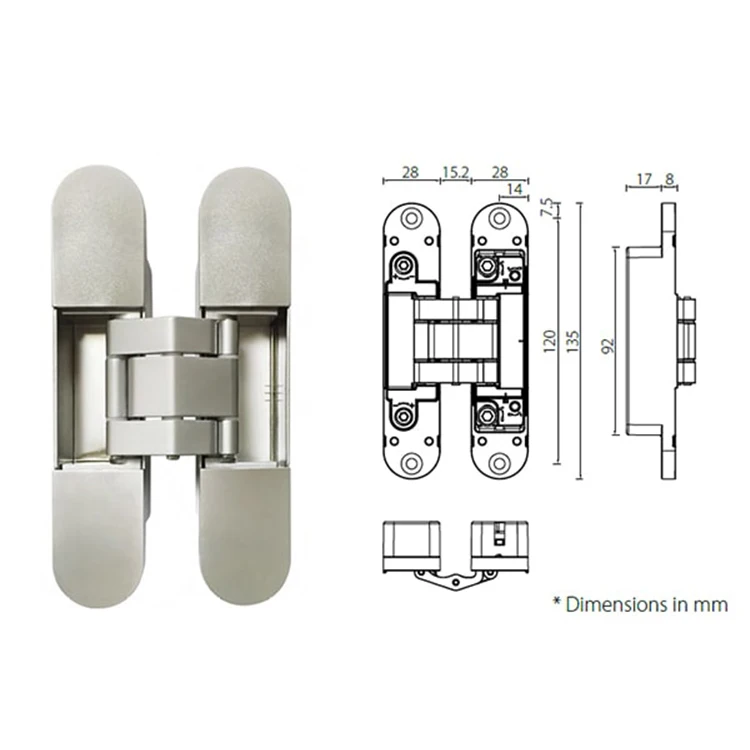

UNITY adjustable 3D concealed hinge HAC206 is suitable for commercial and residential doors less than 60kg. |
Products Description
Finishe:
–Satin Chrome (SC)
–Bright Chrome (BC)
–Satin Nickel (SN)
*Other finishes available on request
–Bright Chrome (BC)
–Satin Nickel (SN)
*Other finishes available on request
Technical Data
–Max. door weight (with 2 hinges): 60kgs
–Min. door thickness: 38mm
–Max. door width: 1000mm
–Max. door height: 2100mm
–Max. opening angle: 180°
–Min. door thickness: 38mm
–Max. door width: 1000mm
–Max. door height: 2100mm
–Max. opening angle: 180°
Specifications and Features
–Material: zinc alloy
–3D concealed hinge HAC206 is suitable for timber/wood, steel, and aluminum frame doors
–Wide 3-dimensional adjustment tolerance for more flexible installation
–Non handled the installation

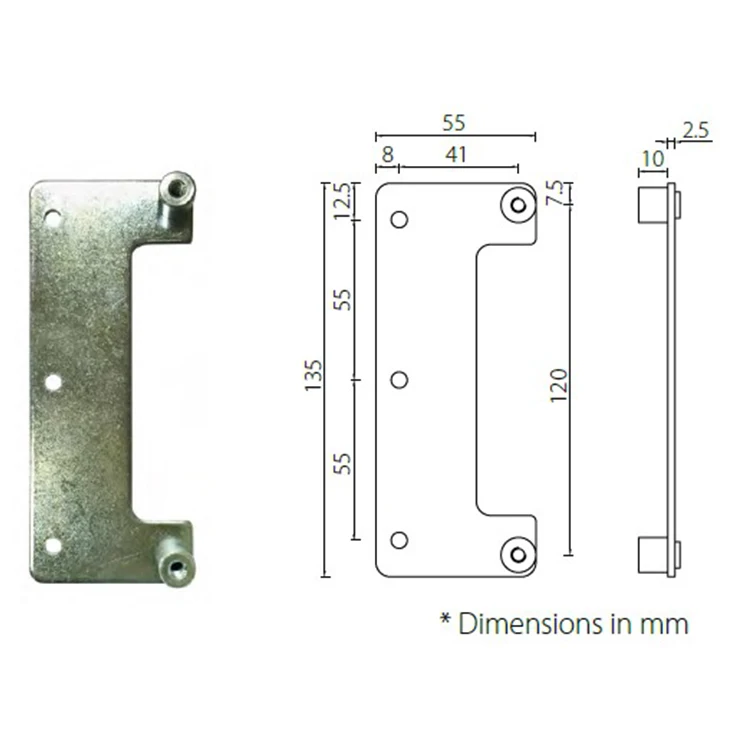

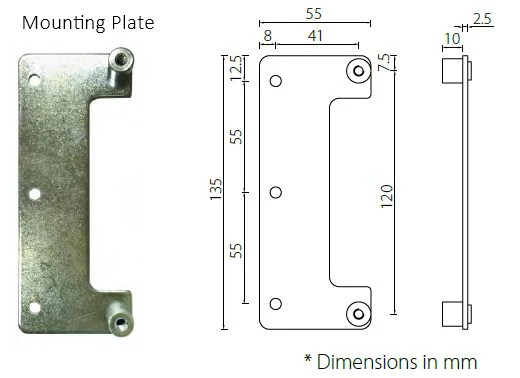

–Matching cover plate for concealed fixing
–3D concealed hinge HAC206 is suitable for timber/wood, steel, and aluminum frame doors
–Wide 3-dimensional adjustment tolerance for more flexible installation
–Non handled the installation
–Matching cover plate for concealed fixing
Test and Standards
–High Corrosion Resistance tested according to EN1670:2007
–200,000 cycles tested on 80kg door mass according to EN1935: 2002
–200,000 cycles tested on 80kg door mass according to EN1935: 2002

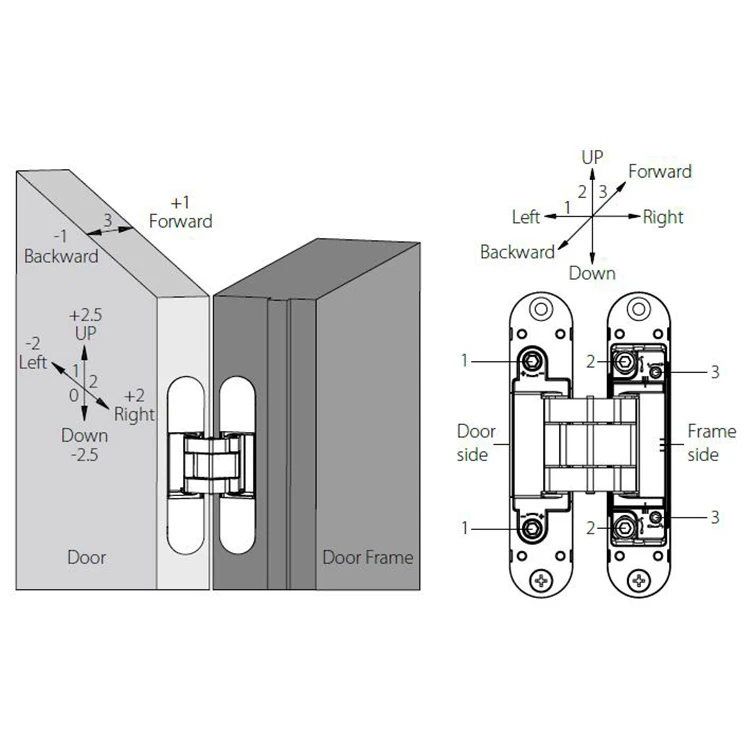

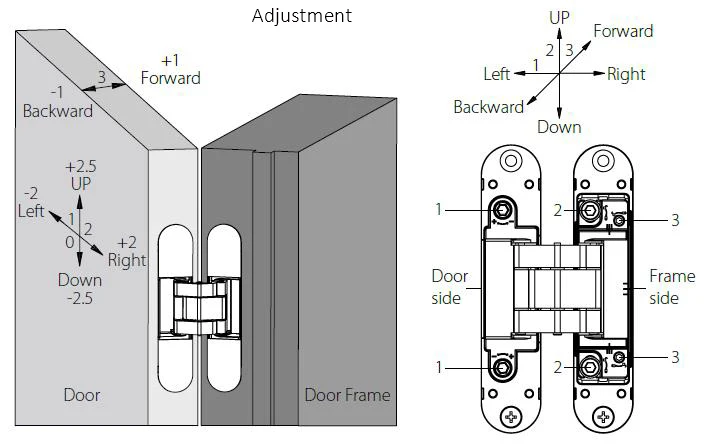

1.Horizontal adjustment (X-Axis): (-2mm, +2mm)
2.Vertical adjustment (Y-Axis): (-2.5mm, +2.5mm)
3.Depth adjustment (Z-Axis): (-1mm, +1mm)
* Please DO NOT make more than one full turn (Max. 360°) of adjustment screws
* Please make sure every hinge on the door is properly loosened before making the adjustment
* Improper adjustment of the hinge may affect the overall performance or cause damage to the hinges, door, or frame.
2.Vertical adjustment (Y-Axis): (-2.5mm, +2.5mm)
3.Depth adjustment (Z-Axis): (-1mm, +1mm)
* Please DO NOT make more than one full turn (Max. 360°) of adjustment screws
* Please make sure every hinge on the door is properly loosened before making the adjustment
* Improper adjustment of the hinge may affect the overall performance or cause damage to the hinges, door, or frame.
Other Door Hinge
Related Products
Packing&Delivery
Sample products are avilible!
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Unity HAC206 Heavy Duty Shower Wood Working Hardware Adjustable Door Hinges
FAQ
Q: Are your company a factory or trading company?
A: UNITY started from a trade company, but now we have two factory plants to serve you. As a manufacturer, we have more than 20 year's experiences and are confident to offer you with optimal manufacturing solution.
Q: What kinds of certificates do you have?
A: UNITY have CE and UL certificate, all our product design follows up the international standard, such as the EN/CE, UL, ANSI standard.
Q: Do you accept OEM or ODM?
A: Yes, UNITY is professional in OEM and ODM with more than 20 year's experiences. And UNITY has set up long-term cooperation with many famous brands home and abroad.
Q: How about your quality system?
Q: How about your quality system?
A: As a factory, UNITY has been certified by ISO9001 and ISO14001 to well control our production and service quality, all steps under control are strictly processed according to these authoritative systems and standards.
Q: Can you send me a sample before placing an order? Is it free?
A: Yes, of course. UNITY will translate all your requirement into real products and then send you samples for your confirmation. Sample is free, you just need to pay for the express cost.
Q: How many days do you need for prepare sample?
A: Usually 2-5 days.
Q: What’s stainless steel grade you are working now?
A: We are working mostly in SUS304 and SUS316, some items can be SUS201 as well. Any more information of further questions, please just feel free to contact us.
