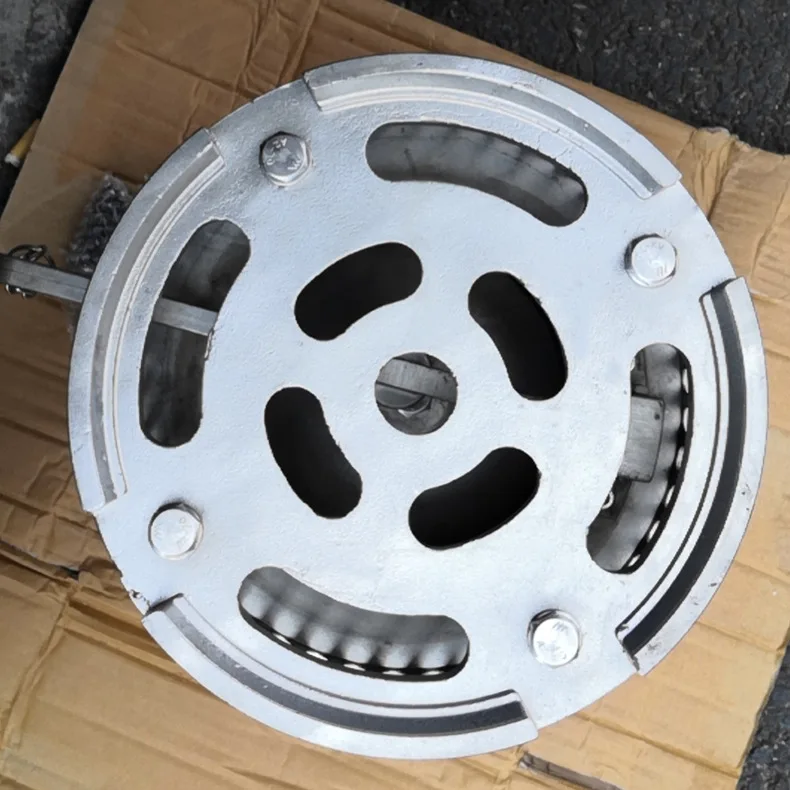

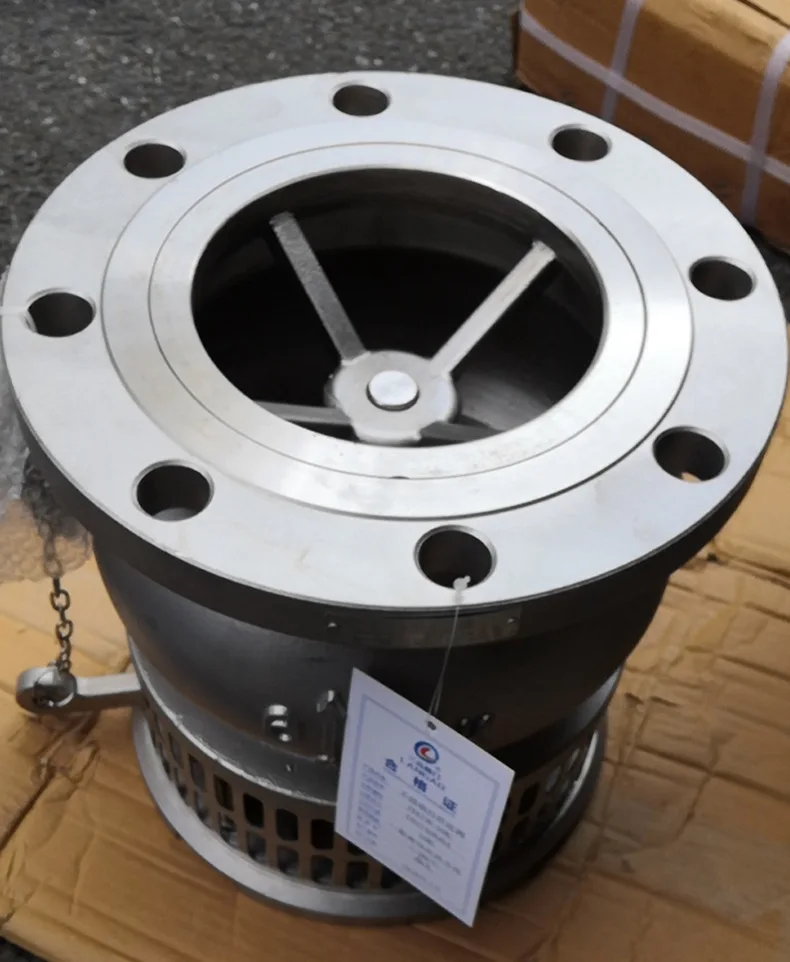

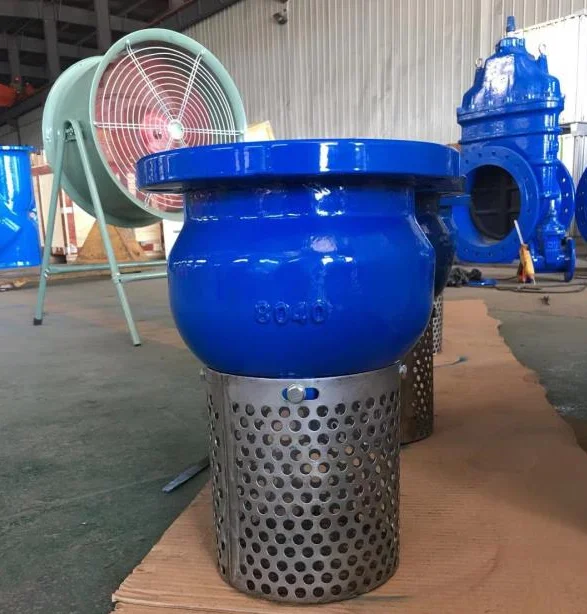

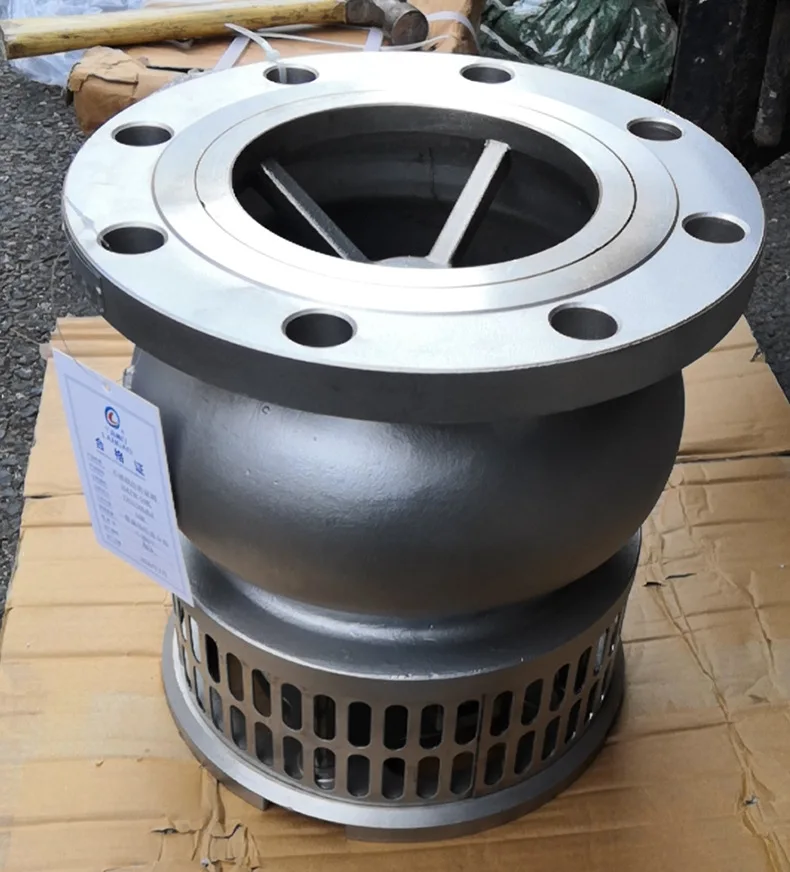

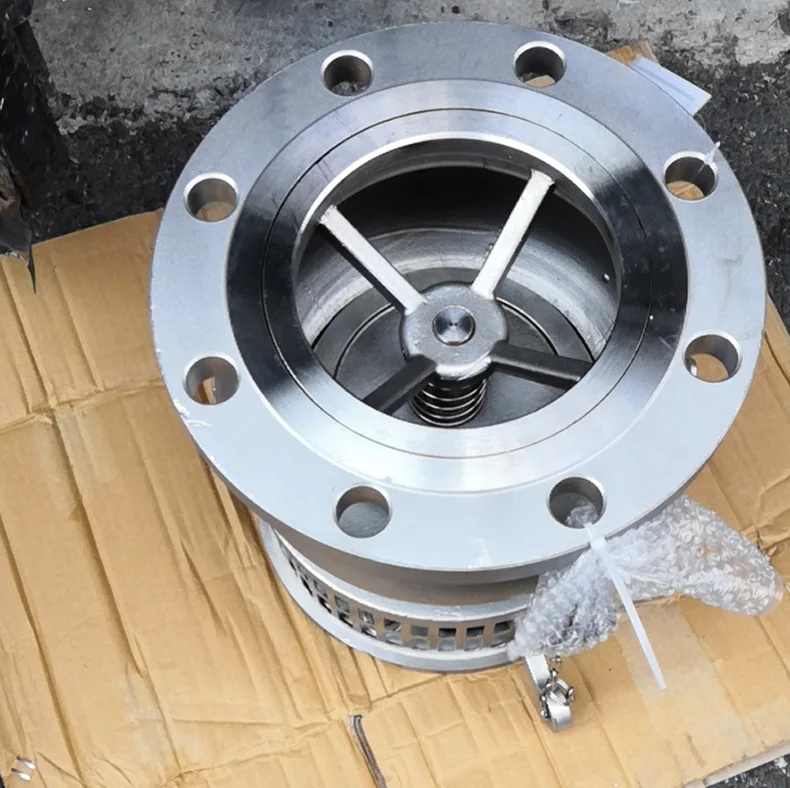

flanged Foot Valve with strainer stainless steel Foot Valve for water pump
- Category: >>>
- Supplier: Topsun Pipelines (Huangshi) Company Limited
Share on (1600360435366):
Product Overview
Description
Product Description
Ductile iron water pump flanged Foot Valve with strainer/GGG50/Foot Valve/bottom valve/strainer DN500mm PN16

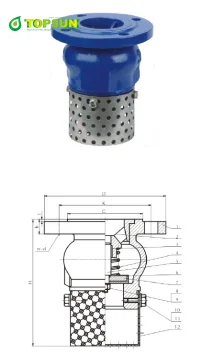

 | Products | |||
| Foot valve | ||||
| Material | ||||
| 1 | Body | ductile iron/ cast iron | ||
| 2 | Disc | ductile iron/ cast iron | ||
| 3 | Disc ring | NBR | ||
| 4 | Spring | stainless steel / steel with zinc | ||
| 5 | Screen | stainless steel / steel zinc plated | ||
| Design | ||||
| Face to face is according to ISO standard | ||||
| Flange drilled is according to DIN,BS,JIS,ANSI standard etc | ||||
| 1 | Working pressure | PN10/PN16 | class 125/ 150 | |
| 2 | Shell pressure | PN15/PN24 | 300 PSI | |
| 3 | Seat pressure | PN11/PN17.6 | 200 PSI | |
| Dimension | Unit:mm | ||||||||
| Size(DN) | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| A | 120 | 120 | 140 | 170 | 200 | 220 | 228 | 344 | 385 |
Related Products
Packaging & Delivery
Client & Market
FAQ
Q:What's your qualification in this product ?
A: We have been engaged in this industry for decades with seasoned export team .
All the product is strictly conformed to the international standard DIN/BS/EN/AWWA and other related standard.
Q:How long is your delivery time ?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q:What's your terms of payment ?
A: 30% T/T in advance , balance before shipment or against L/C . And D/P , D/A ,L/C for free options.
Q: What's your trade terms ?
A: FOB , CIF , CFR as per client's requirements .
If you have any other questions , please feel free to contact us .
