SC машина для запечатывания трещин, машина для запечатывания асфальтового бетона для обслуживания дорог

Product Overview

Description

SC Asphalt crack filler machine is a kind of asphalt crack repair machine which is suitable for filling the cracks of road, expressway, asphalt and concrete pavement of municipal, airports, squares, industrial parks, as well as filling cracks of complicated and irregular pavement. As an indispensable road maintenance machine, it is mainly used for preventive maintenance of road surface diseases and in conjunction with road grooving machine and air blower.



Technical Parameter of the Road Crack Repair Machine:



Model	IV-100L	IV-200L	IV-350L
Generator	Import Japan Brand 2KW generator	Import Japan Brand 2.8 kw generator	Japan Brand 6.5kw
Power	---------	60KW	400kw
Speed	20m/min	8L/min	3600r/min
Crack sealing pressure			2Mpa
Output speed	Adjustable	Adjustable	Adjustable
Volts	220V/380V	220V/380V	220V/380V
The length of electric heating tube	5m	5m	5m
Method	Electric	Electric	Electric
Hot melt kettle volume	100L	200L	350L
Moving method	Towed/Hand Push	Towed	Trailer or towed
Combustor	Ltalian Riello  445T1  combustor	Imported REILLO 445T1 diesel burner from Italy fuel consumption 6.6-15L/h.	Ltalian Riello 445T1  combustor
Temperature control system	Automatic temperature control system	SLA-5000 intelligent digital temperature controller	Automatic control by  SLA-5000 intelligent  digital temperature controller
Heating method	Italian diesel burner, heat transfer oil cycle heating	Conduction oil  indirect  heating  and external  oil pump  circulating heating	Conduction oil indirect  heating  and external oil pump  circulating heating
Filling material heating time	30-40min	30-40min	30~40min
Temperature range	0-200℃	0-200℃	0~200℃
Size	1350*1000*1900mm	2400*1400*1700mm	2000*1700*1900mm
Weight	240kg	860kg	960KG

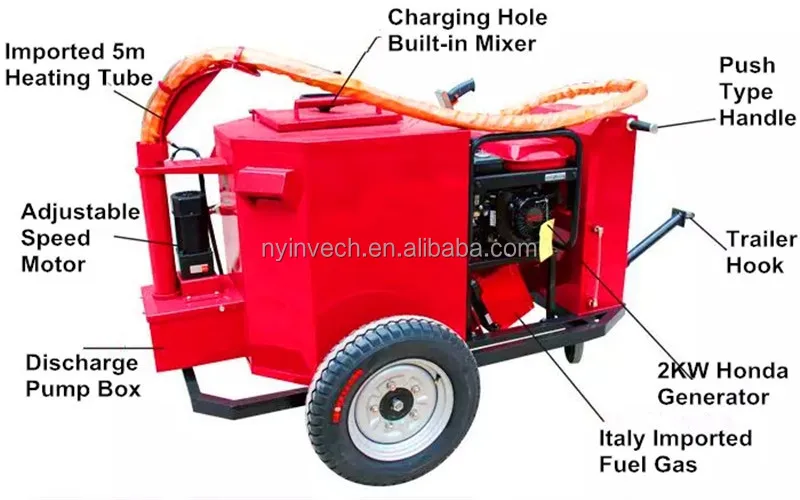

Features of Small Asphalt Crack Filler Machine in Invech:



1. Hand-push type, ride-on type, and towed type are all available to you here.



2. Equipped with Italian imported engine which improves the heat efficiency to two or three times and shortens the working time.



3. Adopt the most advanced technology, which improve the quality of pouring joint and reduce the cost.



4. The whole machine is equipped with a generator set that can provide sufficient power.



5. Advanced intelligent ignition, detection and temperature control system.



6. Unique design of oil jacket hot melt kettle.



7. Design of heat cycle heating system.



8. Efficient discharge system design, the flow rate can be adjusted.



9. Stirring system makes heating quickly and evenly.



10. The discharge pipe adopts electric heating system, which effectively eliminates the condensation problem of filling joint material in the hose an reduce the number of manual cleaning of the hose.
