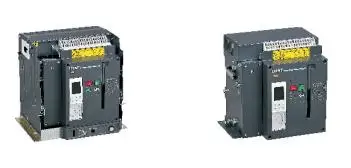

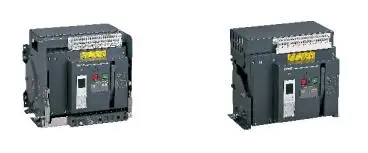

Chint NA1 200A industria air circuit breaker electrical overload and undervoltage, etc 3P,4P Universal circuit breaker
Chint NA1 200A industria air circuit breaker electrical overload and undervoltage, etc 3P,4P Universal circuit breaker
Chint NA1 200A industria air circuit breaker electrical overload and undervoltage, etc 3P,4P Universal circuit breaker
Chint NA1 200A industria air circuit breaker electrical overload and undervoltage, etc 3P,4P Universal circuit breaker
Chint NA1 200A industria air circuit breaker electrical overload and undervoltage, etc 3P,4P Universal circuit breaker
Chint NA1 200A industria air circuit breaker electrical overload and undervoltage, etc 3P,4P Universal circuit breaker
Chint NA1 200A industria air circuit breaker electrical overload and undervoltage, etc 3P,4P Universal circuit breaker

Chint NA1 200A industria air circuit breaker electrical overload and undervoltage, etc 3P,4P Universal circuit breaker

Share on (1600360799238):


Price:

Quantity:

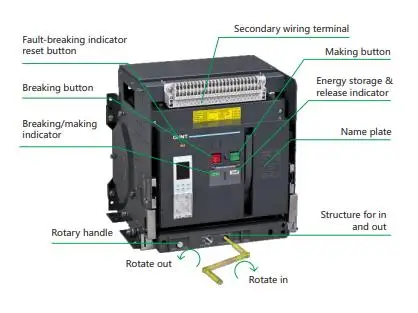

Product Overview

Description



Product Description


1. General
1.1 Application scope NA1 series air circuit breaker is suitable for the circuit of AC 50Hz/60Hz with rated service voltage 400V,690V and rated service current up to 6300A. It is mainly used to distribute electric energy and protect circuits and electric equipment against over-load, under-voltage, short-circuit and singlephase earthing fault.
With intelligentized and selective protection functions, the breaker can improve the reliability of power supply, and avoid unnecessary power failure. The breaker is applicable for power stations, factories, mines (for 690V) and modern highbuildings, especially for the distribution system of
intelligentized building.
1.2 Standard: IEC/EN 60947-2
2. Operating conditions
2.1 Temperature condition:
-5℃~40℃; the average value within 24h shall not exceed +35℃ (special situation excluded);
2.2 Altitude:≤2000m;
2.3 Pollution grade: Grade 3;
2.4 Air conditions:
At mounting site, relative humidity not exceed 50% at the max temperature of +40℃, higher relative humidity is allowable under lower temperature, RH could be 90% at +20℃, special measures should be taken to occurrence of dews;
2.5 Note: Without the intelligent controller, the breaker functions as a switch-disconnector.




Specification


Brand Name
Chint
Type
Air
Rated Frequency
50/60hz
Rated current
200A
Number of poles
3P,4P
Rated voltage
AC 400V, AC 690V
Rated insulation voltage
800V
Rated current of N-pole
100%In
Electric life
AC 400V:6500, AC 690V:3000
Mechanical life
15000~30000
Connection pattern
Horizontal, Vertical
Total breaking time
≤28ms
Closing time
≤50ms




Company Profile




Kunshan Pinzhe Industrial Materials Co., Ltd. is an enterprise integrating product development, design, production and sales.
We have more thana lot of cooperative factories in China, which can provide you with all conventional accessories and customized products. The main products are solar photovoltaic controller, solar power generation system, foldable portable solar system, photovoltaic module, lithium battery, solar lamp, etc. our products are sold at the lowest price and delivered in time.
Our products can be used in a complete set of specifications. If you have any questions or requirements about the installation, please feel free to contact us, and we will be happy to provide you with round the clock service.
Our company will provide you with satisfactory service with first-class quality and good reputation. We will cooperate with you for common development.

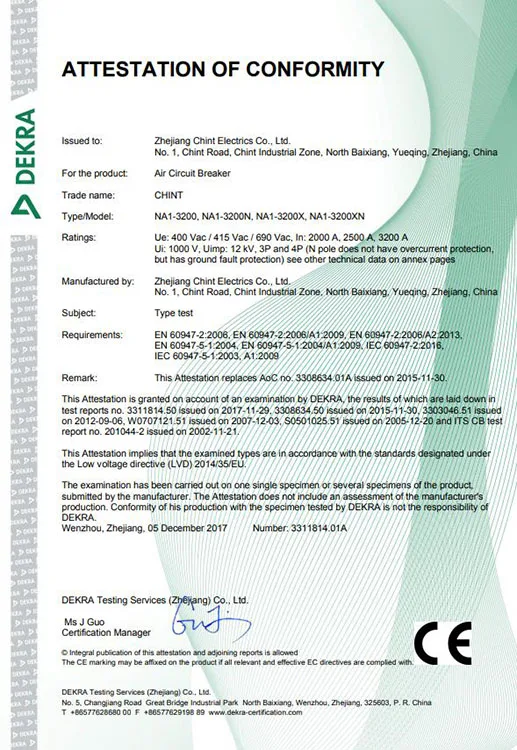

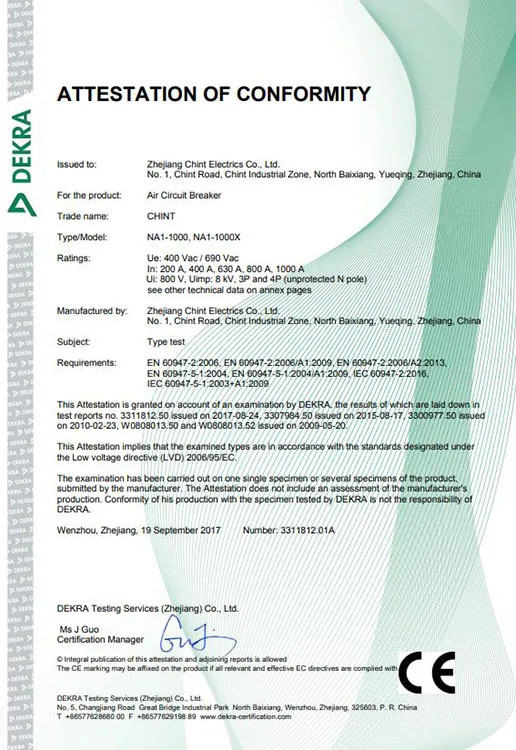

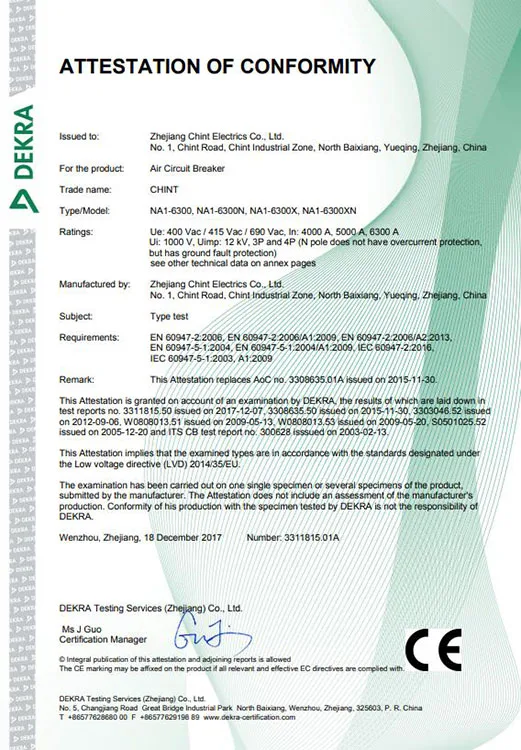

certificate
