10inch IPS Touch Screen GPS ADAS/DMS/BSD Camera for Blind Spot Detection 4G Mini DVR with Remote Monitoring Platform & APP

Product Overview

Description

10inch IPS Touch Screen GPS ADAS/DMS/BSD Camera for Blind Spot Detection 4G Mini DVR with Remote Monitoring Platform & APP



Cameras with ADAS/ DSM/DMS / BSD Algorithms are available for your requirements!



Main Features:

-Support 5 channels of AHD 720P HD/analog SD video and audio inputs



-Supports intelligent power management recognition, automatic shutdown at low power, low power consumption when flameout



-Support 5 channels of 720P high-definition real-time local recording



-Adopt a special file management mechanism to encrypt data and effectively protect data security



-Support 5 channels of high-definition remote video transmission



-Proprietary TF card bad track detection technology, which not only ensures the continuity of recording, but also prolongs the service life of the TF card



-The imaging automatically recognizes the camera resolution



-Built-in super capacitor to avoid data loss due to abnormal power failure



-Support quick snapshot function



-Support single card 256GB large capacity TF card



-Professional vehicle power supply design 9-36V DC wide voltage input design



-Support GPS/Beidou positioning, high sensitivity and fast positioning



-Various protection circuits such as undervoltage, short circuit, reverse connection, etc., suitable for various car models-Built-in 3G/4G module, support LTE/HSUPA/HSDPA/WCDMA/EVDO

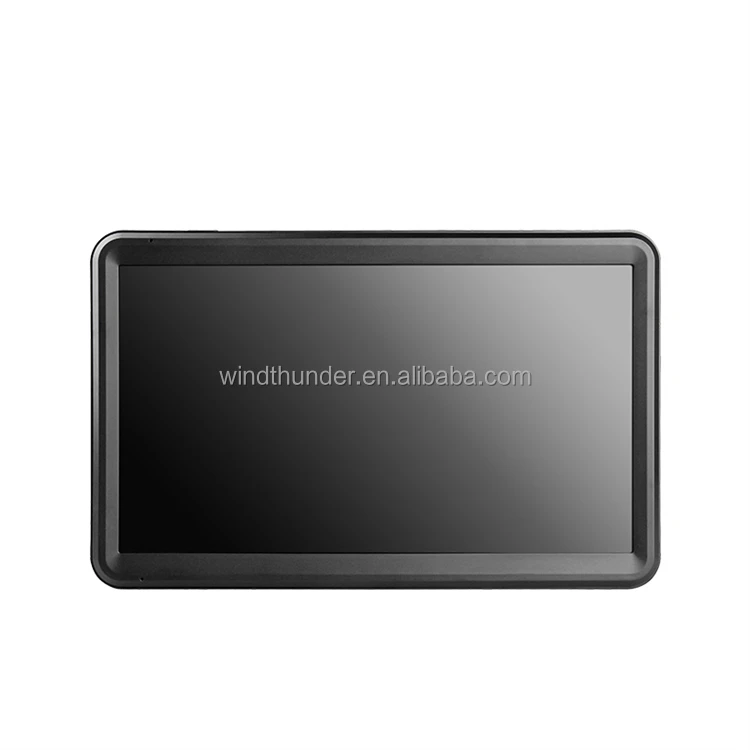

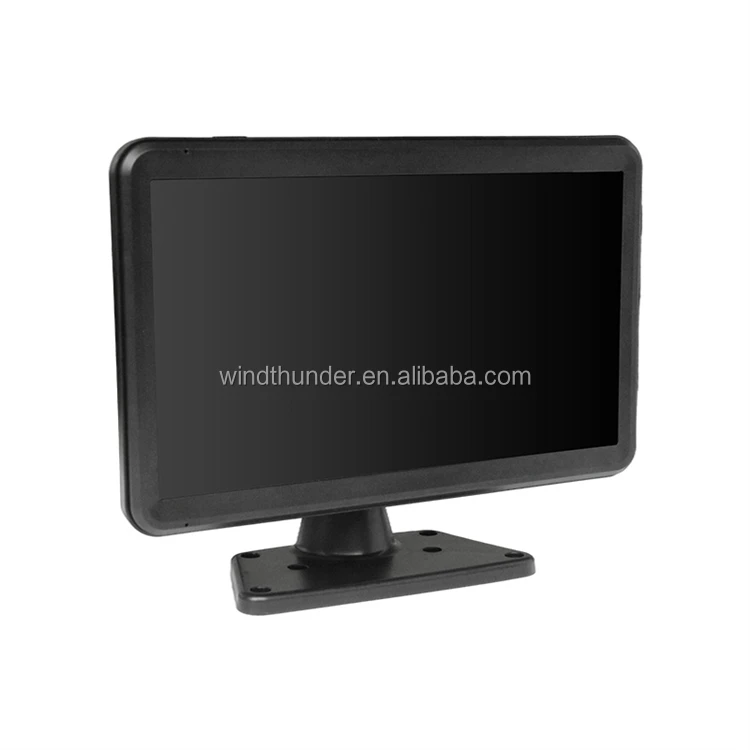

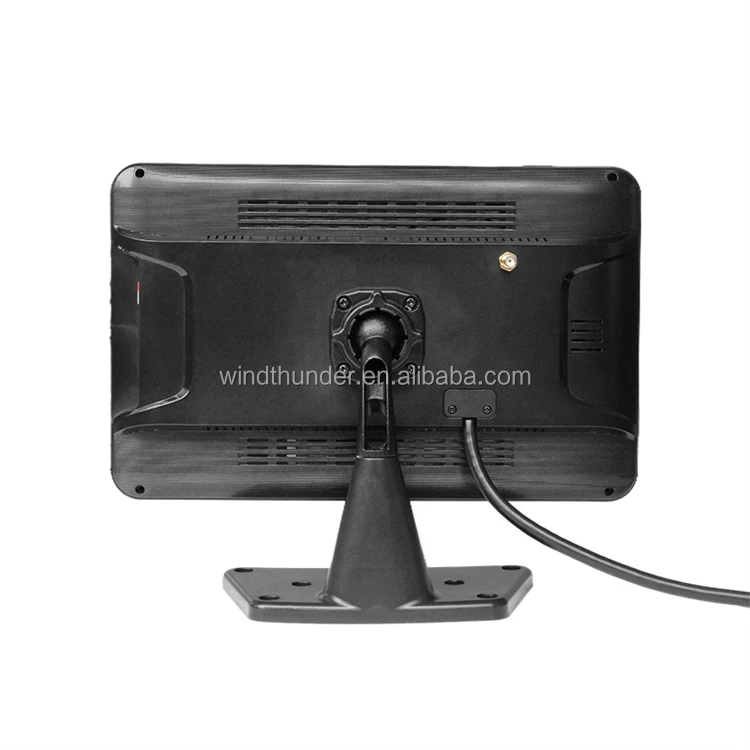

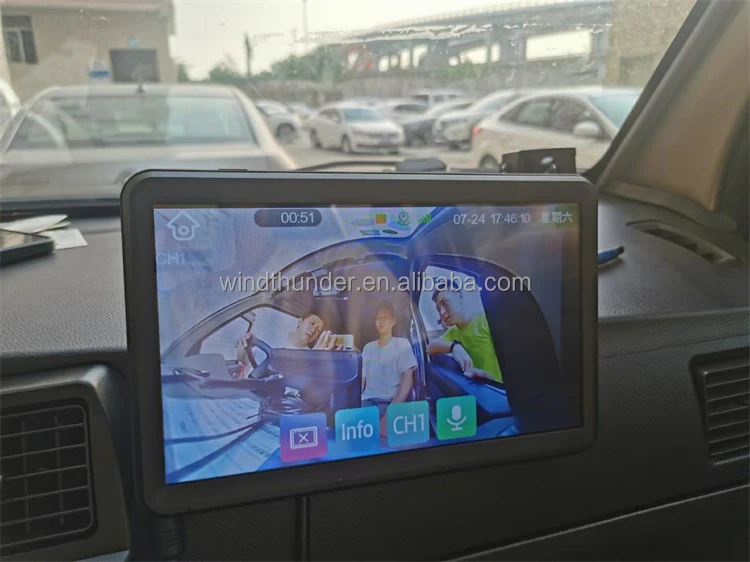

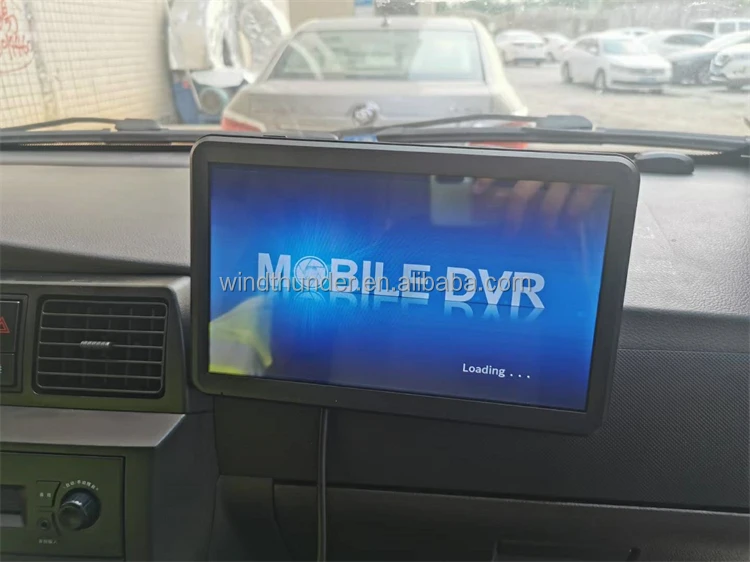

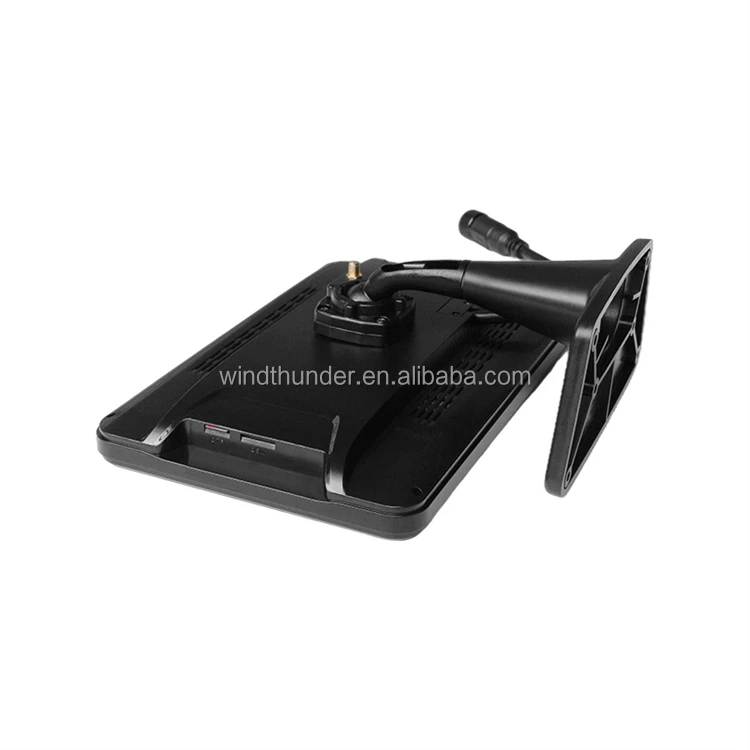

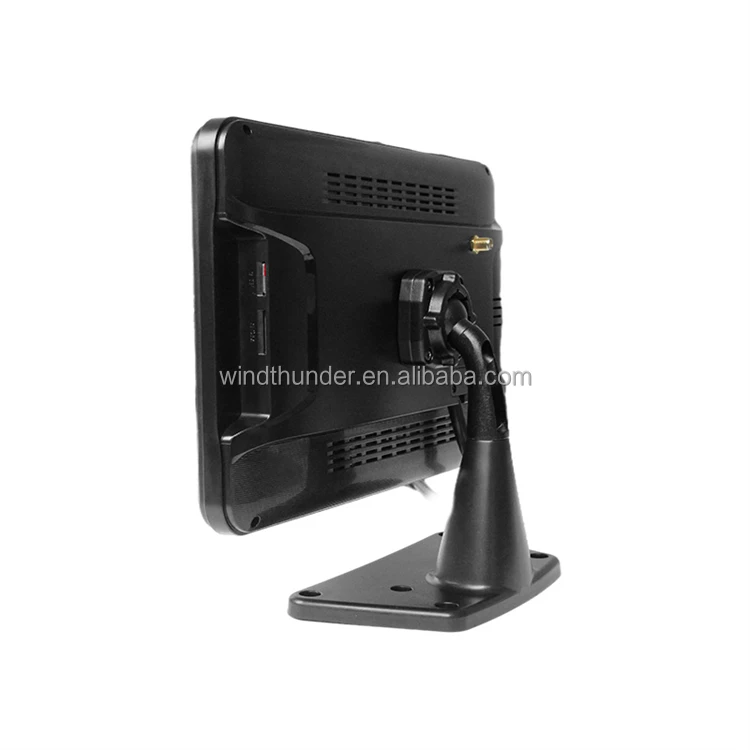

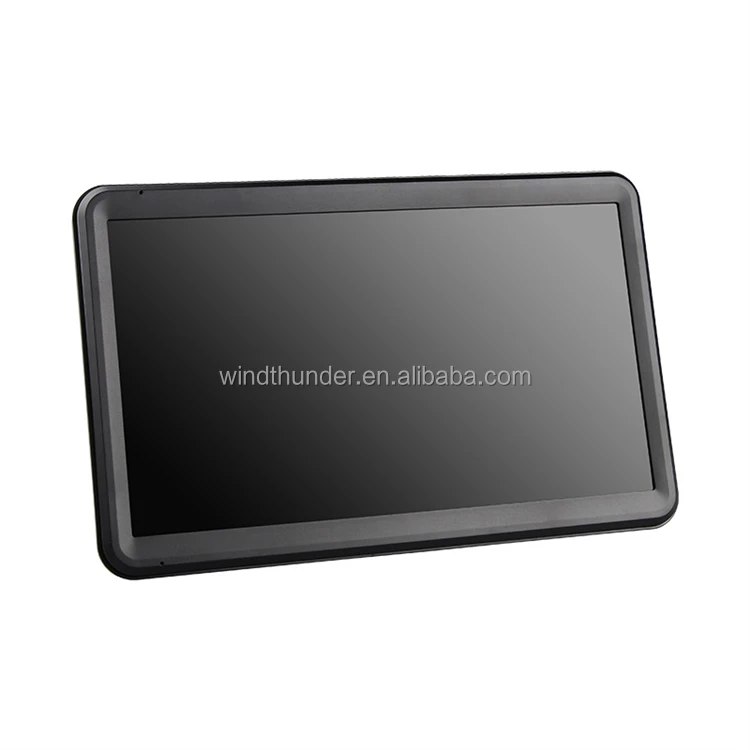

AIO(all-in-one) DVR Photos:

 Specification Data Sheet:



Item	Parameter	Specs
Display	Screen size	10.1inch
	Resolution	1024*600
	Brightness	600 nit IPS
System	Main Processor	ARM Cortex A7
	Operation System	Embedded Linux OS
	Operating Language	Chinese/English
	Operating UI	Iconify operating menu, support touch
Audio & Video	Video format	PAL/NTSC
	Compress format	MP4
	Imaging Definition	720P /960H/D1/CIF
	Playback Quality	720P /960H/D1/CIF
	Decoding Ability	4-CH 720P in real time
	Multi-channel Display	Support 1/2/4/5 CH display
	Sound Compressing	G.726
	Sound Recording	Simultaneous recording of audio and video
Record & Playback	Record Mode	Manual/ alarm trigger
	Video	Full frame 4096Mbps
	Audio rate	8KB/s
	Storage	TF card
	Video query	Search by channel/by recording type
	Local playback	By files
Firmware Upgrade	Upgrading method	Upgrade from TF card or remote upgrade
Interfaces	AV input	5-CH aviation
	Alarm input	3
	Alarm output	1
	Ignition input	1x ACC
	Serial Port	2x RS232 (support ultrasonic fuel level sensor)
More Features	GPS/BD	GPS/Beidou
	3G/4G	Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
Others	Power input	DC: 9V~36V
	Power Consumption	Standby 3mA Rated Power 18W  @12V 1.5A @24V 0.75A
	Operating Temperature	-20 --- 70℃
	Compressed Storage Capacity	720P   500MB/hour/channel      D1  250MB/hour/channel





Blindspot detection (BSD) is a sensor-based safety feature that detects obstacles& pedestrians around the vehicles. The blindspot is caused because of passengers sitting inside the vehicle, window pilar, incorrect arrangements of rear viewing mirrors, and headrests. The system warns the driver about any obstacle which is not in the viewing range of the driver. The warning generated can be in various forms such as vibrating of steering, a small pulsating sound inside the driver's cabin &flashing of light on the infotainment screen or on the instrument cluster. The system also provides the driver with cross- traffic alert and help to avoid the collision. BSD uses ultrasonic RADAR & camera-based technology to detect any obstacle nearing the vehicle. If the sensor detects an obstacle nearing the vehicle, it alerts the driver, if the driver fails to maintain the distance between the obstacle and vehicle, the system automatically steers the vehicle away from the approaching object.



The BSD Camera connect and work with Audible Alarm and Vehicle Monitor display, when the Pedestrian just passing by at the side,

The Audible Alarm will flashing with bright lights also send warning voice to remind the person.  see as following actual image

Product Technical specification of BSD Camera

Model	BSD-360  AI Camera With BSD
CPU	ARM Cortex A7
NPU	0.6TOPs
Sensor	1/3” CMOS AHD 720P
Frame	30fps
TV Type	PAL
Effective video Resolution	1080(H)X 720(V)
Effect photo Resolution	1.3 M pixels
Vertical sync frequency	50Hz / 60Hz
Minimum illumination	Color: 0.05Lux/F1.2
Video output	1.0vp-p, 75Ω
AGC	Auto
S/N Ratio	More than 50dB
White Balance	Auto
BLC	Auto
Optical Lens	2.8mm F = 2.0
Lens of FOV	100°
Night Vision	Starlight Good Night Vision
Audio	no
Built-in program	BSD Program
Alarm Interface	1 channel IO Alarm Output(5V)
Serial port	RS485
Video interface	4P Aviation head
Currency	400mA±10%
Power	DC 12V-36V Wide Voltage (±10%)
Waterproof Grade	IP68
Working Temp	-40°C~70°C , RH95% MAX
Storage Temp	-30°C~80°C,RH95% MAX

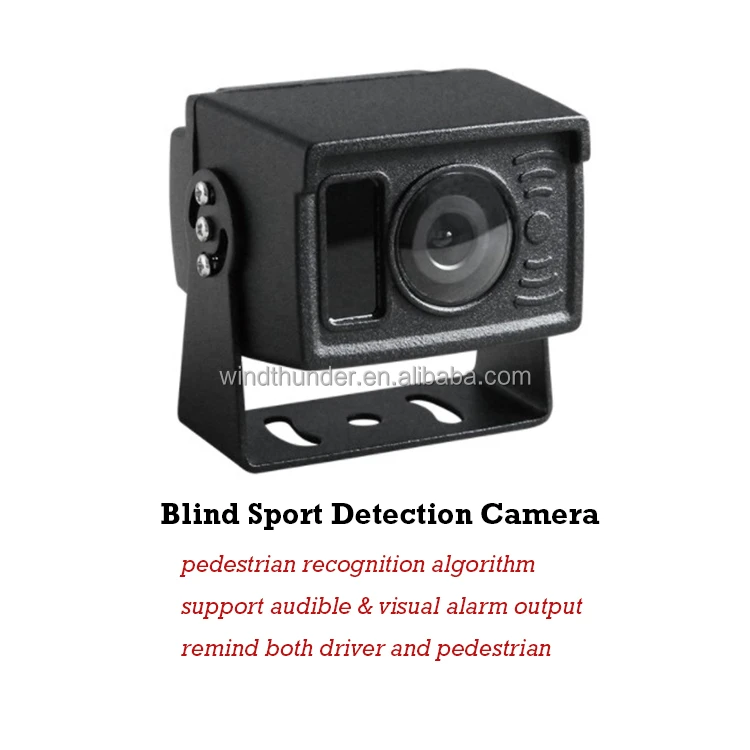

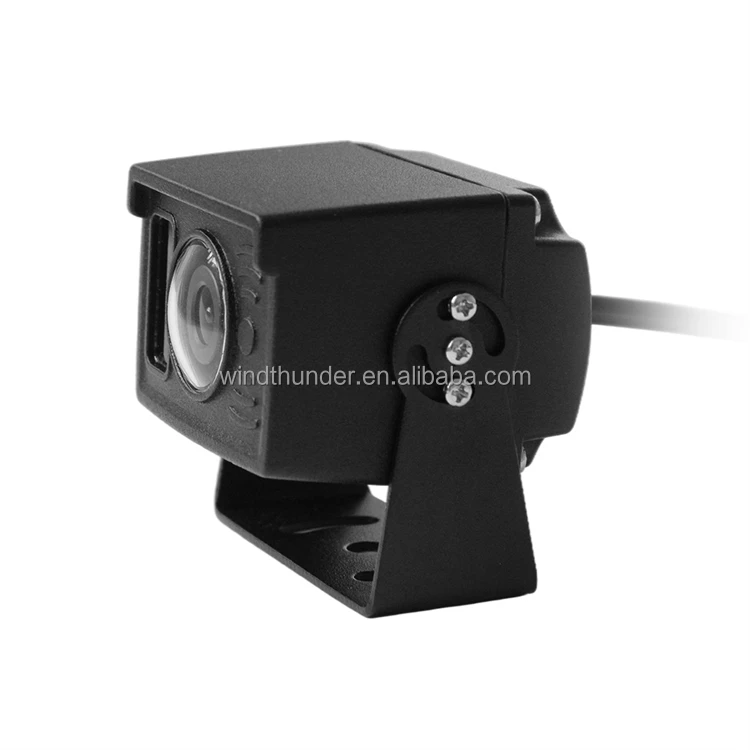

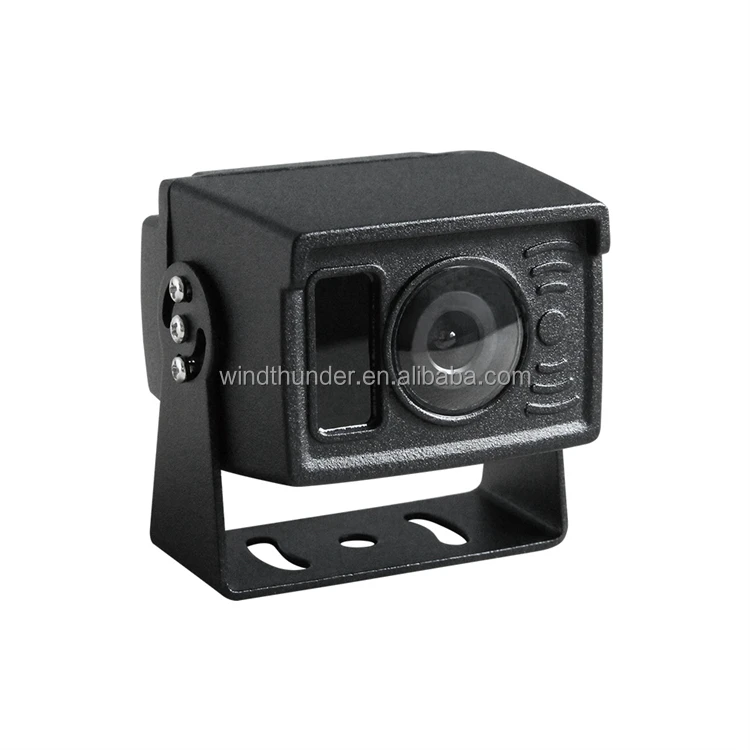

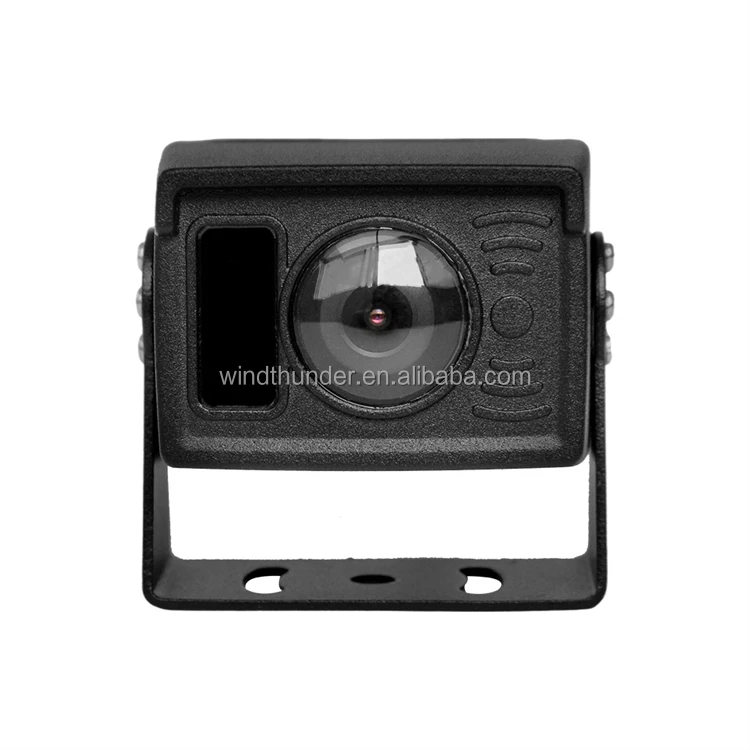

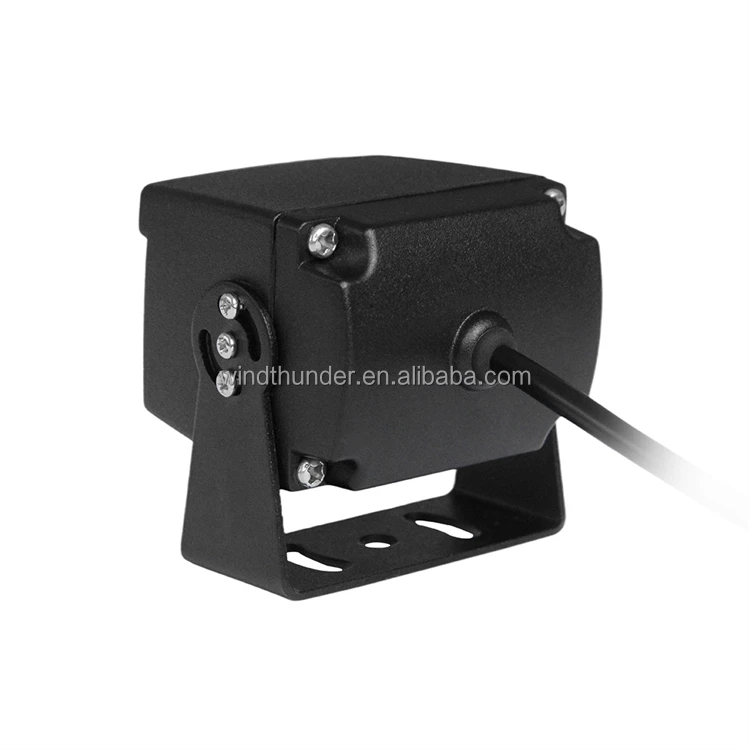

 IP68 Waterproof BSD Camera for Blind Spot Detection:

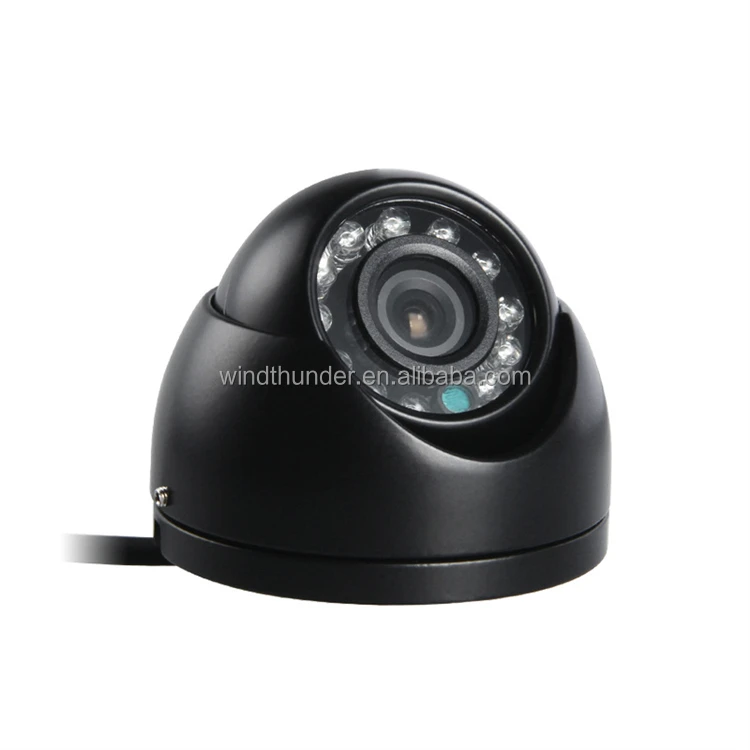

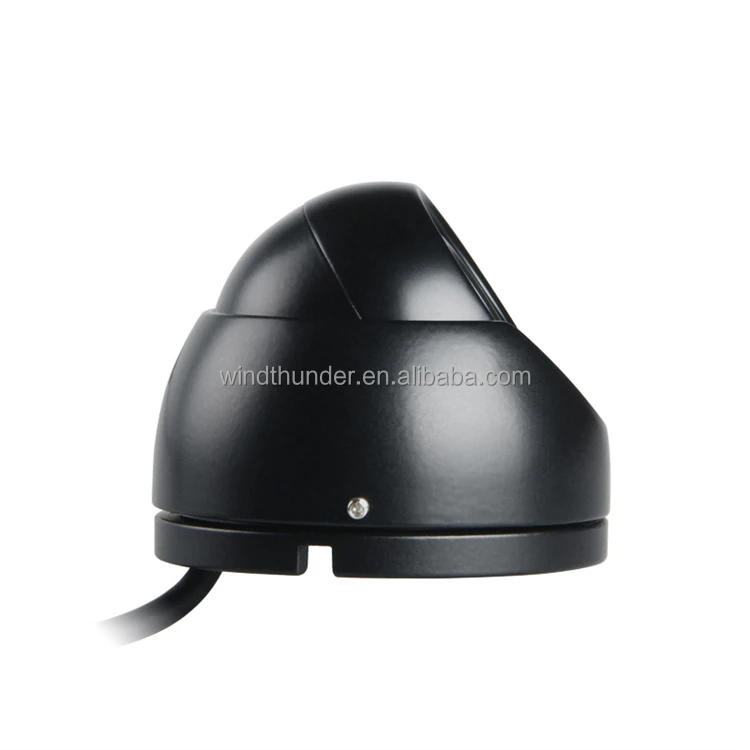

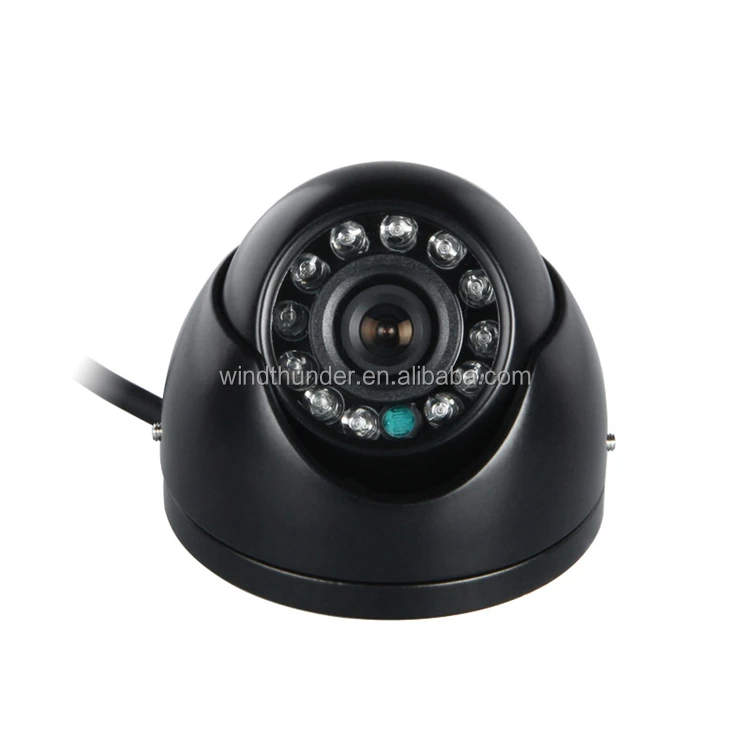

Cabin Monitoring Camera:

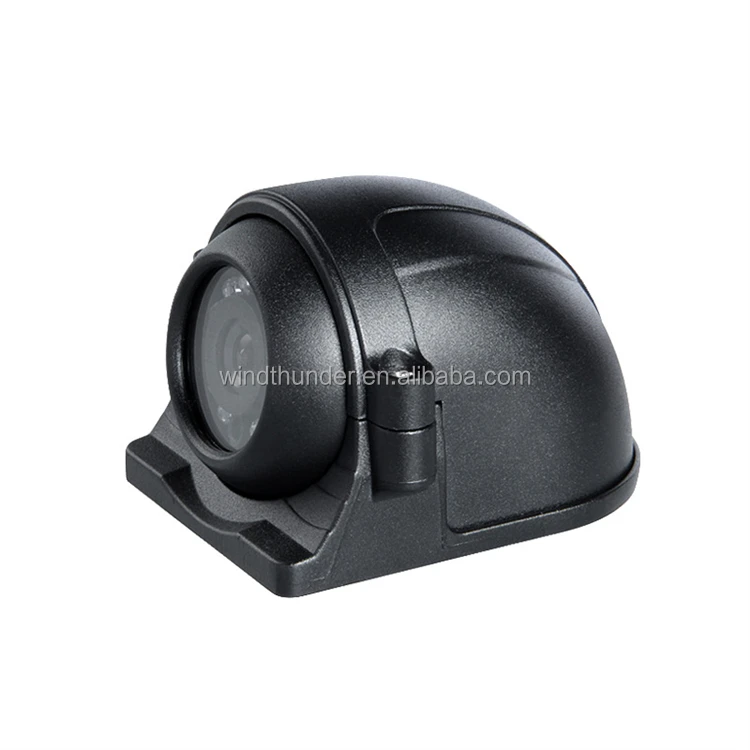

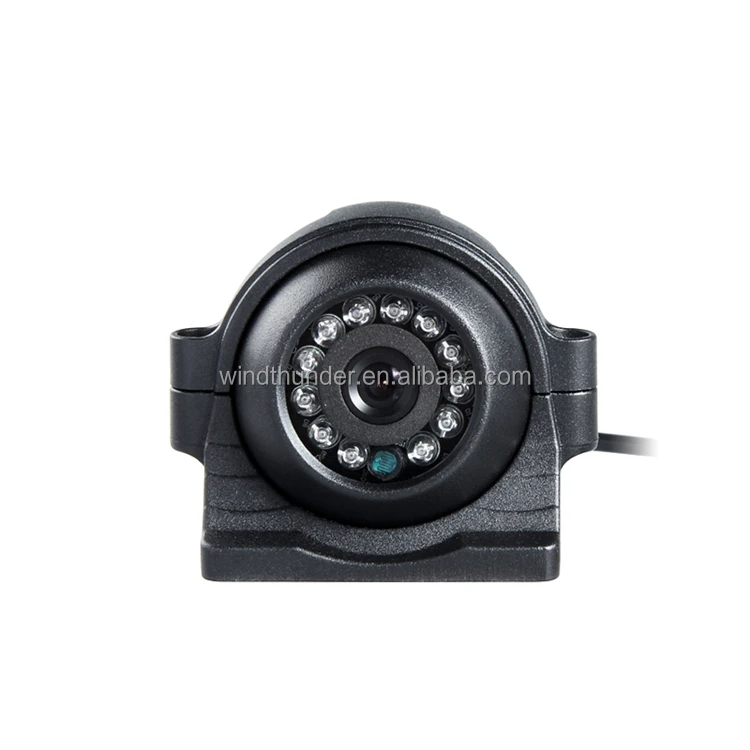

Sideview Monitoring Camera(waterproof):

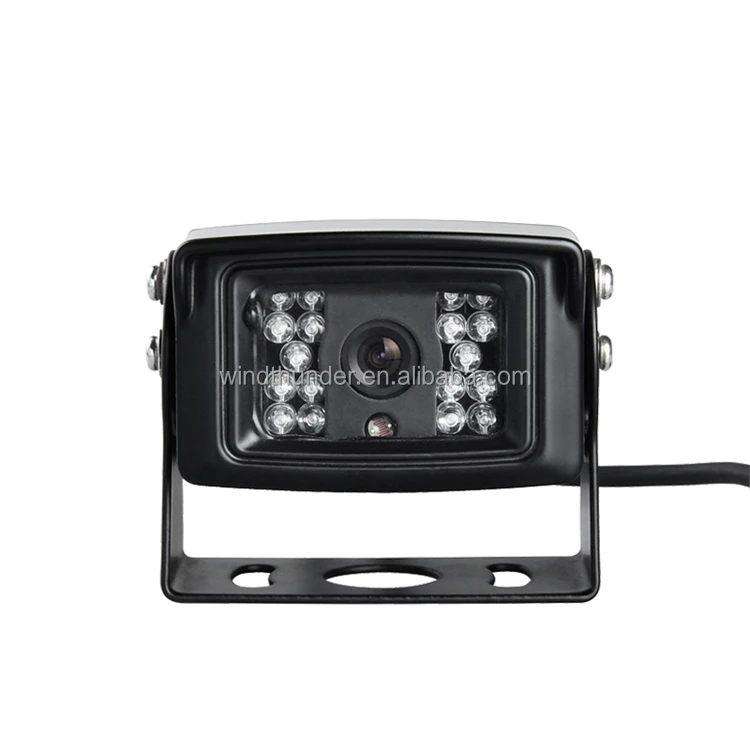

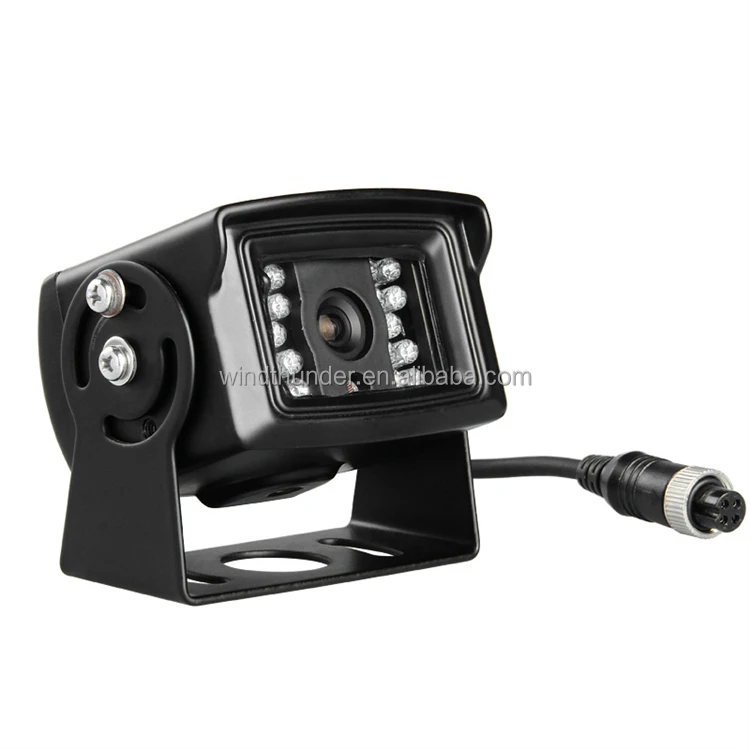

Rearview Monitoring Camera(Waterproof):
