Best Seller Small Capacity Sweet Biscuit Making Machine
- Category: >>>
- Supplier: Jinan Delon Machinery & Equipment Co. Ltd.
Share on (1600361004574):
Product Overview
Description
Product Description
Fully Automatic Small Capacity Biscuit Making Machine
Small Automatic bakery biscuit making machine: novel design, compact structure, high degree of automation equipment, from dough rolling, molding, waste recycling, drying, fuel injection, cooling automatic one-time completed. The company can provide users with hundreds of mould and dozens of technological formula. By changing the mould and process recipe, this biscuit machine can produce market popular all kinds of high-grade cookies, such as butter cookies, biscuit, thin biscuit, soda biscuit, multi-dimensional animal crackers, cookies, vegetables, cookies, etc.
How to get a quotation : Small Automatic bakery biscuit making machine
Different dough roll width meets different productivity capacity. Please provide the following details, so that we can provide professional solutions and quotations.
1.The kinds of biscuit you will produce. Sample picture is welcome.
2.The production capacity you need. Different model meets different productivity capacity.

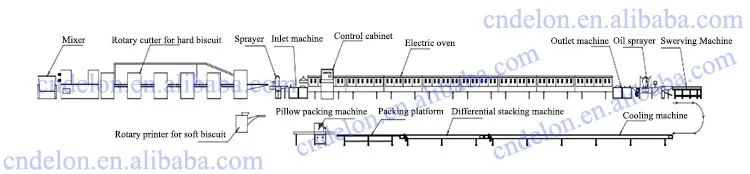

Layout: Small Automatic bakery biscuit making machine

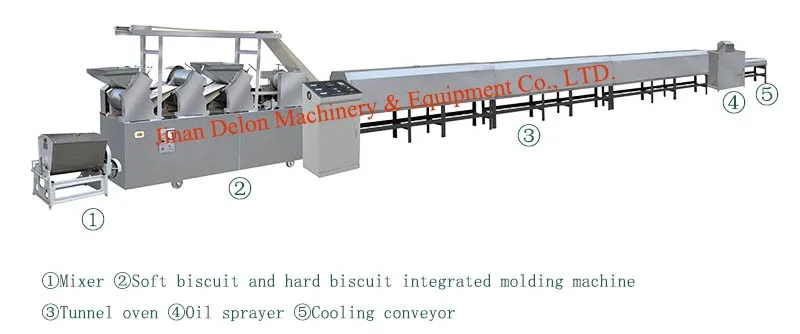

Layout: Small Automatic bakery biscuit making machine
Parameters: Small Automatic bakery biscuit making machine
Model | DLB225 | DLB280 | DLB320 | DLB400 | DLB600 | ||||
Voltage | 380V/50Hz Or Customized | 380V/50HZ | 380V/50HZ | ||||||
Power(kW) | 30 | 50 | 110 | 150 | 260 | ||||
Working width(mm) | 225 | 280 | 320 | 400 | 600 | ||||
Capacity(kg/h) | 50 | 100 | 50 | 200 | 500 | ||||
Length(m) | 17 | 21 | 28 | 37 | 55 | ||||
packaging | Gm for the common packing, according to the client area is different with ordinary or packed in wooden cases. | Gm for the common packing, according to the client area is different with ordinary or packed in wooden cases. | Gm for the common packing, according to the client area is different with ordinary or packed in wooden cases. | ||||||
The production cycle | 20days | 20days | 25days | 30days | 40days | ||||
Port | Qingdao Port | Qingdao Port | Qingdao Port | ||||||
Terms of payment | Down payment 30% deposit, the production after the completion of the inspection, the inspection to pay the rest after delivery. | Down payment 30% deposit, the production after the completion of the inspection, the inspection to pay the rest after delivery. | Down payment 30% deposit, the production after the completion of the inspection, the inspection to pay the rest after delivery. | ||||||
Sample: Small Automatic bakery biscuit making machine
Main Features: Small Automatic bakery biscuit making machine
1> Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2> Inspect the machine before leaving the factory.
3> Oversea install and debug the equipment.
4> Train the first-line operator.
5> Provide the basic formula.
6> Can be customized.
How are biscuits made in a factory
The production of biscuits in a factory include the steps of mixing, molding, baking and cooling. These are the four primary stages of biscuit production.
The first step involves feeding the ingredients – flour, sugar, fat and so on – into the mixers to prepare the dough. The mixing phase is usually done more than once with different speeds, but flour characteristics also play a role.
For hard biscuit,the second step requires the dough to be laminated and transferred to gauge rollers. For soft biscuits, no lamination and gauge rolls are required.It is in this stage that biscuits receive their shapes, either through cutting or molding.
The third stage has the biscuits baking inside of the oven where radiation, convection and conduction give the biscuits the correct color and volume. The biscuits are carried into the oven on a wire mesh band.
In the cooling stage, biscuits are placed onto 6- to 10 meter- cooling conveyors to cool at room temperature. According to Delon, natural cooling is preferred over forced cooling in order to maintain the texture quality of the biscuits.
The biscuits are then feed into packaging machines to be inserted into slug packs, pouch packs or family packs to be shipped to retailers. Industry and regulatory standards require that quality control checks be performed at every step of production.
Detailed Images
Mixer
Function:Kneading flour machine is stirring machine which crumples up folur powder and water into dough or other materials and is independently used with other machines.
Brand: Delon
Power: 0.75kw
Dimension: 1280*1280*620mm

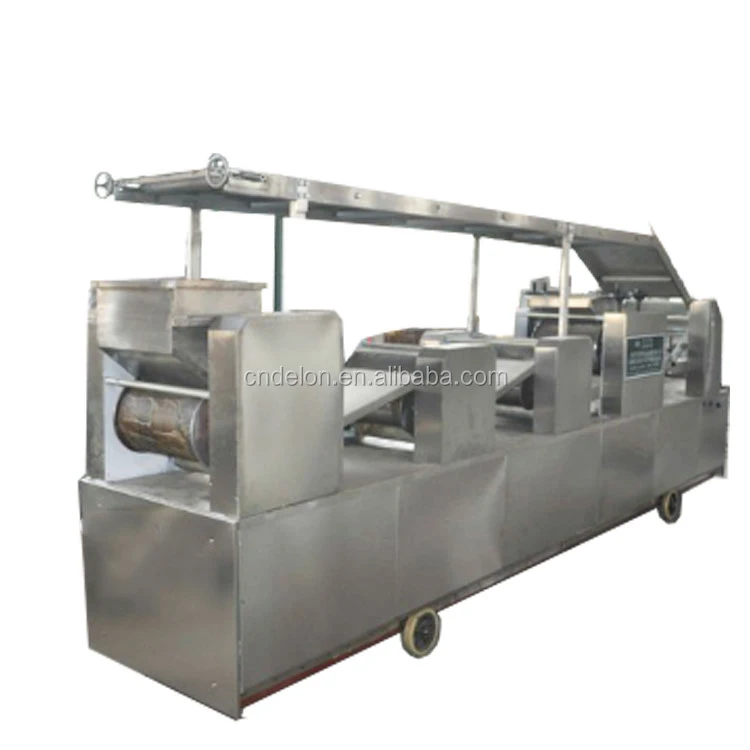

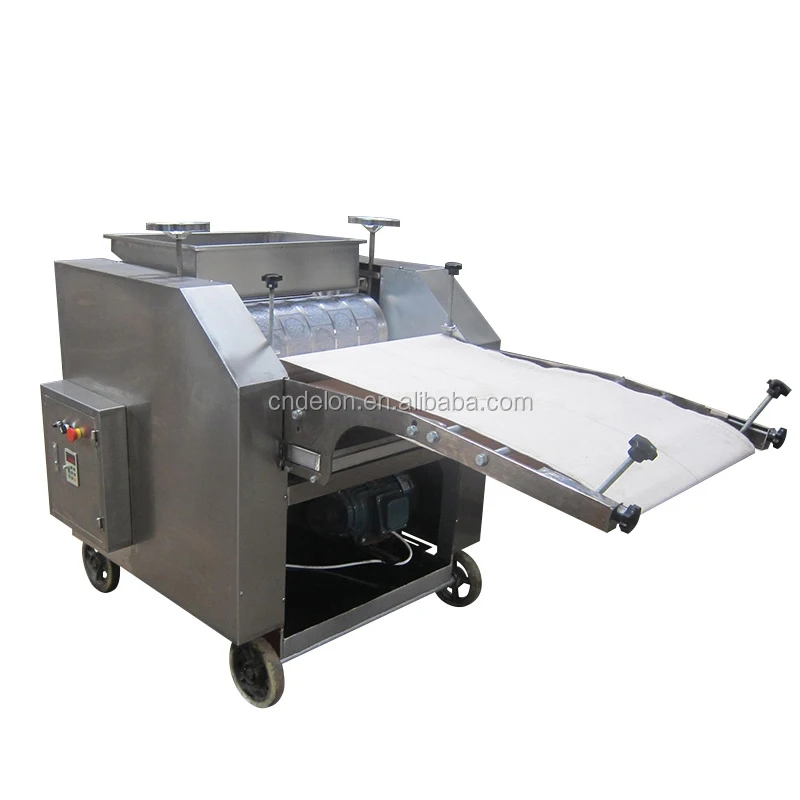

Rotary cutter for hard biscuit
Brand: Delon
Introduction:
After putting stirring flour powder into the machine, they are one time shaped into unripe biscuit, all kinds of middle and high grade biscuit and thin biscuit through three stages roller and roll cutting molds.
Rotary printer for soft biscuit.
Brand: Delon
Introduction:
Put the mixed flour into the machine, and roll it into a biscuit raw embryo, and make various medium and high-grade biscuits into the oven.
Tunnel Oven
Brand: Delon
Function:
Unripebiscuit is processed with long time baking system under lower temperature after it enters into infrared ray baking fumace transmitted by belt in order to make biscuit ripe.
Sandwich machine. Optional
Brand: Delon
Introduction:
This machine is used to make sandwich biscuit.
Oil sprayer machine
Brand:Delon
Introduction:
Undry biscuit out of baking out of baking furnace immediateiy enters into oil-spraying machine, which is necessary for production of high-grade biscuit, to better improve grades and colors of biscuit.
Cooling machine
Brand:Delon
Introduction:
This machine used to cool the biscuit before the biscuits are delivered to the packaging machine to ensure the quality of the biscuits after packaging and to extend the shelf life.
Packing machine.
Brand: Delon
Introduction:
This model is suitable for packaging biscuits. The utility model has the advantages of novel structure, beautiful appearance, low noise, stable operation, low failure rate and convenient maintenance.

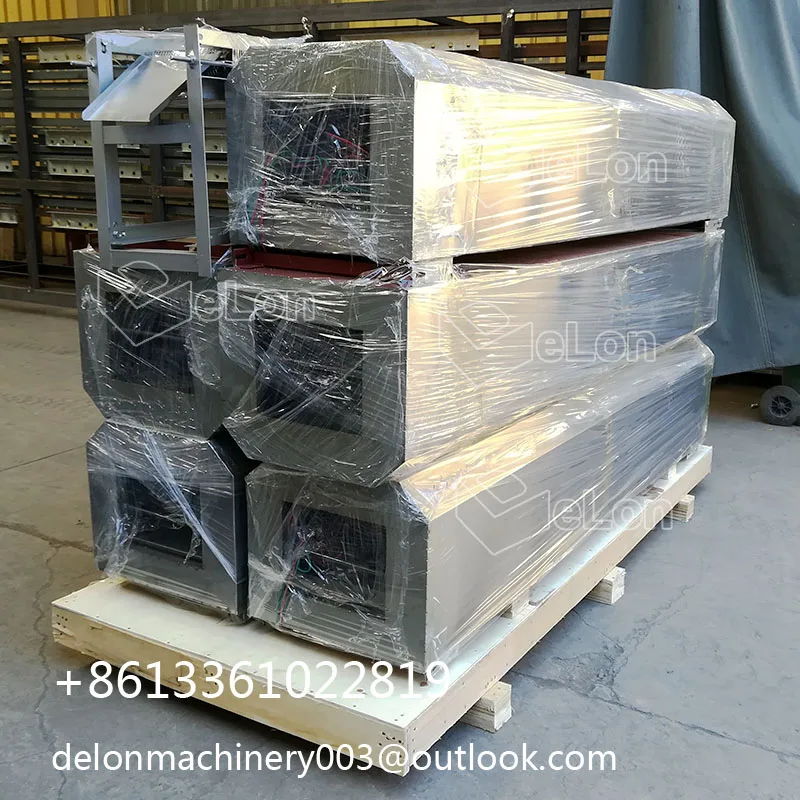

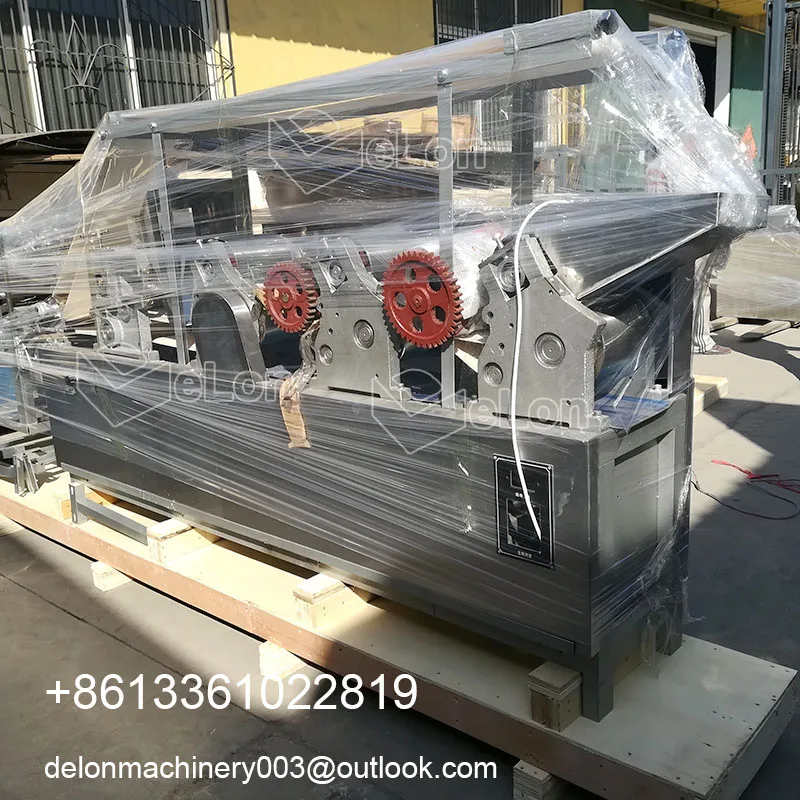

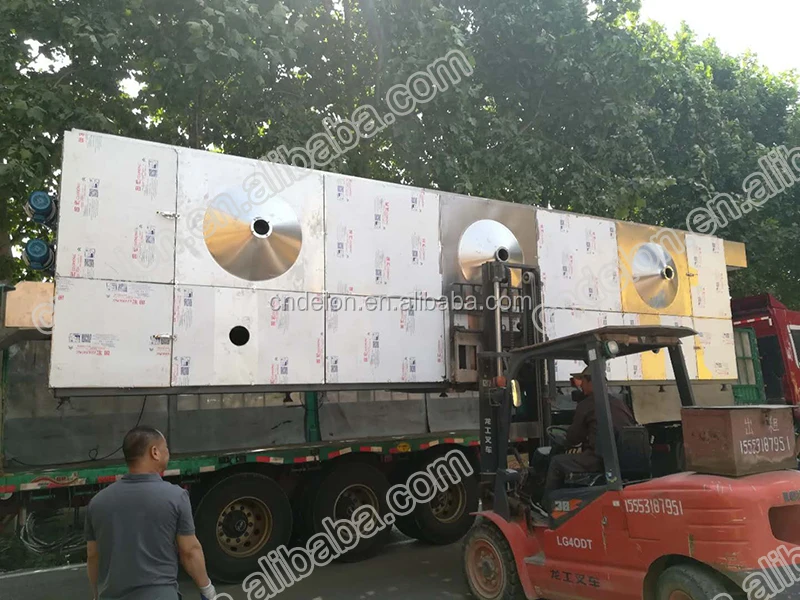

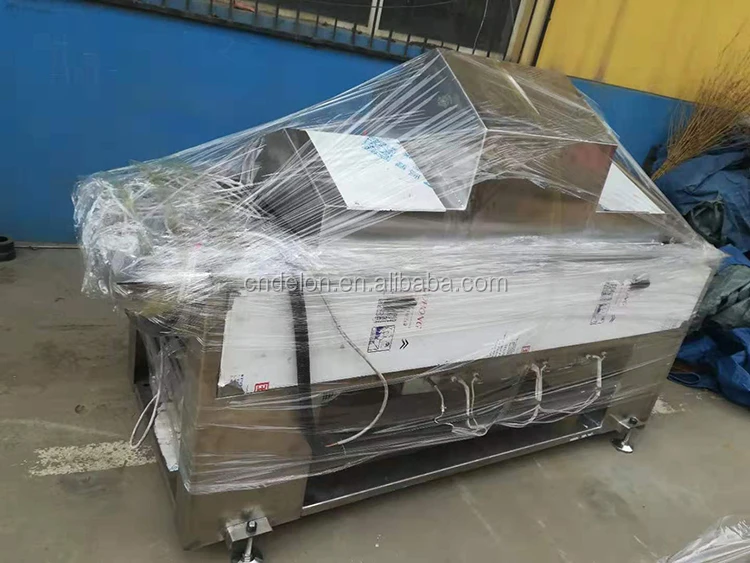

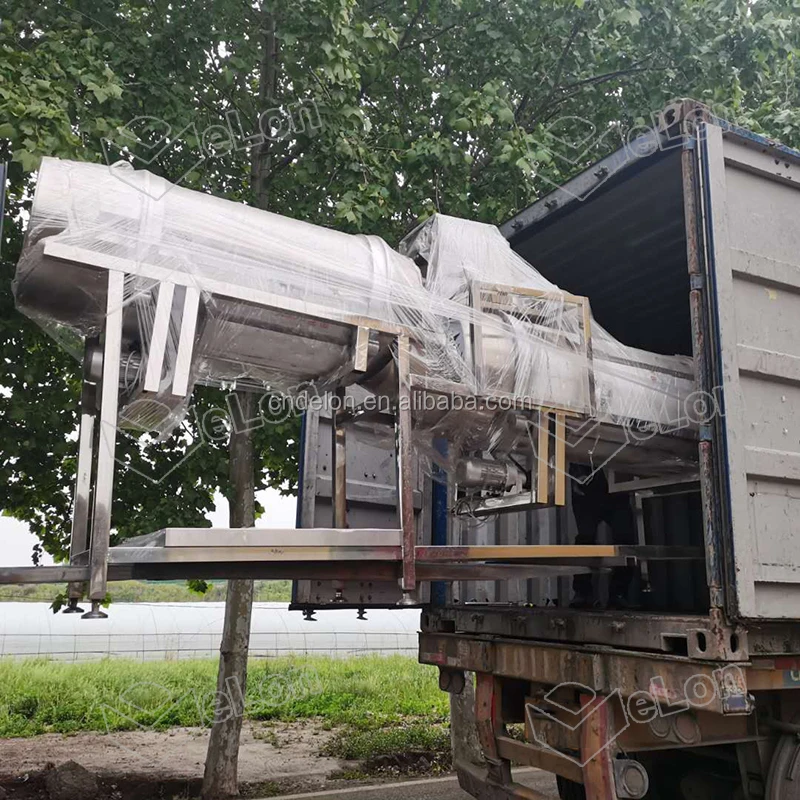

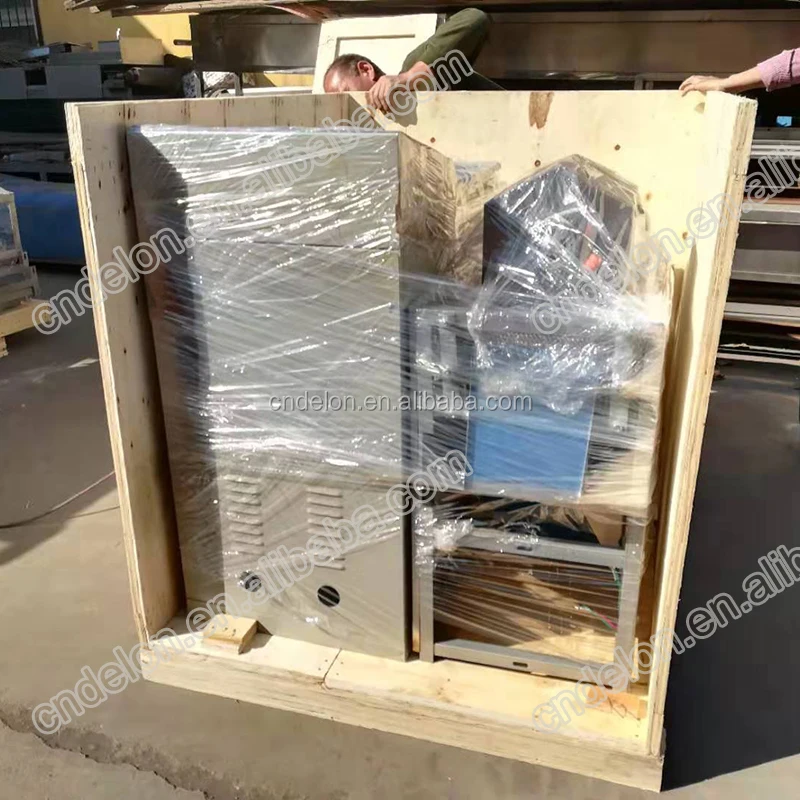

Packing & Delivery
Our Service
Small Automatic bakery biscuit making machine
Pre-Sales Service
a). Free consultation service
b). Free project planning and design services;
c). Free trial run.
Small Automatic bakery biscuit making machine
After-Sales Service
a). Field installation, commissioning and training;
b). Free new production techniques and formulas;
c). Provide 1 year complete warrantee and life-time maintance service.
Our Company
Jinan Delon Machinery & Equipment Co., Ltd. is a high and new technology enterprise integrating technology, manufacture and trade. We have devoted ourselves to developing, manufacturing and trading double/single screw extruders, snack production lines, breakfast cereal/corn flake production lines, soya meat production lines, pasta/macaroni production lines, pet food production lines, etc. for more than 10 years.
FAQ
Q:Are you manufacturer?
A: Yes, we are manufacturer, welcome to visit our factory and check the machines.
Q: Can you design new mold for us if we have good idea?
A: Yes,we can design new mold for you according to your original market needs.
Q:Can you help us to design the whole line if we provide the layout of our factory?
A:Yes,we can provide you machine layout at your factory after get your factory details.
Q: What information should I provide, if I want a quotation?
A:┅The kind of machine you choose, or offer me the kinds of food you will produce.
--- Your production capacity requirement.
---Provide us your production details, then we give professional suggestion to you.
Q: Why choose us?
A: --- Professional technology, we have been engaged in manufacturing food processing machine for many years, accumul ating rich experience and enjoying high reputation.
┅Fast delivery and good service.
┅All the machines are strictly inspected before making shipment.
---Alibaba assessed supplier.
---Provide basic formula.
