Products Description

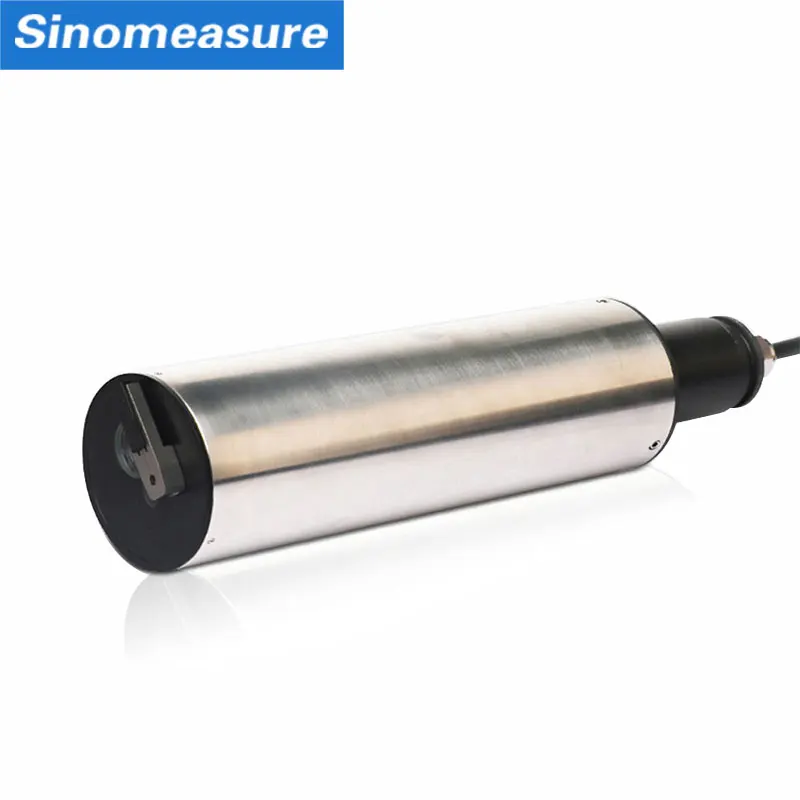

Turbidity sensor：
Dimension | 60mm*256mm (D*L) |
Material | Body: SUS316L + PVC, Ti alloy (For seawater) |
O-ring: Fluorine rubber | |
Cable: PVC | |
Ingress protection | IP68/NEMA6P |
Measure range | Turbidity: 0.00 ~ 4000NTU |
MLSS/TSS: 0.1 ~ 20000 mg/L, 0.1 ~ 45000 mg/L, | |
0.1 ~ 120000 mg/L | |
Accuracy | Turbidity: Less than ±2% of the measured value or ±0.1NTU, whichever is larger |
MLSS/TSS: less than ±5% of the measured value (depending on the homogeneity of the MLSS/TSS) | |
Flow rate | ≤2.5m/s, 8.2ft/s |
Pressure range | ≤0.4 MPa |
Calibration | Buffer solution calibration, Slope calibration |
Cable length | 10m standard cable, can be extended up to 100m |
Warranty Period | 1 Year |
High Voltage Baffle | Aviation Connector, Cable Connector |

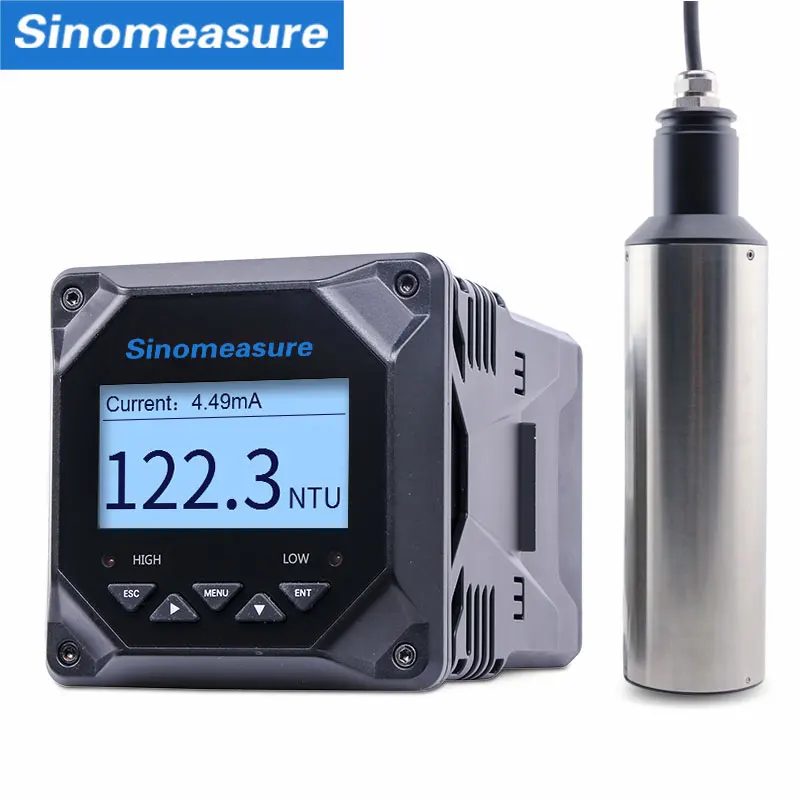

Turbidity Transmitter：
Display | 2.8 inch monochrome LCD with a resolution of 128*64 |
Dimension | Overall dimension：100mm * 100mm * 150mm |
Measuring variable | Turbidity/TSS/MLSS |
Measuring range | Turbidity：0.00 ~ 4000NTU |
TSS/MLSS：0.1 ~ 20000 mg/L、0.1 ~ 45000 mg/L 、0.1 ~ 120000 mg/L | |
Output | Isolated, 4~20mA output |
maximum loop is 750Ω,±0.2%FS | |
Communication protocol | Isolated, MODBUS-RTU RS485 |
Alarm relay | Pickup/Breakaway AC250V/3A |
Power supply | AC220V±10%，5W Max，50Hz/60Hz |
