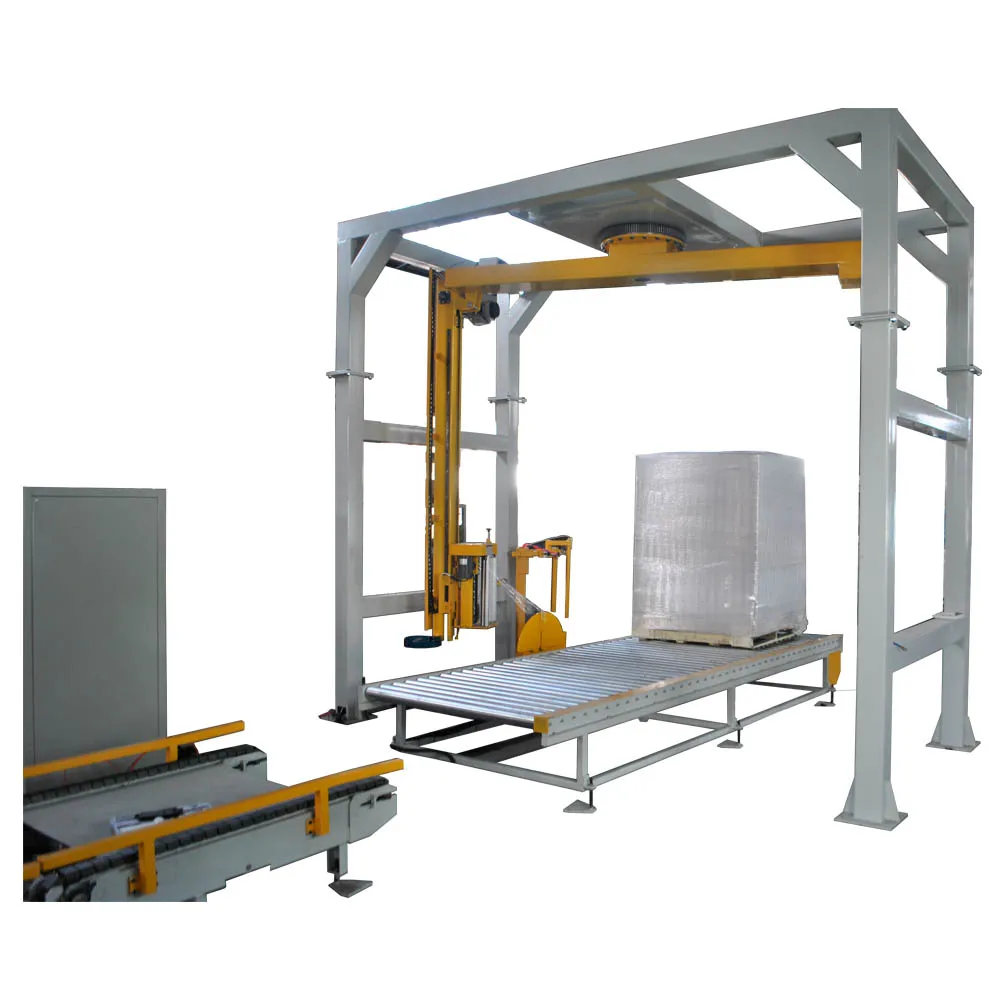

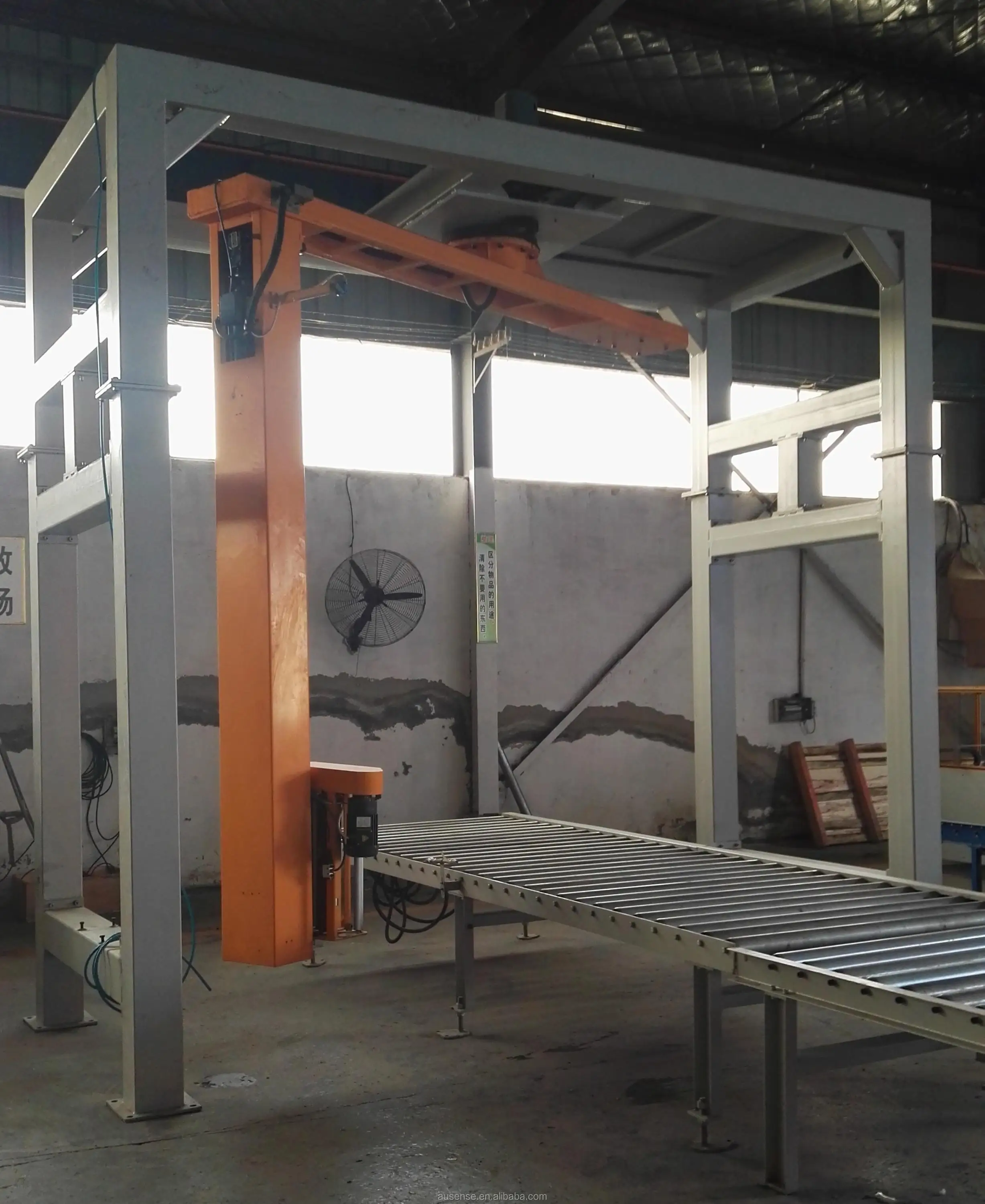

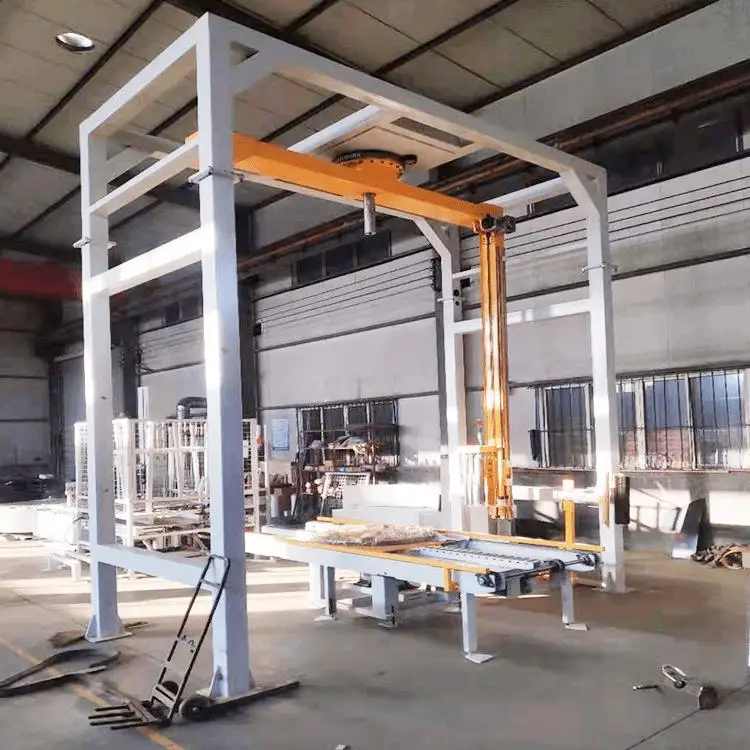

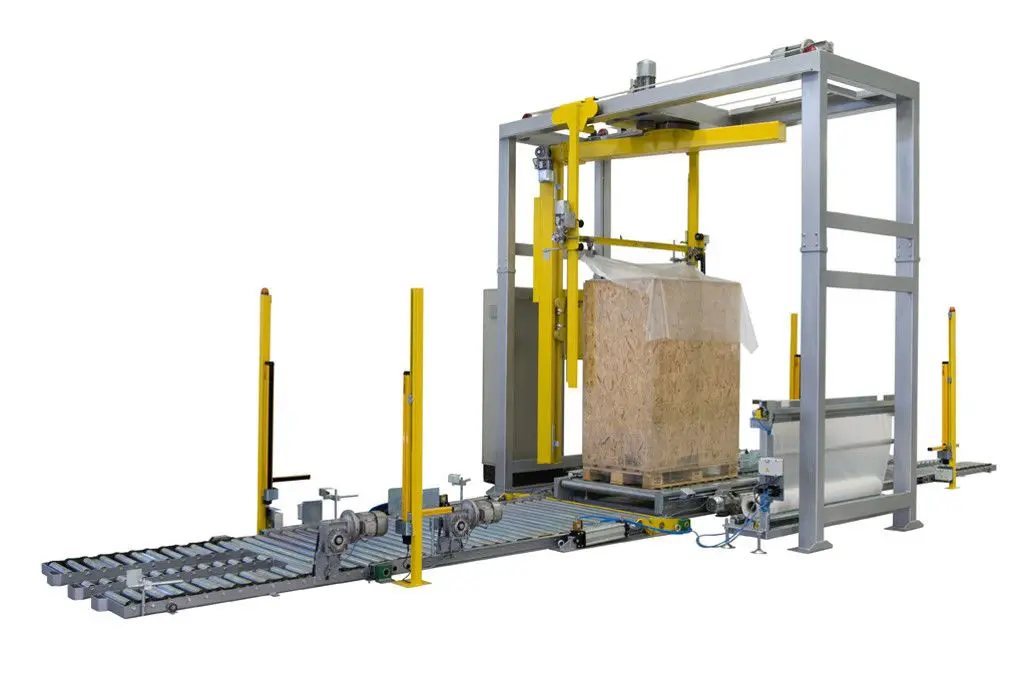

Automatic Rotary rotating arm pallet Stretch Wrappers
- Category: Packaging Machine >>>
- Supplier: Mingyi Machinery (Tianjin) Co. Ltd.
Share on (1600361229151):
Product Overview
Description
Recommend Products
Products Description

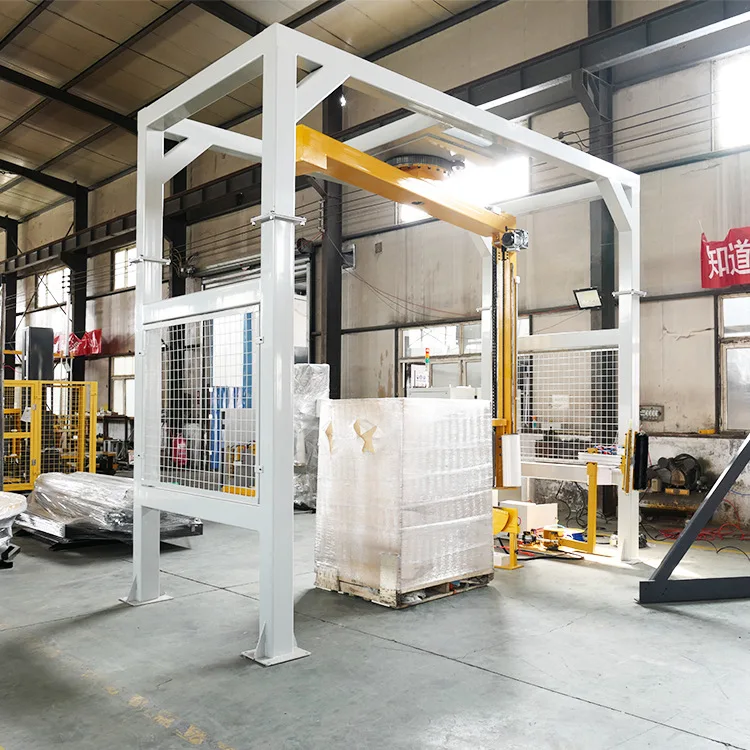

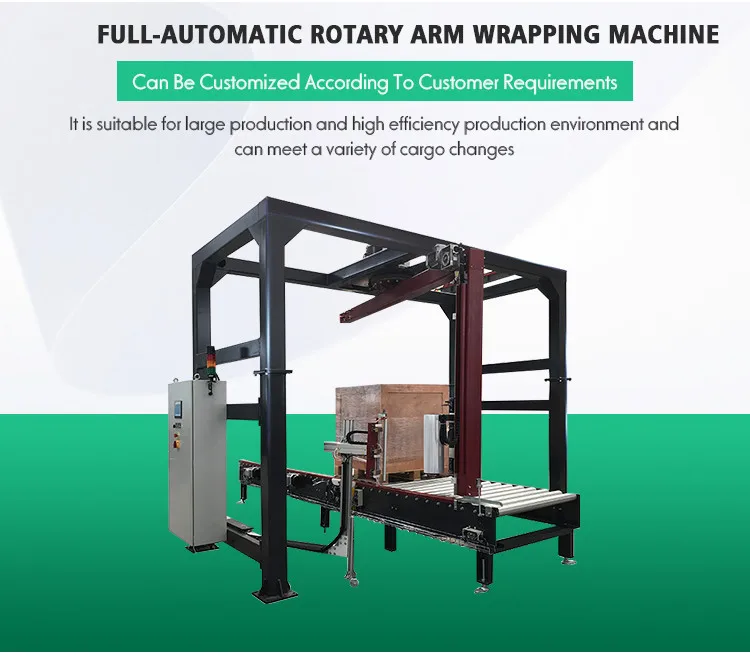

Rotary Arm Stretch Wrappers are perfect for packaging solutions stretch wrapping up to 40 loads an hour. Rotary Arm Stretch Wrapping machines excel at wrapping loads that are very heavy or light, creating instability. The rotating arm moves around the pallet, applying the stretch film as the load stays stationary.
This minimizes the risk of collapse during a wrapping cycle. It is widely used in glass products, hardware tools, electronic appliances, paper making, ceramics, chemical industry, food, beverage, building materials and other industries.
This minimizes the risk of collapse during a wrapping cycle. It is widely used in glass products, hardware tools, electronic appliances, paper making, ceramics, chemical industry, food, beverage, building materials and other industries.
Product Details

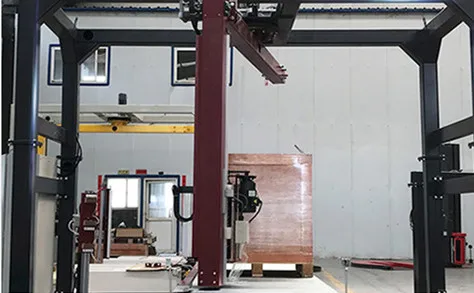

Cantilever Rocker Arm System
Automatic reset
High sensitivity emergency brake

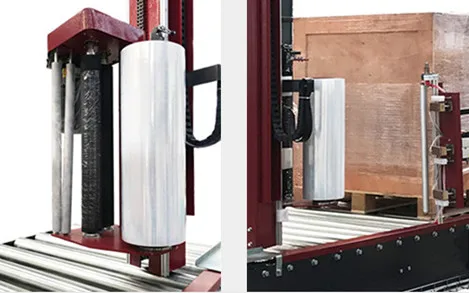

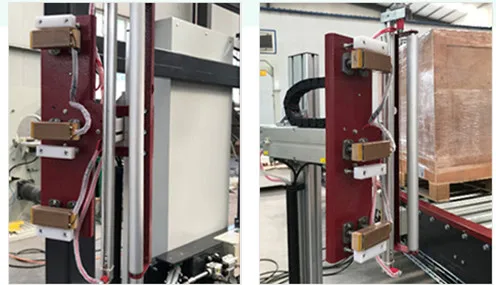

Film Carriage System
Pre-stretch film carriage
Stretch ratio up to 300%
Automatic film feeding
Adjustable speed
Automatic film feeding
Adjustable speed
Automatic clamping device
Automatic cutting device
Automatic welding film device
To achieve unmanned operation

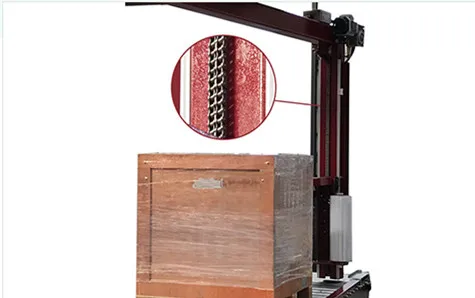

Double chain structure
Lifting speed variable frequency can
be adjusted.

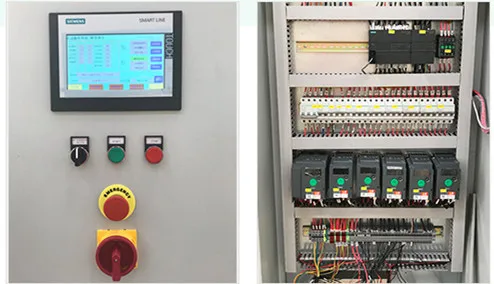

Control System
PLC control
Winding layer number, times can be adjusted Self-dynamic measurement of cargo height
Simple operation
Easy to learn.
Features
* No film break delivery systems
* Load seeking clamp 4.0
* No film tail automation unit
* 1 year warranty
* Auto tuning
* Pallet grip
* Load seeking clamp 4.0
* No film tail automation unit
* 1 year warranty
* Auto tuning
* Pallet grip
* Safety
* Complete safety guarding.
* Zero motion operator access gate.
* Category 3 safety circuit.
* Safety light curtains on in feed and exit conveyor.
* Zero motion operator access gate.
* Category 3 safety circuit.
* Safety light curtains on in feed and exit conveyor.
* Uptime
* No commutator rings
* No load cells
* No drive boards
* Less operator intervention
* Comprehensive diagnostics
* Auto Tuning
* No load cells
* No drive boards
* Less operator intervention
* Comprehensive diagnostics
* Auto Tuning
Product Parameters
Model | R1800FH | ||
Wrap size (L×W) | (500-1300)mm×(500-1200)mm | ||
Wrap height (max) | 1800mm | ||
Rotary speed | Standard | 0-15rpm adjustable >30 Pallets/Hour | |
Rotary speed | High speed | 0-25rpm adjustable >45 Pallets/Hour | |
Rotary speed | Super speed | 0-35rpm adjustable >60 Pallets/Hour | |
Film carriage | Power pre-Stretch system up to 350% with adjustable speed | ||
Cut & clamp unit | Pneumatic | ||
Pneumatic system | 0.6-0.8Mpa ,1000ml/min | ||
Lift system | Lift speed adjustable | ||
Conveyor | Height:400mm Speed:8-15m/min Load-bearing:2000kg | ||
Control system | PLC control,wrap layers adjustable,photo-eyes auto-height sensing | ||
Safety system | Grid guard and strike-proof protect system | ||
Machine size (L×W×H) | 4000mm×2000mm×4300mm(without conveyor) | ||
Power/voltage | Rotary arm:0.75kw Film carriage:0.37kw Lift system: 0.37kw/AC380V | ||
Company Profile
It is a company that integrates the research, design and customized development, production and sales services of mechanical
products. The company has been manufactured and exported in mechanical products for more than 10 years, it provides customized solutions and products for users. We provide professional and customized solutions for automatic wrapping machine, paper making machines, hot press, dished heads and other equipment, besides, we also provide CNC machining service and panel machining service, and our integrity, strength and product quality have been recognized by the industry!
With well-equipped professional engineers and strong technical ability, our company has been in this filed more than 10 years.
1. We cooperate with superior material suppliers to ensure the quality.
1. We cooperate with superior material suppliers to ensure the quality.
2. We do lots of tests on machine to ensure the high quality of the equipment before packing.
3. Engineers are always available to service for machinery commissioning overseas, which is not only after sales service support, but also technology support.
4. “ Keep Improving, Pursuing Excellence” is always kept forever.
Customers & Feedback
Good reputation from customers!
Lots of our products have obtained patent certificates and they have been sold to Europe, Australia, USA, Chile, Russia and other countries. Our products have good impression on all of customers, it helps clients to save lots of manpower. The machinery also improve efficiency a lot, workers love them very much!
With good product quality and business reputation, we are deeply supported and loved by customers!
Packing & Delivery
We cooperate with the professional forwarders, the forwarders are specialized in the transportation of machinery for many years. The automatic wrapping machine, hot press, non-woven fabric making machine, paper making machines and other equipment are usually packed with wooden case, and the CNC machining accessories, panel machining accessories, dished heads and hose pipe clamps are usually packed with carton or wooden case well, and then goods are transported to customers.
We support the multiple modes of transportation for customers' choose, including by sea, by truck, by air and others. Transportation modes depend on customers' requirements.
Certifications
FAQ
Q: Are you manufacturer or distributor?
A: We are manufacturer and we established in 2010 and have more than 10 years’ experience.
Q: Do you have after sales support?
A: Yes, we provide 1 year warranty, and have good after-sales policy. We need your machines
Q: How do your machines compare with other big famous companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. MINGYI machinery is ALIBAB’s Gold supplier. We have good impression among customers, and we have never got any complaint from our customers.
A: We are manufacturer and we established in 2010 and have more than 10 years’ experience.
Q: Do you have after sales support?
A: Yes, we provide 1 year warranty, and have good after-sales policy. We need your machines
running in order to keep business running.
Q: How do your machines compare with other big famous companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Do you sell only standard products?
A: No, we are able to make the machines according to customers’ requirements, company also provides customized solutions and products for users.
A: No, we are able to make the machines according to customers’ requirements, company also provides customized solutions and products for users.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. MINGYI machinery is ALIBAB’s Gold supplier. We have good impression among customers, and we have never got any complaint from our customers.
