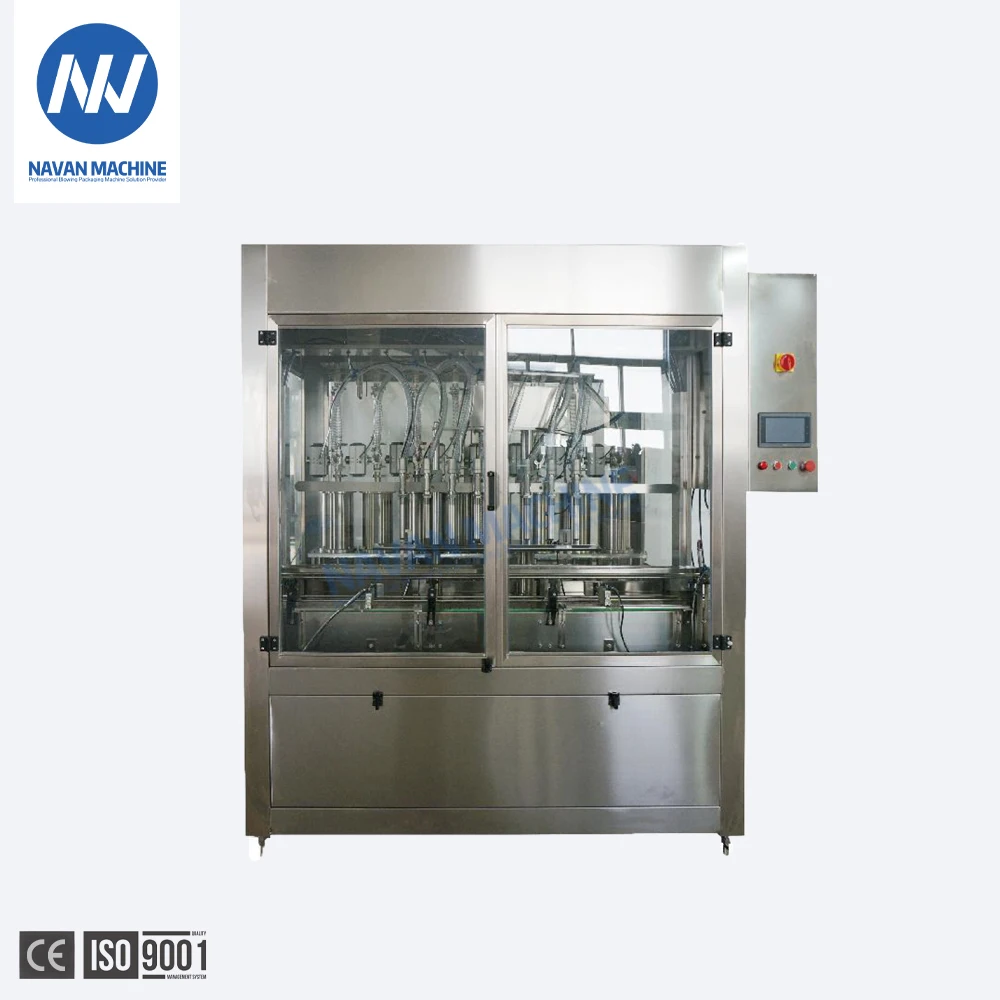

Automatic PET Bottle Automatic Liquid Filling Machine for Olive Sunflower Edible Oil and Cooking Oil Automatic Filler
- Category: >>>
- Supplier: Zhangjiagang Navan Industrial Co. Ltd.
Share on (1600361249385):
Product Overview
Description
NAVAN Machine.
We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.Navan Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training.
Final Products
Edible Oil .
Suitable :Edible Oil Lubricating Oil +Special Solvents .etc
Bottle Material :PET / PE / Glass / Metal
Bottle Type : Round / Square / Unique
Cap : Press cap
Label : Sticker Label / Shrink Label
Bottle Material :PET / PE / Glass / Metal
Bottle Type : Round / Square / Unique
Cap : Press cap
Label : Sticker Label / Shrink Label
Detergents.
Suitable :detergent,shampoo,dishwasher,liquid soap etc
Bottle Material : PE Bottle
Bottle Type : Round / Square / Unique
Cap : Screw cap
Label : Sticker Label
Bottle Material : PE Bottle
Bottle Type : Round / Square / Unique
Cap : Screw cap
Label : Sticker Label
Corrosive Liquid.
Suitable : bleach,clorox, toilet cleaner .
Bottle Material : PP Bottle
Bottle Type : Round / Square / Unique
Cap : Screw cap
Label : Sticker Label
Bottle Material : PP Bottle
Bottle Type : Round / Square / Unique
Cap : Screw cap
Label : Sticker Label
Products Description

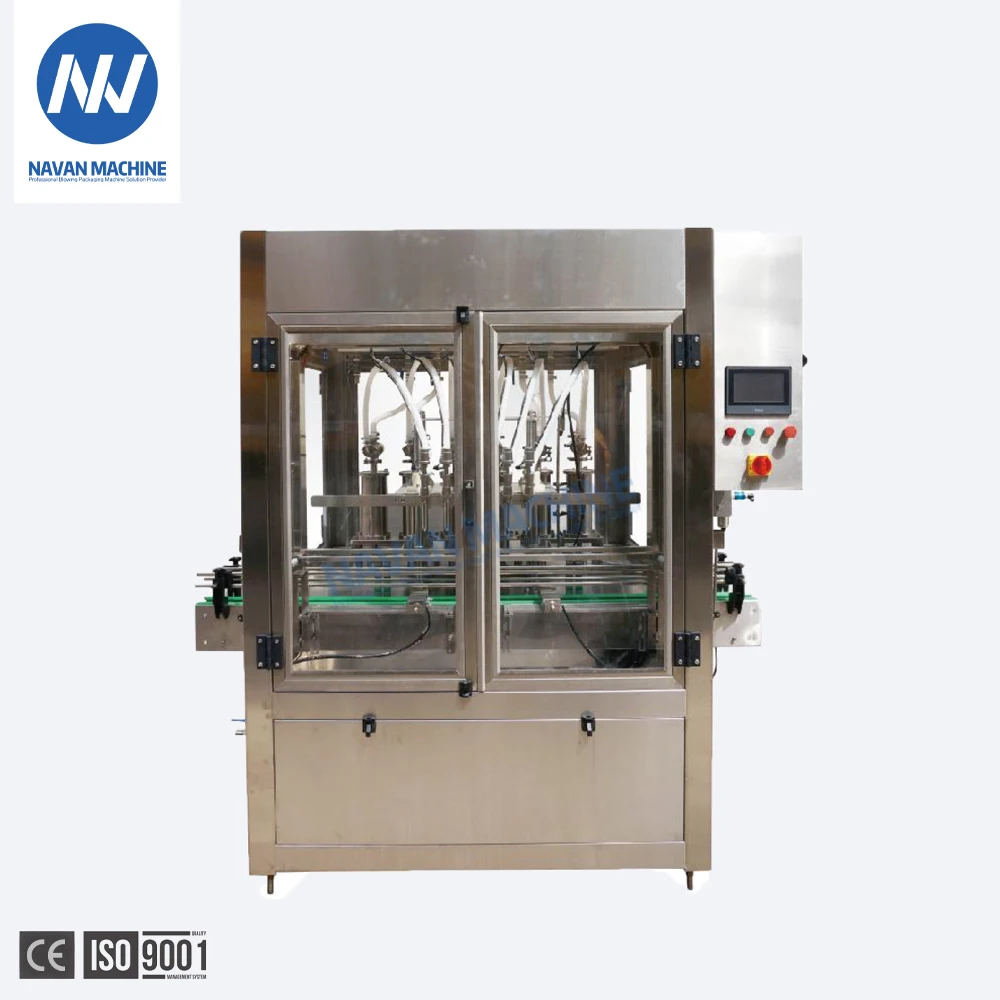

Corrosion-proof Filling Machine
This machine is specially developed for the low viscosity but corrosive liquid filling. The whole machine is controlled by Sohneider system. which can realize the precise , Stable performance and easy parameter setting. The control cabinet and the main engine are independent, which may effectively prevent the gas during the filling to damage the electrical components. Pneumatic part adopts AiriAC brand to ensure long-term stable operation.
Application.
Acid, alkali materials, highly corrosive pesticides, 84 disinfectant, toilet oleaner, iodine,etc.
Speed: | ≤5400 bottles/ hr. (50ml water as medium) |
Volume: | 40-1000 ml;1000ml-5000ml |
Applicable bottie: | Dimension 40-95mm, Height 80-230mm |
Precision: | ±1% ( ≤200ml) , ±0.5%(200-1000ml) |
Power source: | ~380V,50Hz |

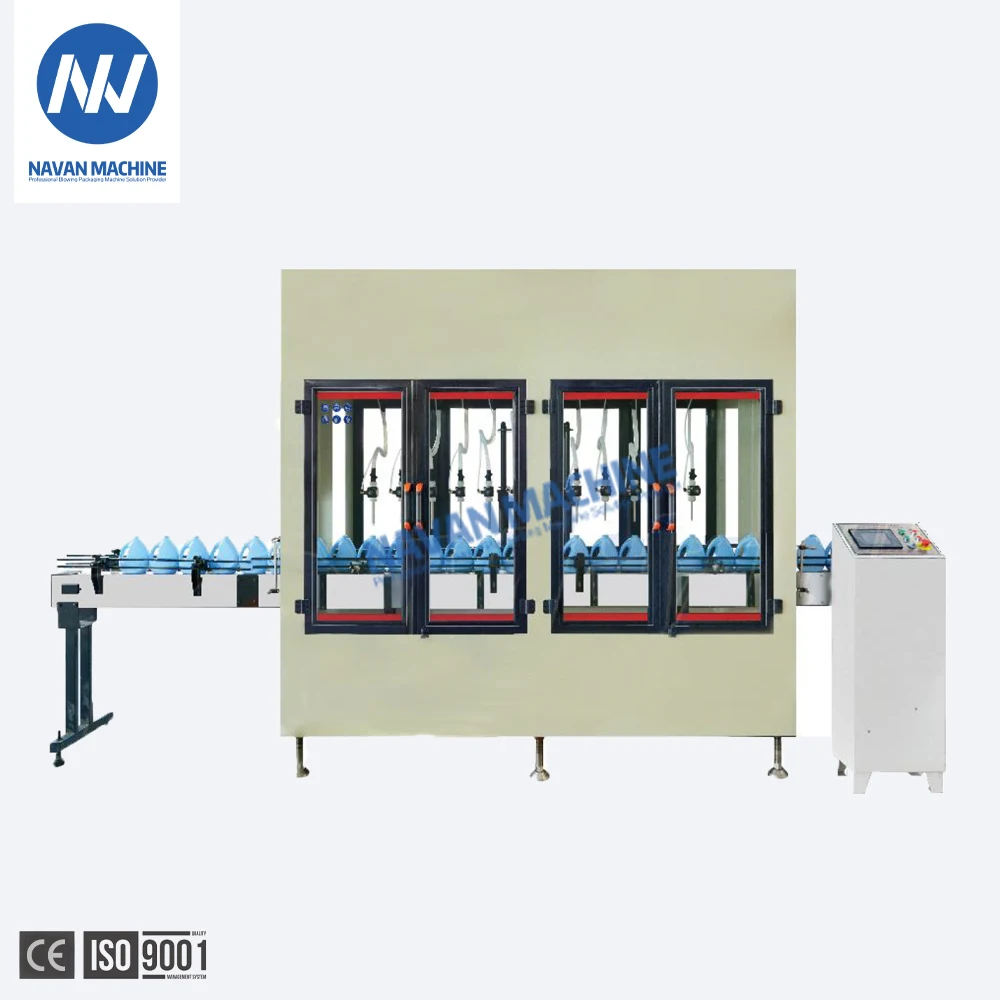

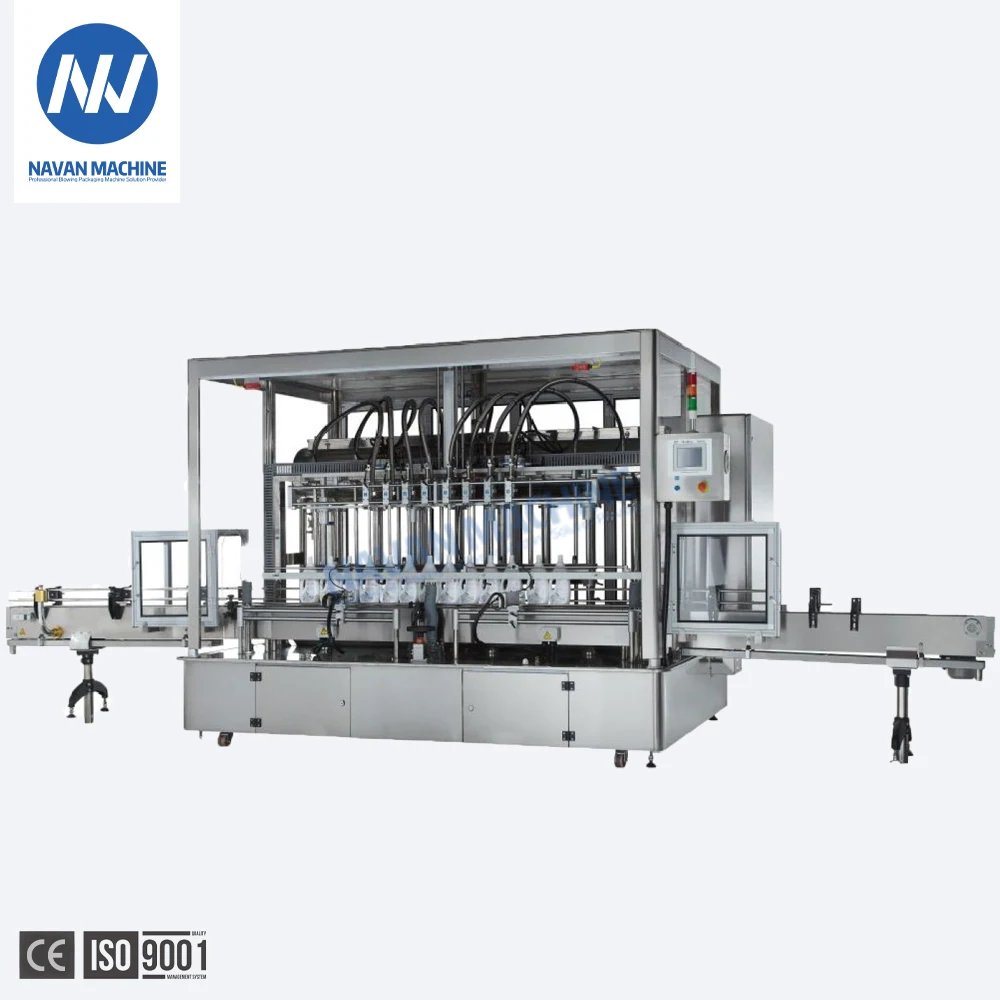

Automatic Liquid Filler(Rotary Lobe Pump)
1. Eight sets of rotary kobe pump( contact parts h SUS316 or Teflon).
2. Eight sets of stainless steel SUS 304 filling nozzle.
3. Shut nozzle with pneumatic valve to prevent dropping.
4. Each filling pump driven by a speed Servo motor.
2. Eight sets of stainless steel SUS 304 filling nozzle.
3. Shut nozzle with pneumatic valve to prevent dropping.
4. Each filling pump driven by a speed Servo motor.
5. Dipping type filling nozzle, no spilling of liquid onto clean bottles and conveyor.
6. Filling nozzle holding device and uplift assembly with a huge sole- noid valve.
Capacity: | 32- 40 BPM (Bottle Per Minute) based on 1 lter bottle |
Application: | Edible Oil,Detergent |
Filling Volume: | 250ml-1500ml |
Bottle Material: | Glass HDPE/LDPE/PET/Metal |
Bottle Shape: | Round Cylindrical Flat Square Oval Rectangular |
Bottle Height: | Available from 100 to 300mm |
Bottle Dlameter: | Available from 50 to 100 mm |
Neck Finish: | Bigger than 28 mm |

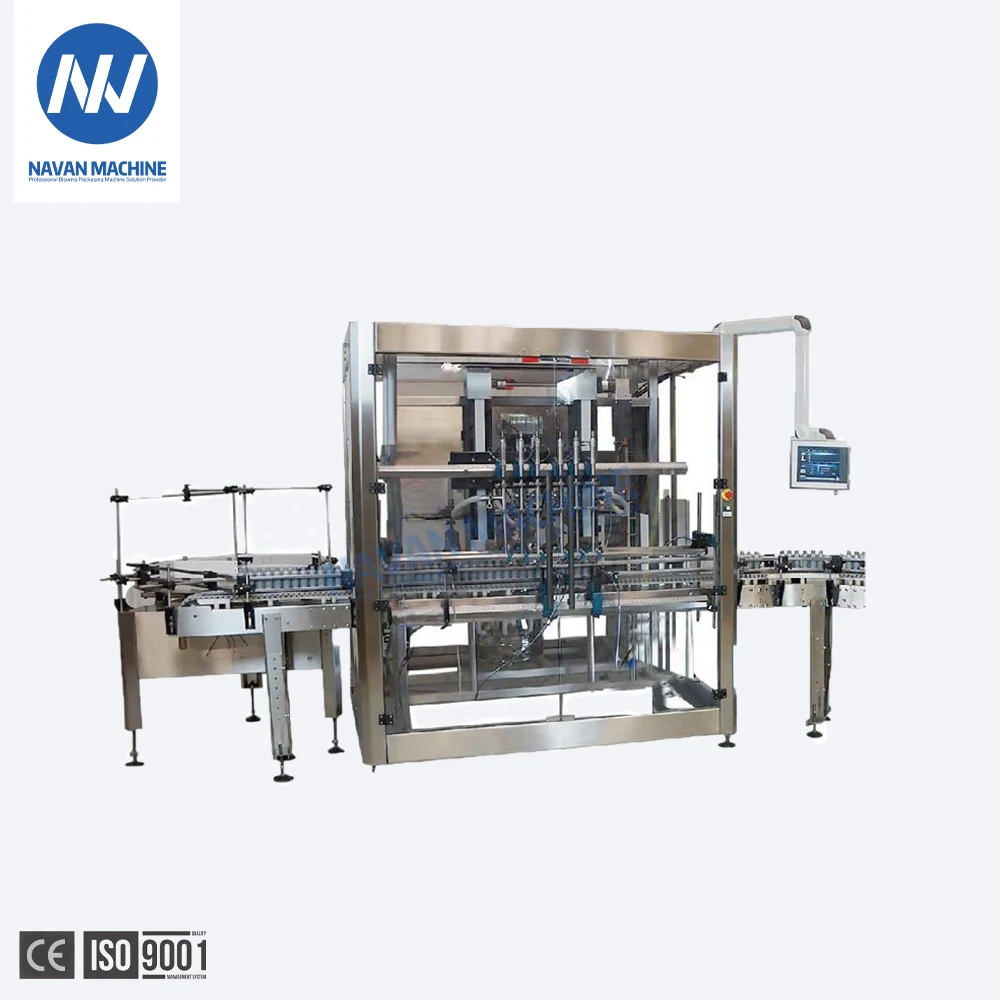

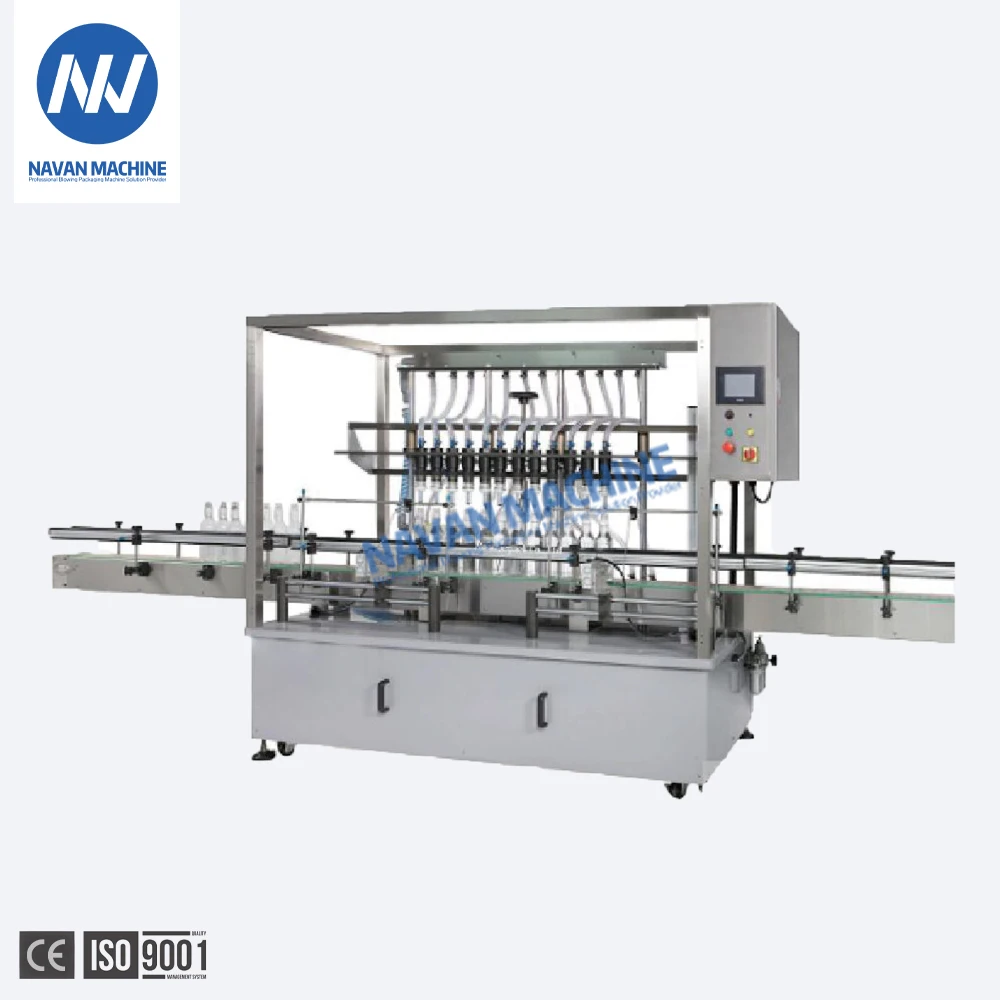

Automatic Piston Filling Machine
Intellectual High Viscosity Filling Machine is the new-generation improved volumet- ric filling machine The whole machine uses the in-line structure and it is driven by the servo motor. filling principle can reaize the high precision of filling It is by the PLC, human interface and easy operation. The machine is equipped with electric scale weight which makes the volume adjustment easier.
Filling Capacity | 20-100cc/50-500cc/100-1000cc |
Liquid Contact Part Material : | 304/ 316L |
SupplyVoltage: | 220,50-60.1Phase |
Air Pressure: | 4-6kg |
Filling head Options: | 2/4/6/8/12/16/20 |

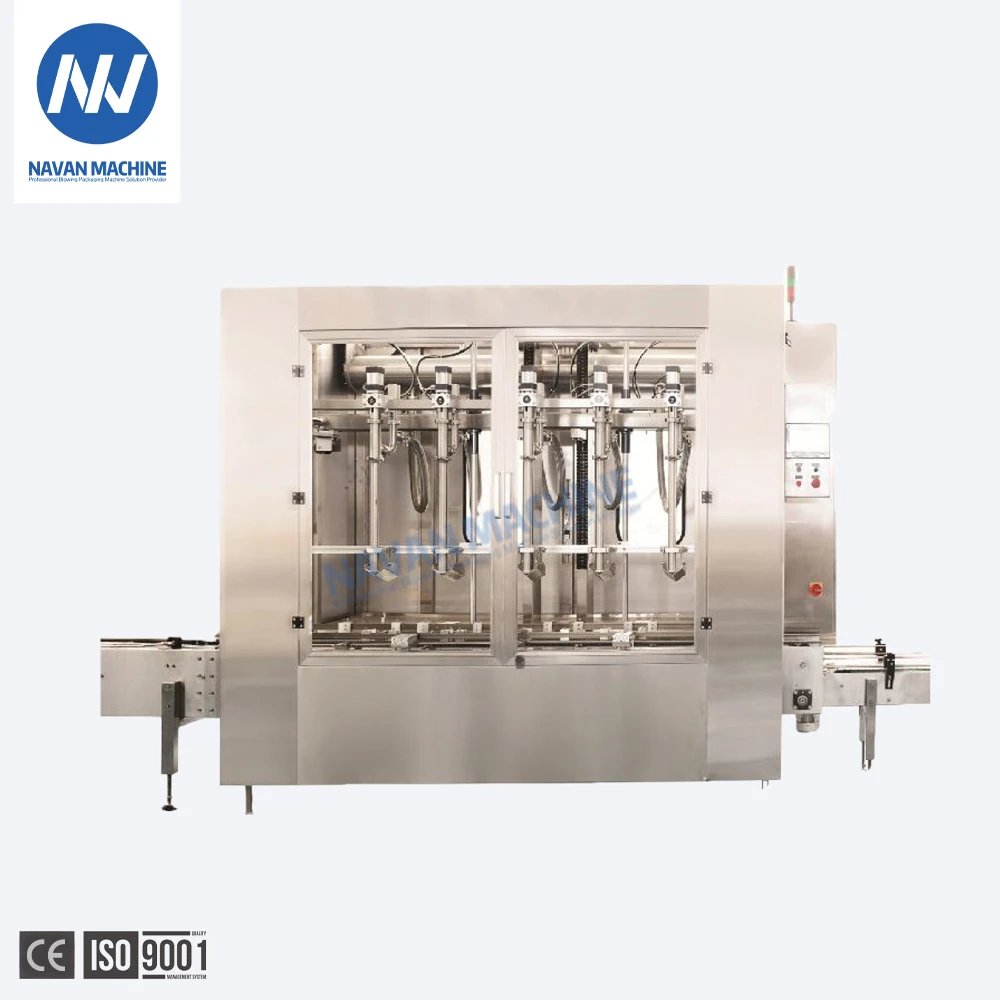

Automatic Weighing Filling Machine
This type machine is used for 10kg -30kg liquid filling. It can finish a series of operations automatically, such as bottle inlet, weight filling, bottle outlet. Especially for SL, edible oil lubrication. it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.
Feature:
1. This machine adopts PLC, touch screen control panel, convenient to adjust.
2. Each filling head has the weigh and feedback system, Each filling head can be regulated.
3. Photoelectric sensor, approximate switch and other electric elements are the international famous brand No contain- er no filling. The main host can trigger the alarm if there is any container blocked.
4. Submerged filling makes it possible to reduce form. It is suitable for various kinds of products.
5. The whole machine meets GMP standard. It is easy to disassemble clean and maintain , and the parts which. cont with the filling products are made of high quality stainless steel. The whole machine is safe, environmental , sanitary. adapts to various kinds of working places.
Recommend Products
Why Choose Us
NAVAN Machinery.
Navan Industrial has invested its best resources in technical research, to design and realize innovative in bottle blowing, filling, capping , labeling and packing systems which enable to respond and reach different demands and achieve new goals everyday, seizing the market's expectations in the pass years .
At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development.
Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world since 2008.
Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
At the same time , we also provides turn-key services for customers, from plant layout, equipment manufacturing, production line setup, to operators training. We are always trying our best to meet the demands of our customers continuously and seeking for mutual development.
Today Navan has enhanced its exsitence both in domestic and global market. Thanks to its various and perfect cases, we provide our customers with delicated and customized solutions at quick response. Navan machines are utilized in large and small companies all around the world since 2008.
Massive experience gained through the years of water, juice , soft drink , beer, honeys, sauces etc., with all the abundant experience we are able to deal with any problems related to specific customers requirements, such as daily or special products., and perfect the creation of various machine to satisfy any customer's demands.
Factory Show.
<1> Standardized workshop of total 3,000 square meters.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
<2>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
<3>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
<4>Engineers are experienced. We can produce different products with different capacities and work out reasonable flow chart as per customers’ requirements to save space.
<5>Professional installation team who can speak fluent English can help customers make benefits in the shortest time.
Certificates.
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark
registration,etc.
Customers.
We are a professional manufacturer of beverage machinery in China. With the scientific progressive conception of rapid introduction, we make our machinery cover all over the overseas market. We have been producing our goods with mature techniques and first-class quality.
FAQ
Q1 : What is the warranty period?
We provide 12 months warranty for all spare parts. (exclude fragile parts).
Q2 : How do you control the quality?
1) All NAVAN machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labour, followed by particular QC
3) All information of our products can be checked in efficient management system.
Q3 : What certifications do you have?
All our products are CE and ISO9001 certified. Numerous design and innovation patent for all our current models and spare parts. Such as the innovation patent squeegee design.
Q4 : What kind of service do you provide?
Before sales:
Provide product information, market research forecasting, product customization,
product processing, consultation and other services for your convenience.
After sales:
1. Technical training on according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts;
4. Regular call back or visit customers;
5. On time response to mail and phone calls of your complaints or consultation.
Q5 : Are you a factory or a trading company, where are you located?
We are factory , just 150km(1.5hour by car) away from Shanghai Airport.
