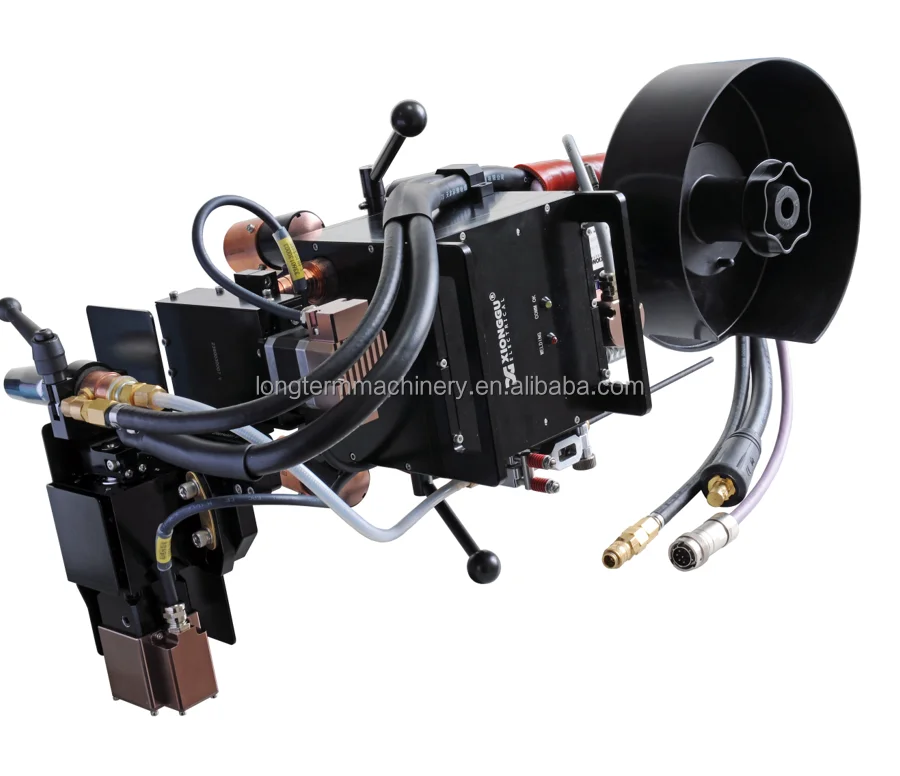

Fully automatic handheld oil pipe pipeline orbital welding machine
Product Overview
FEATURES AT A GLANCE
* Using an embedded fully digital control system
* The trolley is suitable for narrower space construction
* Unique car chassis design
* The equipment has remote management and data transmission functions
* Professional process software platform with invention patents
* At the same time has the function of flat pendulum and angle pendulum
* The same equipment can be used from heat welding to filling cover
* Many welding processes
* System IP55 protection level, with low temperature heating design
* Handheld LCD remote control
* Integrated wire drawing system and modular design of trolley

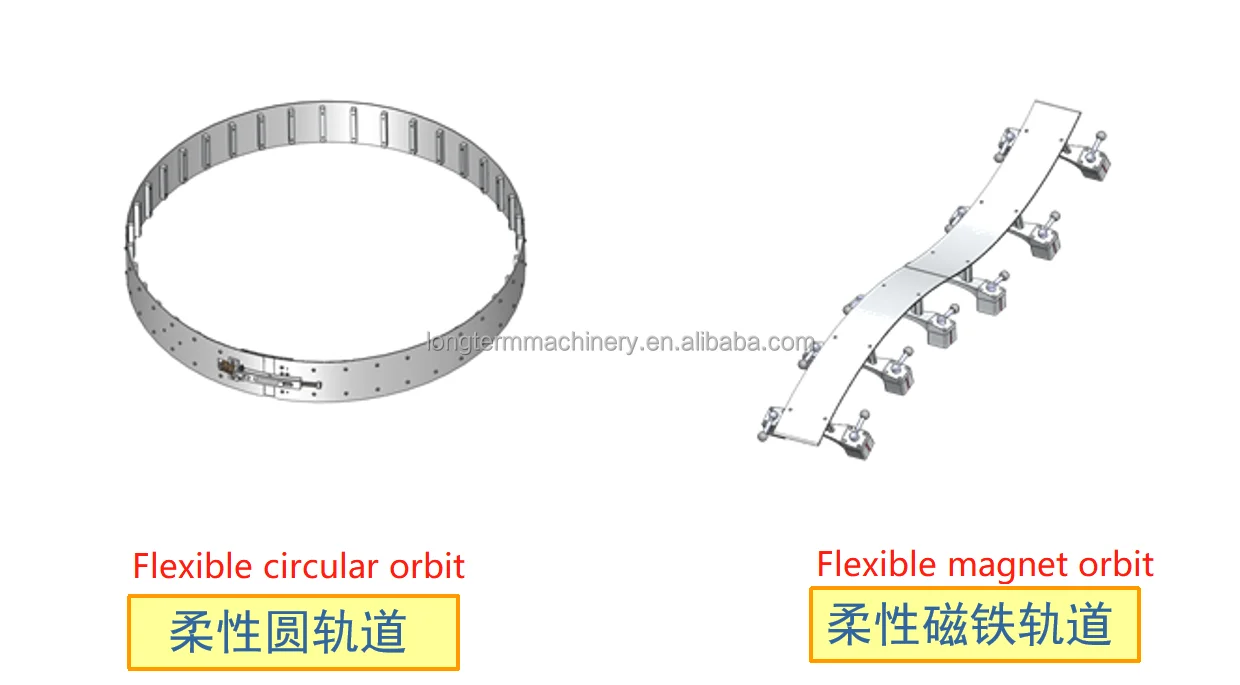

* Toothed circle and curved track design
* Provides 99 programmable weld passes
* The trolley is suitable for narrower space construction
* Unique car chassis design
* The equipment has remote management and data transmission functions
* Professional process software platform with invention patents
* At the same time has the function of flat pendulum and angle pendulum
* The same equipment can be used from heat welding to filling cover
* Many welding processes
* System IP55 protection level, with low temperature heating design
* Handheld LCD remote control
* Integrated wire drawing system and modular design of trolley
* Toothed circle and curved track design
* Provides 99 programmable weld passes

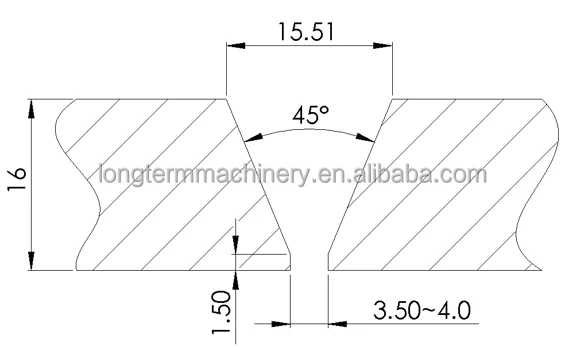

Groove welding process
1. Automatic welding, bottoming, filling and capping are integrated, there is a gap
between the counterparts, and gaskets are needed: ceramic or steel gaskets on the back; no gaps and gaskets are needed for the
counterparts: a layer is welded after the back is cleaned: DPS-500A+A-300N
Welding wire: 1.2mm gas shielded solid core welding wire with bottom filling and covering surface, high efficiency and low cost.
Gas: 70%CO2+ 30%Ar
Process characteristics: simple equipment configuration, high welding efficiency, 3 times that of traditional welding rods
Groove processing requirements: relatively standardized
Suitable working conditions: automatic welding of lower pressure pipelines such as water pipelines and municipal pipelines
between the counterparts, and gaskets are needed: ceramic or steel gaskets on the back; no gaps and gaskets are needed for the
counterparts: a layer is welded after the back is cleaned: DPS-500A+A-300N
Welding wire: 1.2mm gas shielded solid core welding wire with bottom filling and covering surface, high efficiency and low cost.
Gas: 70%CO2+ 30%Ar
Process characteristics: simple equipment configuration, high welding efficiency, 3 times that of traditional welding rods
Groove processing requirements: relatively standardized
Suitable working conditions: automatic welding of lower pressure pipelines such as water pipelines and municipal pipelines
PRODUCT SPECIFICATIONS
Model | A-300N | ||||||
diameter | > Φ 168mm | ||||||
speed | 0.1~1.5 m/min | ||||||
feeding wire speed | 2.5~25 m/min | ||||||
Number of segments per group | 1~180 Sections | ||||||
welding torch moving width | 0~20 mm | ||||||
welding torch moving type | Flat pendulum/angle pendulum | ||||||
Linear oscillation/pendulum oscillation | |||||||
wire weight | 2.7kg/5kg | ||||||
enviromet | -40~70℃ | ||||||
level of height | 4000m | ||||||
protecting class | IP54 | ||||||
car weight | 13kg | ||||||
dimension | 600mm×450mm×250mm | ||||||
PRODUCT CONFIGURATION

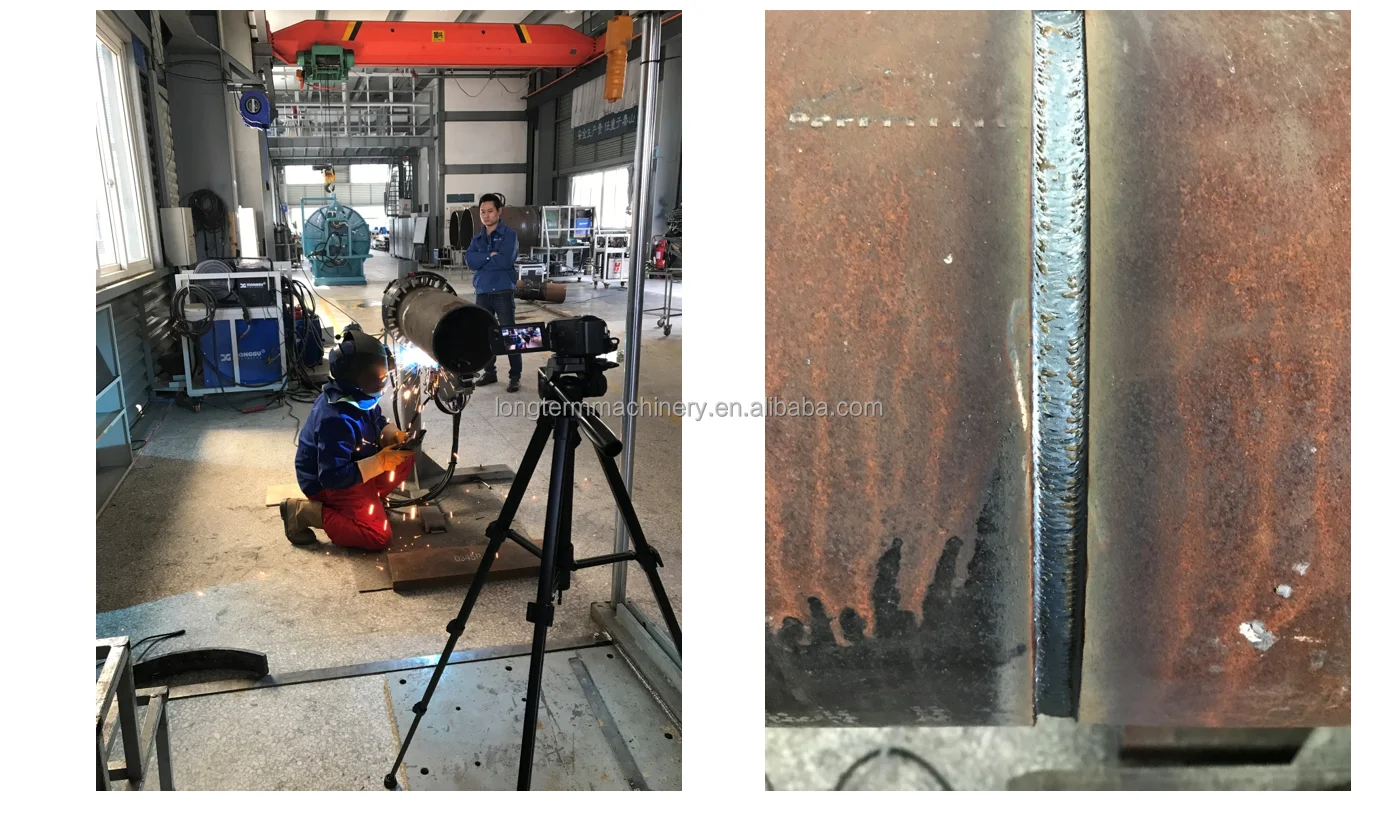

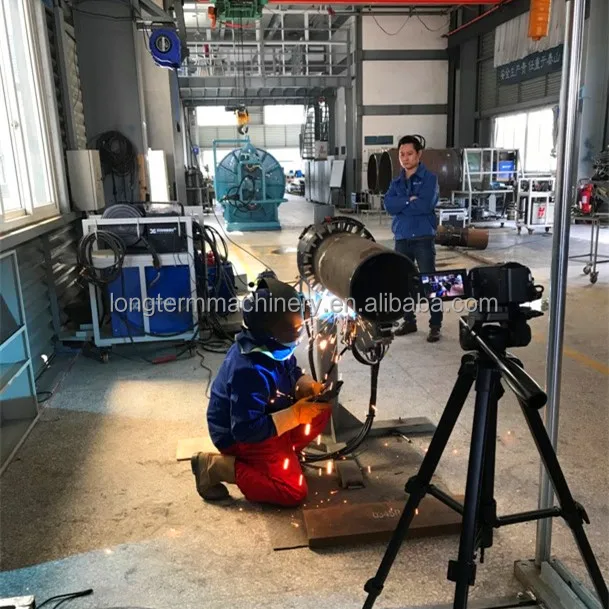

weld downward in all positions
333

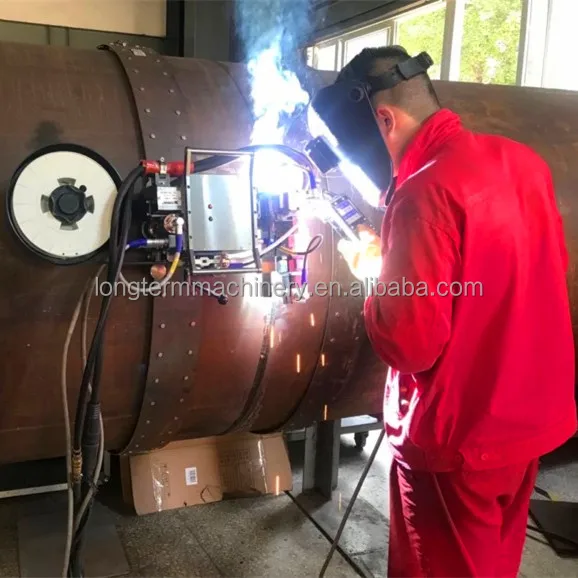

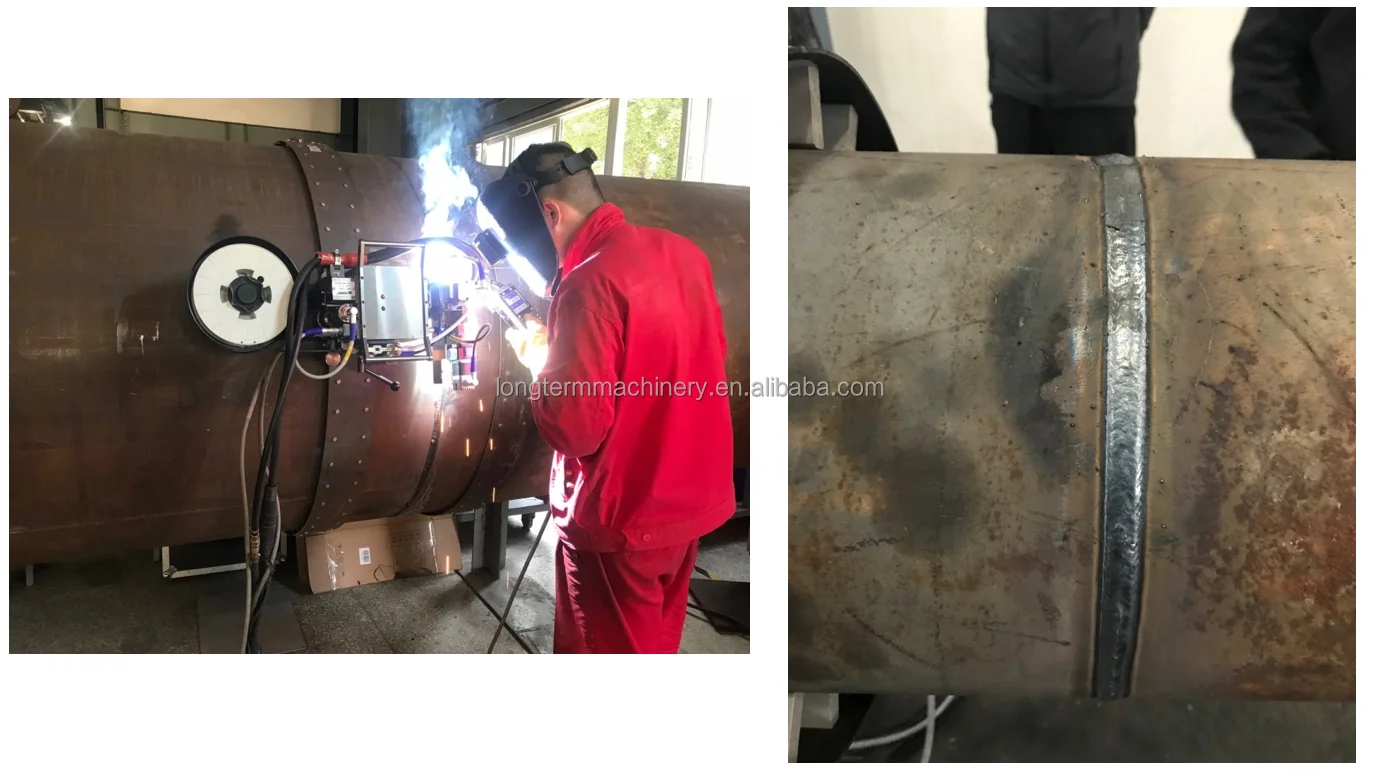

weld upward in all positions

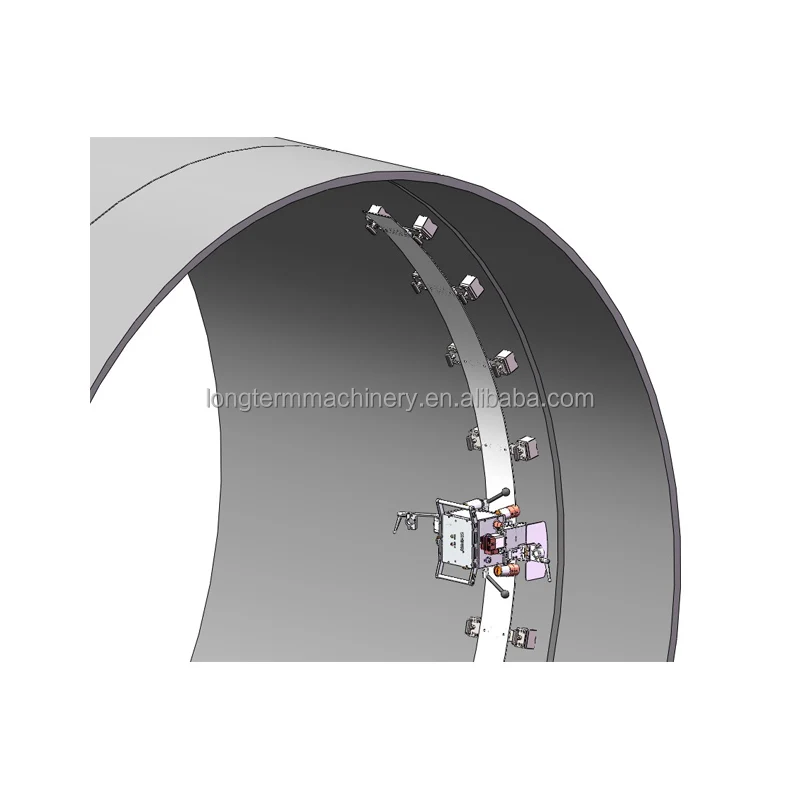

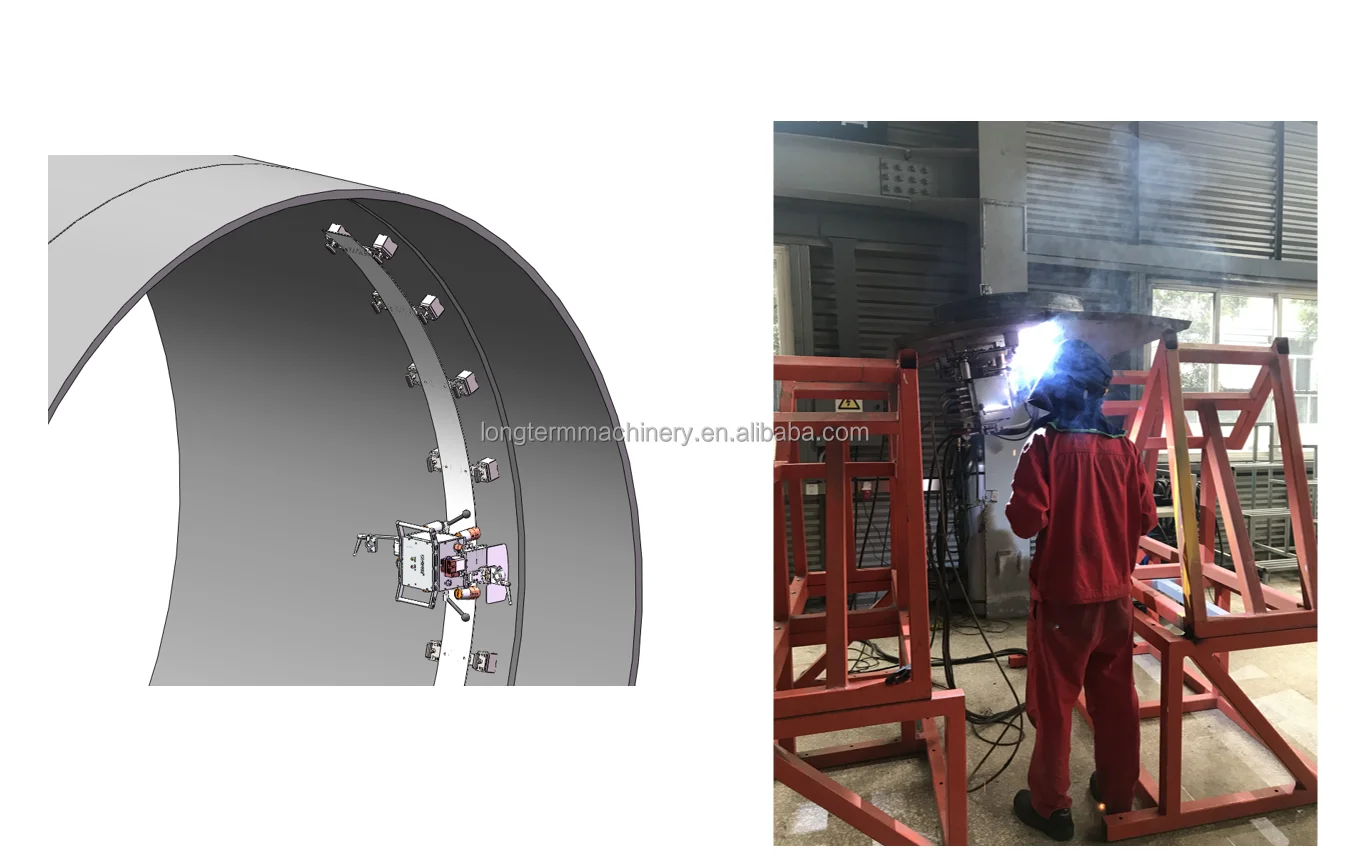

Inner ring seam welding

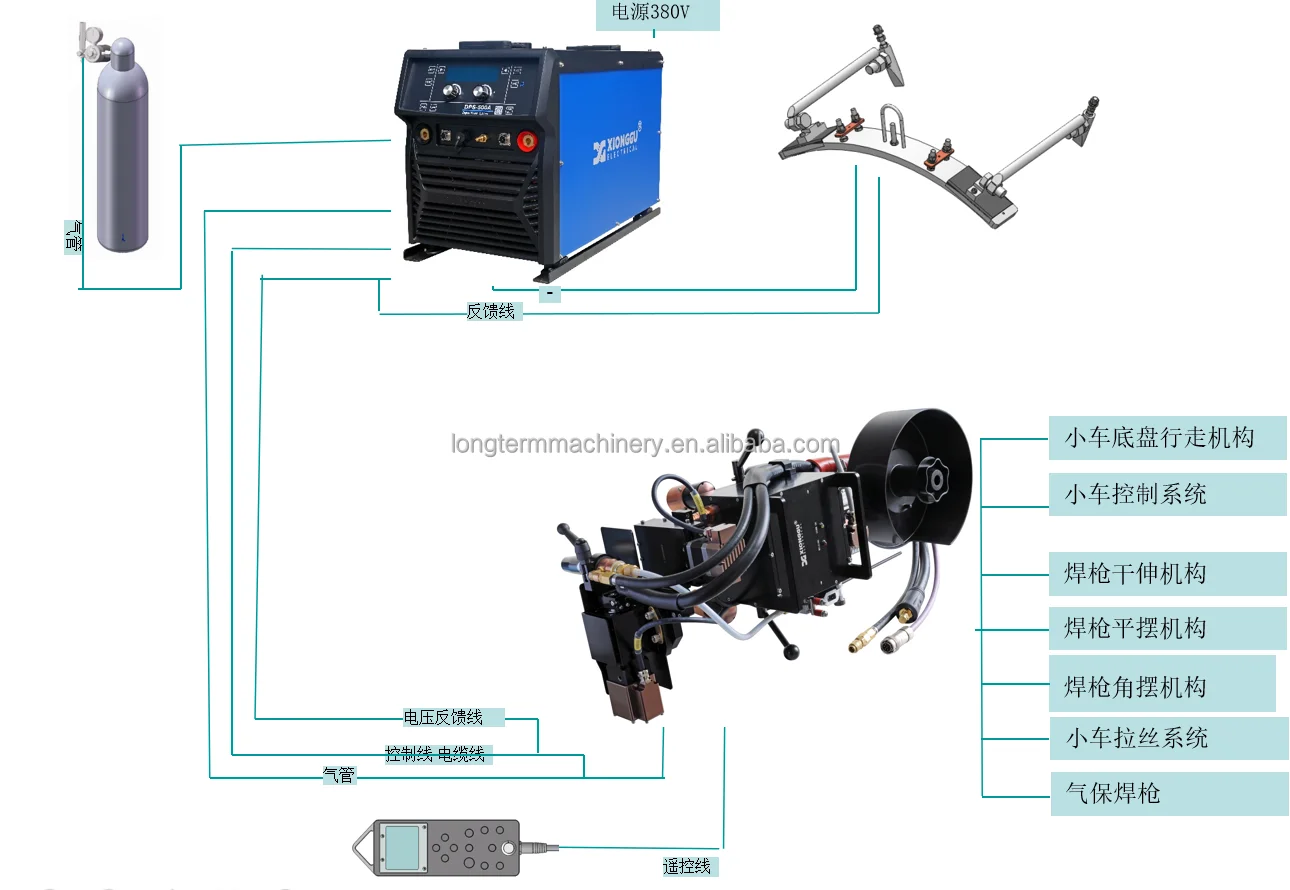

wiring diagram
FAQ
1. who are we?
We are professional manufacturer of pipeline welding machine with more than 30 years experience.
3.what can you buy from us?
Pipeline welding Equipment
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese,Russian
To enable us send you correct machine, would you please let me know following information
1. Diameter
2. Thickness
3. Material
4. Welding process
We are professional manufacturer of pipeline welding machine with more than 30 years experience.
2. how can we guarantee quality?
Always final Inspection before shipment
Always final Inspection before shipment
3.what can you buy from us?
Pipeline welding Equipment
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese,Russian
To enable us send you correct machine, would you please let me know following information
1. Diameter
2. Thickness
3. Material
4. Welding process
