non contact clamp on Mobile sewage Portable Ultrasonic Doppler Flow Meter
- Category: >>>
- Supplier: Shanghai Panda Machinery (group) Co. Ltd.
Share on (1600361293627):
Product Overview
Description
Product Description
Digital Portable Ultrasonic Doppler Flow Meter For Paper Industry
Summary
PUDF305 Doppler portable ultrasonic flow meter is designed for measuring liquid with suspended solids, air bubbles or sludge in a sealed closed pipeline. Non-invasive transducers are mounted outside surface of the pipe. It has advantage that measurement is not influenced by pipe scale or blockage. It’s simple to install and calibrate due to unnecessary pipe cutting or flow stop.
Features
l Chargeable Lithium Battery Can Continuously Work For 50 Hours
l Non-invasive Installation, Unnecessary pipe cutting or flow interruption, Acceptable Media Temperature Up To 260℃
l Measuring Accuracy ±0.5% to ±2.0%F.S
l Signal Automatic Gain Adjustment
l Anti-interference to Frequency Converter
l Simple Operation, Only Set Inner Diameter To Realize Flow Measurement
l 2*8 LCD Display Flow Rate, Volume, Velocity etc.
Specification
Transmitter
Measuring Principle | Doppler Ultrasonic |
Velocity | 0.05- 12 m/s, Bi-directional Measurement |
Repeatability | 0.4% |
Accuracy | ±0.5% ~±2.0%F.S |
Response Time | 2-60s(Select by user) |
Measuring Cycle | 500ms |
Suitable Fluid | Liquid containing more than 100ppm of reflector( suspended solids or air bubbles), reflector >100 micron |
Power Supply | AC: 85-265V Built-in lithium battery continuously work for 50 hours |
Installation | Portable |
Protection Class | IP65 |
Operating Temperature | -40℃ ~ 75℃ |
Enclosure Material | ABS |
Display | 2X8 LCD, 8 digits flow rate, volume (resettable) |
Measuring Unit | Volume/mass/velocity: liter, m³, kg, meter, gallon etc Flow time unit: second, minute, hour, day Volume Rate:E-2~E+6 |
Communication Output Keypad | 4~20mA, OCT 6 buttons |
Size | 270*246*175mm |
Weight | 3kg |

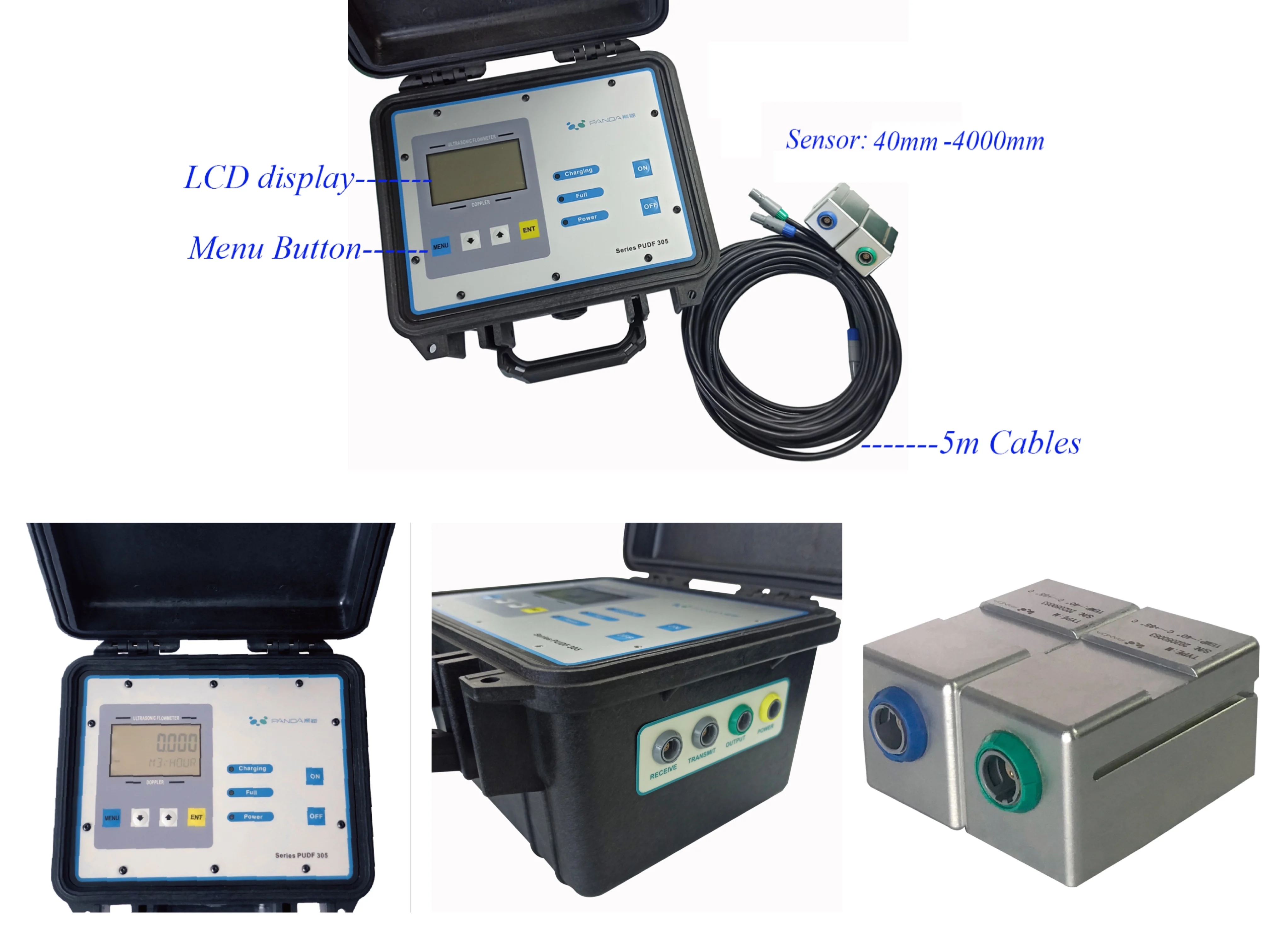

Transducer
Protection Class | IP67 |
Fluid Temperature | Std. transducer : -40℃~85℃(Max.120℃) |
High Temp : -40℃~260℃ | |
Pipe Size | 40mm~6000mm |
Transducer Type | General standard |
Transducer Material | Std. Aluminum alloy, High Temp.(PEEK) |
Cable Length | Std. 5m (customized) |
