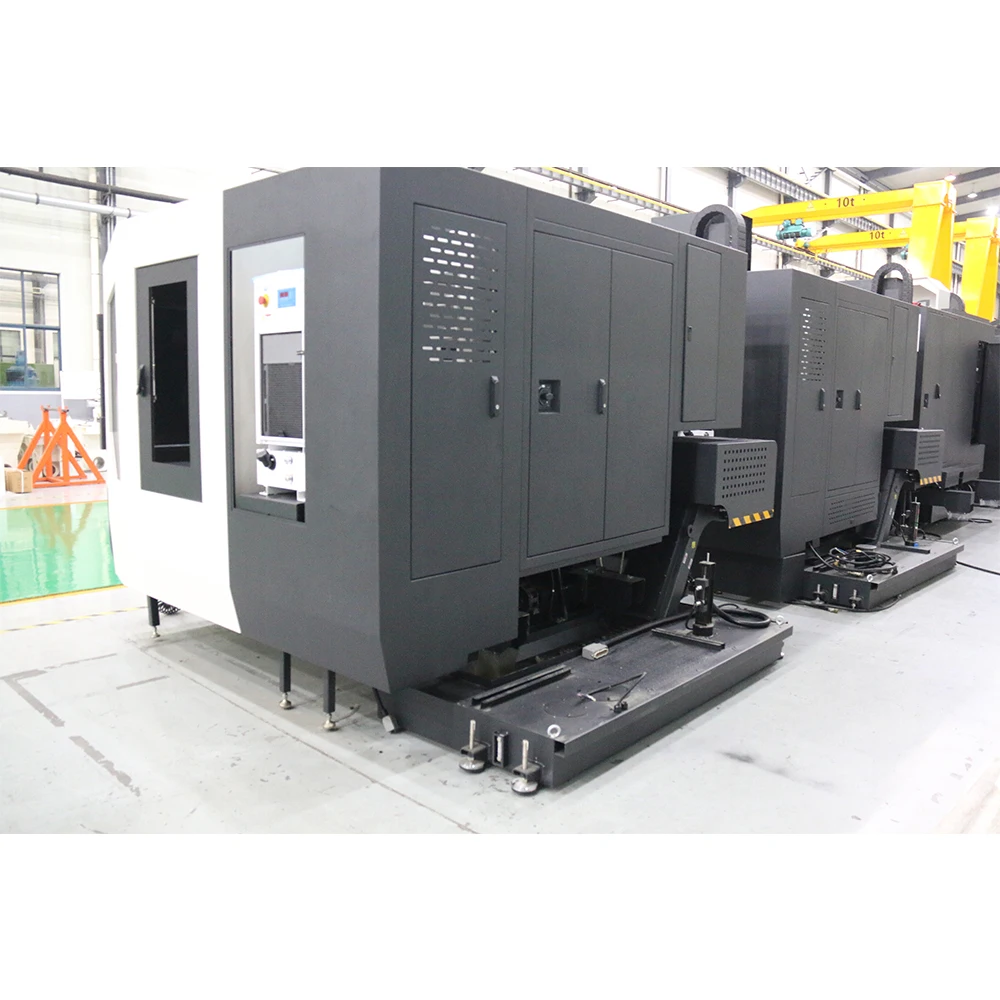

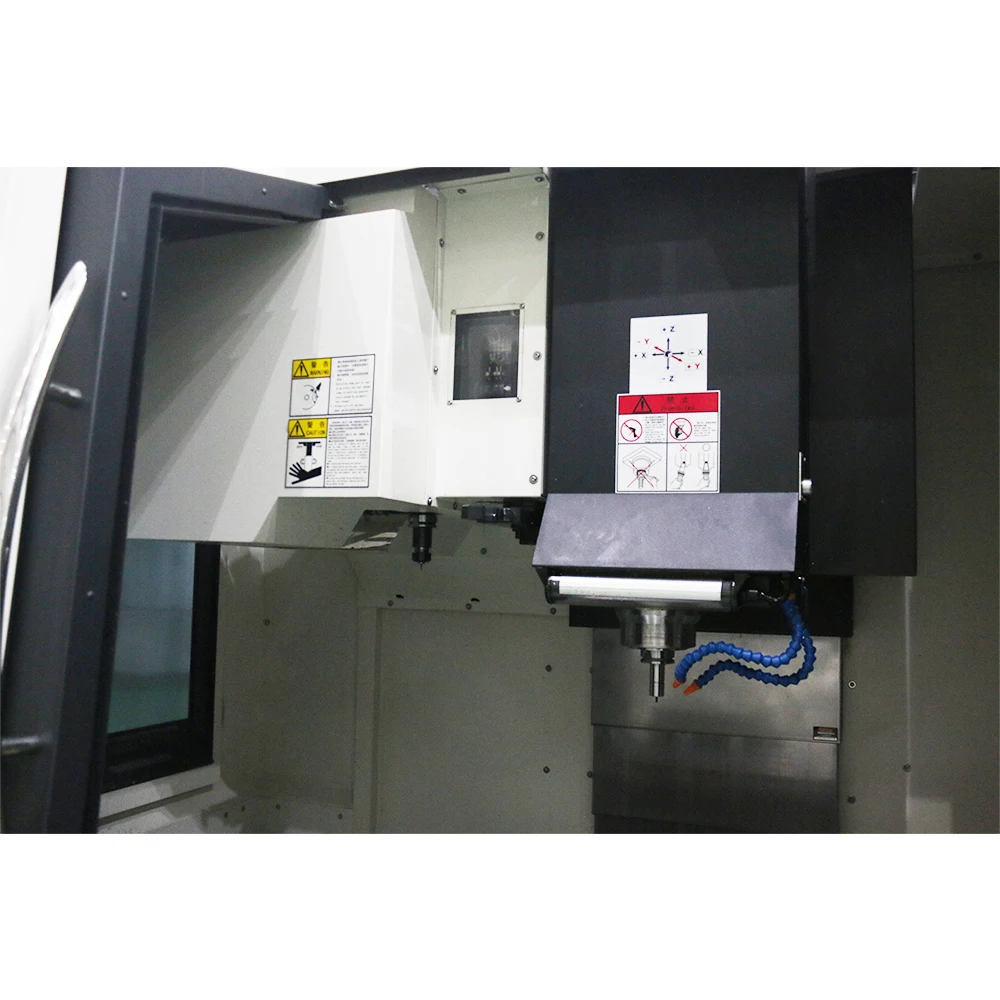

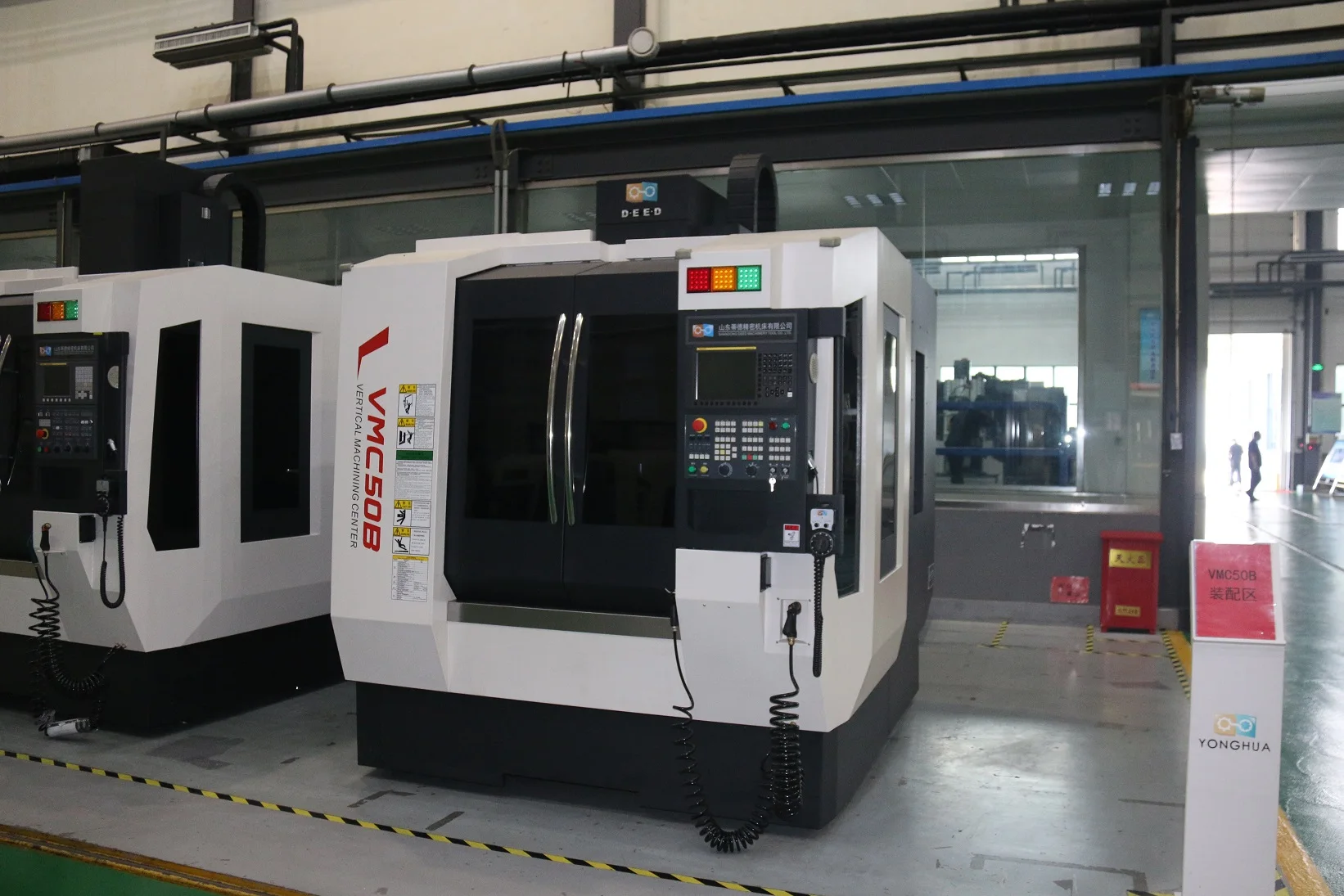

Widely Used Superior Quality Mitsubishi 3 Axis Cnc Vertical Turning And Milling Machining Center
- Category: >>>
- Supplier: Jinan Deed Precision Machine Tool Co. ltd.
Share on (1600361531349):
Product Overview
Description
Products Description
Control System | FANUC/SIEMENS/Mitsubishi |
TRAVEL | |
X-axis travel (mm) | 850 mm |
Y-axis travel (mm) | 500 mm |
Z-axis travel (mm) | 600 mm |
Spindle nose to table surface (mm) | 150-750/120-720 mm |
SPINDLE | |
Drive type | Direct drive/Belt drive |
Spindle taper | BT40/BT50 |
Max. Speed rpm | 12000/4500 rpm |
Spindle Power (kW) | 11(15)/18.5 kW |
Spindle Torque (Nm) | 52.5/118 126/208 Nm |
TABLE | |
Size (mm) | 950x500 mm |
T-Slot (size * quantity * space) | 18x4x100 |
Max load (kg) | 600 kg |
FEED | |
Max.cutting speed (m/min) | 12 m/min |
Rapid traverse (m/min) | 40/40/32 m/min |
ACCURACY | |
Positioning(half-closed loop) (mm) | 0.006 mm |
Repeatability(half-closed loop) (mm) | 0.004 mm |

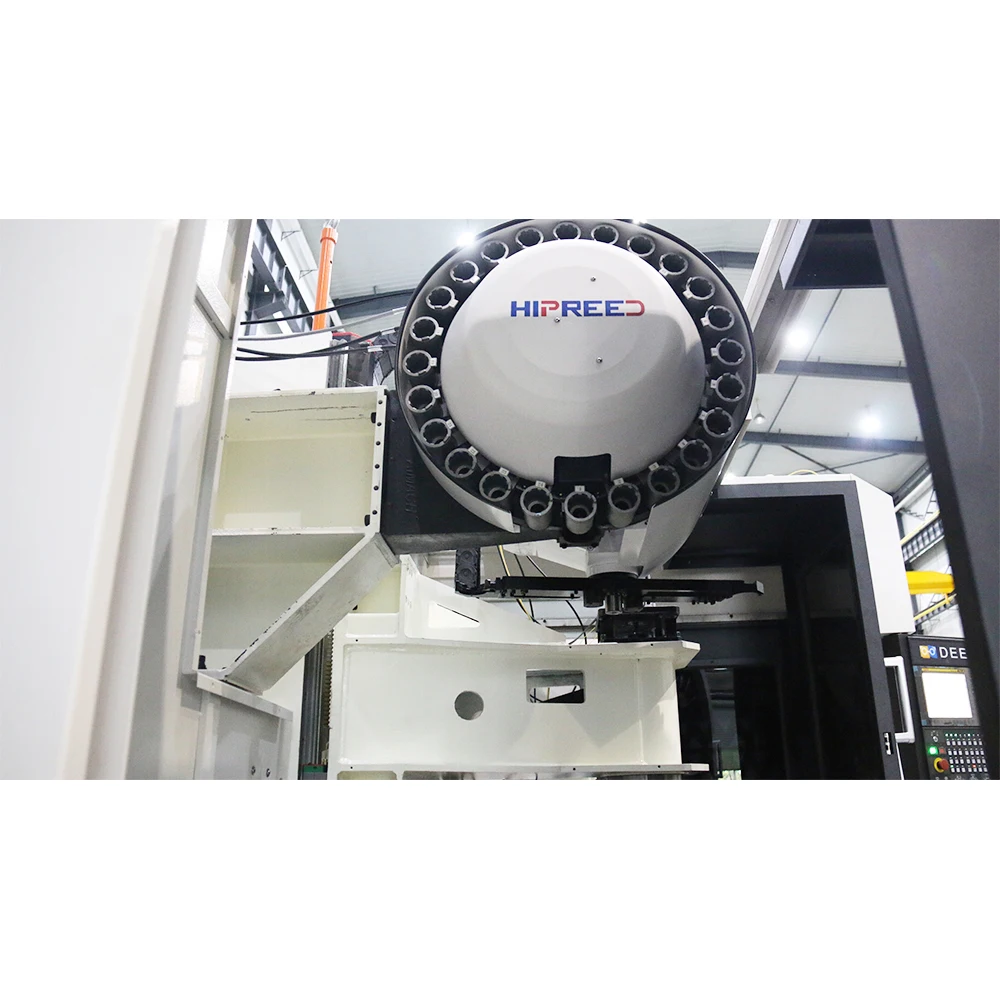

ATC | |
Type | Disc type /24T |
Maximum tool size(full/unfull/length) | Φ78/Φ150/300 Φ105/Φ200/350 |
Maximum tool weight (kg) | 8/15 kg |
OTHERS | |
Air Pressure (MPa) | 0.65 MPa |
Power Capacity (KVA) | 25/35 kVA |
Machine Weight (kg) | 7500 kg |
Machine Floor Space (L *W *H) (mm) | 3000X3200X3100 mm |
