Product Overview
Description
Products Description

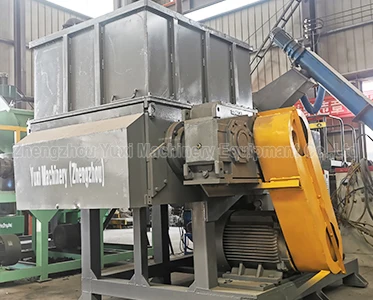

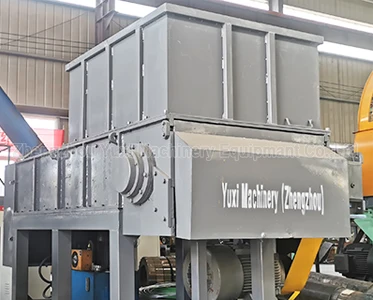

Single Shaft Shredder

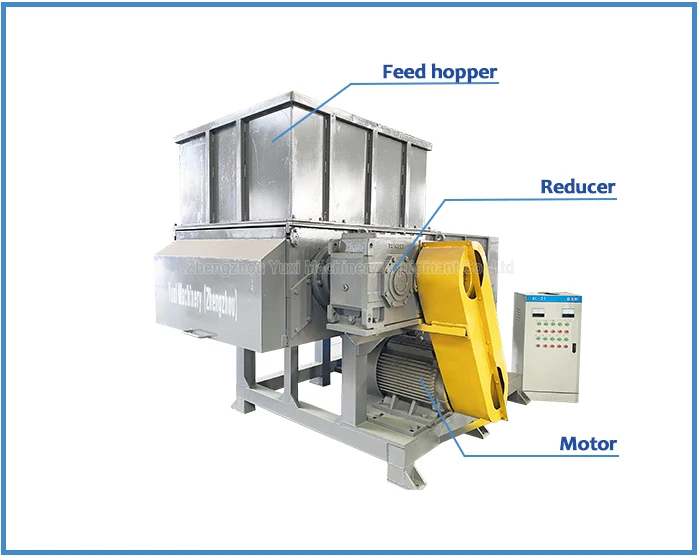

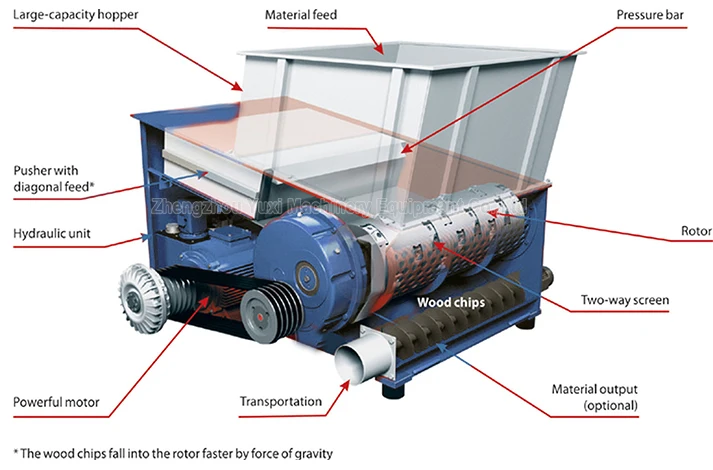

The single shaft shredder is mainly composed of a moving knife roller (spindle + blade), fixed knife, carrying box, box support, feeding system, hydraulic pushing system, power system, and an electrical control system.
The one shredder machine is used to crush all kinds of waste materials. When working, a small amount of light and thin metal objects are allowed in the materials. Material size can be adjusted according to the size of the screen aperture
The one shredder machine is used to crush all kinds of waste materials. When working, a small amount of light and thin metal objects are allowed in the materials. Material size can be adjusted according to the size of the screen aperture
Technical Parameter
Shredder Mode | YX-A600 | YX-A800 | YX-A1000 | YX-A1200 | YX-A1500 |
Diameter Rotary | 255mm | 255mm | 255mm | 300mm | 300mm |
Rotate the numberof knives | 26 | 45 | 58 | 71 | 88 |
Rotate the cutter shaft speed | 82rpm | 90rpm | 87rpm | 87rpm | 87rpm |
Number of fixed knlves | 1 | 2 | 2 | 2 | 2 |
Hydraulic power | 2.2kw | 3kw | 5.5kw | 5.5kw | 7.5kw |
Working pressure | 6-12Mpa | 6-12Mpa | 6-12Mpa | 6-12Mpa | 6-12Mpa |
Crusher capacity | 250-400kg/h | 250-450kg/h | 300-600kg/h | 500-1000kg/h | 600-1200kg/h |
Feeding caliber | 600mm*950mm | 800mm*950mm | 1000mm*1000mm | 1200mm*1100mm | 1500mm*1250mm |
Power f main motor | 22kw | 37kw | 55kw | 75kw | 45*2kw |
Host weight | 3500kg | 4500kg | 6000kg | 8000kg | 9500kg |
External dimension | 3000*1600*2000mm | 3300*1800*2400mm | 3850*2000*2700mm | 4000*2200*2800mm | 4500*2500*2800mm |
Maximum yield | 650kg/h | 900kg/h | 1000kg/h | 1200kg/h | 1500kg/h |
Application
Plastic products: plastic heads, nozzles, scraps of plastic products, plastic pipes, plastic sheets;
Waste plastic recycling: waste film, agricultural film, mulch film, PP woven bag, PET bottle;
Metal recycling: aluminum, cans, scrap metal, circuit boards, cables and wires;
Waste paper: paper scraps, books, industrial waste paper;
Wood processing: wood, wooden pallets, wood, branches, building templates;
Electronic waste: transformer, plug, data cable
Waste plastic recycling: waste film, agricultural film, mulch film, PP woven bag, PET bottle;
Metal recycling: aluminum, cans, scrap metal, circuit boards, cables and wires;
Waste paper: paper scraps, books, industrial waste paper;
Wood processing: wood, wooden pallets, wood, branches, building templates;
Electronic waste: transformer, plug, data cable

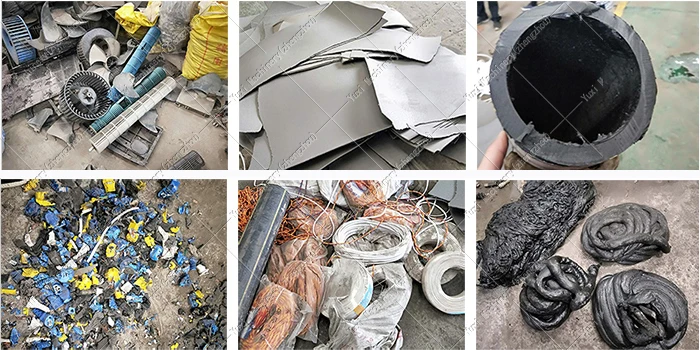

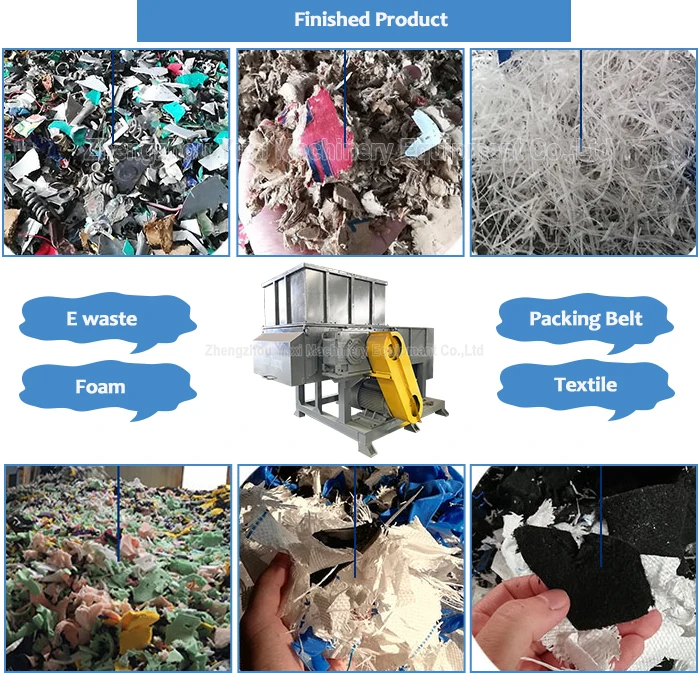

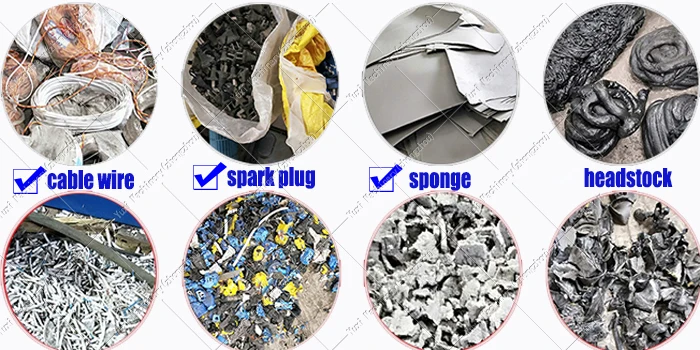

The finished product of the single shaft shredder is between 5-10mm, the shredded product is for your reference
Working Process
The material enters the shredding box through the feeding system. The box carries the moving knife roller and the shredding blade. The oil cylinder pushes the pushing box to push the material near the blade.
The deceleration motor drives the knife roller to rotate, and the material is shredded into small pieces by the combined effect of tearing, squeezing, and shearing by the shredding blade and discharged from the screen hole.
Feature
•The moving knife adopts DC53 material, and the hardness reaches HRC60 ± 1.
• The fixed knife is made of D2 material and its hardness reaches HRC60 ± 1.
• The main electrical components are Siemens and Schneider brands.
• Automatic overload protection to avoid machine overload and seizure.
• Designed with split bearing housing technology, which can change blades quickly and efficiently
• Two-speed hydraulic system, air-cooled device is standard.
• The fixed knife is made of D2 material and its hardness reaches HRC60 ± 1.
• The main electrical components are Siemens and Schneider brands.
• Automatic overload protection to avoid machine overload and seizure.
• Designed with split bearing housing technology, which can change blades quickly and efficiently
• Two-speed hydraulic system, air-cooled device is standard.

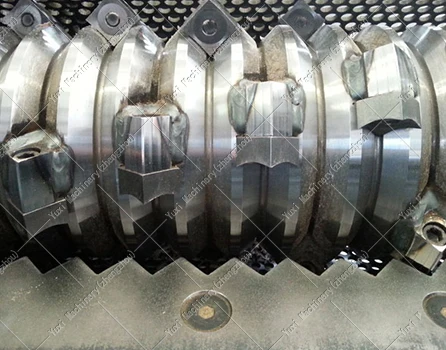

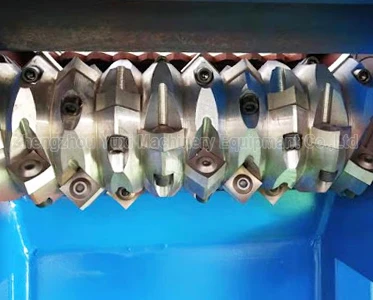

Shredder blade
The use of CNC machining design, the overall solid shaft, modulated by heat treatment, enhance the wear resistance. Tool material is SKD11, four corners can be used.

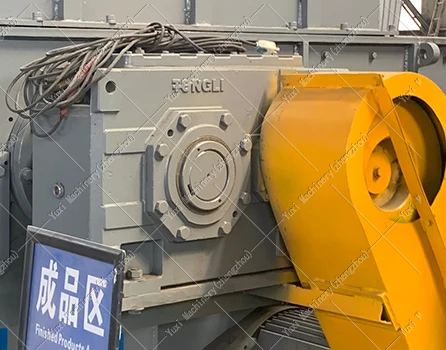

Reducer
Use the well-known brand tongli reducer, match different types of reducers according to the size of the motor, to ensure safe use and stable operation

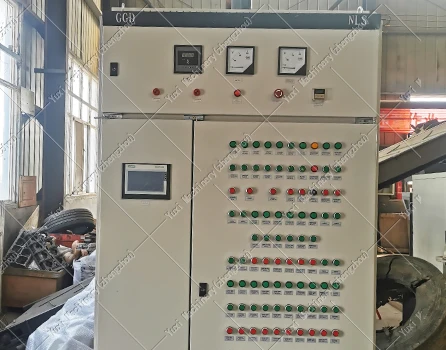

System control cabinet
Fully automatic system control, feedback operation process through PLC. The whole system complies with ce safety standards, and the main electrical software uses brand-name products

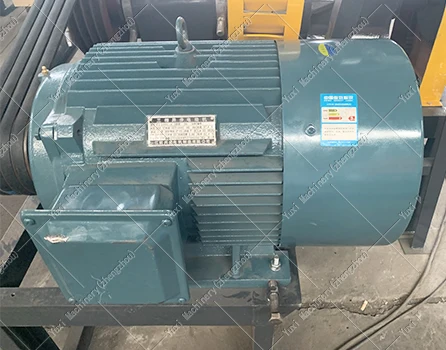

Motor
The motor adopts pure copper motor with long service life
