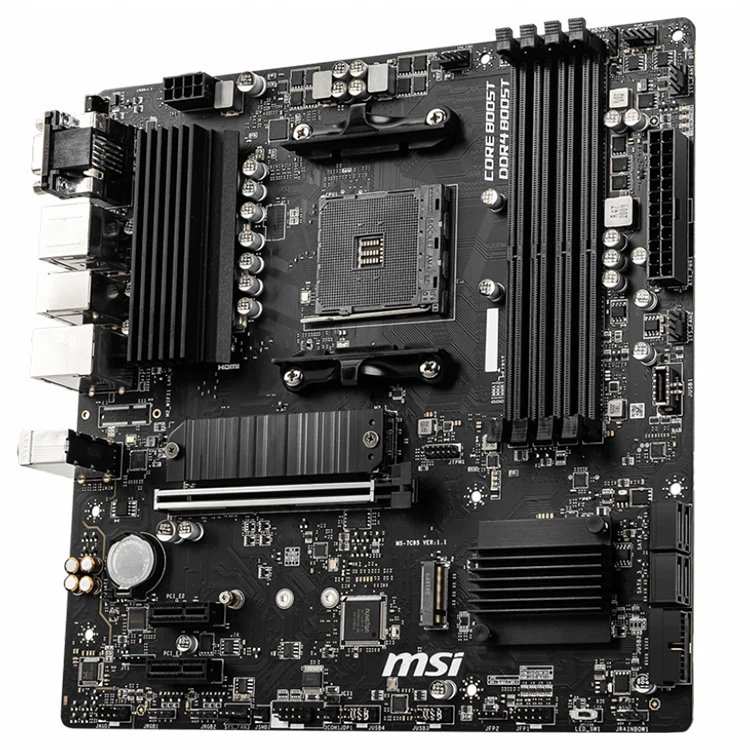

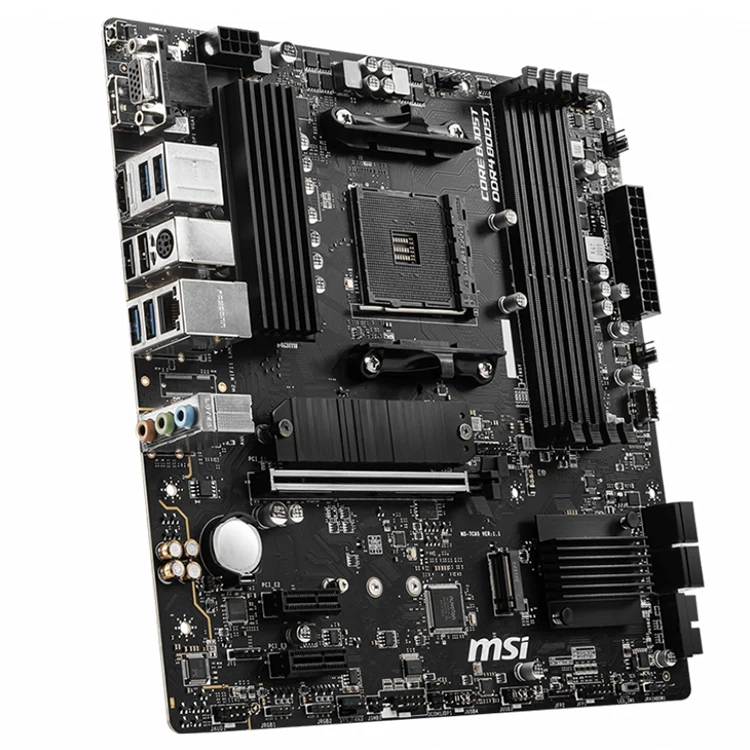

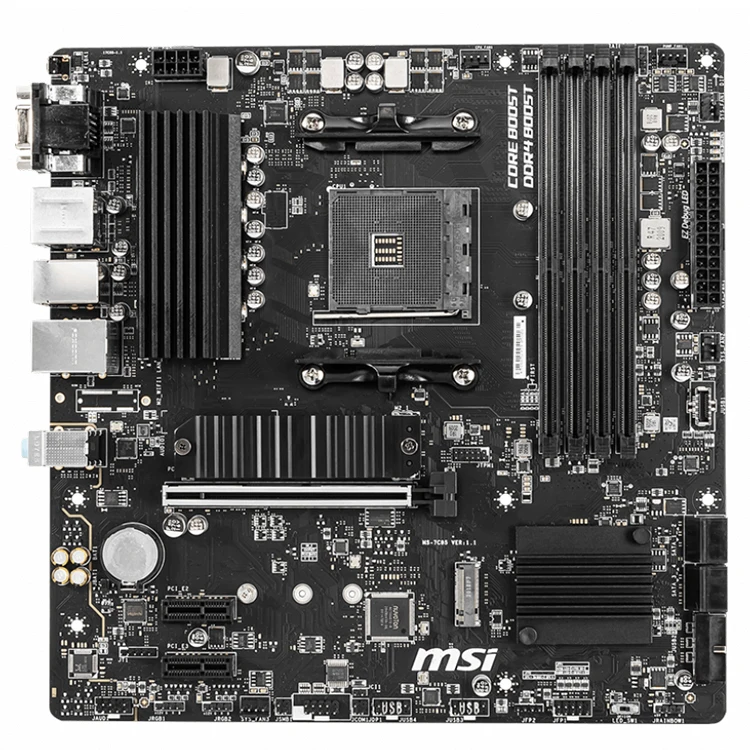

MSI B550M PRO-VDH Gaming Motherboard With 128GB DDR4 Memory Support Ryzen 5600G 5600X 5500 4500 4600G 5700X AMD Processors

• Support for 3rd Gen AMD Ryzen™ processors and future AMD Ryzen™ processors with BIOS update


• Supports DDR4 Memory, up to 4400(OC) MHz


• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr


• Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works


• Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost


• Audio Boost: Reward your ears with studio grade sound quality


• Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

CPU

Supports AM4 socket 3rd Gen AMD Ryzen^™ processors, and future AMD Ryzen^™ processors with BIOS update

CHIPSET

AMD B550 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB ¹




• Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC


• Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE




• 1DPC 1R max speed 4400 MHZ


• 1DPC 2R max speed 3733 MHZ


• 2DPC 1R max speed 3866 MHZ


• 2DPC 2R max speed 3466 MHZ






• Dual channel memory architecture


• Supports non-ECC UDIMM memory


• Supports ECC UDIMM memory


• Supports un-buffered memory

1.  Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

• 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) ¹


• 2x PCIe 3.0 x1 slots

1.  The supported specification depends on installed processor.

ONBOARD GRAPHICS

• 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz¹


• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz¹


• 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz ^1 2


• Maximum shared memory of 16 GB

1.  Available for the processor with integrated graphics.


2.  Graphics specifications may vary depending on the CPU installed.

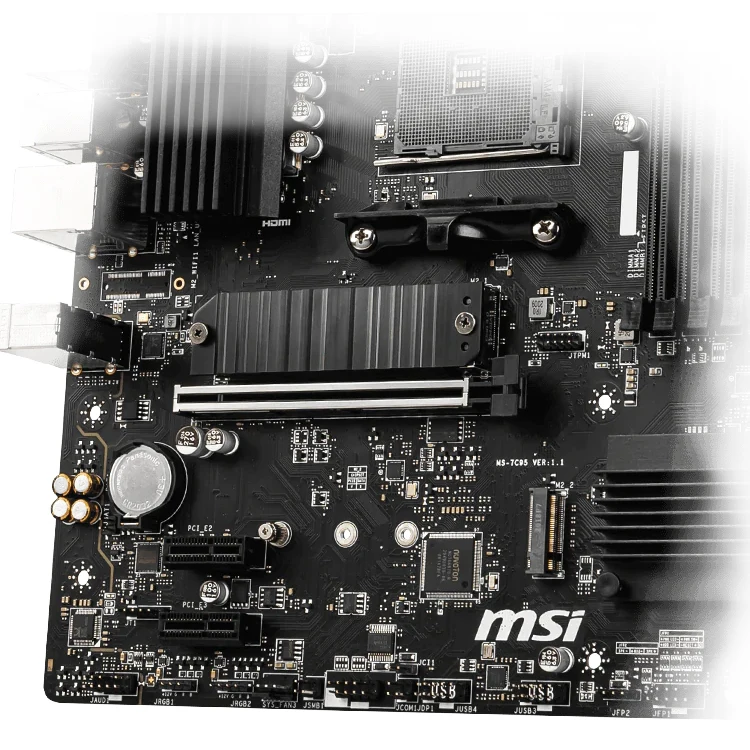

STORAGE

AMD B550 Chipset

• 4x SATA 6Gb/s ports


• 2x M.2 slots (Key M)




• M2_1 slot (from AMD Processor)




• Supports PCIe 4.0/ 3.0 x4 ¹


• Supports SATA 6Gb/s


• Supports 2242/ 2260/ 2280 storage devices




• M2_2 slot (from AMD B550 chipset)




• Supports PCIe 3.0x4


• Supports 2242/ 2260/ 2280 storage devices

1.  The supported specification depends on installed processor.

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices


• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

• 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)


• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

• 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek^® ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek^® 8111HN Gigabit LAN controller

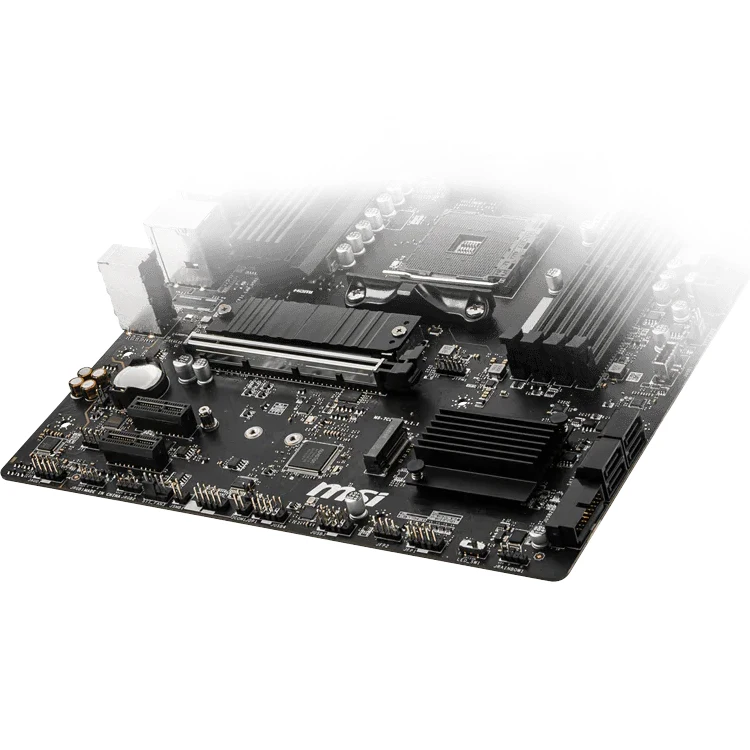

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector


• 1x 8-pin ATX 12V power connector


• 4x SATA 6Gb/s connectors


• 2x M.2 slots (M-Key)


• 1x USB 3.2 Gen 1 5Gbps Type-C port


• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)


• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)


• 1x 4-pin CPU fan connector


• 1x 4-pin water-pump fan connector


• 3x 4-pin system fan connectors


• 1x Front panel audio connector


• 2x System panel connectors


• 1x Serial port connector


• 1x Chassis Intrusion connector


• 2x 4-pin RGB LED connectors


• 2x 3-pin RAINBOW LED connectors


• 1xTPM module connector


• 1x Clear CMOS jumper

BACK PANEL PORTS

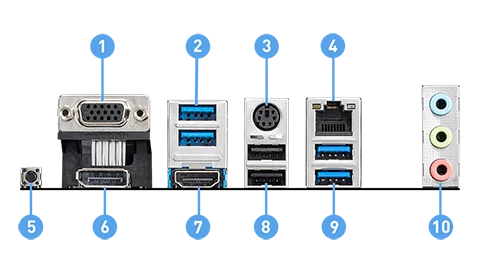

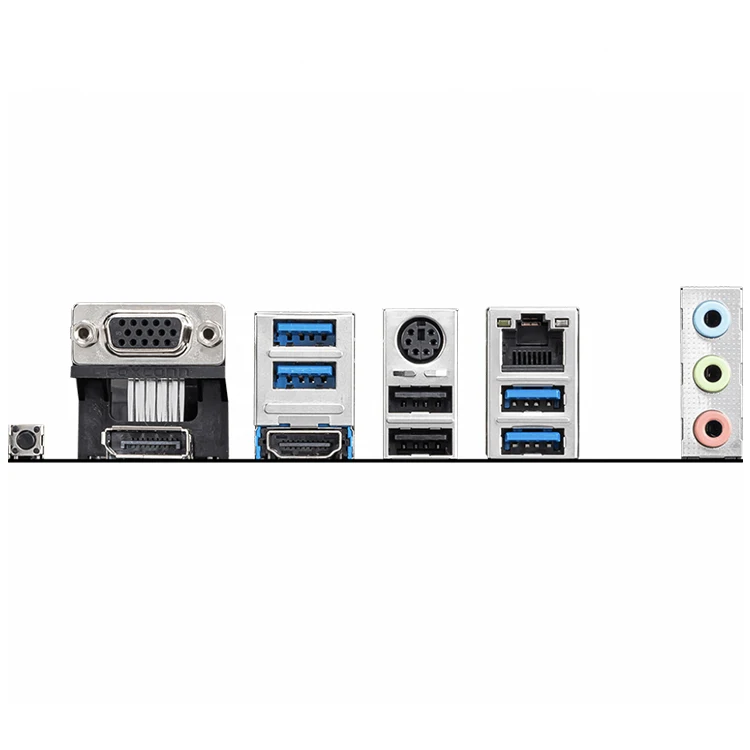

1. VGA


2. USB 3.2 Gen 1 5Gbps Type-A


3. Keyboard / Mouse


4. LAN


5. Clear CMOS Button


6. DisplayPort


7. HDMI


8. USB 2.0


9. USB 3.2 Gen 1 5Gbps Type-A


10. HD Audio Connectors

DIMENSIONS

• Micro-ATX Form Factor


• 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

MOUNTING

8 mounting holes
