45/55/77 PU foam roller shutter door machine fast speed0 30/min PU foam roller shutter slat roll forming machine
- Category: >>>
- Supplier: Jiangyin Dingbo Technology Co. Ltd.
Share on (1600362285441):
Product Overview
Description
PU Shutter door roll forming machine
Product Descriptions
PU Shutters Door and window blinds
1. Rolling up and down, the noise is smaller, the work is quieter, which means less damage to the door every day, longer working hours, and more suitable for human care in some crowded areas.
2. PU shutter doors and windows are sound absorbing materials, so once you shake the shutter door, most of the street sound will be absorbed by the foam in the shutter door.
3. Fireproof and energy saving: The foam density is large, which can save area energy and fire. Therefore, it is highly recommended to install the main door and window in a safer and more economical room.

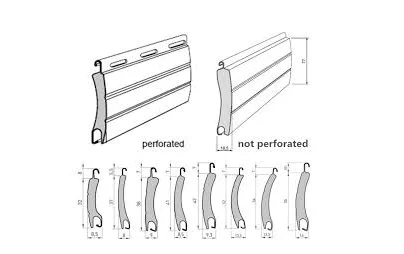

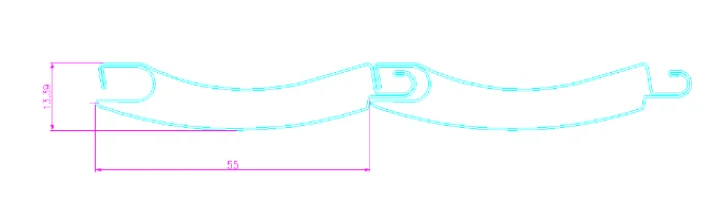

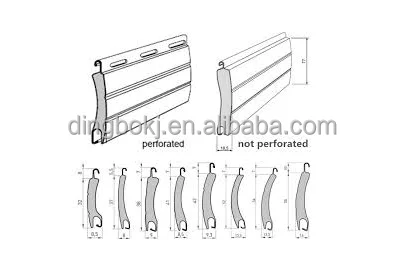

Version to design

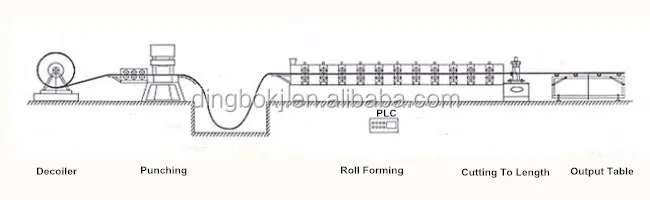

Working Flow
Decoiler -- Feeding -- Leveling -- Roll forming -- PU foaming -- PU Curing&shaping -- Hydraulic-cutting -- Output table
Product Parameters
Uncoiler Type | Manual |
Loading capacity | 3Ton Impassive to expanding |
Axis Diameter | 40 mm |
Forming Roller station | 37groups |
Main Axis material | First grade 45# steel heated and quenched |
Pillar size | 42*45mm |
Forming Speed | 10-15m/min |
Drive Type | Gear box |
Cutting type | Pneumatic flying saw |
PLC system | Japan PANASONIC |
Main Components
No. | Name | Qty |
1 | Manual Uncoiler | 1 |
2 | Feeding Guide | 1 |
3 | Roll Forming System | 1 |
4 | Foaming machine | 1 |
5 | Pneumatic flying saw | 1 |
6 | Control system | 1 |
7 | Output table | 2 |

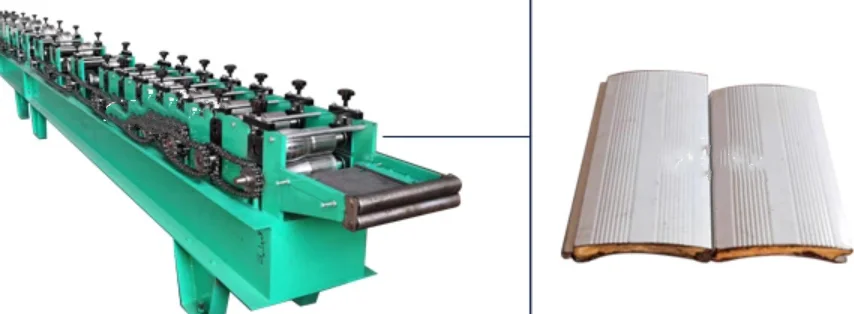

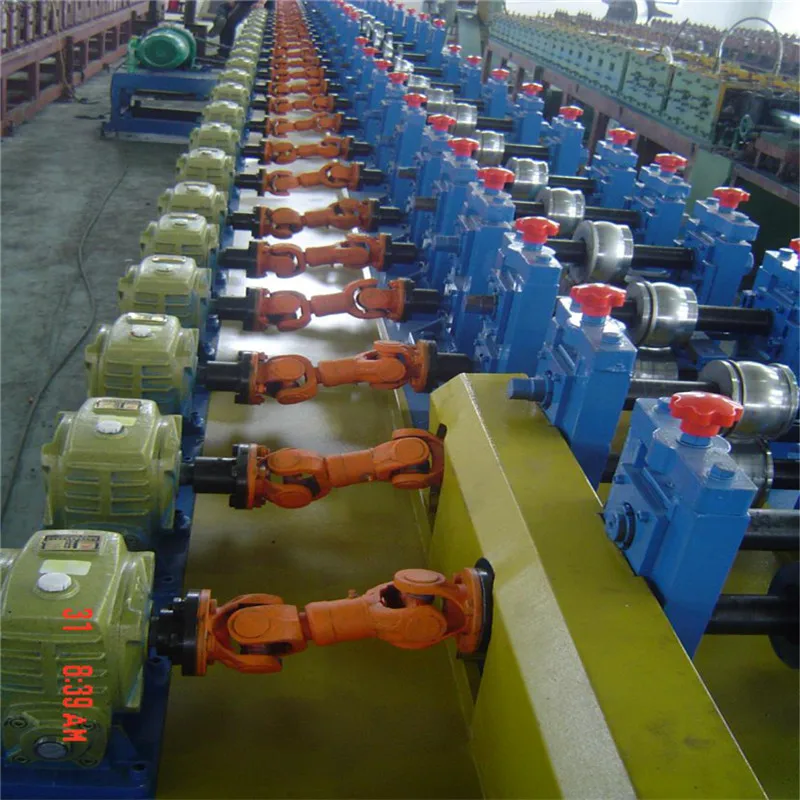

Machine Pictures

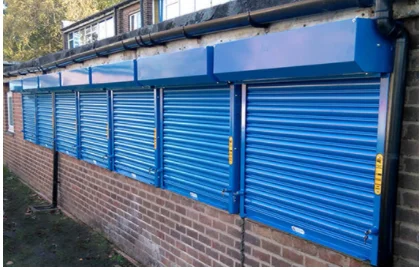

Application pictures
Packing& delivering
We will book cabins before delivery, and arrange land transportation before customs declaration. After all the parts were packed into the container, we repaired all parts of the machine and reminded the driver to pay attention to safety and our salespeople will always pay attention to logistics.
Customers visit
our exhibition
FAQ
1. Q: What's the warranty period? (24hours online)
12 months warranty period, starting from the date of the successful installation and commissioning of the equipment at the Buyer’s Installation site. During which all parts damaged because of quality problem will be changed for free.
2. Q: Do you have installation and commissioning service?
A.If buyers come to our factory to inspect, the training to install and operate is provided face to face. If not, manual and video is provided to show how to install and operate.
B. If buyer need we will send technician to buyer site to do installation and commissioning and training.
C.installation and commissioning cost: One engineer will visit Buyer’s workshop for installing, commission and training. The buyer has to pay USD100/per day and visa fee, air tickets fee, accommodation and food, necessary communication, etc.
(Normally ,It takes about a week to install )
3. Q: What’s your after-sales service ?
We provide 24-hour online service for our customers.
And we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.
4.Q: What's your delivery time ?
Normally we can finish production and testing within 45-70 days after receiving deposit. Some machines in stock, can be delivered at any time
5.What are your terms of payment ?
First payment: 30 % by T/T, second payment: 70% by T/T, after the successful inspection at seller’s workshop, and before delivery.
