Небольшой пластиковый гранулятор, двухшнековый экструдер из полистирола
- Category: Plastic Raw Material Machinery >>>
- Supplier: Nanjing,Yongjie,Qixin,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Small Plastic Granulator Machine Polystyrene Twin Screw Extruder
Brief introduction: small plastic granulator machine consists of parallel twin-screw extruder, water tank, blower and cutter. The gearbox is high torque design, implement smooth operation, low noise.
Main technical data of small plastic granulator machine
Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 |
|
|
SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Application for small plastic granulator machine
1. Fiber reinforcement and modification: filling glass fiber or carbon fiber for: PP, PA, PBT,
ABS, AS, POM, PPS, PET, etc, 2. Ploymer compounding: PC+ABS, PA+ABS,CPE+ABS,PP+EPDM,PA+EPDM,
PA+SBS, etc. 3.Filling modified: Filling CaCO3,Talc,Titanium, carbon black for PVC PE,PP, EVA etc.
4. Cable material: cable sheath, cable insulation compounds, crosslinking compounds,
optical fiber protection compounds, cable coating material, thermal contraction material,
etc. 5.Dedicated material: PPR pipe compounds, PE crosslinking tube material, cigarettes
filter tip material, acetate fiber material, etc.
6.High Concentration Color Masterbatch: PE,ABS,PS,EVA,PET,PP + color +
additives, etc. 7.Flaming Retardants: PVC, PP, PA, ABS, EVA, PBT + flame retardants, etc.8. Special Functional Masterbatch: double protection masterbatch, antistatic masterbatch,
anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material, etc.9. The degradable masterbatch: PP, PE, PS + starch+ additives, etc.

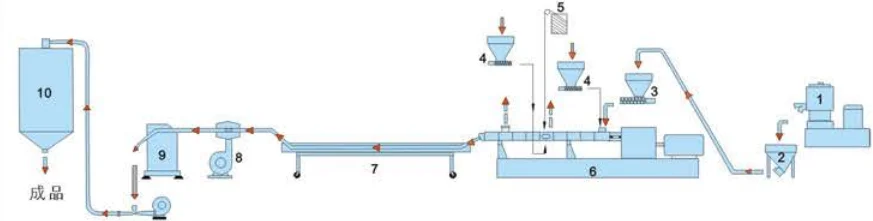

FLOW DIAGRAM
From left to right: Feeding (material) →melting/compounding inside the extruder →come out of die →cooling in the water trough →blowing →cutting into granule

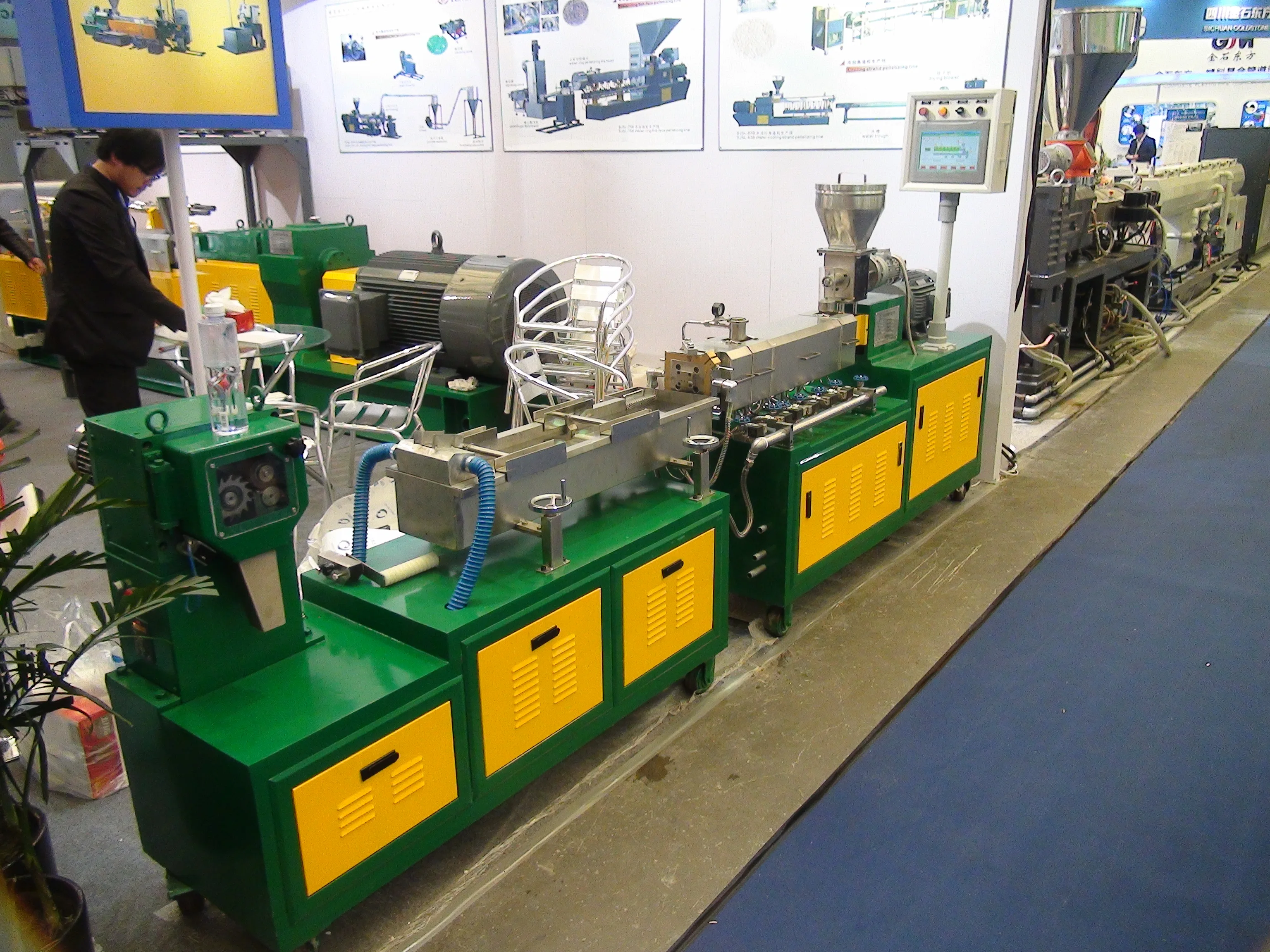

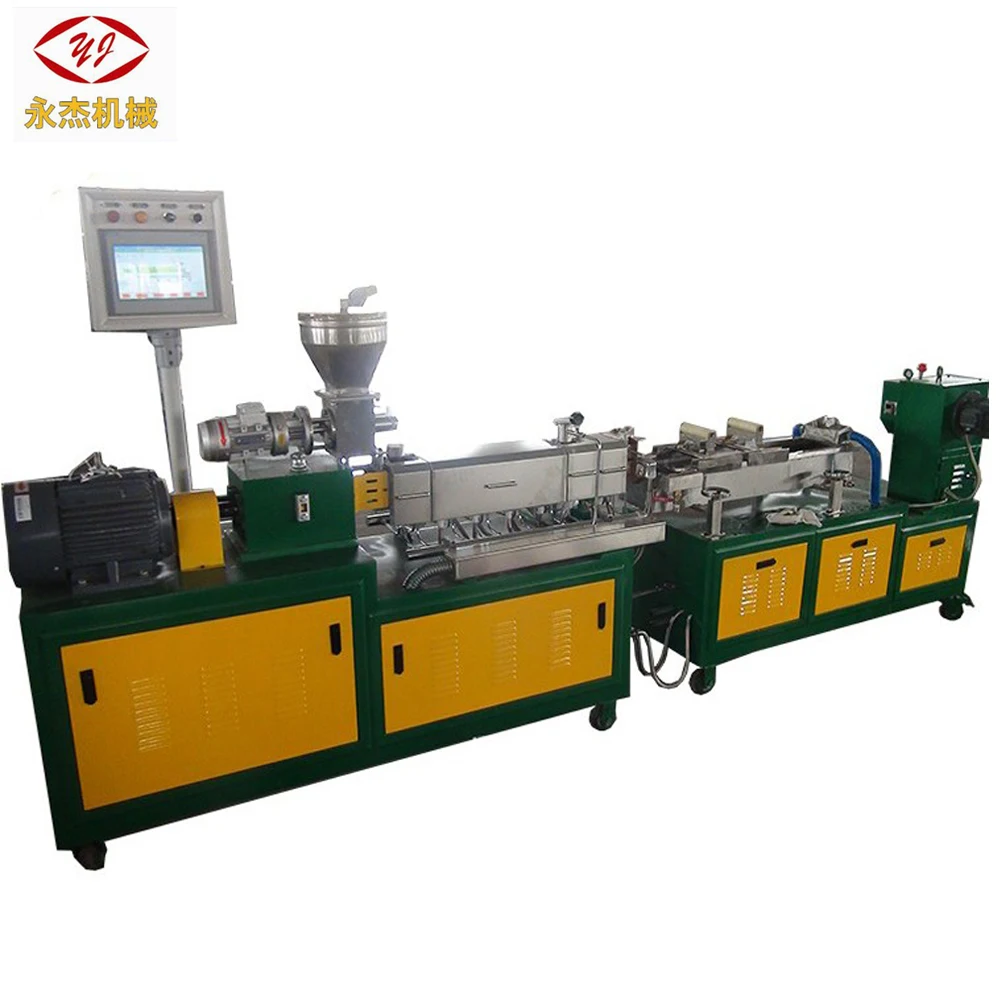

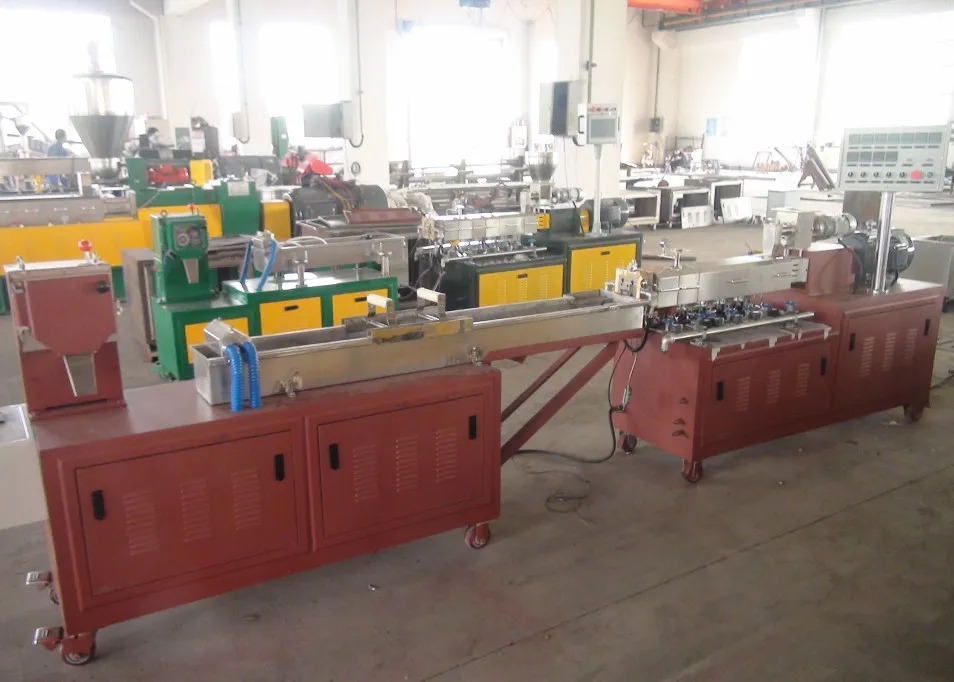

Phto of small plastic granulator machine
SUB-MACHINE
Other product

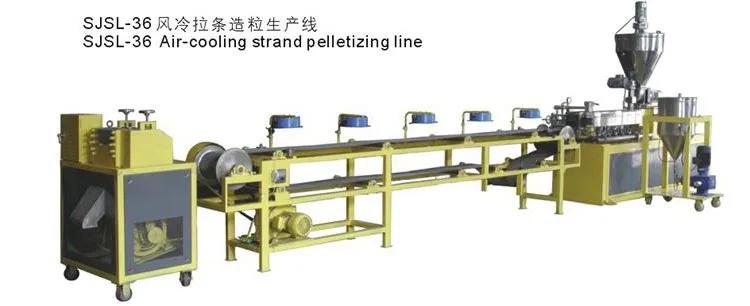

Pelletizing in the water line Air-cooling strand pelletizing line
Watering Hot-face pelletizing line Water-cooling stand pelletizing line
Contact us
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd
Add. : No.9 Lanxia Road, Moling Industrial Concentration Area, Jiangning District,211165, Nanjing, China
Tel.: 0086 25 52750152
Fax: 0086 25 58736139
Contact person:Annie
Mob/Whatsapp/Line/Wechat/Yahoo:0086 15026670964
Skype: annie at njyjhg.com(same as email)
Website: www.njyjhg.com
