Electrical Cable Wire Connector Push in Terminal Block Universal Fast Terminal Wiring Cable Connectors For Cable Connection

Product Overview

Description

Features

100% Brand new!

Safe and reliable lever nut wire conductor connectors, selecting the best flame retardant insulating material, which is long life, no corrosion, anti-aging, pressure 4KV and against electrical shock.

Easy to use, quick splice solderless terminals, instead of traditional electrical tape and electrical butt connectors twist-type, technological innovation reduce wiring time by 70%.

Connect any combination of solid, stranded or flexible copper wires faster and more reliably, 0.08-2.5mm²/28-12AWG removable wire connectors.

Practical and reusable terminal block push wire connectors, widely used in electronics, communication equipments, instruments, calculator, automatic control system, domestic appliance and warning devices, etc. Very easy to install and convenient to use.



Specifications

Product Name: Universal wire connector

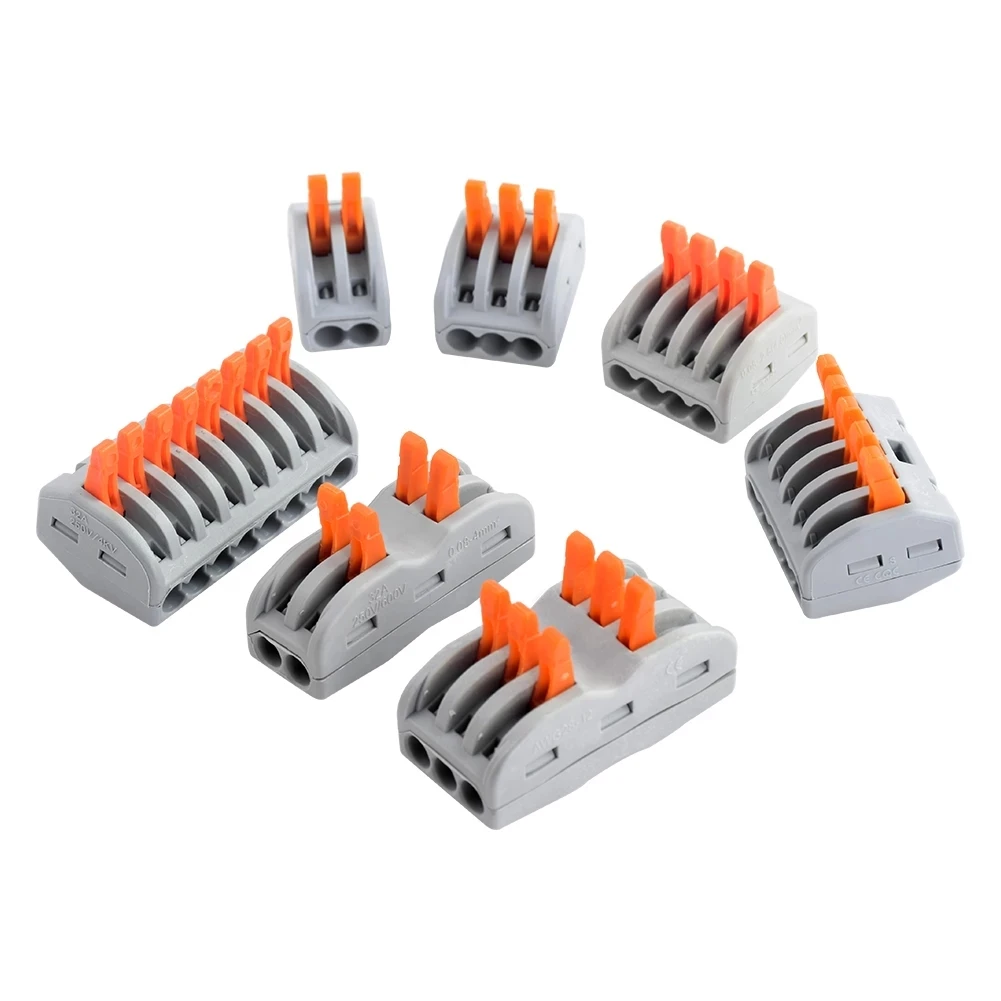

Model Number: 222-412(PCT-212), 222-413(PCT-213), 222-414(PCT-214), 222-415(PCT-215), 222-418(PCT-218), SPL-2, SPL-3

Material of Insulation: Modified nylon(PA66)

Contact Material: Phosphor copper

Wire Cross section: 0.08~2.5mm²(single hard wire); 0.08~4mm²(multi soft wire)

Rated Current: 32A

Rated Voltage: 250V

Rated Impulse Voltage: 4KV

Rated Power: 8KW

Gauge: 28~12AWG

Strip Length: 9-10mm

Maximum Operating Temperature: 105°

Color: Grey+Orange

Connector Size: About 20x14x11mm/0.79x0.55x0.43"(222-212)

20x16x13mm/0.79x0.63x0.51"(222-413)

20x20x14mm/0.79x0.79x0.55"(222-414)

25x20x14mm/0.98x0.79x0.55"(222-415)

38x20x14mm/1.50x0.79x0.55"(222-418)

40x13x12mm/1.57x0.51x0.47"(SPL-2)

40x17x13mm/1.57x0.67x0.51"(SPL-3)



Attentions

Please allow tiny size deviations due to human measurement.

Due to the effect of light and monitor's brightness, there may be slight differences between the color tone of the photo and the actual item!
