Special shot blasting machine for removing dirt on the surface of oil drums / covers / tubes and vessels

Product Overview

Description

Special shot blasting machine for removing dirt on the surface of oil drums / covers / tubes and vessels

Steel Pipe and LPG Cylinder Outer Wall Shot Blasting Machine

Horizontal Through Gas Tank Surface Descaling Shot Blasting Machine

Product Description;

Horizontal Through Gas Tank Surface Descaling Sucker Rod blasting machine is suitable for blast cleaning outer surfaces of steel pipes, gas steel bottles, Lpg Cylinders, poles and round components, Sucker rod, remove the scales and weld dregs, make it show metal color, increase its ratio surface area, and improve the anti-fatigue force and anti-rust capacity of surface, improve the inherent quality of surface and prolong the lifetime.

Technical parameters of QGW Series


Type	QGW20-50	QGW50-150
Dia of pipe tube(mm)	30-500	500-1500
Abrasive flow rate(kg/min)	2X250	2X250   3X250
Cleaning speed(m/mim)	0.5-4	0.5-4

Our machines can cleaning different size h beam,tell us your workpieces size,we can design it according to your requirment,professional enginners serve to you.

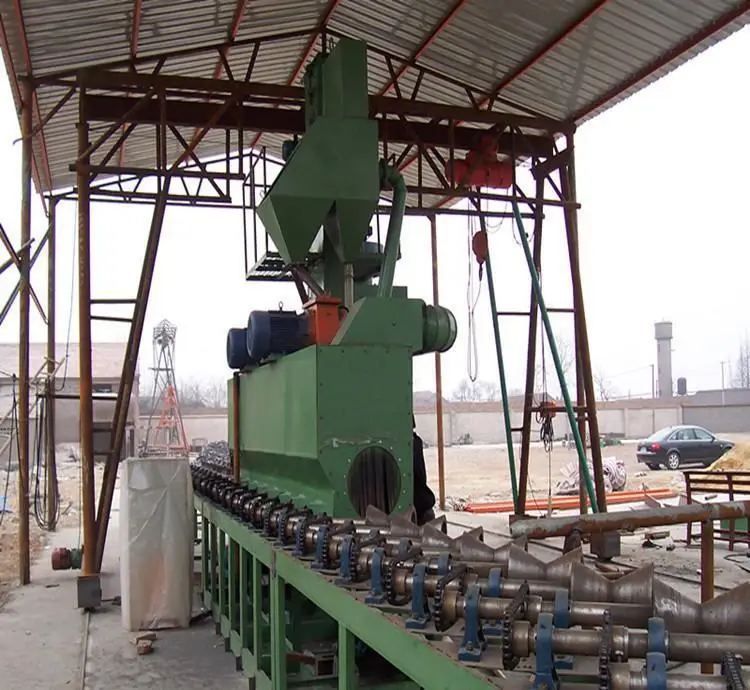

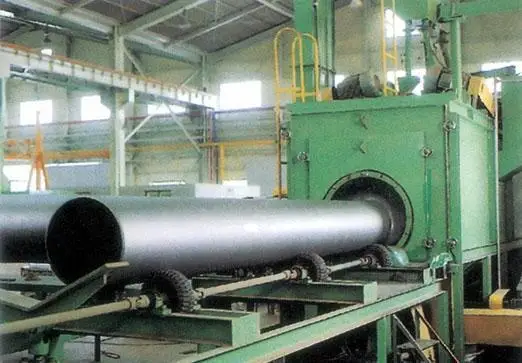

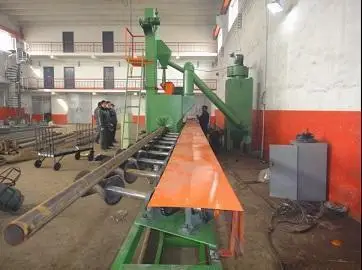

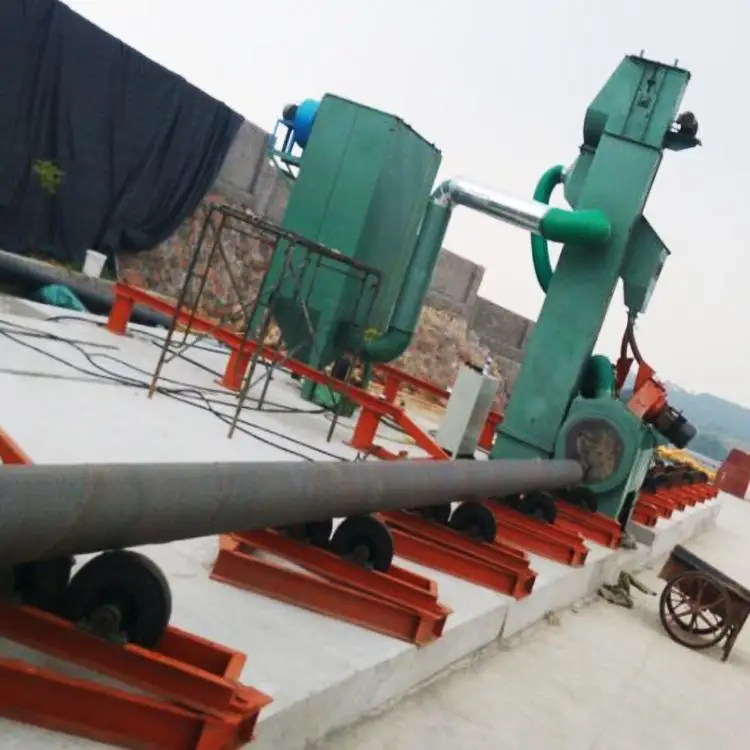

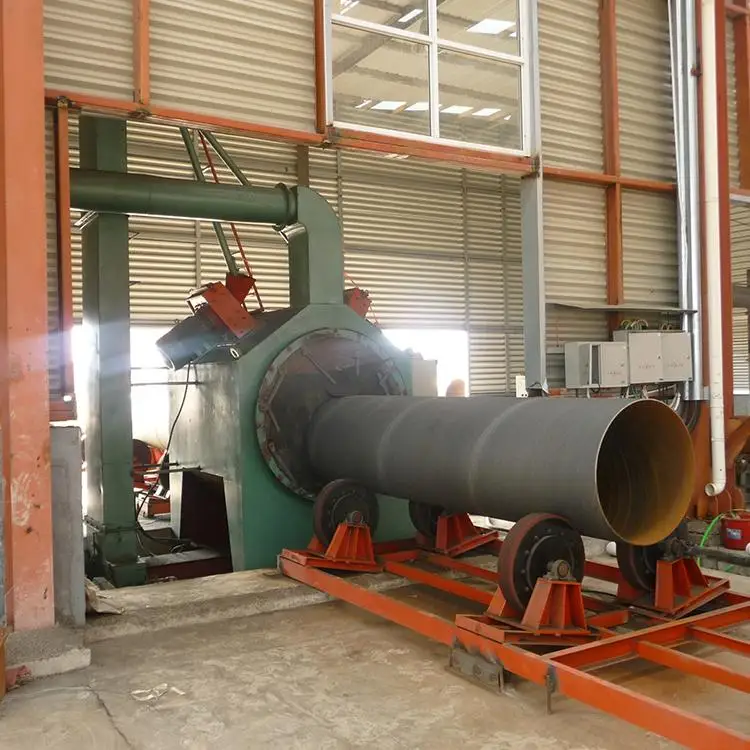

Images of QGW shot blasting machine
