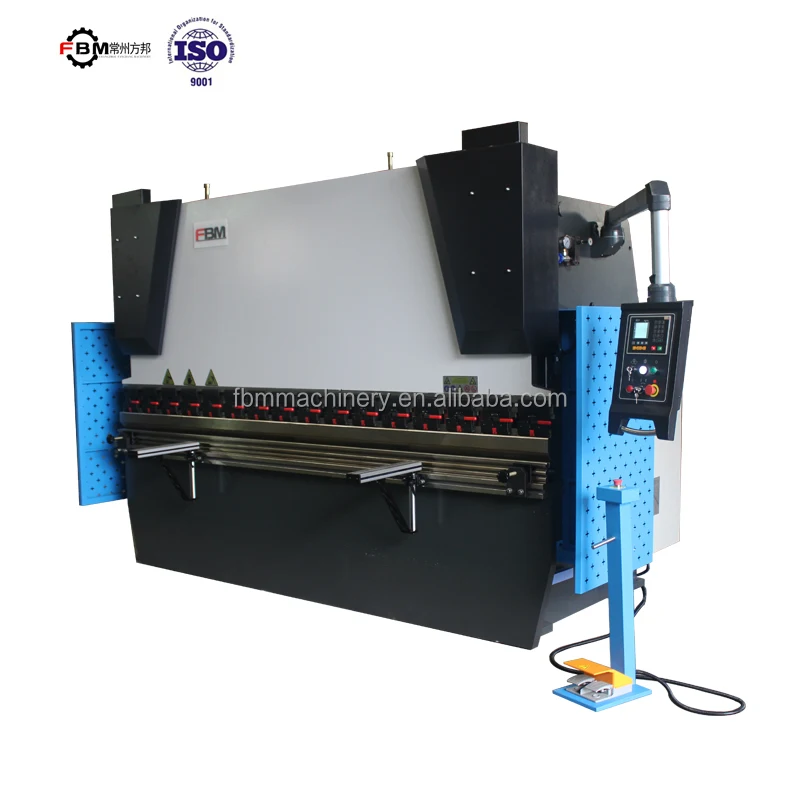

Factory directly supply WC67K 80T/2500 hydraulic sheet plate bending machine
- Category: >>>
- Supplier: Changzhou Fangbang Machinery Technology Co. Ltd.
Share on (1600362801993):
Product Overview
Description
Products Description
Features:
1. Whole steel welded structure, with internal stress eliminated by vibration aging technology,high strength and good rigidity;2. Hydraulic with torsion bar;
3. Control axes, Y axis(upper ram) and X axis (backgauge);
4. Integrated hydraulic system, upper transmission, pressure control for adjustment of tonnage;

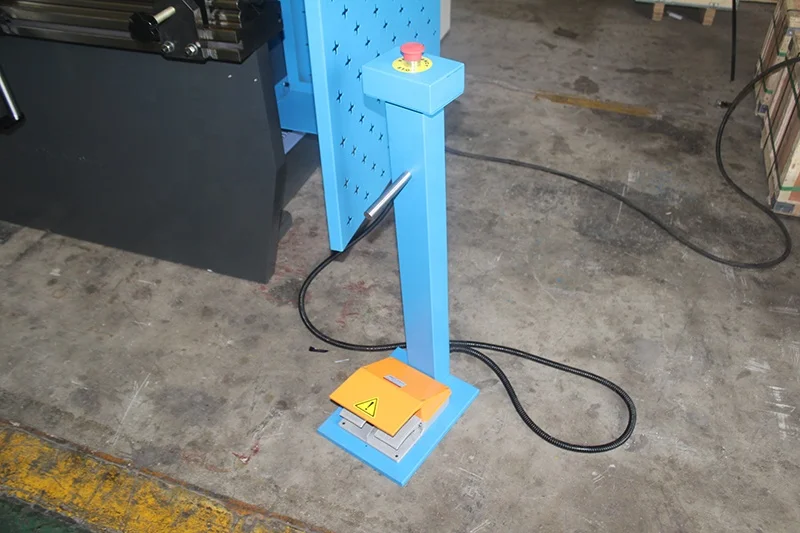

5. Removement foot-pedal switch;
6. Emergency stop button;
7. Segmented upper punch and multi-V dies, other punch and dies options;
8. Oblique steel solid deflection compensation device is adopted for upper punch;
9. International standard electrics and switches;
Product Paramenters
Model | 80T/2500 | |
Bending Force | 800 | KN |
Bending length / worktable length | 2500 | mm |
The distance between housing | 2000 | mm |
Throat Depth | 250 | mm |
Slider Stroke | 120 | mm |
Max opening Height | 350 | mm |
Back gauge (X axis) travel range | 600 | mm |
Approaching Speed | 70~80 | mm/s |
Working Speed | 8~10 | mm/s |
Return Speed | 60~70 | mm/s |
Main motor | 7.5 | KW |
Weight | 4300 | KG |
Dimension（L×W×H） | 2800x1350x2120 | mm |
Details Images

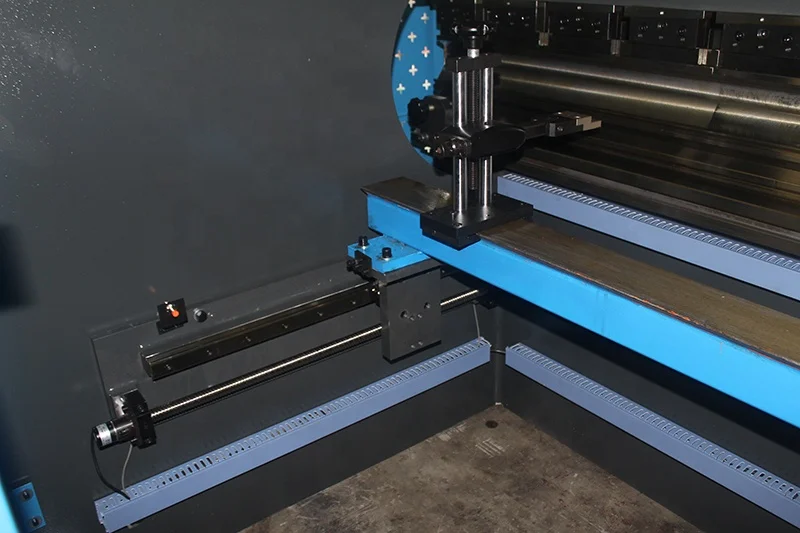

HWIWIN linear guide and ball screw

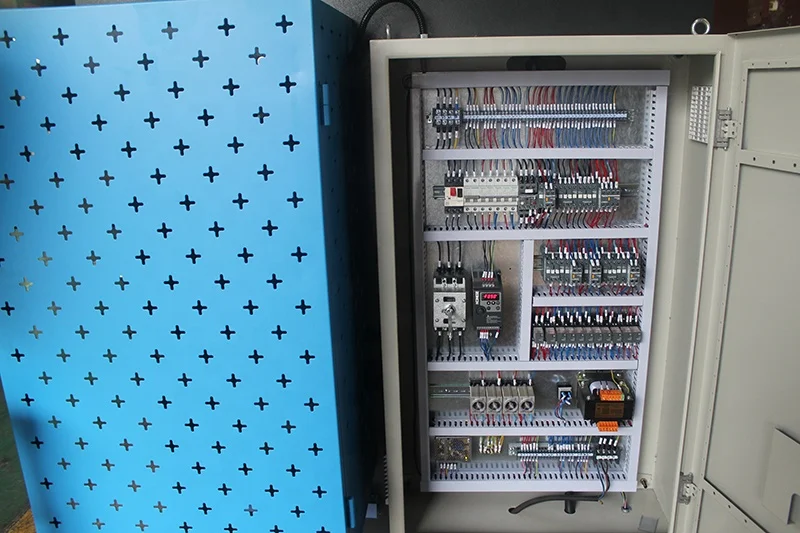

Schneider electric and driver

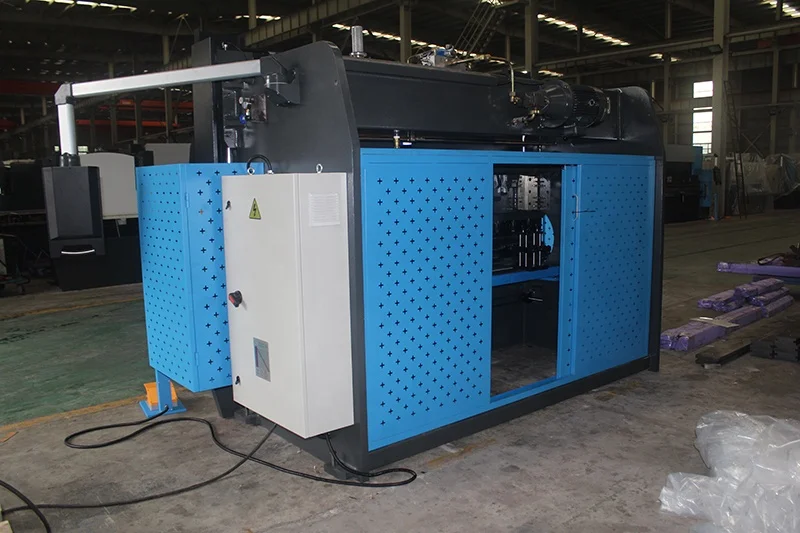

Hydraulic valve, pump and motor
Certifications

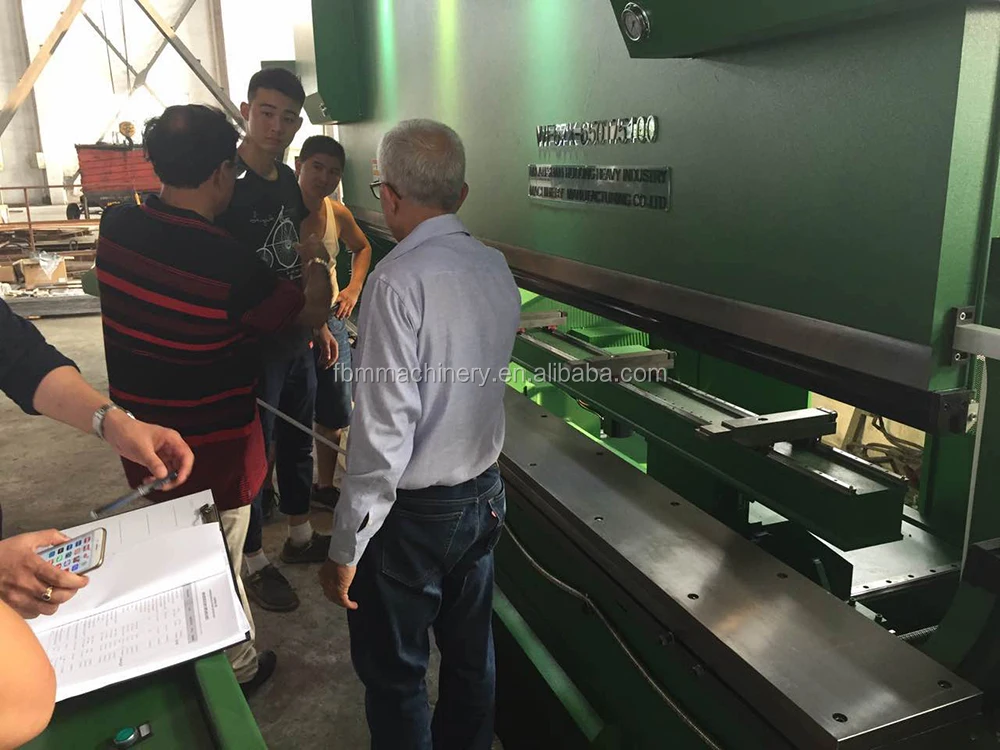

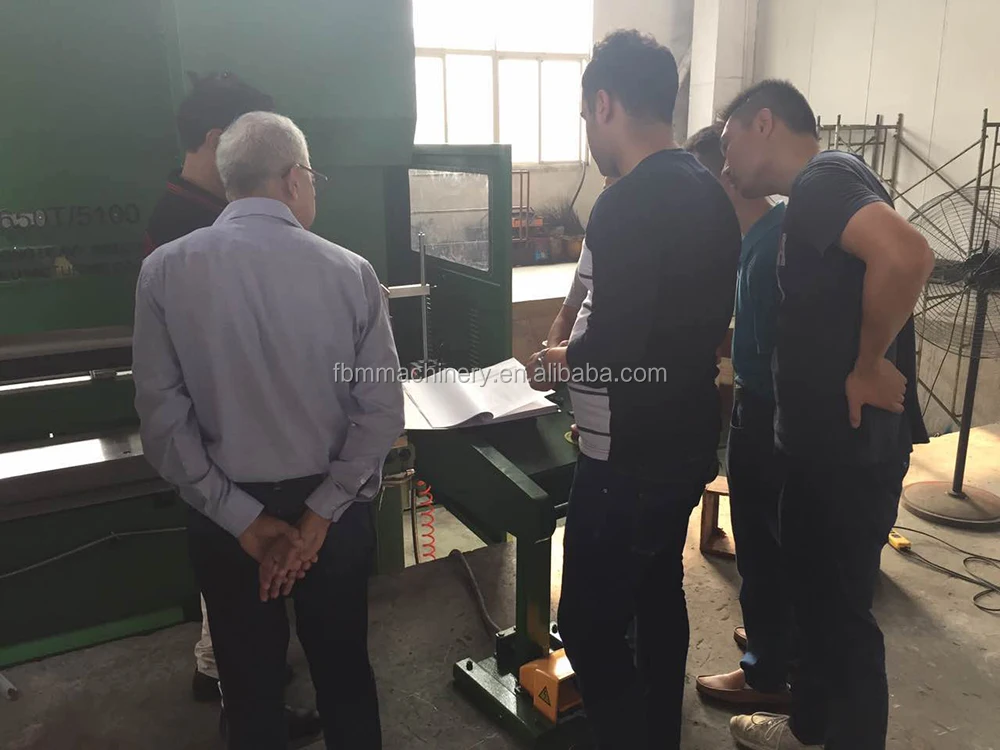

Customer Photos
