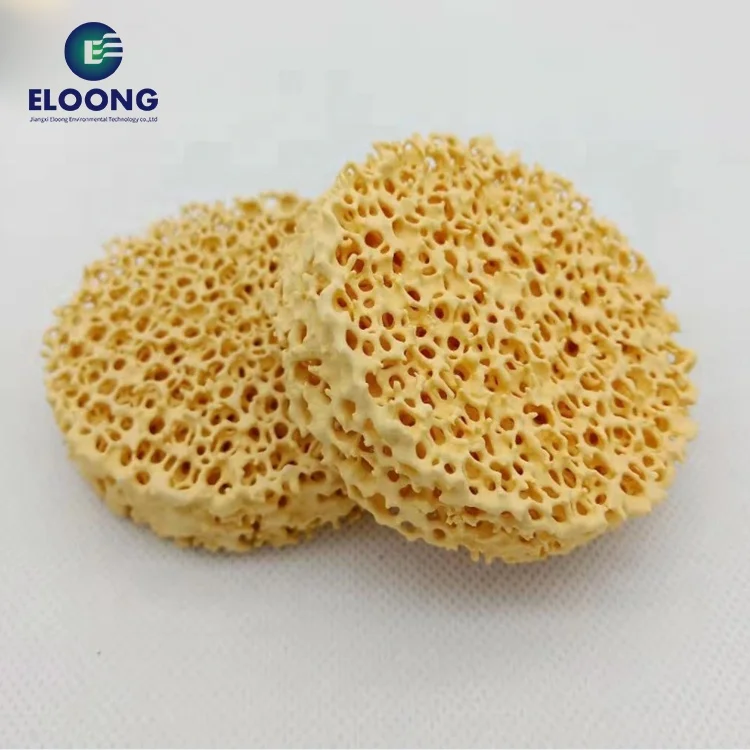

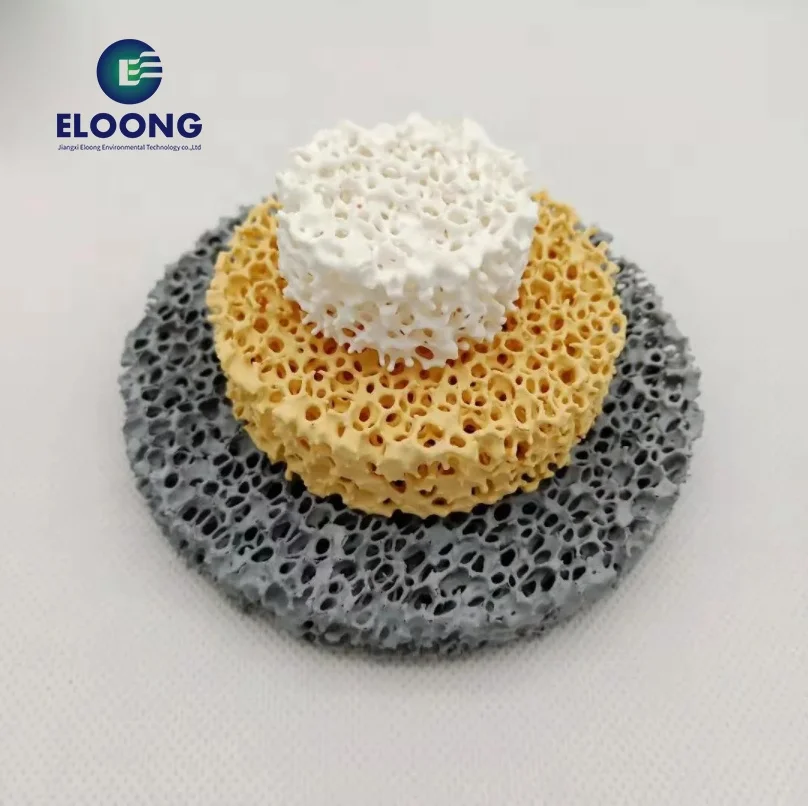

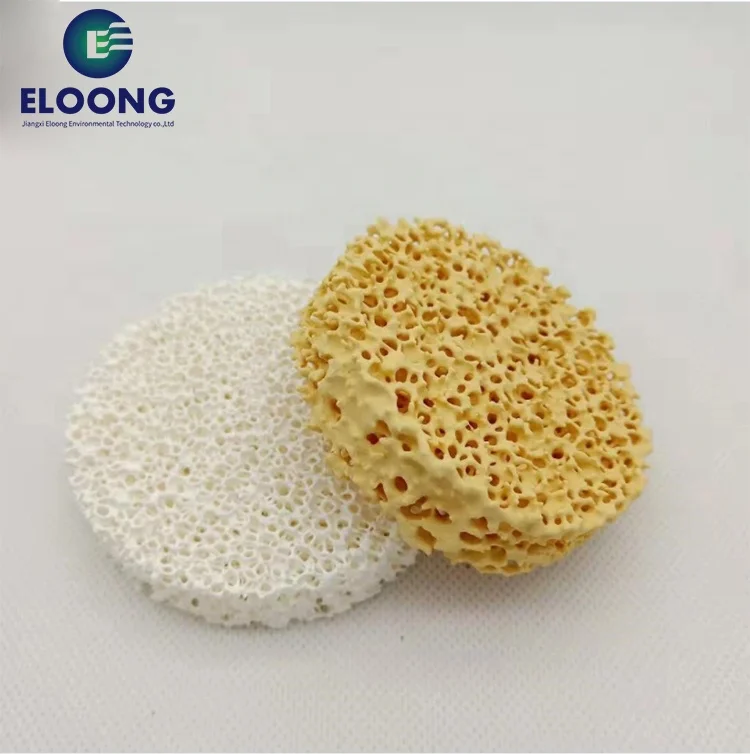

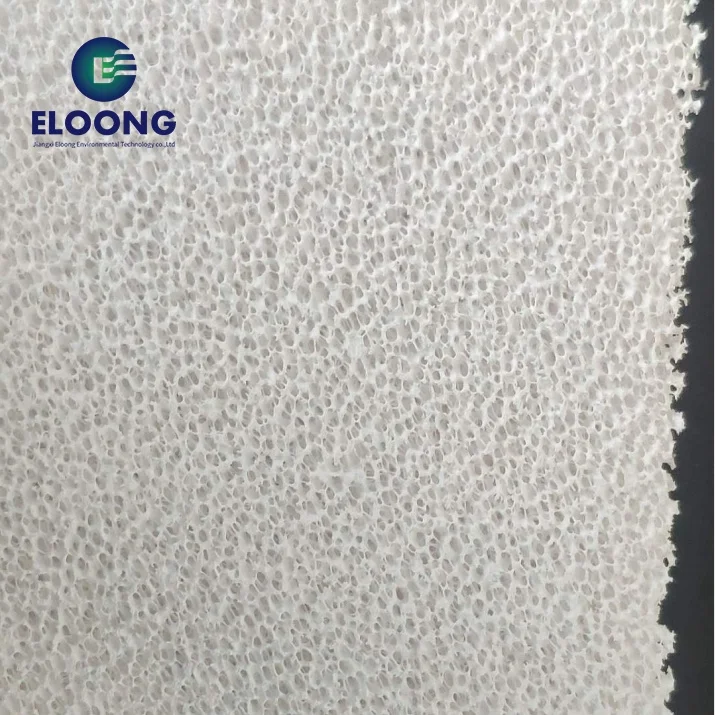

Round Silicon Carbide Ceramic Foam Filter Square Sic Honeycomb Ceramic
Foam Ceramic are mainly used for filtration of aluminium and aluminium alloys in foundries and cast houses . With their excellent
thermal shock resistance and corrosion resistance from molten aluminum, they can effectively eliminate inclusions, reduce trapped
gas and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality
castings, less scrap, and fewer inclusion defects, all of which contribute to bottom-line profit.


Feature
High porosity, Low loss of thermal shock, High mechanical strength at normal and high temperature, Large specific surface, Good
chemical stability and Excellent filtering functions ofscreen, filtering residuum collection and adsorption especially for tiny
impurity of 1~10μm. The three-dimensional structure can improve the cast quality in large scale by changing the molten metal from
turbulence flow to lamellar flow, removing the gass and smoothing the casting. Ceramic foam filter is not only applied for molten
metal filtering in high temperature, but gas treatment in high temperature, carrier of catalyzer, solid heat exchange and advanced
filling for chemical industry.


Ceramic Foam Filter
Material
Value
Unit
Alumina
Silicon Carbide
Zirconia
Composition
Al2O3
≥85
≤30
≤30
SiO2
≤1
≤10
≤4
Others
--
SiC ≥60
ZrO2 ≥66
Channels Density
ppi
10~60
10-60
10-60
Porosity
%
80~90
80~90
80~90
Bending Strength
Mpa
0.6
0.8
0.8~1.0
Heat Conductivity
Mpa
0.8
0.9
1.0~1.2
Max Operation Temperature
°C
1100
1500
1600
Heat Resistance (1100-20°C)
Times/1100°C
6
6
6
Application
Non-ferrous, Alumina making
Iron smelting
Steel making


Our workshop


Plastic Random Packing Workshop

Tower internals workshop

Precision mold workshop



Intelligent Stereoscopic warehouse

Metal Random packing Workshop

Metal structured Packing Workshop



Certifications




Customer Photos




Why Choose Us




Product packaging




FAQ


Q1：What's the MOQ?
A1 : The MOQ is 1 cubic meter or 1 ton, The price will be higher if the quantity is less than 1 cubic meter or 1 ton.
Q2 : What are the terms of payment?
A2 : T/T , L/C at sight, Papal , Alibaba Trade Assurance and etc.
Q3 : What's the delivery time?
A3 : About 3-7 days .after received the fund.
Q4 : Can you provide free samples?
A4 : Yes , Sample will be free within 0.5 kg.
