Kitchen Faucet Manufacturer Cheap Single Handle Pull Out Kitchen Taps Sink Faucet
- Category: >>>
- Supplier: Xiamen OLT Co. Ltd.
Share on (1600363553294):
Product Overview
Description
Pull Out Infrared Sensor Commercial Kitchen Faucet
Self-contained design
Ceramic mixing valve built-in
Windowless capacity sensing, angle free activation
Capacitive touch on/off
Temperature adjustable
Hygienic and upto 70% water conservation
OEM and ODM is welcome and avaialble.
Hot Sale Products
Company Profile:
OLT have been designing and manufacturing automatic faucets , kitchen upc faucet and flushing devices operated by infra-red sensors, capacitive and micro-wave technology,which has been marketed all over the world. Our wide range of products include automatic wall-mounted and deck-mounted faucets, automatic flushing valves for urinals and toilets, and a variety of electronic components, which are suitable for commercial and domestic application.
We are today’s leading producer and supplier in China of the above products, and all our products are CUPC, WRAS, CE, ISO9001 and ISO14001 certified, while most of them are nationally patented.
Product pictures:

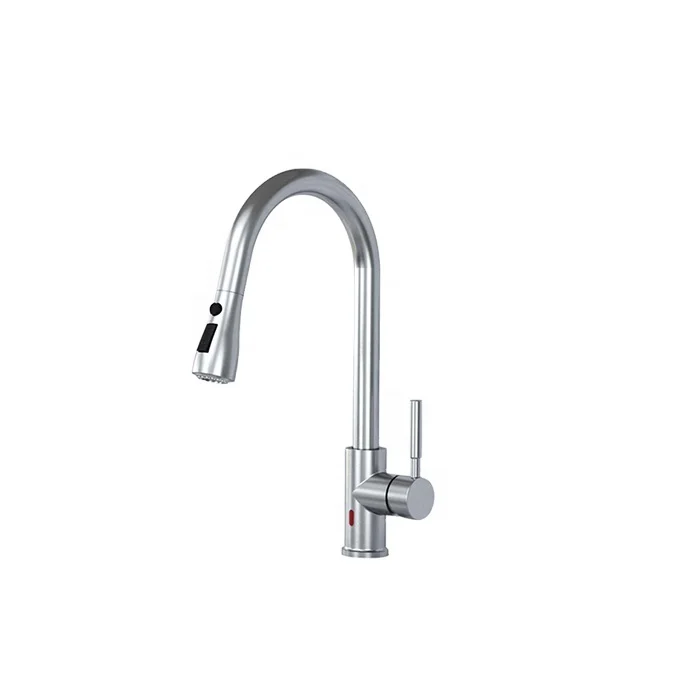

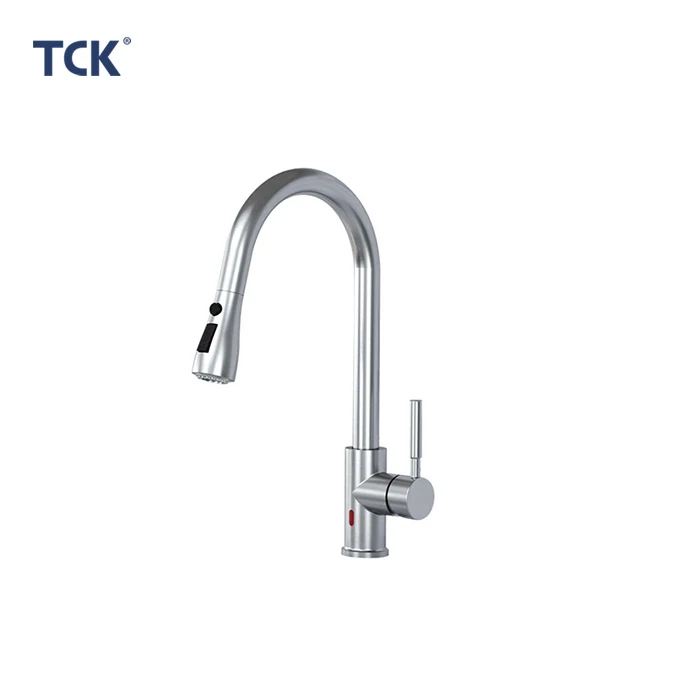

Pull Out Infrared Sensor Commercial Kitchen Faucet
+
Product Dimension:

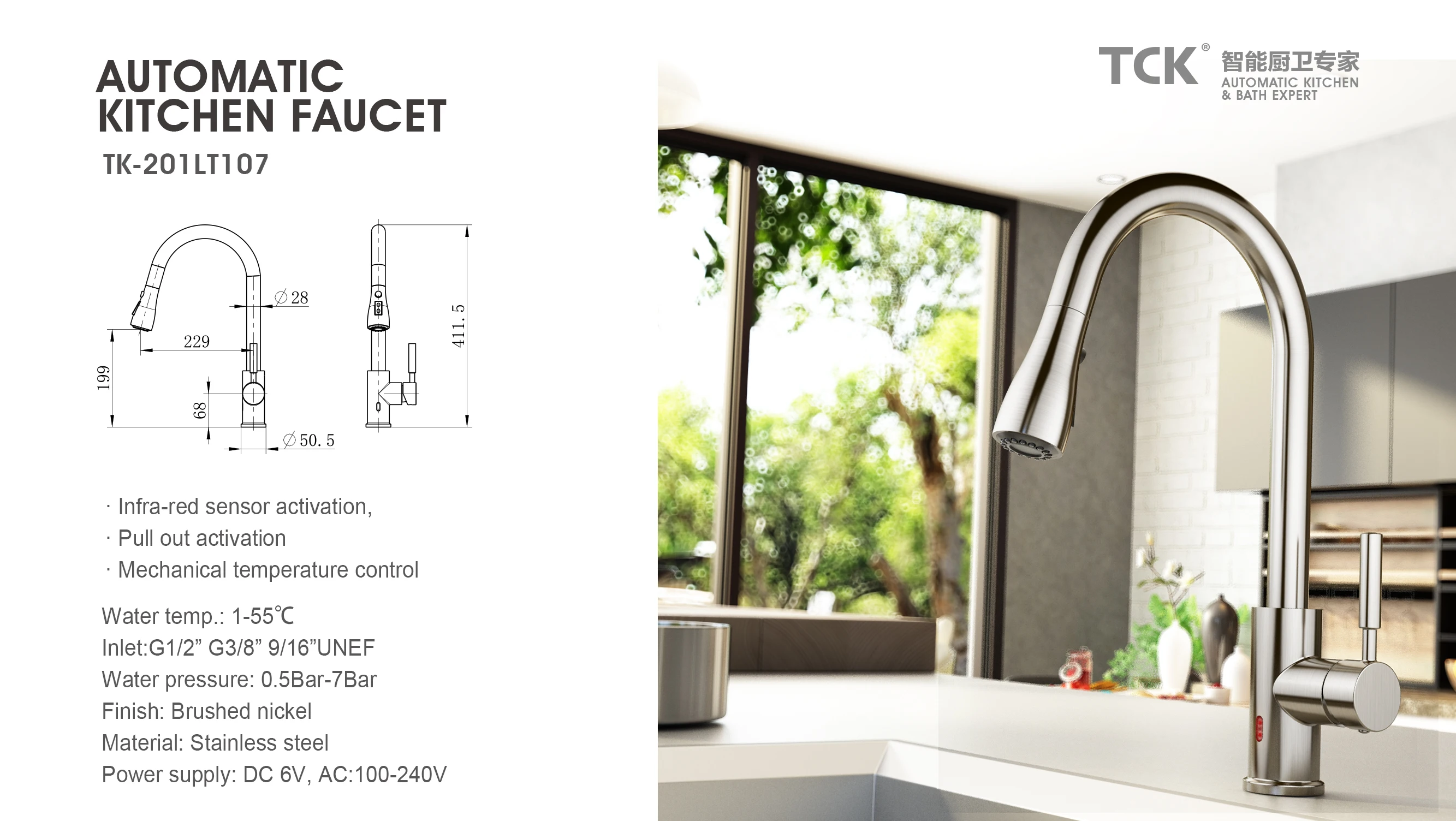

Pull Out Infrared Sensor Commercial Kitchen Faucet
Specification:
Pull Out Infrared Sensor Commercial Kitchen Faucet
No. | Product description | Pull Out Infrared Sensor Commercial Kitchen Faucet |
1 | Power supply | DC:6V(4 x AA alkaline batteries) AC:220V-240V/50Hz or AC110V/60Hz |
2 | Power consumption | Static≤0.3mW;Active≤3W |
3 | Battery life | 108000 flushes(4 x AA alkaline batteries) |
4 | Sensor field | 05-35cm (adjustable) |
5 | Water pressure | 0.05~0.8MPa |
6 | Ambient temperature | 0~55°C |
8 | Working life | 350000~400000 times |
9 | Sensor time | <1 Sec |
10 | Closing time | <2 Sec |
11 | Low voltage indication | 3.9V(The light will flash twice each two seconds) |
12 | Self shut off time | 65-70 Sec (Non stop flushing) |
Production Line:
Pull Out Infrared Sensor Commercial Kitchen Faucet
We have four production lines in our workshop:1,sensor,2,control box 3,body assemable,4,testing.
So far,we are the biggest production capacity manufacturer in automated sanitary ware feild.
Packing Detail:
Pull Out Infrared Sensor Commercial Kitchen Faucet
We provide different packings for your selection:Neutral paper box or customized box.
1) regular standard packing
2) foam based packing
3) Paper holder packing
Company Equipement:
Pull Out Infrared Sensor Commercial Kitchen Faucet
To supply the qualified bathroom product,OLT is equipped with different necessary equipments
to make sure all the material and production are 100% satisfication.
1)Acid Salt Spray Testing
2)3D printer
3)RoHS material testing
4)Air leakage testing
5) High /low temperature testing for electronic components
6)Precision instrument
7)Life testing
Cetification:
Pull Out Infrared Sensor Commercial Kitchen Faucet
Our product have been marketed worldwidely,Mainly to Europe .Most of our models are Cupc,CE,Wras,Watermark Certified. To meet our different customers' requirement, We
provide different water flow areator,various approval hoses and material to meet the market.
Product Installation
Faucet Rough-In
1A: INSTALL FLEX HOSE AND MOUNTING STUDS
A Install Mounting Stud,
B Install Flex Hose
2A:INSTALL SPOUT, TRIM PLATE AND SPACER
2B:INSTALL SPOUT
A: Apply a bead of plumbers putty around the outside of the upc kitchen faucet underbody.
3A;INSTALL RUBBER GASKET, RETAINER, AND RETAINER NUT(S)
Secure upc kitchen faucet to the Deck by installing Rubber Gasket, Retainer and Retainer Nut(s). Tighten Retainer Nuts securely. Do not over-tighten.
4A:INSTALL CONTROL MODULE IN AN APPROPRIATE LOCATION (SEE ROUGH-INS)
A, Using Control Module as a template, mark mounting holes on wall. When installed, Sensor Cable and Flex Hose need some
slack.
B, Drill 1/4” (6 mm) hole at each mounting hole location.
C, Install Plastic Anchors (supplied) into mounting holes in wall.
D, Install Control Module to wall using Fasteners supplied.
4B: CONNECT SENSOR CABLE AND WATER LINES TO CONTROL MODULE
4-1,Connect Water Line (supplied with INTL Mode only) to Supply Stop and Control Box.
4-2,Connect Flex Hose (from upc kitchen faucet).
4-3,Connect Sensor Cable (from upc kitchen faucet ).
Note: Do not use the pipe thread sealand.
5: INSTALL BATTERIES
5-1,Loosen Cover Screws and remove Cover from Control Module
5-2, Remove Battery Compartment, remove compartment lid using screwdriver and install four (4) AA-size batteries (supplied) as indicated by the (+) and (—) symbols inside the Battery Compartment. Replace compartment lid and tighten with screwdriver.
5-3, Reinstall Battery Compartment into the Control Module.
5-4, Reinstall Control Module Cover using all four (4) Screws.
6:CONNECT ADAPTER (ADAPTER POWERED MODELS ONLY) AND TURN ON WATER SUPPLY
6-1,Plug Adapter Jack into Control Module.
6-2, Plug Adapter in Receptacle.
6-3 Turn on Water Supply.
7: TEST FAUCET OPERATION
